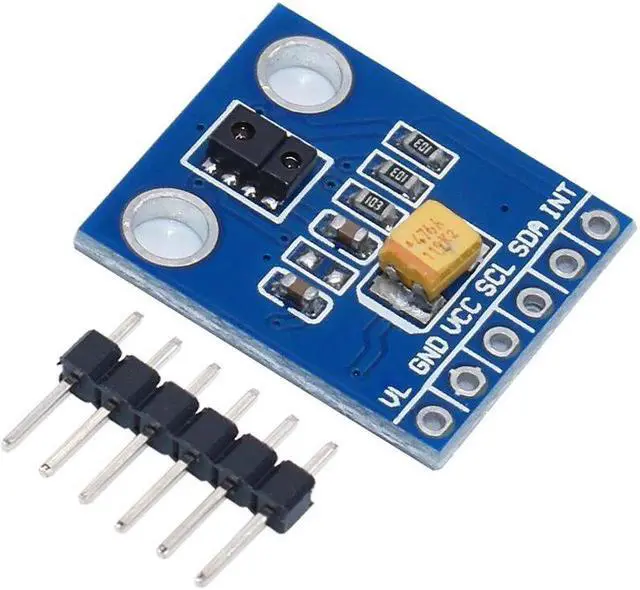

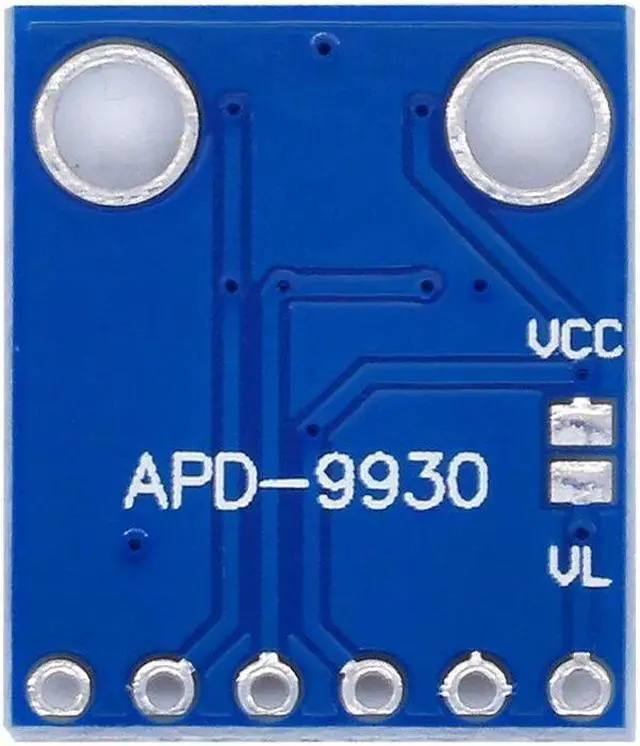

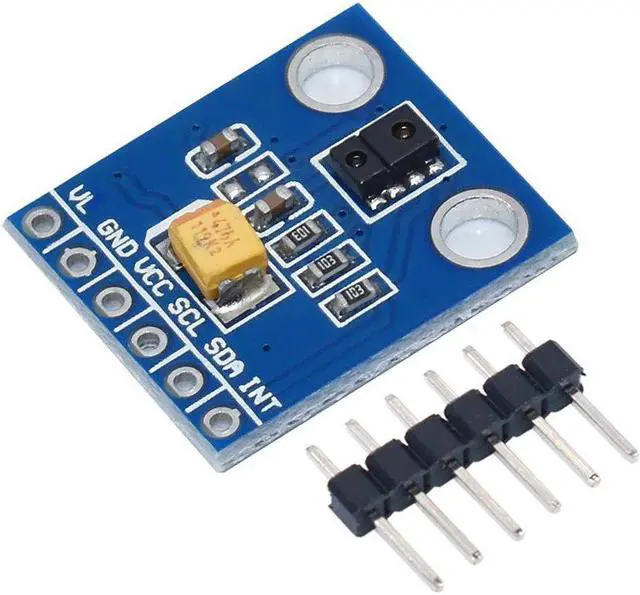

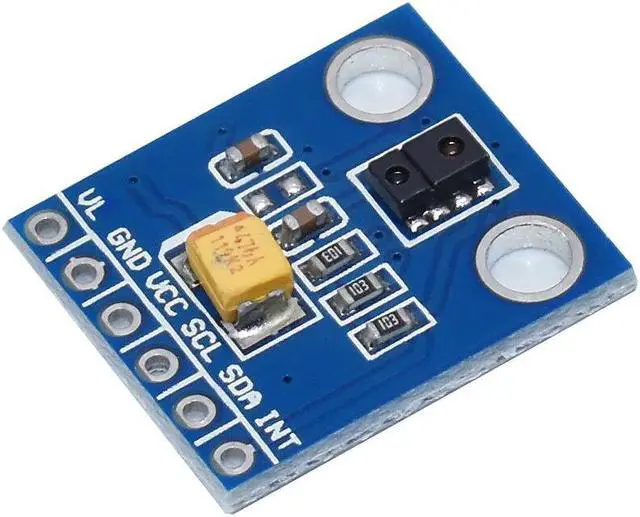

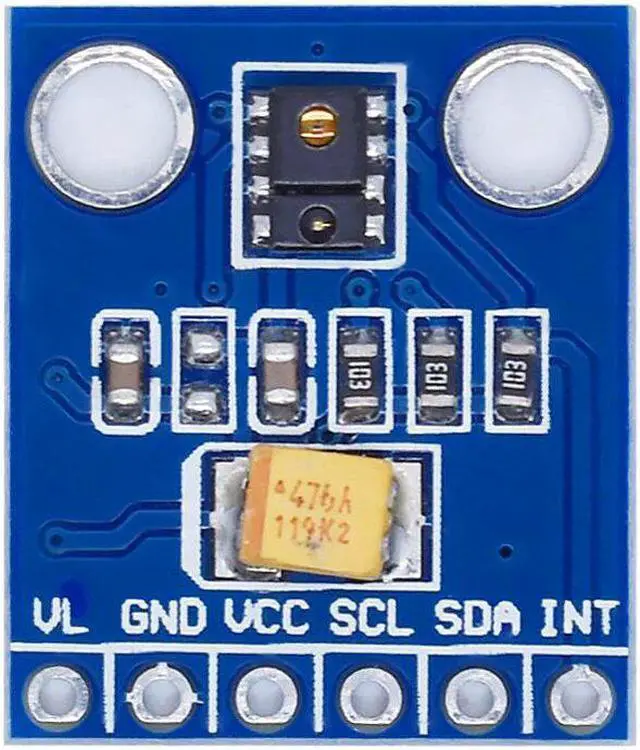

APDS-9930 Non-contact Detection of Proximity and Gesture Posture RGB Sensor Module

Description:

The APDS-9930 provides an I2C interface compatible Ambient Light Sensor (A LS,Ambient Light Sensor) and proximity Sensor with infrared LED in a single 8-pin package. The Ambient Luminance Sensor uses dual photo diodes to approximate the human eye's visual response with low lumen performance at 0.01 Lux illuminance, providing high sensitivity that allows the device to operate behind dark glass. Proximity sensors are fully calibrated for 1 00 mm object detection, eliminating the need for factory calibration of terminal equipment and secondary components. Proximity detection works well in everything from bright sunlight to dark rooms. The micro opticaI lens is added into the module to provide high efficiency transmission and reception of infrared energy, which can reduce the over all power consumption. In addition, the internal state machine can put the device into low power mode, resulting in very low average power consumption.

Product features:

1. Integrated ALS, infrared LED and proximity detector optical module

2. Ambient Light Sensing (ALS)? A visual response similar to that of the human eye

3. Programmable interrupt function with upper and lower thresholds

4. Up to 1 6 bit resolution

5. High sensitivity after dark glass operation

6. 0.01 Lux low lumen performance

7. Proximity test is fully calibrated to 1 00 mm test

8. Integrated infrared LED and synchronous LED drivers

9. Eliminate factory calibration of proximity sensors

10. Programmable wait timers? Waiting state power-90 1 A typical

11. Programmable range from 2.7 milliseconds to more than 8 seconds

1 2. I2C interface compatible up to 400KHz (I2C fast mode)

1 3. Special interrupt pin

1 4. Sleep mode power -2.2 u A typical value
