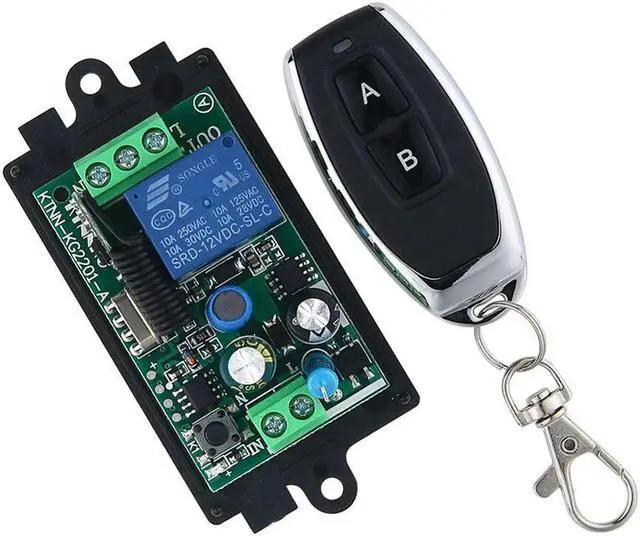

AC90-250V 10A 433MHz Wireless Remote Control Switch ON/OFF Receiver Transmitter for LED Light Bulb

Receiver Description:

1, the working voltage: AC90V- 250V

2, quiescent current: 8mA

3, operating frequency: 433MHz

4, charging power: 10A

5, receiving sensitivity: -105dbm

6, frequency deviation: ± 0.2MHz

7, coding method: learning type

8, working mode: jogging, self-locking, locking

9, modulation method: ask

10, remote control distance: 30-50M (wild)

11. PCBA size: 65.2mm * 35.5mm * 18mm

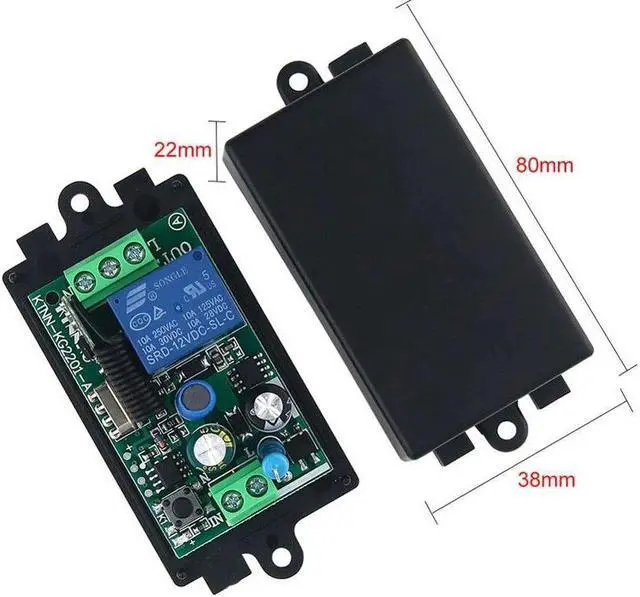

12, shell size: 85mm * 40mm * 25mm

Package included:

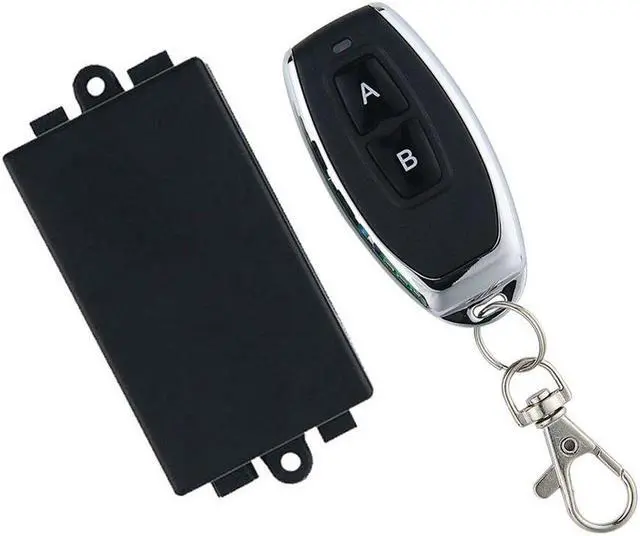

1 x Wireless Remote Control Switch

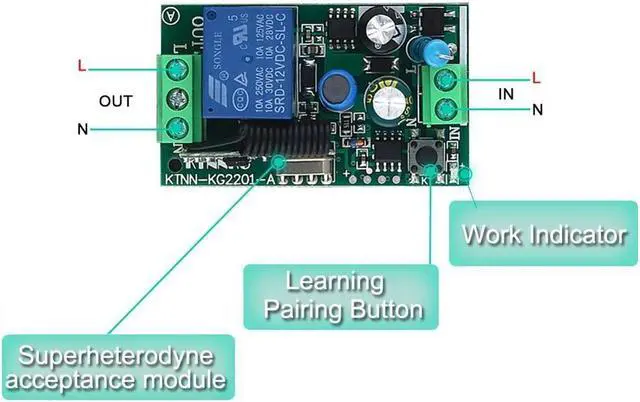

Erase data:

Press the pairing learning button 8 times until the LED indicator flashes 5 times learned continuously. This means that the data is cleared successfully and all the remote controls are cleared.

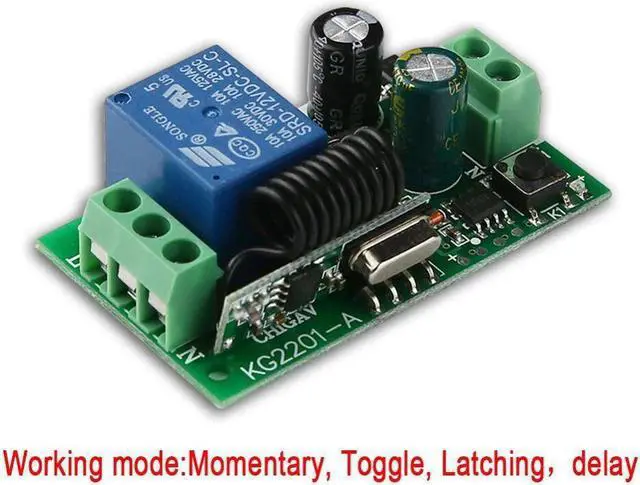

Explain the output method:

1. Self-locking / toggle: press the same remote control button, press, relay open, press again, relay off.

2. Locking / locking: press the "A" key on the remote control, the relay opens, press the "B" key on the remote control, the relay is off.

3, jog / momentary: press "A" button on the remote control, the relay will open, release the "A" button on the remote control, the relay off. If you keep pressing the "A" button on the remote, the relay will stay on. When you release the remote, the relay turns off.

NOTE:

1. Do not run on electricity. Turn off the power and turn it on. Check the power supply after use.

2. When the remote control voltage is insufficient, please change the battery in time (when the remote control battery voltage is insufficient, the general remote control distance becomes close).
