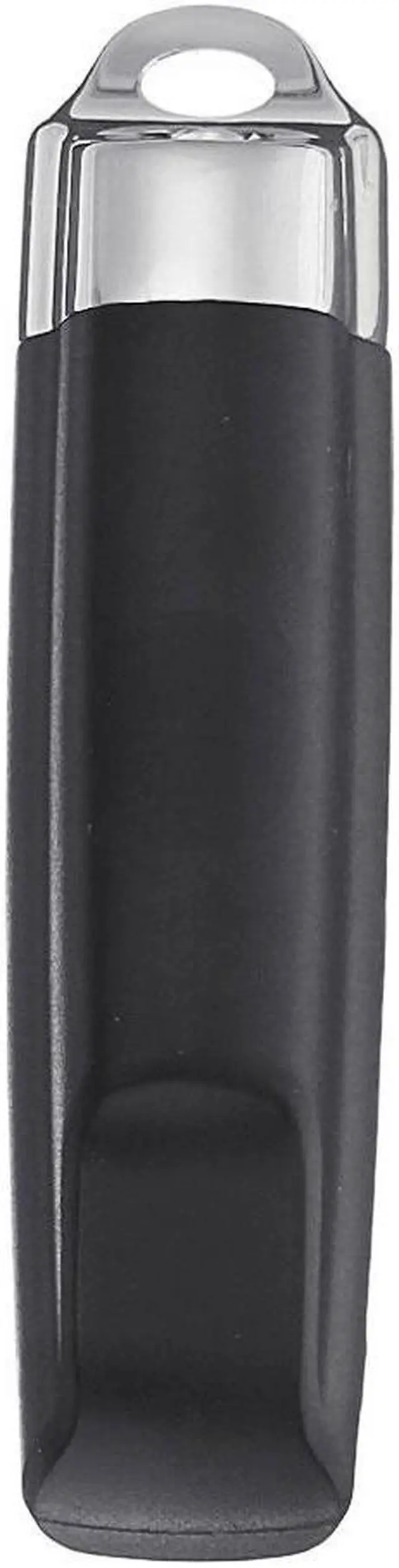

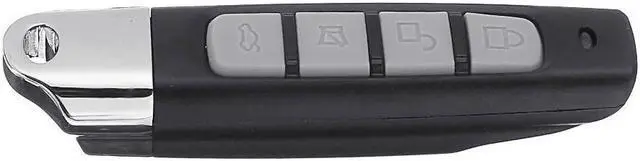

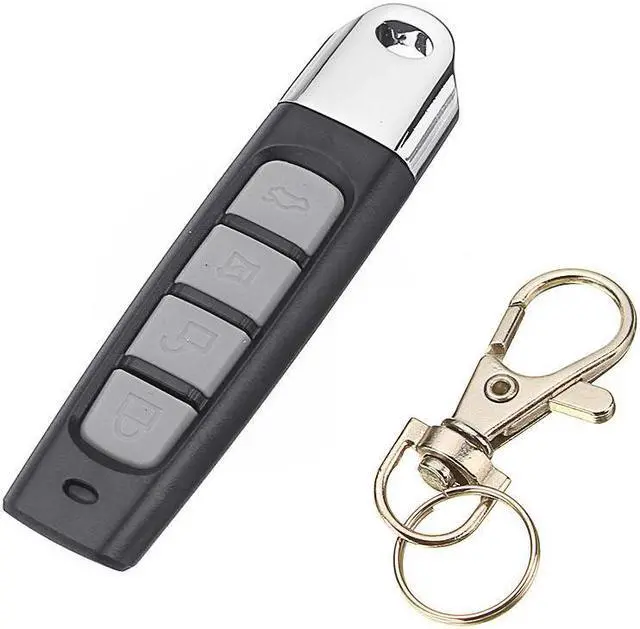

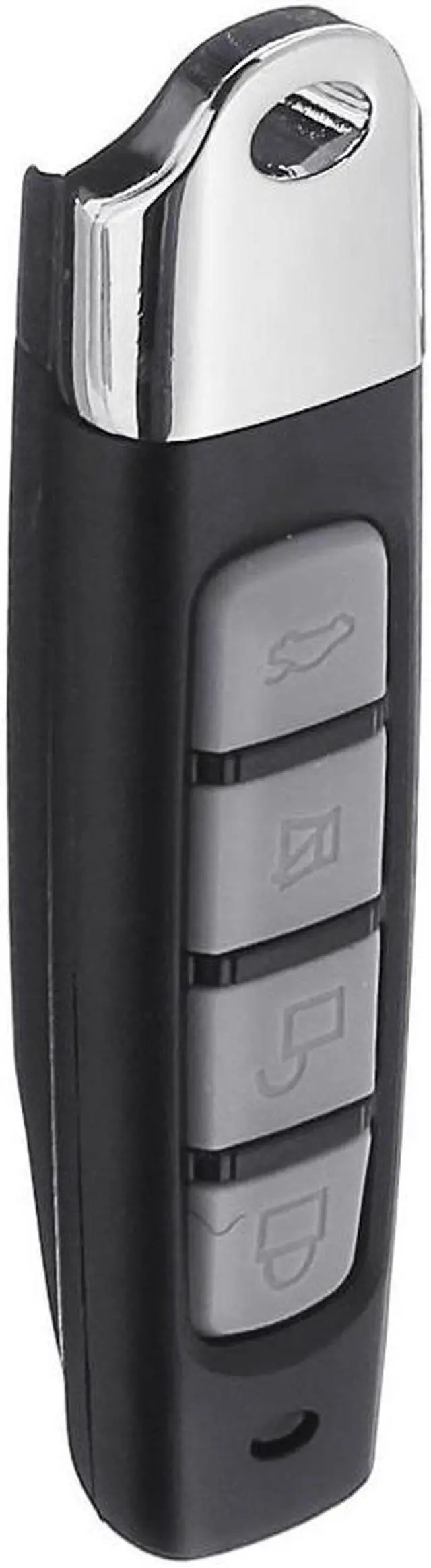

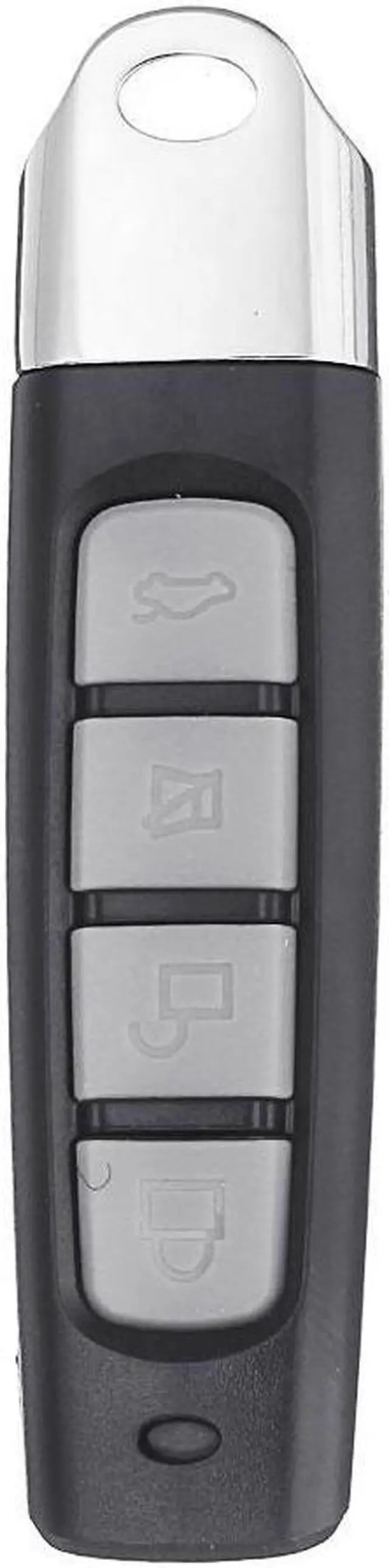

433MHz Mini Cloning Remote Control 4 Keys Electric Copy Controller Wireless Transmitter SwitchFor Car Door Lock

Technical Parameters:

1 Working voltage: DC3V

2 working current: 240mA

3 Working frequency: 433MHZ

4 Transmit power: +13dbm

5 remote control distance: 150M

6 Modulation method: ASK

7 code way: smart copy type

8 Working environment: -45 to 75 °C

Features:

The newly developed Smart Copy Remote Control is a new self-learning copy remote control that can easily copy another remote control of the encoding method to the remote control, thus having all the functions of the original remote control.

1. High copy accuracy and high copy efficiency.

2. The error between the copy data code and the copy oscillating resistor is small, and the copy is not lost.

3. Copy the oscillation resistor range from 1.2M to 6.2M wide.

4. The circuit design is stable, the button is no longer used as the power supply wire, and the high current triode is controlled separately to improve the power supply dynamics.

5. One-click smart copy to improve work efficiency.

6. Multi-functional and multi-variable, personalized and user-friendly design is simple and fast to use.

7. Adopt imported high frequency triode, the transmission power is 13dbm. Less dead ends.

8. Can copy commonly used chips: PT2264, PT2262, PT2260, PT2240, SC2262, SC2260, EV1527, SCT527, HS1527, HS2240, SCL1527, FP1527, etc., the general suffix can be the same.

9. This smart copy remote control is suitable for customers with electric door remote control, telescopic door remote control, garage door remote control, motor control remote control, curtain control remote control, car and motorcycle remote control.

Method of operation:

1. Data clearing:
