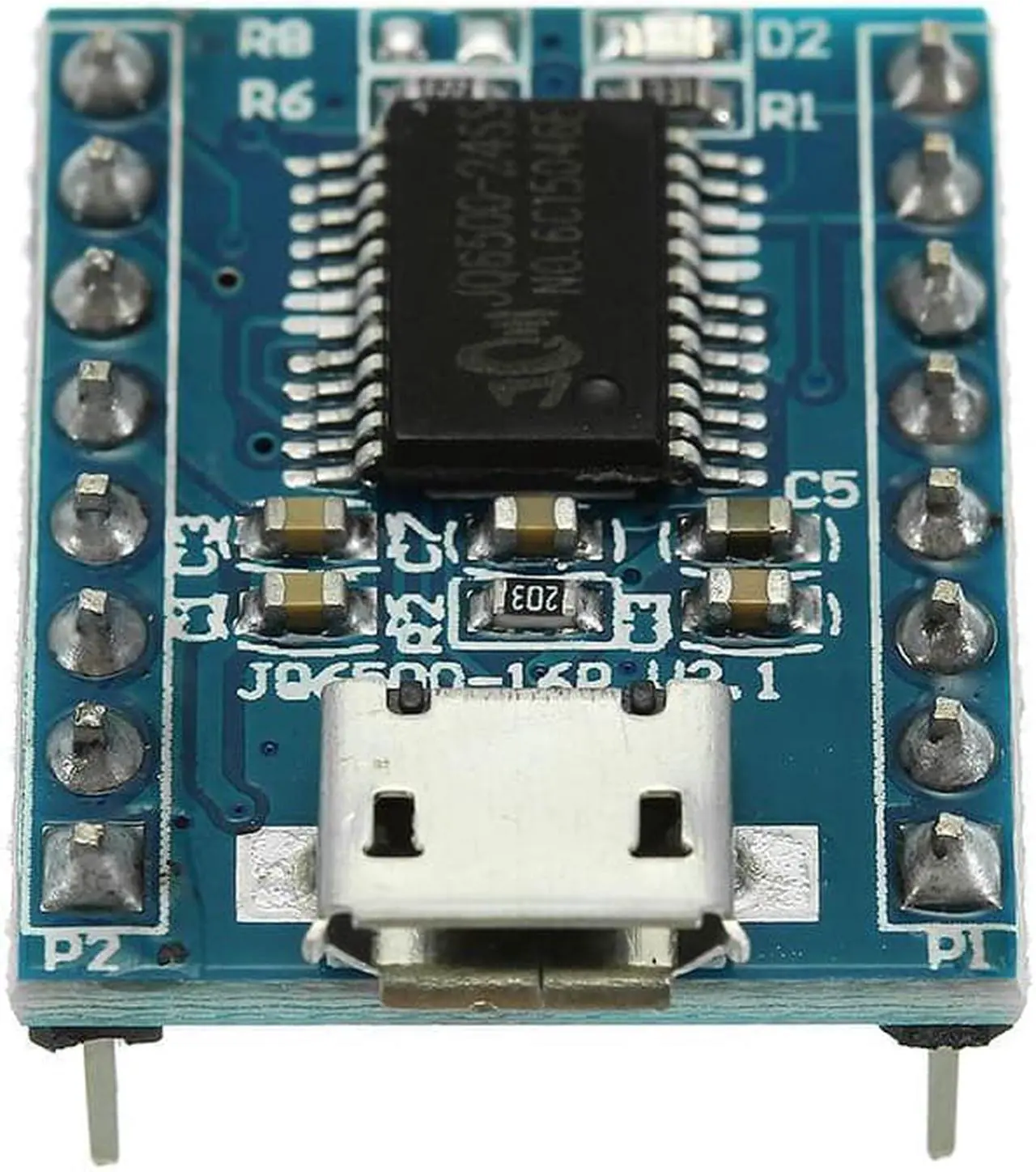

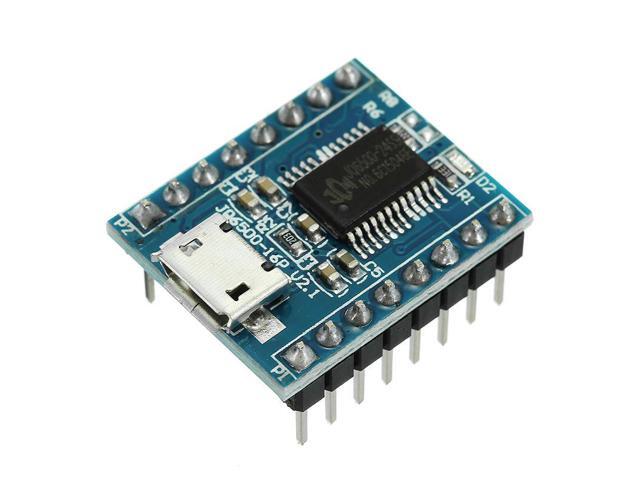

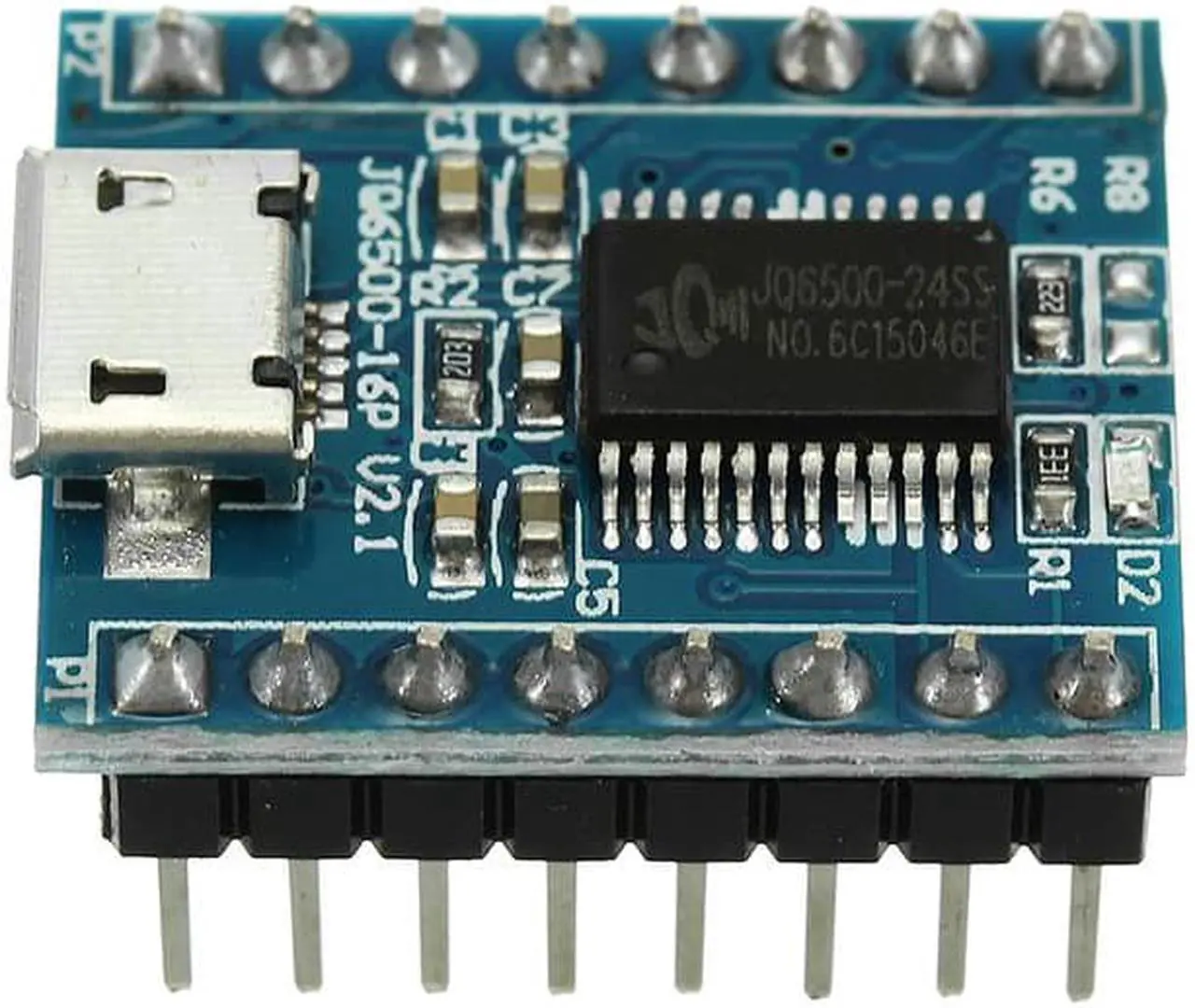

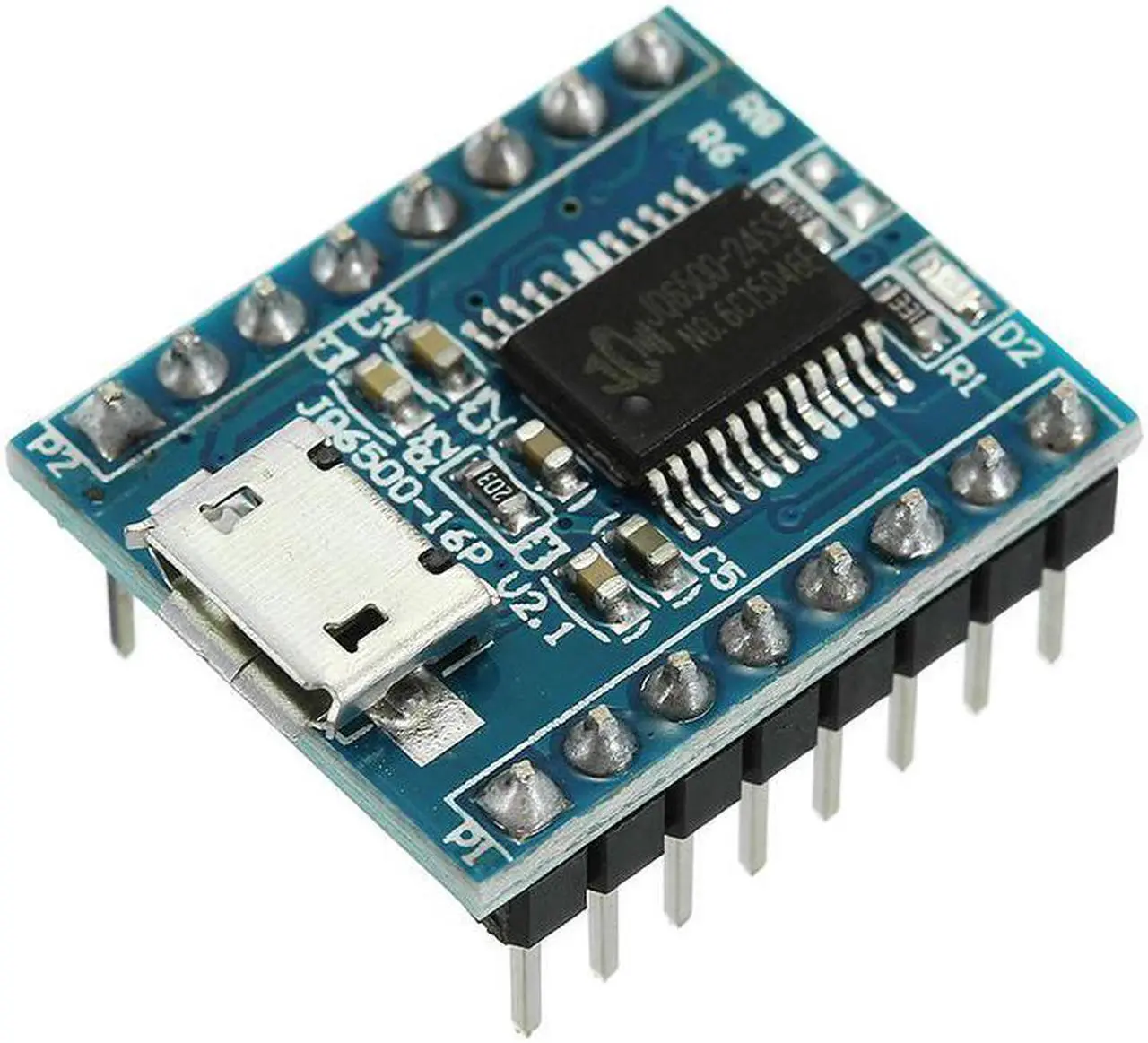

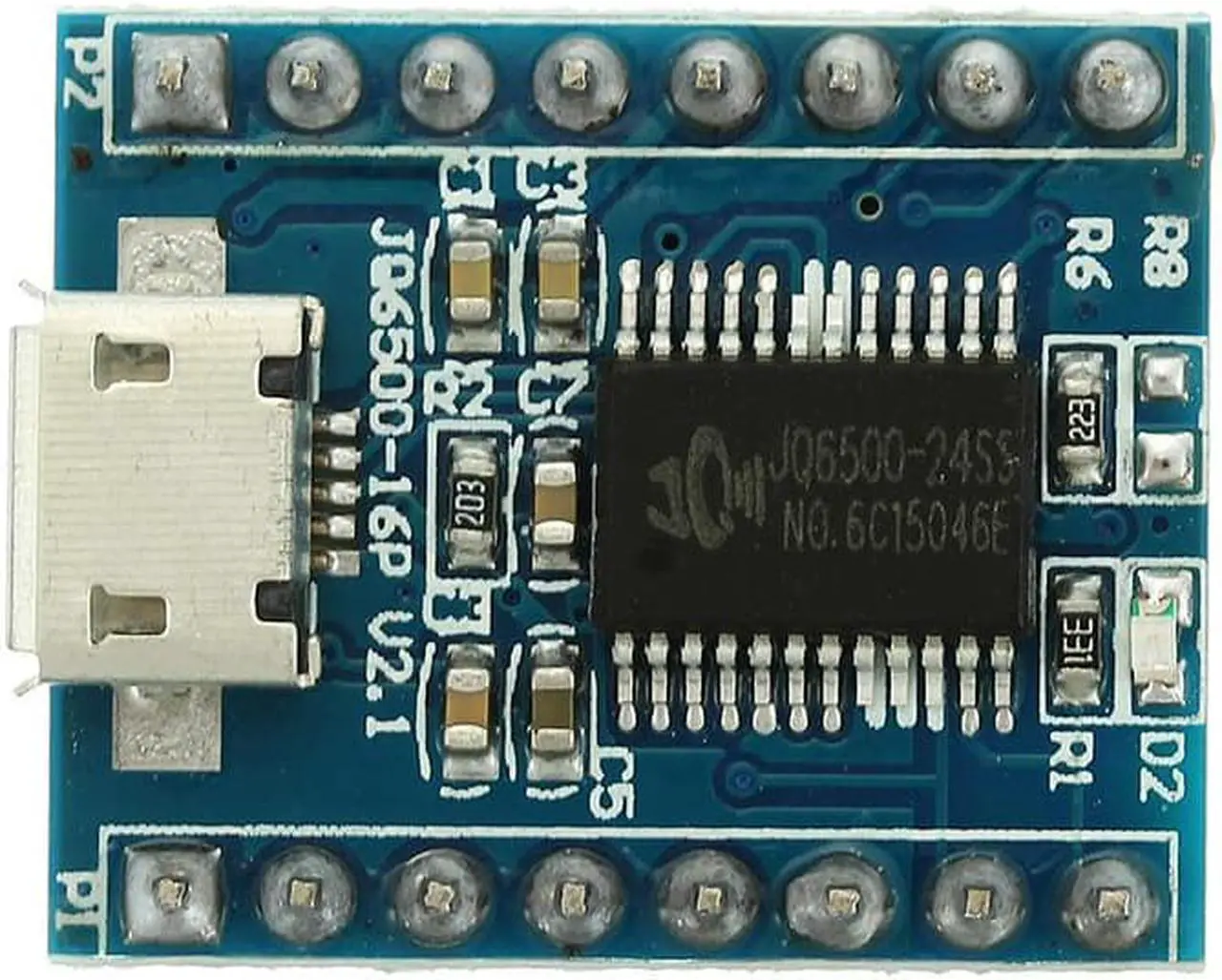

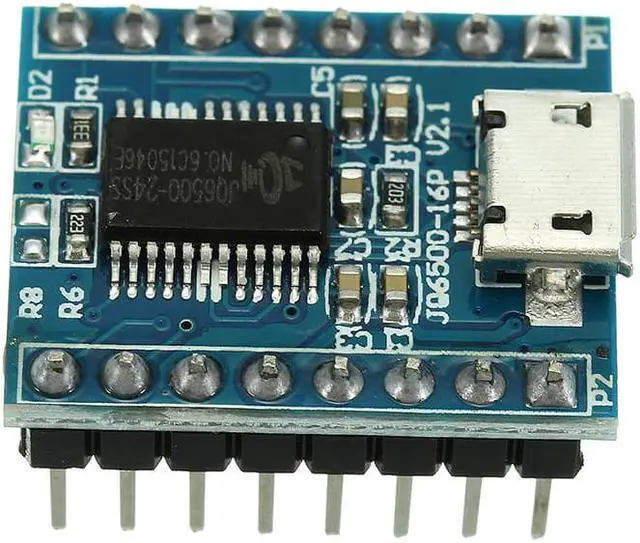

5Pcs JQ6500 Voice Sound Module USB Replace One To 5 Way MP3 Voice Standard 16M

File download:

Description:

JQ6500 is a serial chip to provide MP3, the perfect integrated MP3, WMV hard decoding. At the same time software support TF card driver, support the computer directly update spi flash content, support FAT16, FAT32 file system. Through a simple serial command to complete the playback of the specified music, and how to play music and other functions, without cumbersome the underlying operation, easy to use, stable and reliable is the biggest feature of this product. In addition, the chip is also a deep customization of products, designed for fixed voice playback in the field of low-cost solutions.

Features

1. Support sampling rate (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48

2. 24-bit DAC output, dynamic range support 90dB, SNR support 85dB

3. Full support FAT16, FAT32 file system, the largest support 32G TF card, support 32G U disk, 64M bytes NORFLASH

4. A variety of control mode, parallel port control mode, serial port mode, AD button control mode

5. Broadcast language spots, you can pause the background music is playing

6. The audio data sorted by folder, up to 100 folders, every folder can be assigned 1000 songs

7. 30 level adjustable, 10 EQ adjustable

8. You can plug in SPI flash, connect the computer can display spi flash letter to update the content;

9. Can be controlled through the microcontroller serial port to play the specified music;

10. In the key mode, you can play mode selection: can be interrupted, can not be interrupted, single cycle, large cycle;

Can be interrupted: that is, in the process of playing, press the button will interrupt the current state to perform the new;
