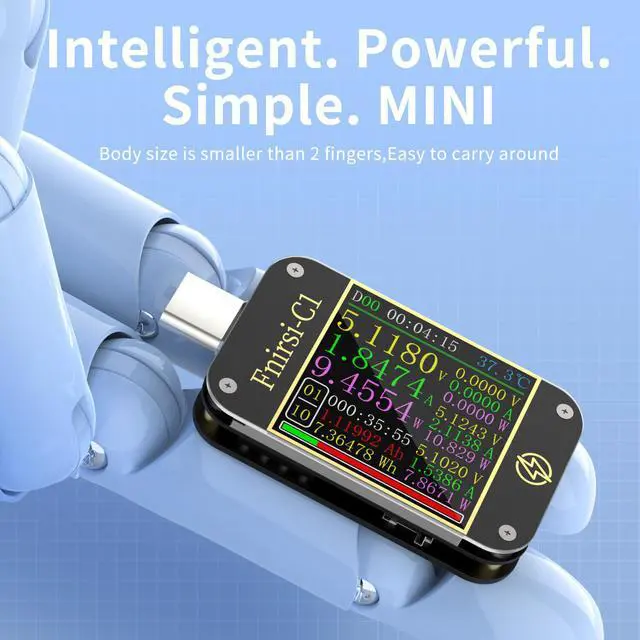

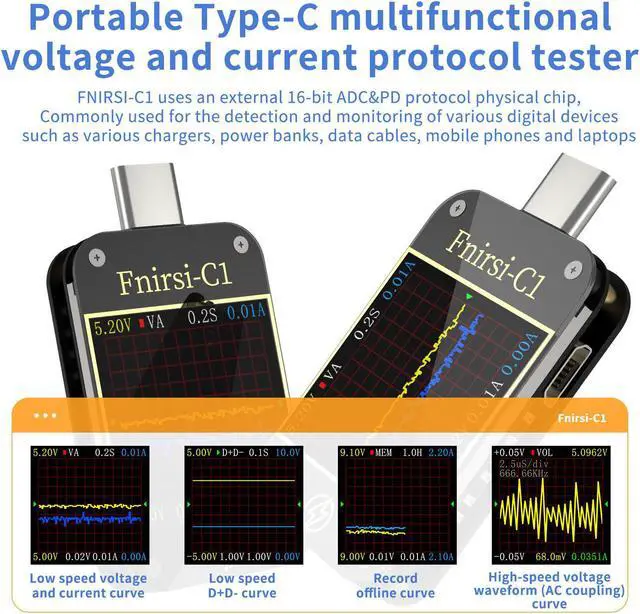

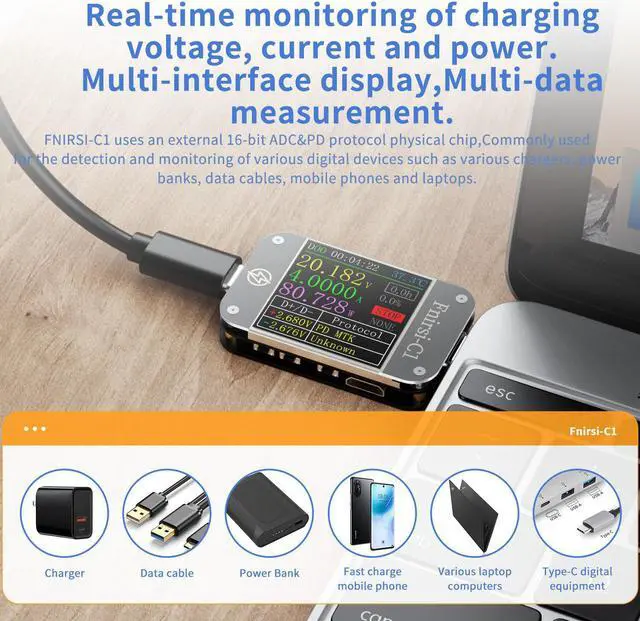

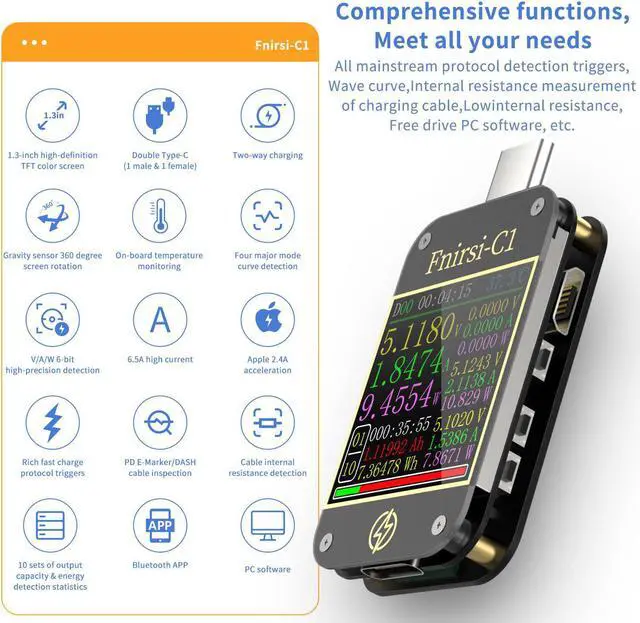

FNIRSI-C1 Type-C PD Trigger USB-C Voltmeter Ammeter Fast Charging Protocol Test Type-C Meter Power Bank Detector Has PC Software

Specifications:

Monitoring voltage: 4~24V

Monitor voltage resolution: 0.00001V

Monitoring voltage accuracy: ±(0.2+2)

Monitoring current: 0~6.5A

Display current resolution: 0.00001A

Monitoring current accuracy: ±(0.5+2)

Display power: 0~130W

Display current resolution: 0.00001W

Monitoring current accuracy: ±(0.5+2)

Load equivalent resistance: 0~9999.9

Load equivalent resistance resolution: 0.0001

Load equivalent resistance accuracy: ±(0.5+2)

Capacity: 0~9999.99Ah

Use energy: 0~9999.99Wh

Cable resistance: 0~9999.9

D+/D- voltage: 0~3.3V

D+/D- voltage resolution: 0.001V

D+/D- voltage accuracy: ±(1.0%+2)

Equipment temperature: /

Package size: 50*25*8mm / 1.97* 0.98 * 0.31in

Package weight: 47g / 1.66oz

Compatibility

There may be incompatibilities problems of the PC software with some Windows systems, if you really need it, please install and test the software before buying the product.

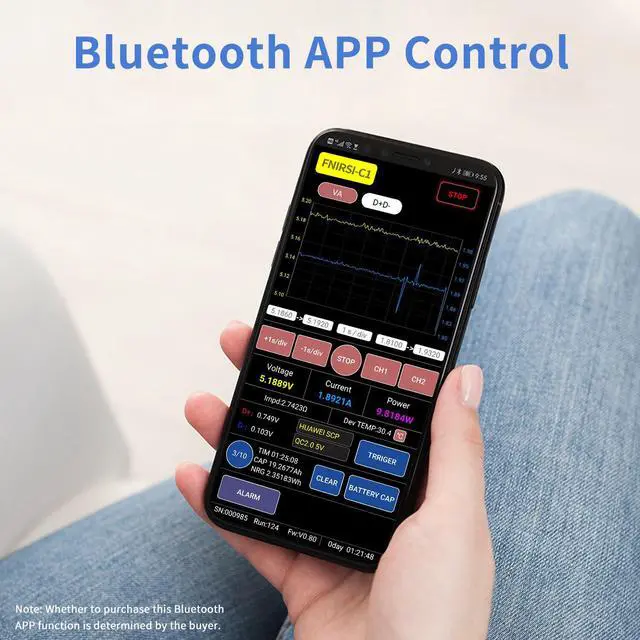

There are many types of mobile phones and operation systems, so there may be incompatibilities, if you need APP, please install and test the APP before buying the product.

If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.

Please do install and test the APP if you use Sam0sung mobile phone.

Package Included:

1 x FNIRSI-C1 Type-C PD Trigger USB-C Voltmeter Ammeter
