Khadas Transparent DIY Case for All VIM SBCs (equiped with Iron metal plate)
- Compatible with VIM2 v1.4 and VIM1 (requires slight DIY-modification for Edge-V)
- Suit for New VIM Heatsink (VIM2 v1.4, VIM1) and Original VIM Heatsink (VIM1)
- Cooling fan mountable (3705 Cooling Fan)
- All primary ports including buttons accessible
- Clip-on GPIO lid allows access to those wonderful GPIO pins
- Removable top and bottom covers for stacking up on cluster application
- Power and activity lights visible through the end of the case
- Infrared remote controller works excellent
- Snug and secure fit protects your VIMs board and looks gorgeous
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Material:
Metal Plate: Iron
Case: Polycarbonate
Color: Transparent
Weight:
Metal Plate: 69g
Case & Screw Sets: 43g
Product: 112g
Dimensions:
Metal Plate: 82.3 * 56.8 * 2.3 mm
Product: 96.5 * 70.0 * 23.5 mm
Compatibility
VIM1
VIM1S
VIM2 v 1.4
VIM3 v11 and higher
VIM3L v12 and higher
VIM4(without a inlet for VIM4's Micro HDMI port)
3705 Cooling Fan
3004 Cooling Fan
New VIM Heatsink
Original VIM Heatsink
Compatible with DIY-Modification:
Edge-V (cut a slot for the second USB-C port on the bottom)
3705 Cooling Fan (raise the top cover by 1-2mm using spacers)
Incompatible
Edge

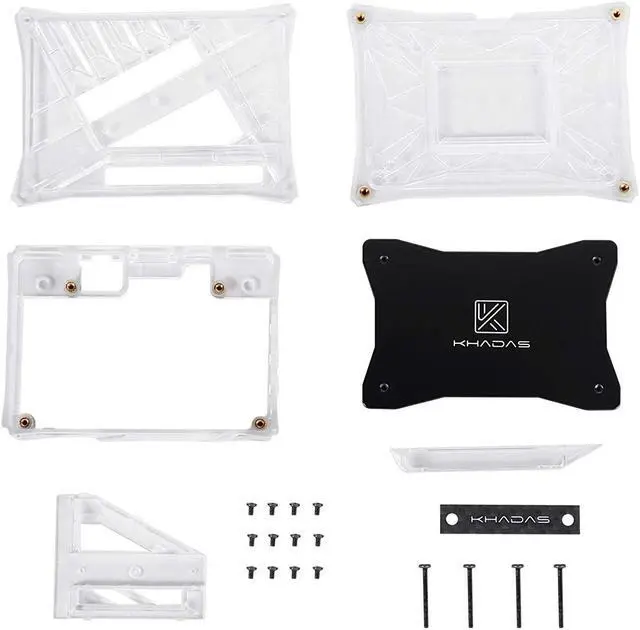

In the Box
DIY Case
Screw Sets
Metal Plate (Optional)
Metal Plate: Iron
Case: Polycarbonate
Color: Transparent
Weight:
Metal Plate: 69g
Case & Screw Sets: 43g
Product: 112g
Dimensions:
Metal Plate: 82.3 * 56.8 * 2.3 mm
Product: 96.5 * 70.0 * 23.5 mm
Compatibility
VIM1
VIM1S
VIM2 v 1.4
VIM3 v11 and higher
VIM3L v12 and higher
VIM4(without a inlet for VIM4's Micro HDMI port)
3705 Cooling Fan
3004 Cooling Fan
New VIM Heatsink
Original VIM Heatsink
Compatible with DIY-Modification:
Edge-V (cut a slot for the second USB-C port on the bottom)
3705 Cooling Fan (raise the top cover by 1-2mm using spacers)
Incompatible
Edge
In the Box
DIY Case
Screw Sets
Metal Plate (Optional)
