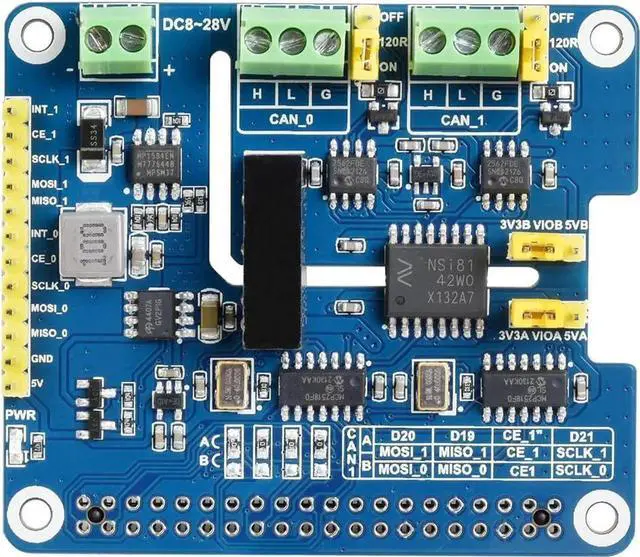

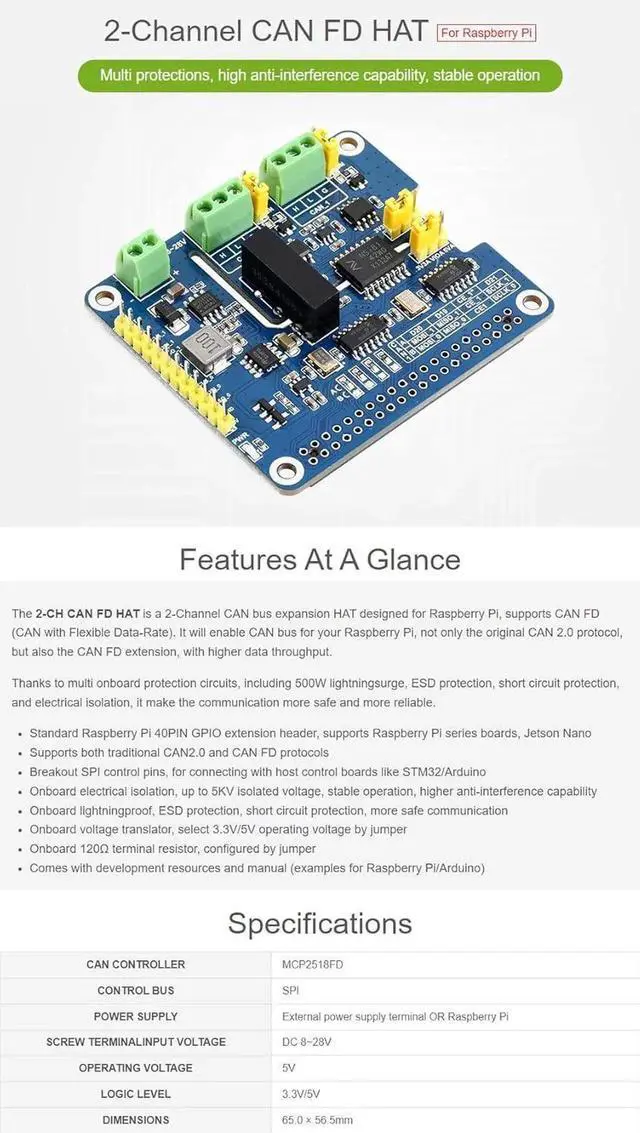

2-Channel Isolated CAN FD Expansion HAT, Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, CAN FD Support Multi Onboard Protection Circuits
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Supports both traditional CAN2.0 and CAN FD protocols. Breakout SPI control pins, for connecting with host control boards like STM32/Arduino

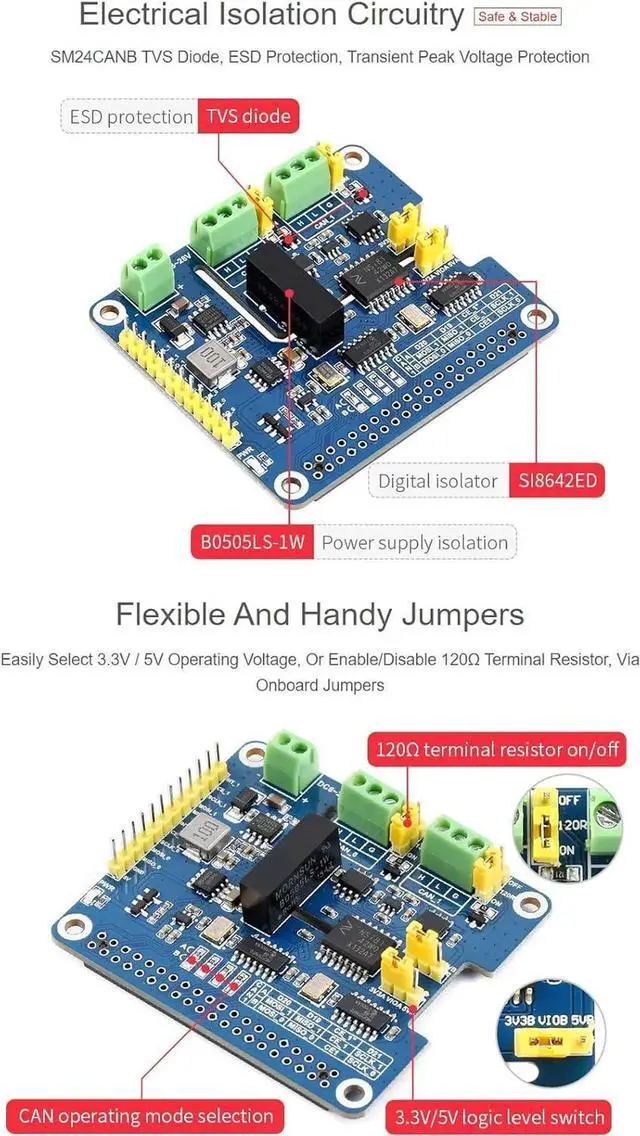

- Onboard electrical isolation, up to 5KV isolated voltage, stable operation, higher anti-interference capability
- Onboard lightningproof, ESD protection, short circuit protection, more safe communication. Onboard voltage translator, select 3.3V/5V operating voltage by jumper
- Onboard 120 terminal resistor, configured by jumper . Comes with development resources and manual (examples for Raspberry Pi/Arduino)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Supports both traditional CAN 2.0 and CAN FD protocols. Breakout SPI control pins, for connecting with host control boards like STM32/Arduino
Onboard electrical isolation, up to 5KV isolated voltage, stable operation, higher anti-interference capability
Onboard lightningproof, ESD protection, short circuit protection, more safe communication. Onboard voltage translator, select 3.3V /5V operating voltage by jumper
Onboard 120 terminal resistor, configured by jumper. Comes with development resources and manual (examples for Raspberry Pi/Arduino)
