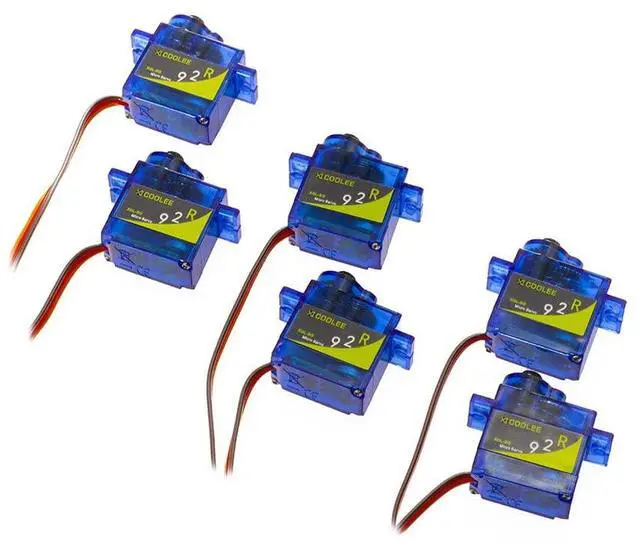

SG-92 9G Micro Digital Servo Nylon Carbon Fiber Gears High Precision Gear High Torque Servo for programmable Fixed Wing, Helicopter KT, Intelligent car, Small Robot DC4.8V/6V(6pcs)
- 1.Strong compatibility, whether it is the program or mechanical structure for standard building blocks, as far as possible compatible processing;; 2.It is made of environment-friendly POM plastic, which is small, light and not easy to be damaged;; 3.Suitable for fixed wing, helicopter KT, gliding, intelligent car, small robot manipulator and other models;; 4.Classic 9g Servo, control is simple, 3Pin 2.54mm DuPont cable Header;; 5.Supply Voltage:DC4.8V-6V, Operating speed(at no load): 4.8V 0.12±0.01sec/60°6V 0.1±0.01sec/60°
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview: The product can control the rotation speed and direction of the output shaft. It is made of environment-friendly POM plastic, which is small, light and not easy to be damaged. The internal integrated reduction gear can increase the torque and is suitable for programmable fixed wing, helicopter KT, glide, intelligent car, small robot manipulator and other models.
Voltage: DC 4.8V / DC6V Operating speed (at no load): 4.8V 0.12 ± 0.01 sec/60° 6V 0.1 ± 0.01 sec/60°
Running current (at no load): 4.8V 200±20mA 6V 220±20mA
Stall torque (at locked): 4.8V 1.5 ± 0.01 kg-cm 6V 1.8 ± 0.1 kg-cm
Stall current (at locked): 4.8V 700±30mA 6V 900±30mA
Idle current (at stopped): 4±1mA
Weight: 9g Storage Temperature Range-2060 Operating Temperature Range-1050 Control systemChange the pulse width Amplifier typeController Operating travel90±5° (in 10002000sec) Left&Right travelling3° Centering deviation1° Neutral position1500sec Dead band width5sec Rotating directionCounter Clockwise (1500500sec) Pulse width range8002200sec Maximum travelAbout 145° (in 8002200sec) Connect Wire DefinitionsRed lead -VCC, Brown lead -GND, Yellow lead -PWM
Package contents: 1. SG-92 Micro Servo motor×6
Specifications
: SupplyVoltage: DC 4.8V / DC6V Operating speed (at no load): 4.8V 0.12 ± 0.01 sec/60° 6V 0.1 ± 0.01 sec/60°
Running current (at no load): 4.8V 200±20mA 6V 220±20mA
Stall torque (at locked): 4.8V 1.5 ± 0.01 kg-cm 6V 1.8 ± 0.1 kg-cm
Stall current (at locked): 4.8V 700±30mA 6V 900±30mA
Idle current (at stopped): 4±1mA
Weight: 9g Storage Temperature Range-2060 Operating Temperature Range-1050 Control systemChange the pulse width Amplifier typeController Operating travel90±5° (in 10002000sec) Left&Right travelling3° Centering deviation1° Neutral position1500sec Dead band width5sec Rotating directionCounter Clockwise (1500500sec) Pulse width range8002200sec Maximum travelAbout 145° (in 8002200sec) Connect Wire DefinitionsRed lead -VCC, Brown lead -GND, Yellow lead -PWM
Package contents: 1. SG-92 Micro Servo motor×6
