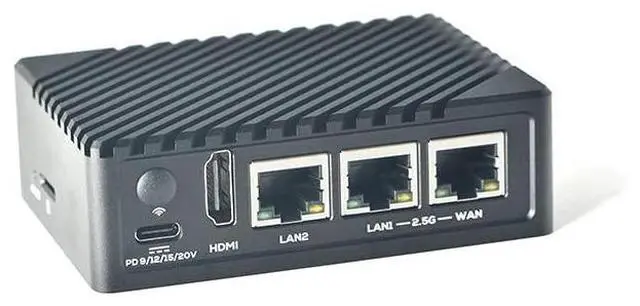

Nanopi R6S Metal case (Not Include R6S Development Board)

Product description
Tips: If you have any other questions, please click youyeetoo to feedback. Thanks. The delivery timeliness of Amazon logistics depends on Amazon. The basic logistics time for self-shipping is 7-14 days, and express logistics is 3-7 days. Due to the passive heat dissipation design adopted, heat generation from the casing is a normal phenomenon and will not affect actual use. FriendlyWrt comes pre-installed, if you want to use another system, you can reinstall it according to the wiki instructions
Hardware Spec SoC: Rockchip
RK3588S RAM: 64-bit 8GB LPDDR4X at 2133MHz
Flash: 32GB eMMC, at HS400 mode
Ethernet: one Native Gigabit Ethernet, and two PCIe 2.5G
Ethernet USB: one USB 3.0 Type-A and one USB 2.0
Type-A HDMI: compatible with HDMI 2.1, HDMI 2.0, and HDMI 1.4 operation; support up to 7680x4320@60Hz; Support RGB/YUV (up to 10bit) format microSD: support up to SDR104 mode
GPIO: 12-pin 0.5 mm FPC connector; with up to 1x SPI, up to 3x UAR
Ts, up to 1x I2Cs, up to 2x SPDIF, up to 8x GPI
Os Debug: one Debug UART, 3 Pin 2.54 mm header, 3.3V level, 1500000bps
LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)
others: 2 Pin 1.27 / 1.25 mm RTC battery input connector for low power RTC IC HYM8563TS; one IR receiver and the carrier frequency is 38Khz; MASK button for eMMC update; one user button; one 5V Fan connector
Power supply: USB-C, support PD, 5V/9V/12V/20V input
PCB: 8 Layer, 62x90x 1.6 mm
OS Support: FriendlyWrt 21.02; FriendlyWrt 22.03; Android 12 Tablet; Android 12 TV; FriendlyCore Lite 20.04; Debian 10 Desktop; Debian 11 Desktop; Ubuntu 22.04
Desktop Kernel version: Linux- 5.10 -LTS; U-boot- 2017.09 Dimension PCB 8 Layer; Weight 55.1 gwithout Case) / 262gwith Case); 62x90x 1.6 mm (without Case) / 68x 94.5 x30mm (with Case) What we offer Nanopi R6S Buying Options Nanopi R6S Buying Options Nanopi R6S Buying Options Nanopi R6C Add to Cart NanoPC-T6 Buying Options Nanopi R5S Add to Cart Customer Reviews 4.7 out of 5 stars 14 4.1 out of 5 stars 9 5.0 out of 5 stars 1 3.8 out of 5 stars 3 4.6 out of 5 stars 4 Price $ 159.00 $159. 00 $ 129.90 $129. 90 SoC Rockchip RK3588S Rockchip RK3588S Rockchip RK3588S Rockchip RK3588S Rockchip RK3588 Rockchip RK3568B2 Version 8 GB RAM + 32GB eMMC 8 GB RAM + 32GB eMMC 8 GB RAM 32GB eMMC only board 8 GB RAM + 32GB eMMC 16 GB RAM + 256GB eMMC 4 GB RAM + 16GB eMMC Power Supply Metal Case Ethernet port If you need to change systems, please refer to the wiki first. If want to use openwrt, The following links may help you. forum. openwrt. org/t/nanopi-r6s-with-openwrt/167611 github. com/mj22226/openwrt/releases QWith the official OpenWrt firmware and the FriendlyWrt firmware, is there any difference? A OpenWrt officially uses a mainline kernel and uboot.

FriendlyWrt uses a customized kernel and uboot based on cpu manufacturer rockchip. For the upper layer file system, is basically the same.
