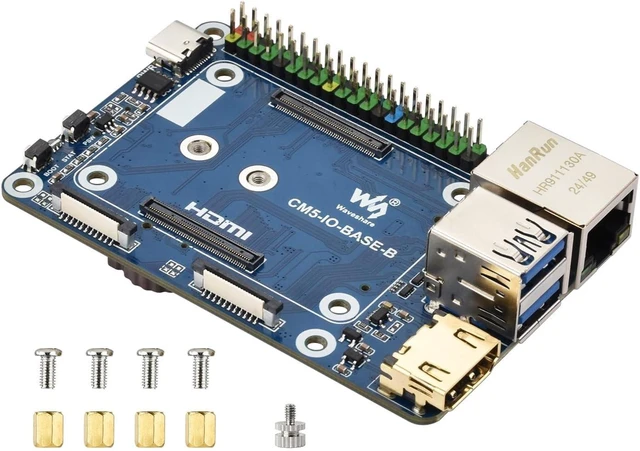

Waveshare Mini Base Board (B), Compatible with Raspberry Pi Compute Module 5, Onboard EEPROM and Encryption Chip
- USB and M.2 Expansion: It includes two USB 3.2 Gen1 Type-A ports, two USB 2.0 ports, and an M.2 M KEY (2230/2242) connector for further device integration. Additionally, it offers flexible connectivity options with a 6PIN 1mm FFC connector for USB and M.2 interfaces.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

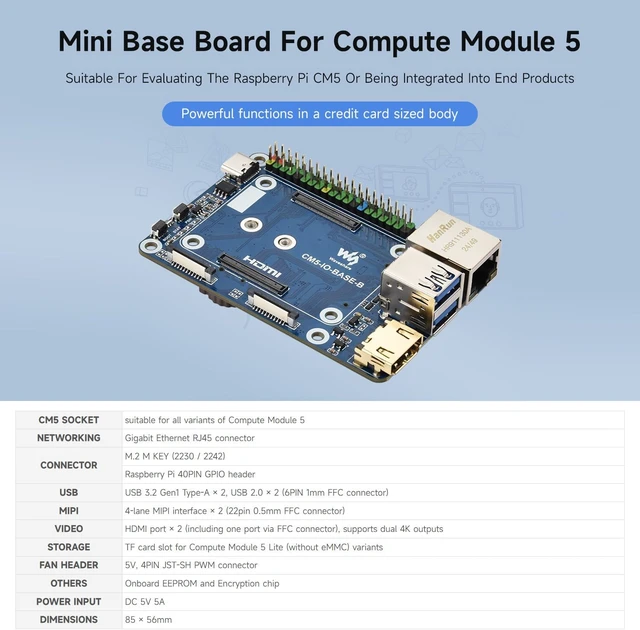

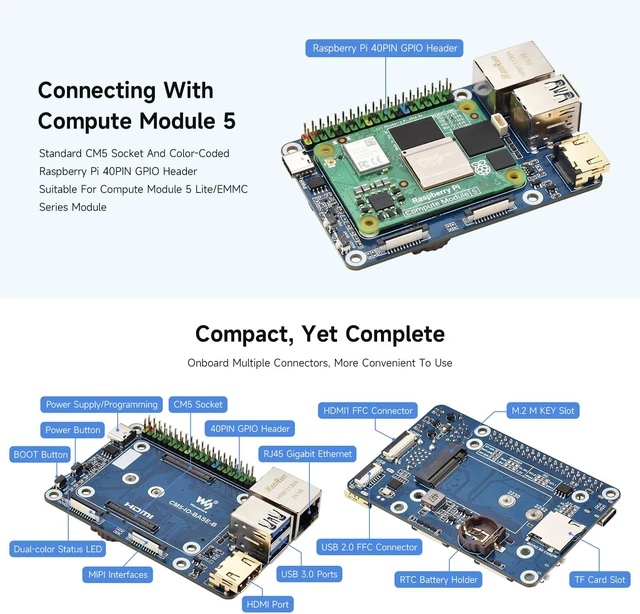

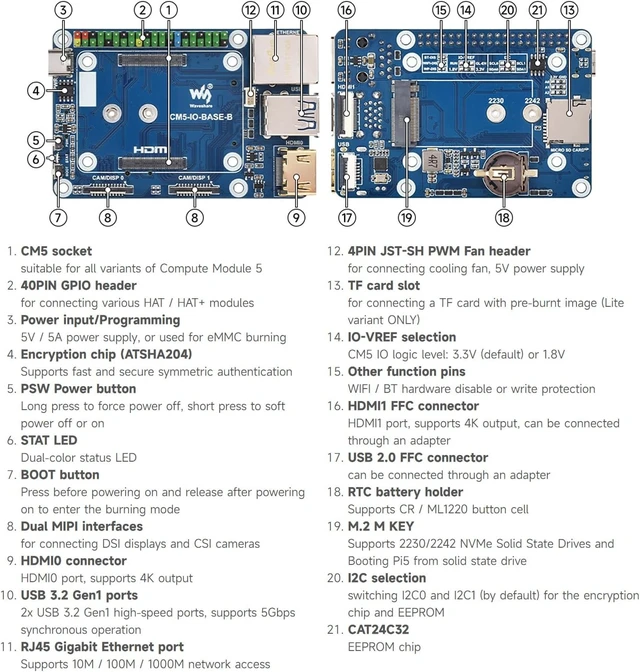

Compatibility and Connectivity: The board is equipped with a CM5 socket, making it suitable for all variants of the Compute Module 5. It also features a Giga-bit Ethernet RJ45 connector for high-speed networking and a Raspberry Pi 40PIN GPIO header for various expansion options.
USB and M.2 Expansion: It includes two USB 3.2 Gen1 Type-A ports, two USB 2.0 ports, and an M.2 M KEY (2230/2242) connector for further device integration. Additionally, it offers flexible connectivity options with a 6PIN 1mm FFC connector for USB and M.2 interfaces.
Video Output: The board supports dual 4K video output via two HDMI ports, one of which is connected through an FFC connector. This setup allows for high-definition, dual-display configurations, ideal for multimedia applications.
Storage and Power: It features a TF card slot designed for Compute Module 5 Lite variants (without eMMC storage) and is powered via a 5V DC input with a 5A capacity, ensuring stable performance.

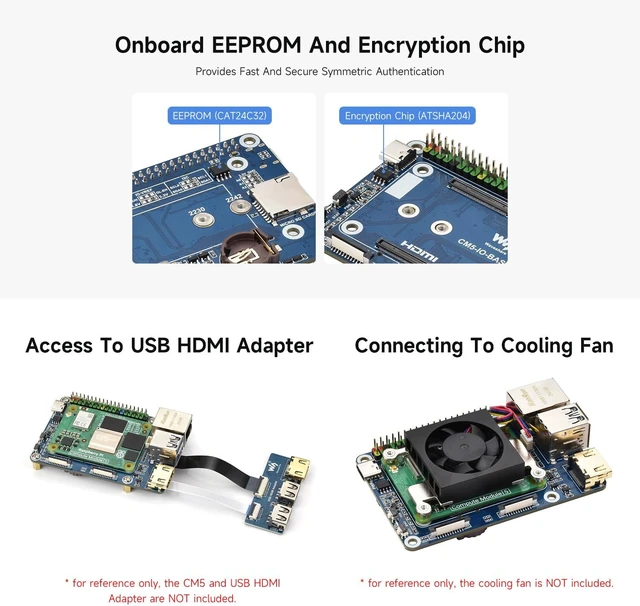

Additional Features: The board is equipped with a 5V 4PIN JST-SH PWM fan header for cooling, an onboard EEPROM, and an encryption chip for secure data handling, along with a compact form factor measuring 85 × 56mm.
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
USB and M.2 Expansion: It includes two USB 3.2 Gen1 Type-A ports, two USB 2.0 ports, and an M.2 M KEY (2230/2242) connector for further device integration. Additionally, it offers flexible connectivity options with a 6PIN 1mm FFC connector for USB and M.2 interfaces.
Video Output: The board supports dual 4K video output via two HDMI ports, one of which is connected through an FFC connector. This setup allows for high-definition, dual-display configurations, ideal for multimedia applications.
Storage and Power: It features a TF card slot designed for Compute Module 5 Lite variants (without eMMC storage) and is powered via a 5V DC input with a 5A capacity, ensuring stable performance.
Additional Features: The board is equipped with a 5V 4PIN JST-SH PWM fan header for cooling, an onboard EEPROM, and an encryption chip for secure data handling, along with a compact form factor measuring 85 × 56mm.
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
