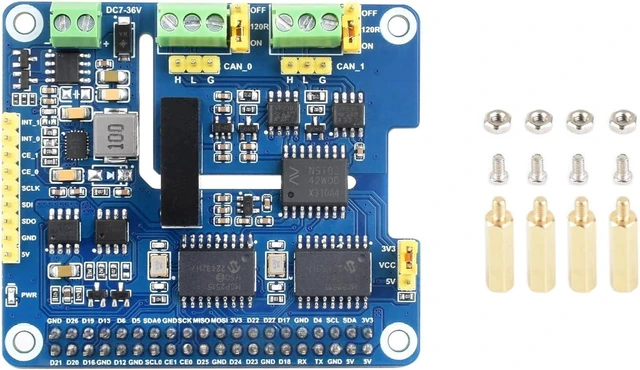

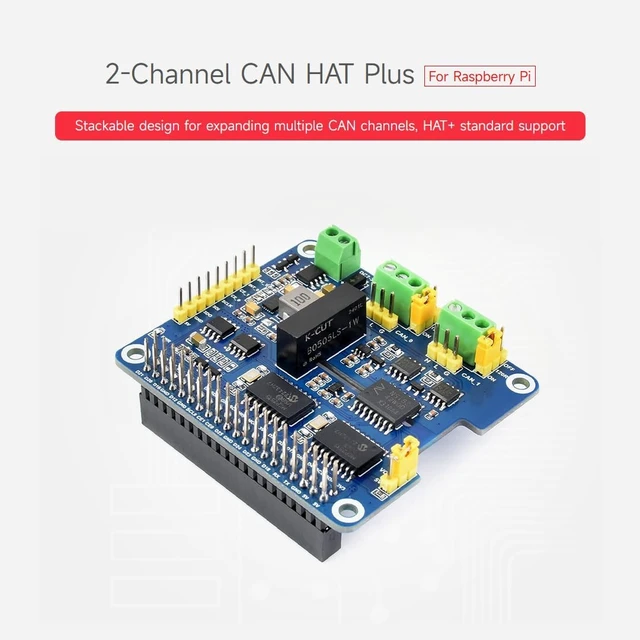

Waveshare 2-Channel Isolated CAN Bus Expansion HAT, Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, Dual Chips Solution, Built-in Multi Protections
- Standard HAT+ design, with onboard EEPROM chip.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Designed for Raspberry Pi, support Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B/5.
Standard HAT+ design, with onboard EEPROM chip.

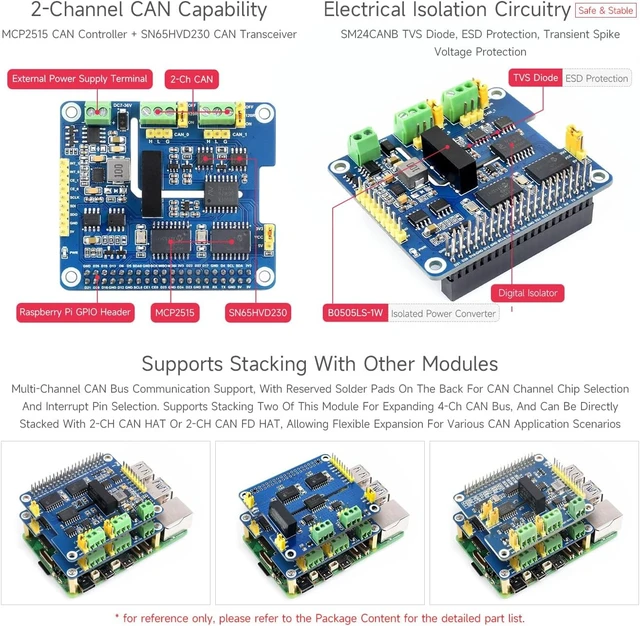

Adopts MCP2515 and SN65HVD230 dual-chip solution, allowing 2-channel CAN communication.
Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal.
Onboard digital isolation chip, signal isolation communication is safer, more stable, and better anti-interference.
Onboard SM24CANB (transient voltage suppressor), provides ESD protection and transient peak voltage protection.
Onboard voltage conversion circuit, select 3.3V/5V operating voltage by jumper.
Onboard 120 terminal resistor, enable through the jumper cap.

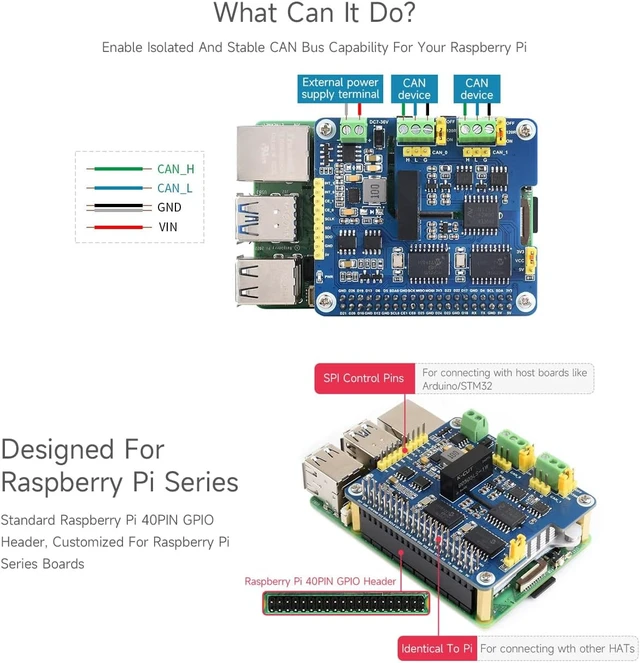

Elicits the SPI control interface, for connecting with host control boards like STM32/Arduino.
Provides complete supporting information manuals and demos
Standard HAT+ design, with onboard EEPROM chip.
Adopts MCP2515 and SN65HVD230 dual-chip solution, allowing 2-channel CAN communication.
Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal.
Onboard digital isolation chip, signal isolation communication is safer, more stable, and better anti-interference.
Onboard SM24CANB (transient voltage suppressor), provides ESD protection and transient peak voltage protection.
Onboard voltage conversion circuit, select 3.3V/5V operating voltage by jumper.
Onboard 120 terminal resistor, enable through the jumper cap.
Elicits the SPI control interface, for connecting with host control boards like STM32/Arduino.
Provides complete supporting information manuals and demos
