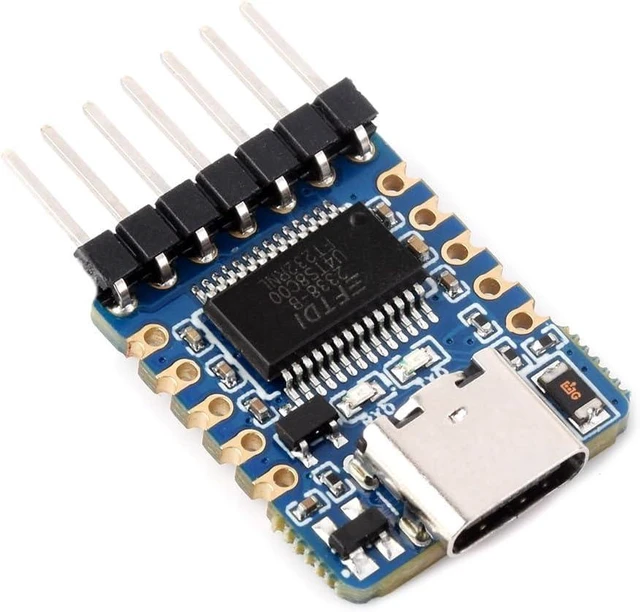

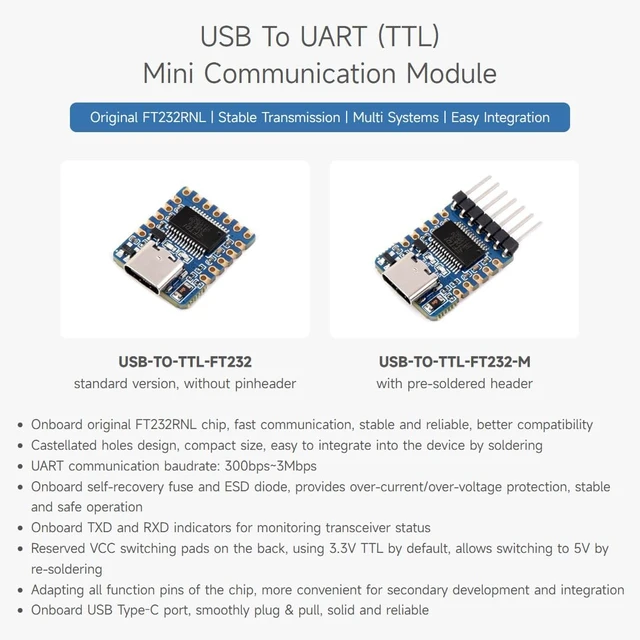

Waveshare USB to UART (TTL) Mini Communication Module, Compact Size, Over-Current/Over-Voltage Protection, Multi Systems Support, TTL Serial Converter, USB to TTL Converter, with pre-soldered Header

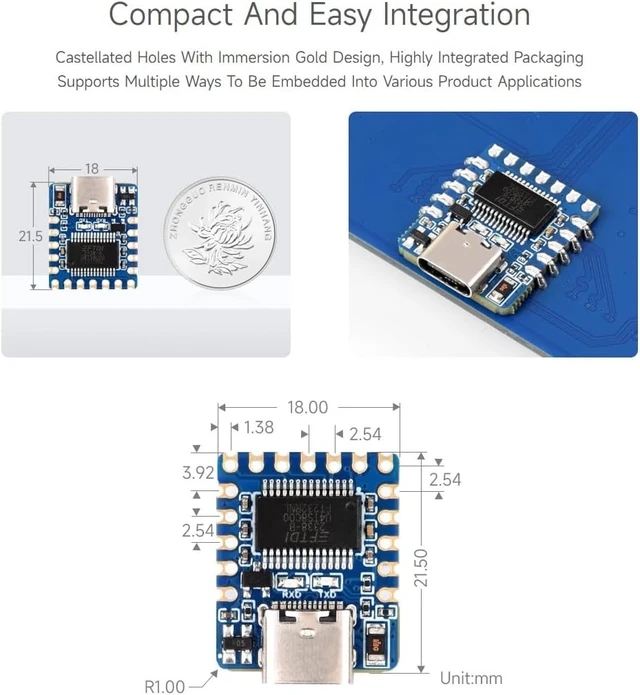

- Castellated holes design, compact size, easy to integrate into the device by soldering
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

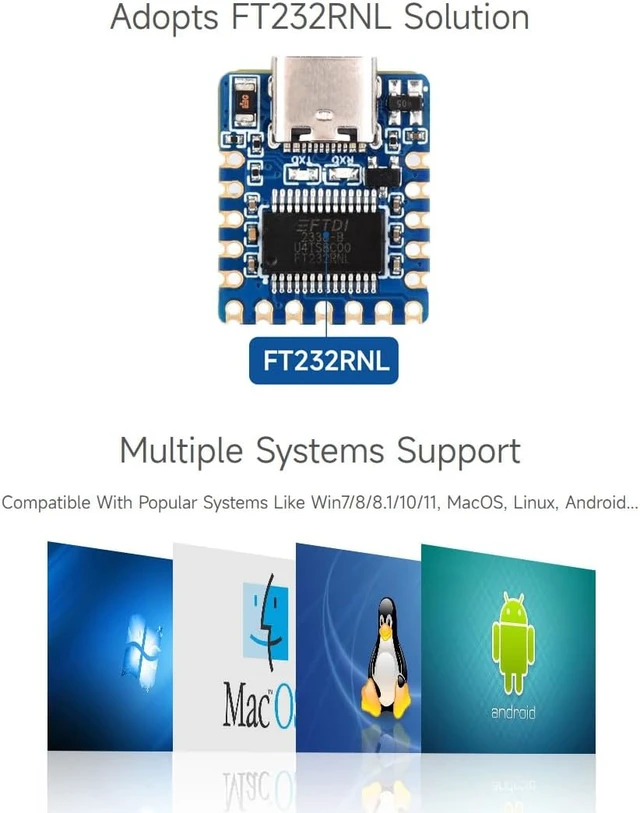

Onboard original FT232RNL chip, fast communication, stable and reliable, better compatibility
Castellated holes design, compact size, easy to integrate into the device by soldering
UART communication baudrate: 300bps~3Mbps. Onboard self-recovery fuse and ESD diode, provides over-current/over-voltage protection, stable and safe operation

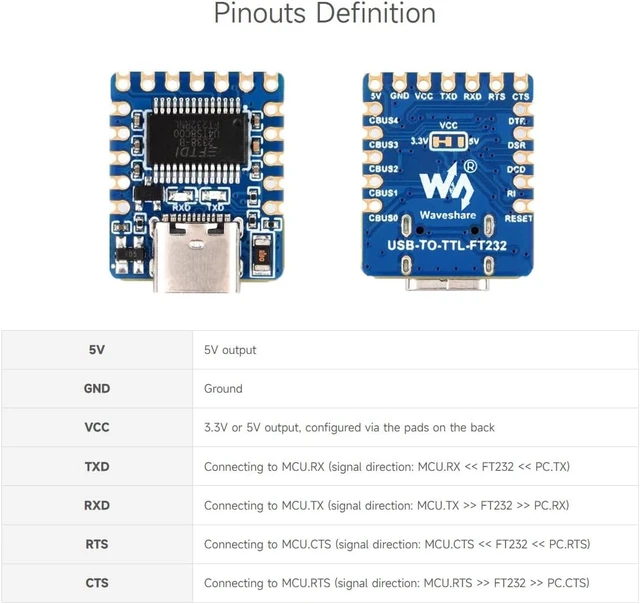

Onboard TXD and RXD indicators for monitoring transceiver status. Reserved VCC switching pads on the back, using 3.3V TTL by default, allows switching to 5V by re-soldering
Adapting all function pins of the chip, more convenient for secondary development and integration. Onboard USB Type-C port, smoothly plug & pull, solid and reliable
Castellated holes design, compact size, easy to integrate into the device by soldering
UART communication baudrate: 300bps~3Mbps. Onboard self-recovery fuse and ESD diode, provides over-current/over-voltage protection, stable and safe operation
Onboard TXD and RXD indicators for monitoring transceiver status. Reserved VCC switching pads on the back, using 3.3V TTL by default, allows switching to 5V by re-soldering
Adapting all function pins of the chip, more convenient for secondary development and integration. Onboard USB Type-C port, smoothly plug & pull, solid and reliable
