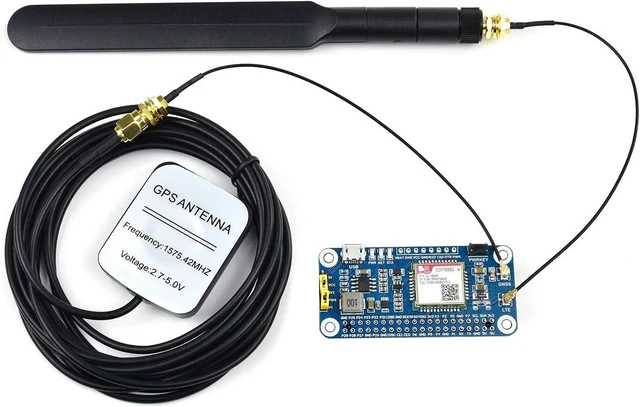

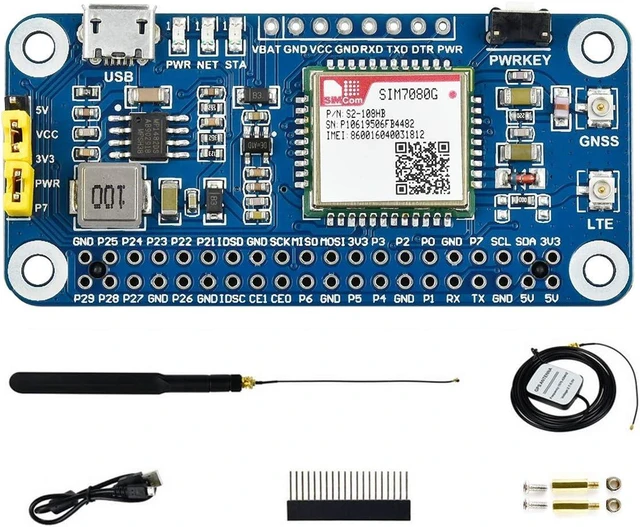

Waveshare NB-IoT/Cat-M(EMTC)/GNSS Module Based On SIM7080G Compatible with Raspberry Pi Globally Applicable
- With the developing of telecommunication technology LTE, 2G/3G networks are fading away, the future world would be dominated by IoT technologies consisting of low bandwidth NB-IoT/Cat-M and high bandwidth 4G/5G standards. Ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, etc.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

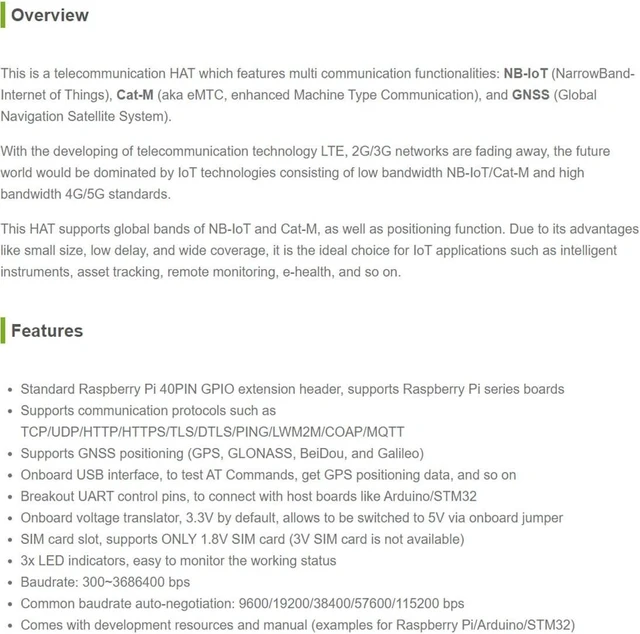

This telecommunication module features multi communication functionalities: NB-IoT (NarrowBand-Internet of Things), Cat-M (aka eMTC, enhanced Machine Type Communication), and GNSS (Global Navigation Satellite System) and supports global bands of NB-IoT and Cat-M, as well as positioning function
With the developing of telecommunication technology LTE, 2G/3G networks are fading away, the future world would be dominated by IoT technologies consisting of low bandwidth NB-IoT/Cat-M and high bandwidth 4G/5G standards. Ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, etc.

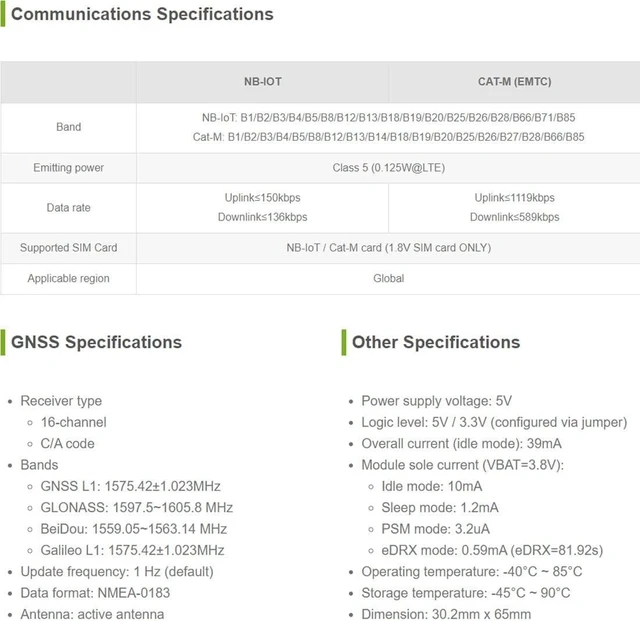

Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT; Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)

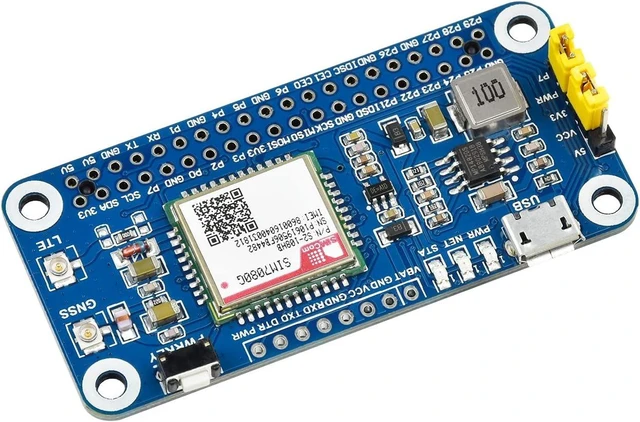

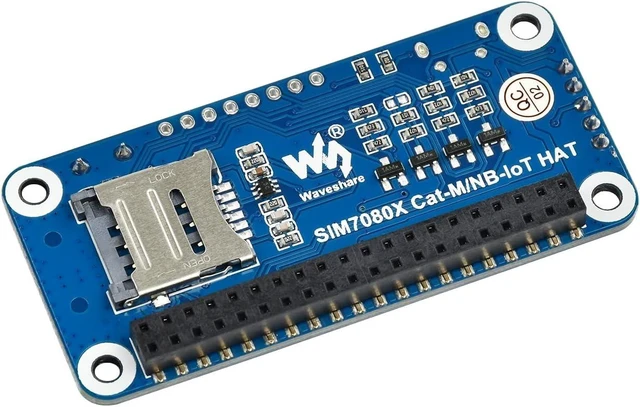

Onboard USB interface; Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper; With SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available); 3x LED indicators to monitor the working status; Breakout UART control pins
Baudrate: 300~3686400 bps; Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps; With online development resources and manual (examples for Raspberry Pi/STM32), please refer to while using
With the developing of telecommunication technology LTE, 2G/3G networks are fading away, the future world would be dominated by IoT technologies consisting of low bandwidth NB-IoT/Cat-M and high bandwidth 4G/5G standards. Ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, etc.
Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT; Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)
Onboard USB interface; Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper; With SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available); 3x LED indicators to monitor the working status; Breakout UART control pins
Baudrate: 300~3686400 bps; Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps; With online development resources and manual (examples for Raspberry Pi/STM32), please refer to while using
