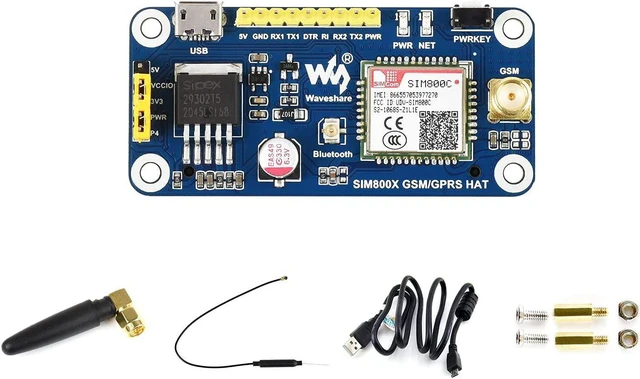

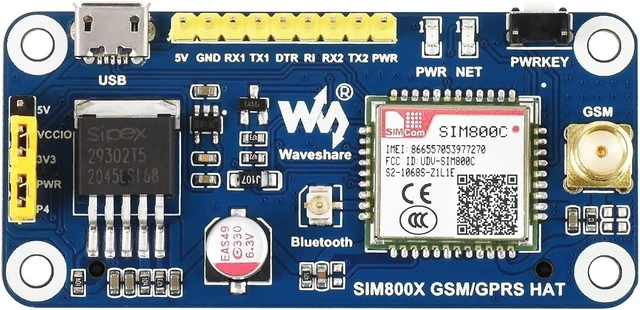

Waveshare SIM800C GSM/GPRS HAT Compatible with RRaspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH/Jetson Nano 2G Communication Data Transmission

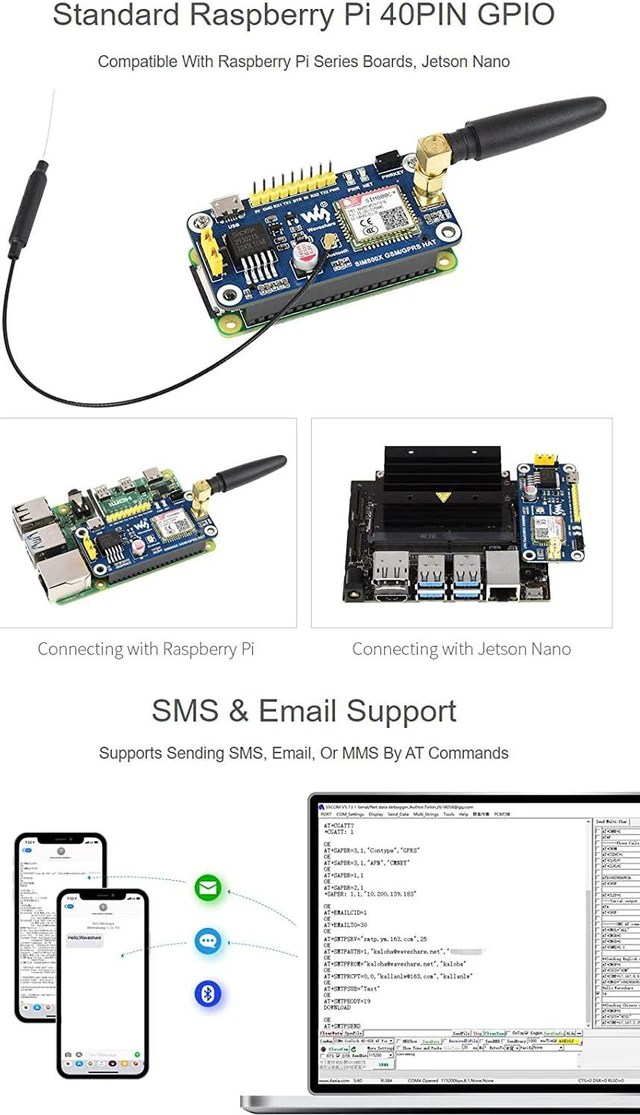

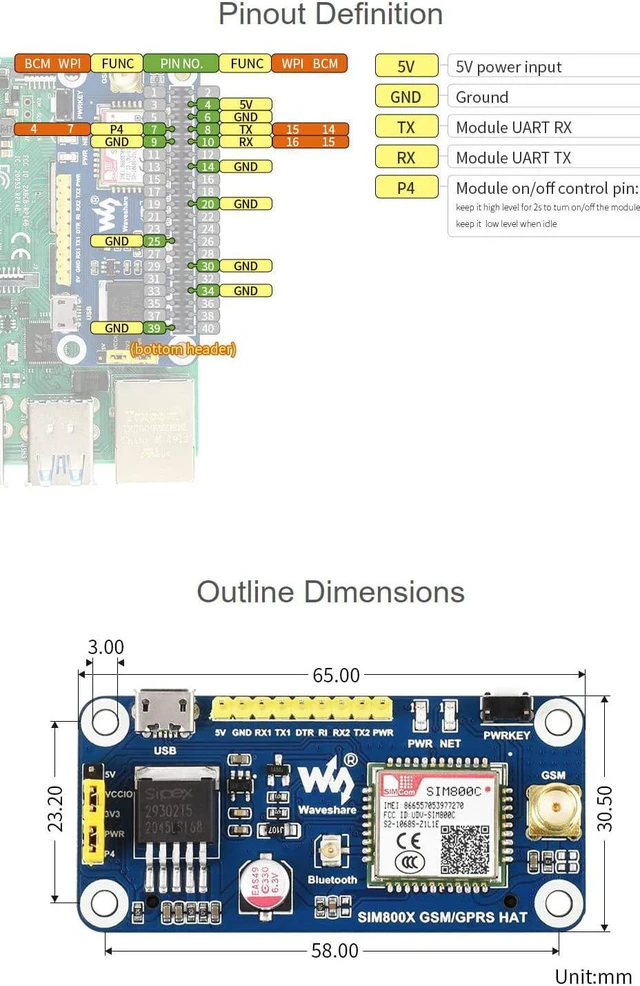

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Supports SMS, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

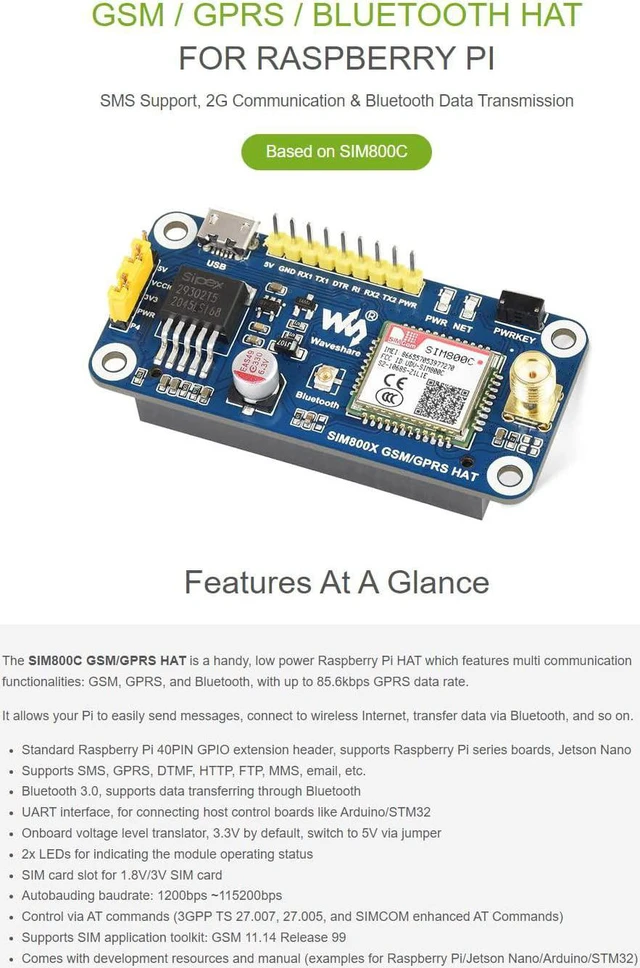

The SIM800C GSM/GPRS HAT is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, with up to 85.6kbps GPRS data rate. It allows your Pi to easily send messages, connect to wireless Internet, transfer data via Bluetooth, and so on.
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Supports SMS, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
Supports data transferring through UART interface, for connecting host control boards. Onboard voltage level translator, 3.3V by default, switch to 5V via jumper.

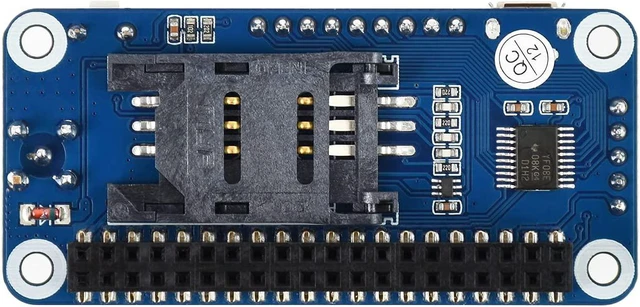

2x LEDs for indicating the module operating status. SIM card slot for 1.8V/3V SIM card. Autobauding baudrate: 1200bps ~115200bps. Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands).
Supports SIM application toolkit: GSM 11.14 Release 99. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano//STM32).
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Supports SMS, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
Supports data transferring through UART interface, for connecting host control boards. Onboard voltage level translator, 3.3V by default, switch to 5V via jumper.
2x LEDs for indicating the module operating status. SIM card slot for 1.8V/3V SIM card. Autobauding baudrate: 1200bps ~115200bps. Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands).
Supports SIM application toolkit: GSM 11.14 Release 99. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano//STM32).
