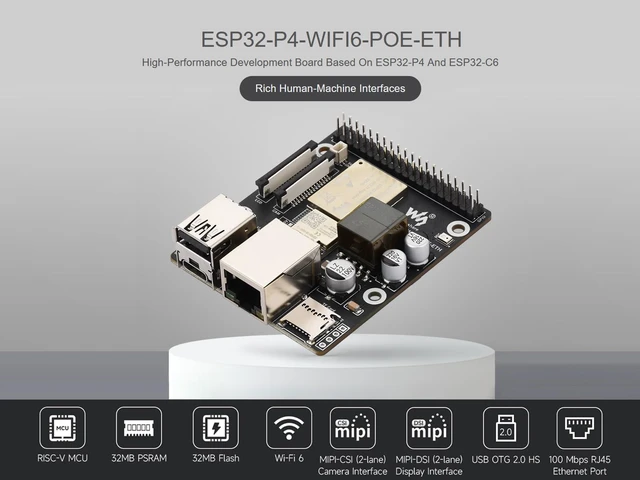

ESP32-P4-WIFI6-POE-ETH Dev Board Based on ESP32-P4 and ESP32-C6, Supports 2.4GHz Wi-Fi 6 and BLE 5, Integrated PoE Module for Power Supply, with MIPI-CSI/DSI, Ethernet Port, USB OTG 2.0 etc.

Introduction

ESP32-P4-WIFI6-POE-ETH is a multimedia development board based on ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 (LE) wireless connectivity. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, onboard RJ45 Ethernet port with PoE functionality.

Features

High-performance MCU with RISC-V 32-bit dual-core and single-core processors

128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM

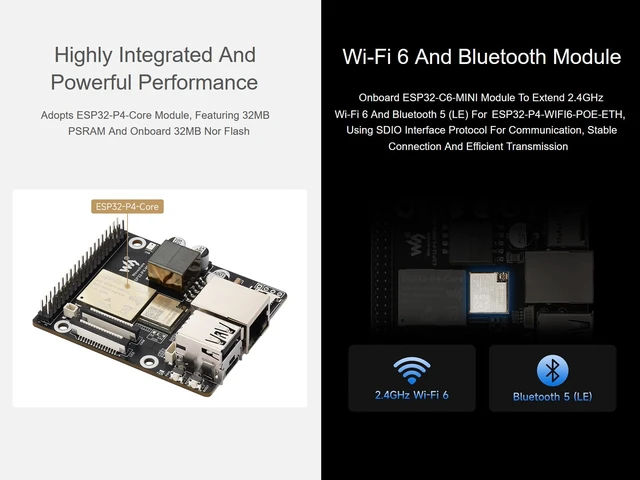

32MB PSRAM in the chip's package, with onboard 32MB Nor Flash

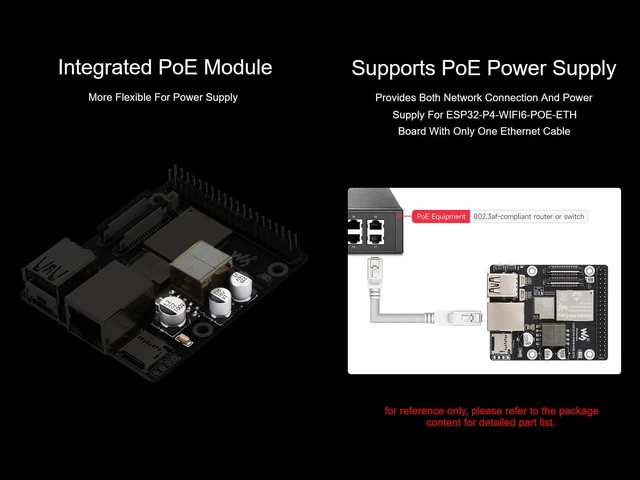

Integrated PoE module, more flexible for power supply

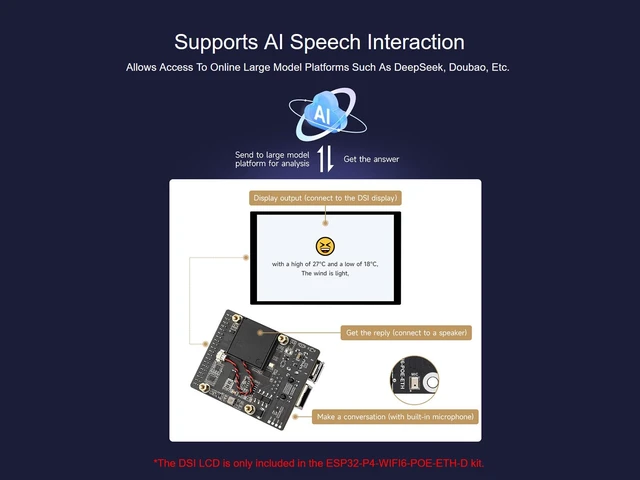

Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder

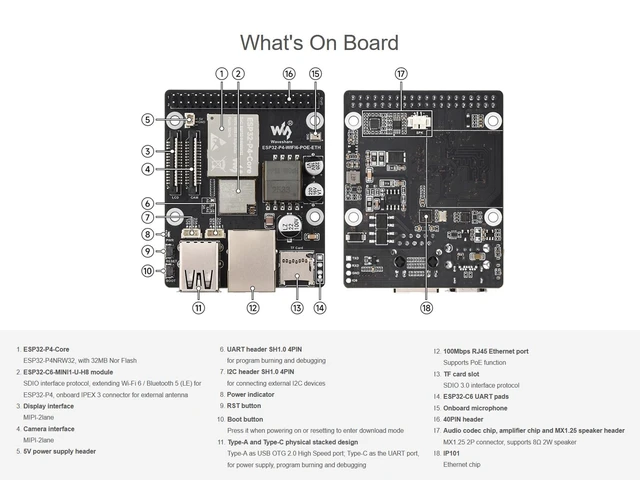

Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC Batt. header, etc.

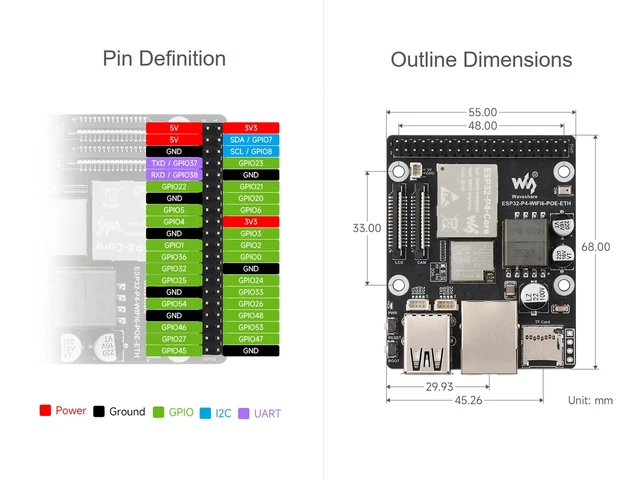

Adapting 2*20 GPIO headers with 28 x remaining programmable GPIOs

Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

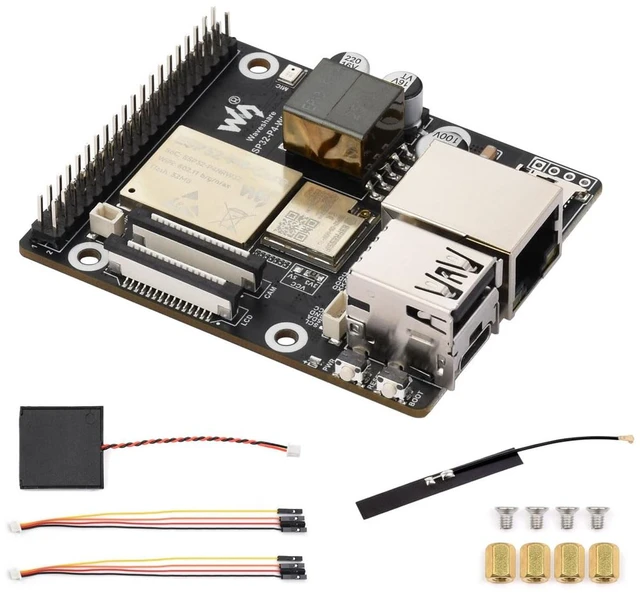

Package Content

ESP32-P4-WIFI6-POE-ETH x1

SH1.0 4PIN cable ~150mm x2

1217 8 2W speaker x1

2.4G antenna x1

Screws pack x1

Note: Online Dev Resources and Tutorials to help you easily get started. Please feel free to contact us with any questions.
