$139^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Sold by DoDo DIY

Top Rated

4 (760 seller ratings)

Shipped by DoDo DIY

Price alert

Add to Wish List

Best Sellers

soft_9

Top Rated

4.2 (13 total ratings)

$128^.90
+ $10.00 Shipping

Meet Your Seller

DoDo DIY

See Seller Store

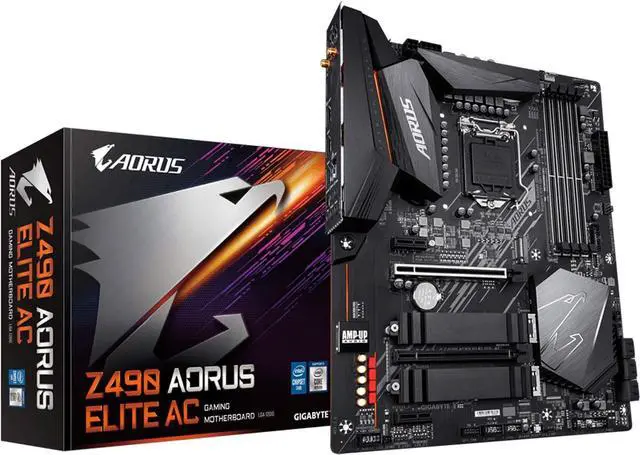

Main image of GIGABYTE Z490 AORUS ELITE AC LGA 1200 Intel Z490 ATX Motherboard Dual M.2 SATA 6Gb/s USB 3.2 Gen 2 Intel 802.11ac 2.5 GbE LAN

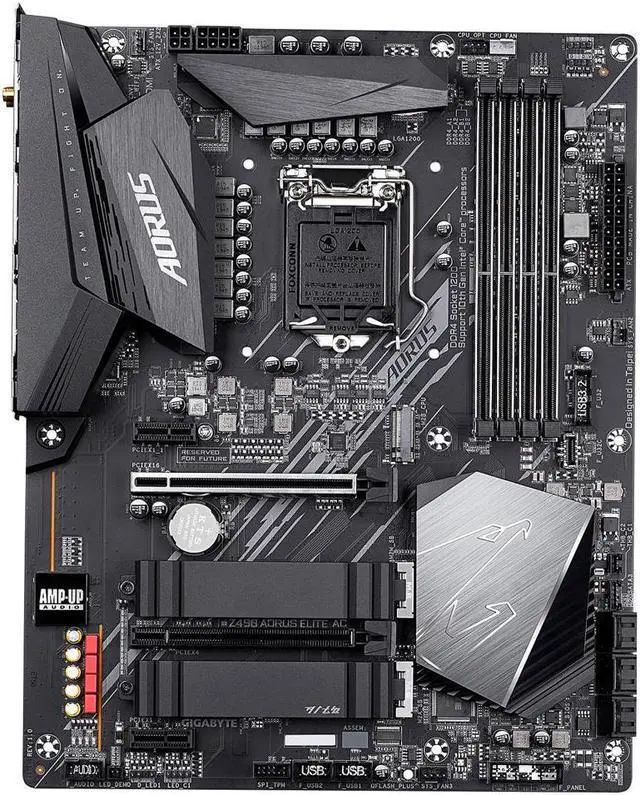

Alt view image 2 of 7 - GIGABYTE Z490 AORUS ELITE AC LGA 1200 Intel Z490 ATX Motherboard Dual M.2 SATA 6Gb/s USB 3.2 Gen 2 Intel 802.11ac 2.5 GbE LAN

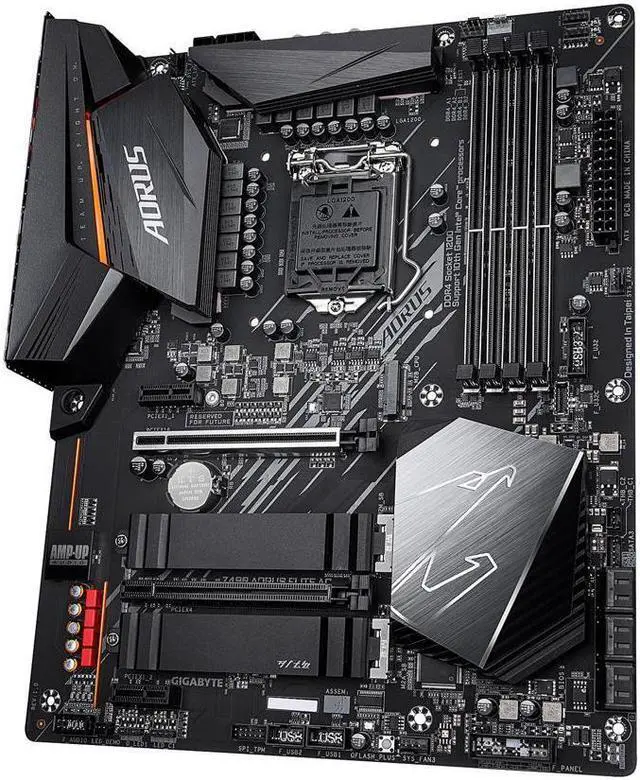

Alt view image 3 of 7 - GIGABYTE Z490 AORUS ELITE AC LGA 1200 Intel Z490 ATX Motherboard Dual M.2 SATA 6Gb/s USB 3.2 Gen 2 Intel 802.11ac 2.5 GbE LAN

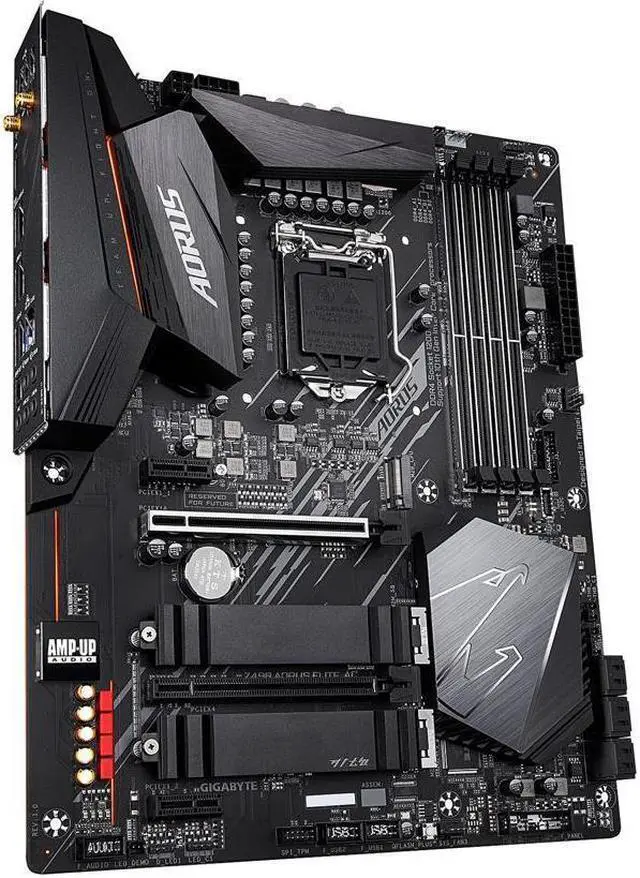

Alt view image 4 of 7 - GIGABYTE Z490 AORUS ELITE AC LGA 1200 Intel Z490 ATX Motherboard Dual M.2 SATA 6Gb/s USB 3.2 Gen 2 Intel 802.11ac 2.5 GbE LAN

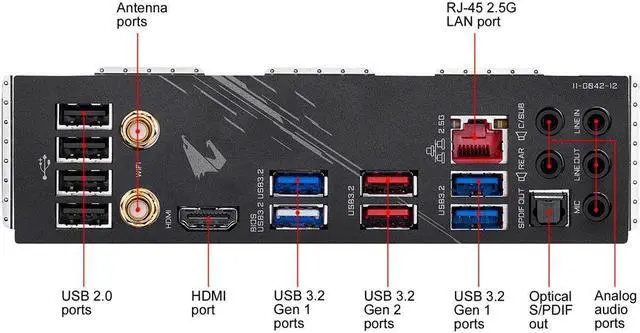

Alt view image 5 of 7 - GIGABYTE Z490 AORUS ELITE AC LGA 1200 Intel Z490 ATX Motherboard Dual M.2 SATA 6Gb/s USB 3.2 Gen 2 Intel 802.11ac 2.5 GbE LAN

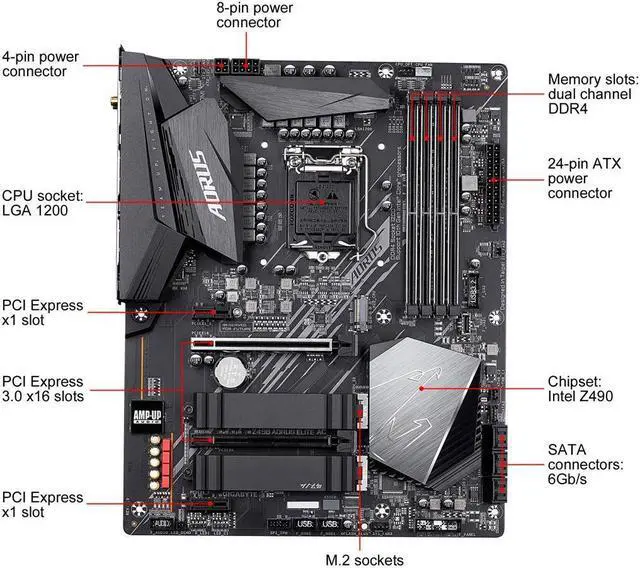

Alt view image 6 of 7 - GIGABYTE Z490 AORUS ELITE AC LGA 1200 Intel Z490 ATX Motherboard Dual M.2 SATA 6Gb/s USB 3.2 Gen 2 Intel 802.11ac 2.5 GbE LAN

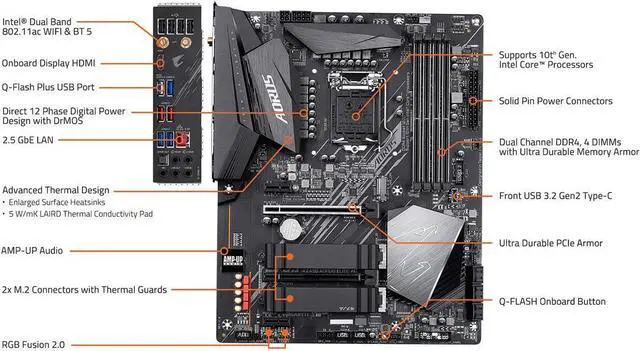

Alt view image 7 of 7 - GIGABYTE Z490 AORUS ELITE AC LGA 1200 Intel Z490 ATX Motherboard Dual M.2 SATA 6Gb/s USB 3.2 Gen 2 Intel 802.11ac 2.5 GbE LAN

Shop All GIGABYTE Products | Visit DoDo DIY Store

GIGABYTE Z490 AORUS ELITE AC LGA 1200 Intel Z490 ATX Motherboard Dual M.2 SATA 6Gb/s USB 3.2 Gen 2 Intel 802.11ac 2.5 GbE LAN

REFURBISHED

Be the first to review this product...

Supports 10th Gen Intel Core Series Processors
Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
Advanced Thermal Design with Optimized Surface Heatsink
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Realtek 2.5 GbE LAN
2 x M.2 AORUS Thermal Guard
Intel WiFi 802.11ac and Bluetooth 5 1x1 with AORUS Antenna
AMP UP AUDIO ALC1200
RGB Fusion 2.0
Smart Fan 5 Hybrid Fan Headers with smart fan functions (Fan Stop, PWM Controls, Noise Detection)
Rear - 2 x USB3.2 Gen2 (A), 4 x USB 3.2 Gen1 (A), 4 x USB 2.0
Front - 1 x USB3.2 Gen1 (C), 2 x USB 3.2 Gen1 (A), 4 x USB 2.0
Integrated I/O Shield
Q-Flash Plus Update BIOS Without Installing CPU, Memory or GPU
PCIe 4.0 Grade Design

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Supports 10th Gen Intel Core Series Processors
Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
Advanced Thermal Design with Optimized Surface Heatsink
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Realtek 2.5 GbE LAN
2 x M. 2 AORUS Thermal Guard
Intel WiFi 802.11 ac and Bluetooth 5 1x1 with AORUS Antenna
AMP UP AUDIO ALC1200
RGB Fusion 2.0
Smart Fan 5 Hybrid Fan Headers with smart fan functions (Fan Stop, PWM Controls, Noise Detection)
Rear - 2 x USB 3.2 Gen2 (A), 4 x USB 3.2 Gen1 (A), 4 x USB 2.0
Front - 1 x USB 3.2 Gen1 (C), 2 x USB 3.2 Gen1 (A), 4 x USB 2.0
Integrated I/O Shield
Q-Flash Plus Update BIOS Without Installing CPU, Memory or GPU
PCIe 4.0 Grade Design

Model
Brand	GIGABYTE
Model	Z490 AORUS ELITE AC

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package

Chipsets
Chipset	Intel Z490

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Maximum shared memory of 512MB

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	Intel Core i9/i7 processors: Support for DDR4 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x1	2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB/M2A_SB)
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1200
Audio Channels	2/4/5.1/7.1-channel Support for S/PDIF Out

Onboard LAN
LAN Chipset	Realtek 2.5GbE LAN chip
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi AC 9462: Intel CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band Support for 1x1 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment.
Bluetooth	Bluetooth 5

Rear Panel Ports
Back I/O Ports	2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt add-in card connectors 1 x Clear CMOS jumper 1 x Q-Flash Plus button

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Features
Features	Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) Realtek 8125 Gaming LAN Bandwidth Control Utility Operating System: Support for Windows 10 64-bit

Additional Information
First Listed on Newegg	February 05, 2026

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: non-replaceable
This item is covered by DoDo DIY Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory
