Does the power supply have a 4 pin or 8 pin adapter for the motherboard?

It has a "split 8-pin" CPU power connector which functions as an 8-pin or as two 4-pin connectors.

Will this case fit an extended ATX (eATX) motherboard?

This is a Micro ATX case designed to fit a Micro ATX motherboard. You may be able to squeeze an extended board into it (I think a standard ATX board would be a close fit), but does the attempt really make any sense? If I were you, I'd go with a larger case, one designed to fit your targeted board.

1) Does this case come with a fan? The specs say it supports an *optional* 80 or 90mm rear fan, but another retail site says it comes with a 90mm one. 2) Does it support the installation of 3rd party add-on fans? Specifically, can a 120mm fan be installed in the front?

Yes, it comes with a 90mm rear fan that is very good for a stock fan. Replacement fans can be used instead. No, a 120mm fan cannot be installed in the front.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List(Found on 4 wish lists)

Get Educated

Make informed decisions with expert advice. Learn More

Main image of In Win Z583 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 3.0X2, HD audio

Alt view image 2 of 13 - In Win Z583 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 3.0X2, HD audio

Alt view image 3 of 13 - In Win Z583 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 3.0X2, HD audio

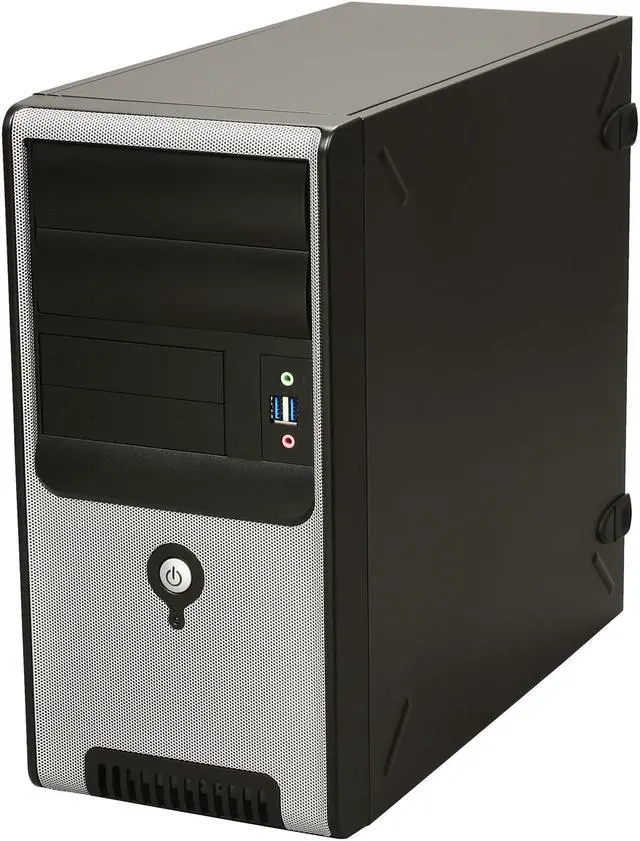

Alt view image 4 of 13 - In Win Z583 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 3.0X2, HD audio

Alt view image 5 of 13 - In Win Z583 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 3.0X2, HD audio

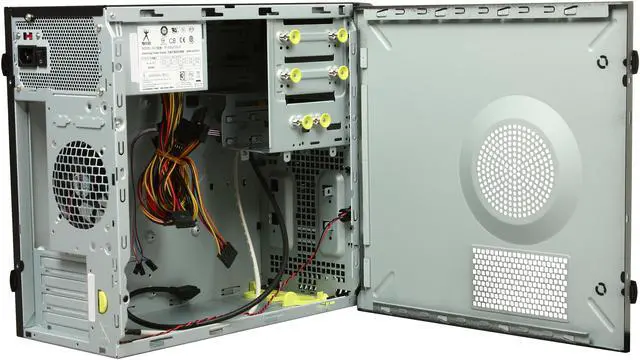

Alt view image 6 of 13 - In Win Z583 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 3.0X2, HD audio

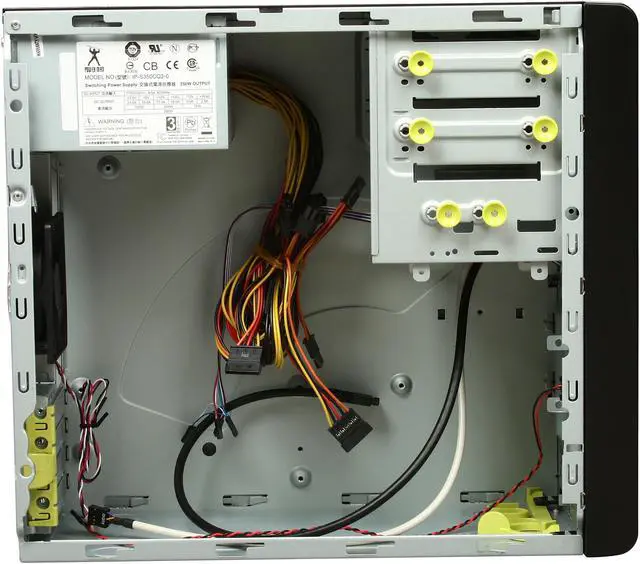

Alt view image 7 of 13 - In Win Z583 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 3.0X2, HD audio

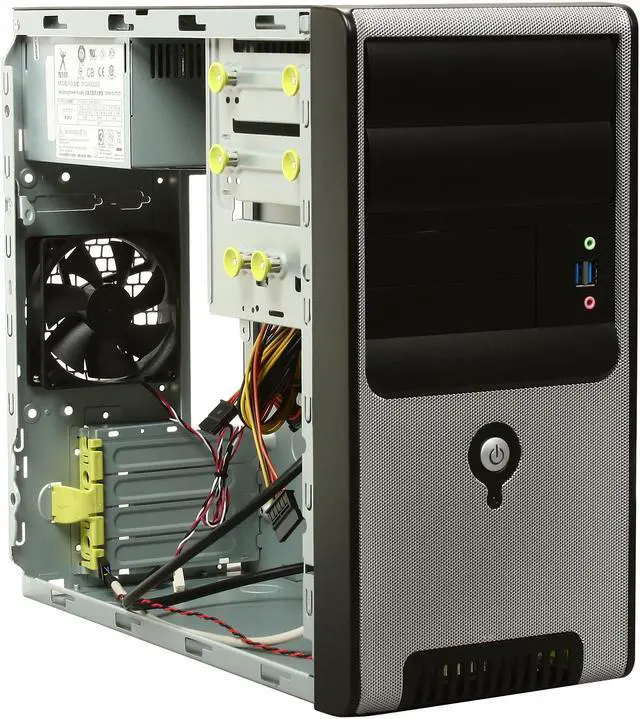

Alt view image 8 of 13 - In Win Z583 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 3.0X2, HD audio

Alt view image 9 of 13 - In Win Z583 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 3.0X2, HD audio

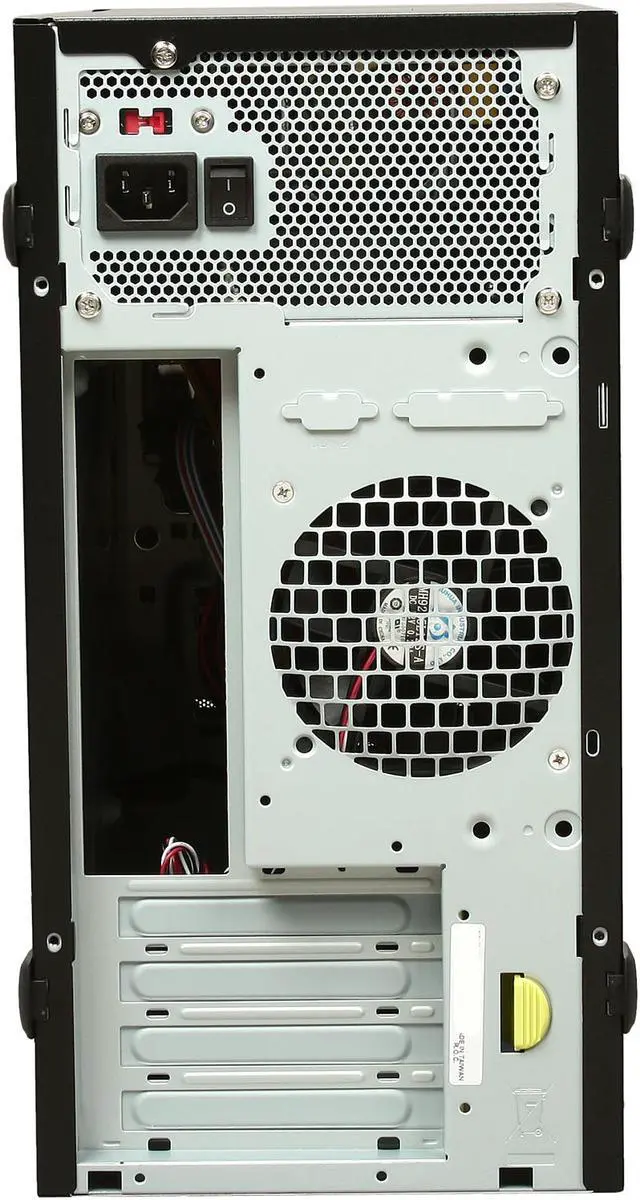

Alt view image 10 of 13 - In Win Z583 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 3.0X2, HD audio

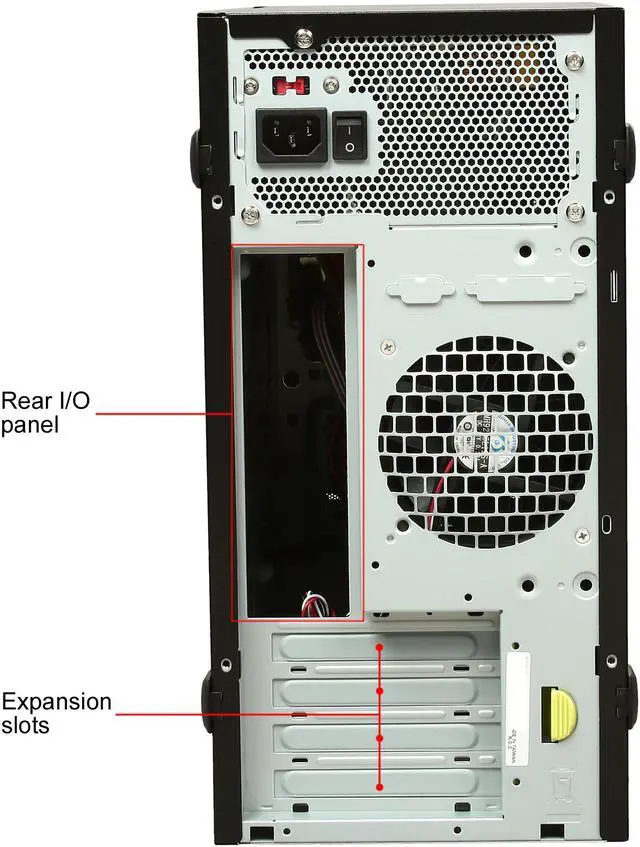

Alt view image 11 of 13 - In Win Z583 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 3.0X2, HD audio

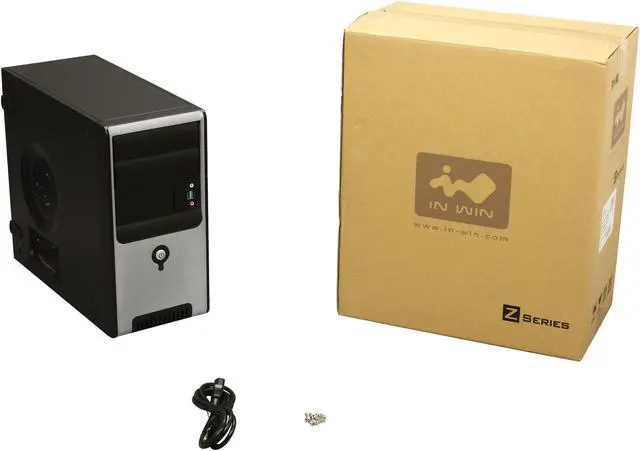

Alt view image 12 of 13 - In Win Z583 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 3.0X2, HD audio

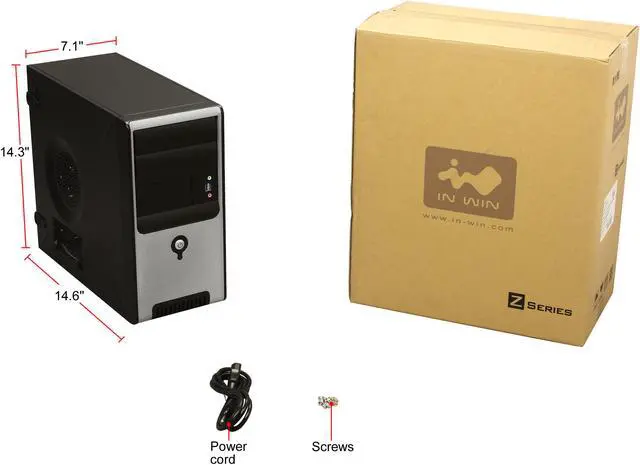

Alt view image 13 of 13 - In Win Z583 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 3.0X2, HD audio

Shop All In Win Products

In Win Z583 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 3.0X2, HD audio

(6) Write a Review

Steel MicroATX Mini Tower
USB3.0 x 2 , HD Audio Front Ports
350W Power Supply
2 External 5.25" Drive Bays
1 Internal 3.5" Drive Bays

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (6)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Tool-Free Installation and Easy Maintenance
Best Performed SECC Japanese Steel Metal
Excellent Thermal Solution

Features

TAC 2.0 Thermal Solution

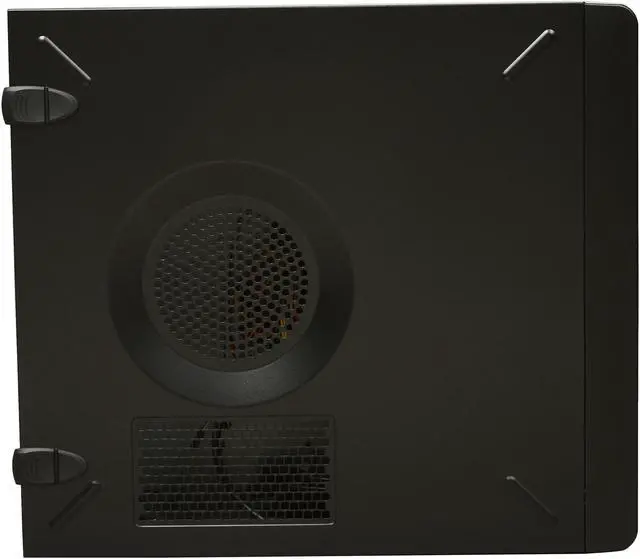

Qualified for TAC 2.0 with a mass ventilation hole side panel design to strengthen thermal efficiency and cool down the entire system.

Cooling Fan

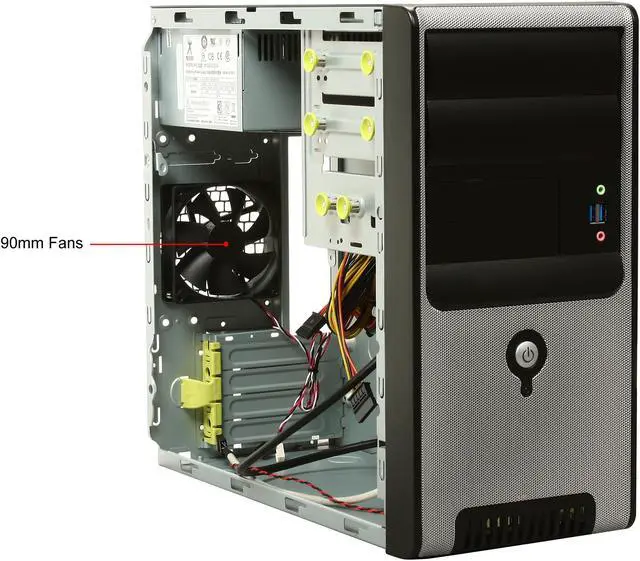

Optional 90mm auxiliary cooling fan at rear panel for better system cooling. The rear fan slot can also accommodate 80mm fan.

Tool-Free Installation and Easy Maintenance

Screwless front panel, side panels, 5.25" drive bays, 3.5" drive bays, and PCI-E expansion slots

Configured Six Drive Bays

5.25" x 2, 3.5" x 3 and 2.5" x 1 drive bays for expandability of future upgrade.

Side Panel Clips

Patented tool-free installation side panel clips.

Front Ports

The front panel offers I/O ports including 2 x USB 2.0/USB 3.0 (USB 3.0 on Z583.CH350TB3 only) interfaces, and HD audio jacks.

Superior Construction

Best Performed 0.8mm SECC Japanese Steel Metal.
0.8mm sheet metal construction - for better stability & durability.
Folded Edge - for safety installation. No sharp edges, debris.
Stamped Motherboard Support - no MB standoffs installation required, for faster MB installation.

Security

Standard Padlock Loop for Padlock
Kensington Security Slot Supported
Chassis Intrusion Switch (Optional)

Optional

eSATA
3.5" to 2.5" HDD/SSD Bracket: Supports 2.5" x 2 and optional 60mm fan

Specifications

Case Size	Mini Tower Chassis
Color
External Drive Bays	5.25" x 2, 3.5" x 2
Internal Drive Bays	3.5" x 1, 2.5" x 1
Front Ports	USB 2.0 x 2, HD Audio
Dimensions (H x W x D) w/o Front Panel	14.3 x 7.1 x 14.6" (363 x 180 x 370mm)
MB Form Factor	Micro ATX / Mini-ITX
I/O Expansion Slots	PCI-E Expansion Slot x 4
Power Supply	ATX 12V Form Factor, PSII Size
Thermal Solution	Supports 80mm or 90mm Rear Fan Intel Certified TAC 2.0
Safety	Meets RoHS, CE and FCC Class B Requirements
Security	Padlock Loop / Kensington Slot
Optional	80mm or 90mm Rear Fan eSATA Chassis Intrusion Switch 3.5" to 2.5" HDD/SSD Bracket

The actual product is subject to change without prior notice.

HASWELL Ready 350w power supply, USB3.0/HD, External 2 x 5.25/2 x 3.5 ODD, 1 x 3.5/1 x 2.5 HDD bays, 80mm fan, 4 x ePCI slots, RoHS, 3yr warranty

Brand	IN WIN
Model	Z583.CH350TB3

Type	Micro ATX Mini Tower
Color	Black
Case Material	Steel
With Power Supply	350W
Power Supply	350W
Power Supply Mounted	Top
Motherboard Compatibility	Micro ATX / Mini ITX
Side Panel	without Side Window

Fan Options	Rear - 1 x 80mm
80mm Fans	No
90mm Fans	1
120mm Fans	No
Side Air duct	No

Max GPU Length	336 mm (314mm with HDDs Installed in Cage)
Max CPU Cooler Height	149 mm
Max PSU Length	160 mm
Dimensions	14.3" x 7.1" x 14.6"
Weight	17.00 lbs.
