In Win BP655 mini ITX case with IP-S300FF1-0 H Haswell Ready power supply, 8cm Fan, Black, TAC 2.0, Front USB 3.0X2, HD audio
- Steel / Plastic Mini-ITX Tower
- 2 x USB 3.0 / Audio Front Ports
- 1 External 5.25" Drive Bays
- 3.5" HDD (1") x 1
- 3.5" HDD (0.8") x 1 Internal 3.5" Drive Bays
Overview
Specs
Reviews (64)
MAIN OVERVIEW FEATURES: Motherboard Supported: Mini ITXNumber of Fans Supported: 2Number of External 5.25" Bays: 1Number of Internal 3.5" Bays: 2Number of Total Expansion Bays: 3Number of Total Expansion Slots: 1Total Number of USB Ports: 2Total Number of Audio In Ports: 1Total Number of Audio Out Ports: 1Power Supply Installed: YesNumber of Power Supplies Supported: 1Number of Power Supplies Installed: 1Power Supply Wattage: 300 WColor: BlackForm Factor: SmallHeight: 10.4"Width: 3.9"Depth: 12.2"Environmentally Friendly: YesEnvironmental Certification: RoHS,ErP
In Win BP655 Mini-ITX Computer Case
The In Win small form-factor case is an ideal solution for space-limited conditions, such as Home Theater PC applications. Featuring rugged construction and a stylish appearance, this case is small enough to blend beautifully into any environment, yet has all the room you need to build your dream Mini ITX system. There's also space for a 5.25" external drive and a 3.5" internal drive as well as a low profile expansion card. Easy-to-access front I/O panel gives hassle-free access to two USB 2.0 ports and audio jacks. It'll all run cool and steady with the included 200-Watt power supply and 80mm top fan. Whether you're looking for a space-saving desktop or a case for your HTPC, the In Win desktop will keep it in style!
Features
Easy Integration
The BP Series was designed to offer quick integration. No peripheral carrier or bezel must be removed for assembly. This allows very quick assembly and reduces costs.
Optimal Thermal Performance
An ultra-silent 8cm case fan with Intel Thermally Advantaged Small Chassis 1.0 vents help to improve the airflow and optimize thermal performance, keeping temperatures below 102°F (39°C).
Supports Mini-ITX Motherboard
Supports Mini-ITX motherboards for a wide choice of system features and price points.
Standard TFX 12V Power Supply
Internal TFX 200W Power supply included, equipped with a temperature control sensor that reduces noise for very quiet operation.
Standard Components
The BP Series supports standard size components (5.25" & 3.5"). The use of standard components helps to maximize configuration choices and minimize product costs.
Tool-Free
Optional screw-less designs - ODD bay and side panel for easy assembly.
Antenna Mount Ready for WLAN Card
System Acoustic Result
| System Run | Sound Pressure |
| Idle | 29.2dB |
| Max Power (CPU 100%) | 33.4dB |
System Thermal Result
CPU Ambient Average Temperature 101°F (38.4°C)
| CPU | Core™ 2 Duo E6550 2.33GHz (65W) |
| Ambience Temperature | 95°F (35°C) |
| Ta Average | 94°F (34.6°C) |
| Host Bridge | 123°F (50.7°C) |
| RAM | 119°F (48.3°C) |
| ODD | 117°F (47.2°C) |
| HDD | 123°F (50.5°C) |
| PSU Fan inside | 110°F (43.6°C) |
| PSU Fan outside | 118°F (47.7°C) |
| Second Fan inside | 110°F (43.6°C) |
| Second Fan outside | 112°F (44.3°C) |

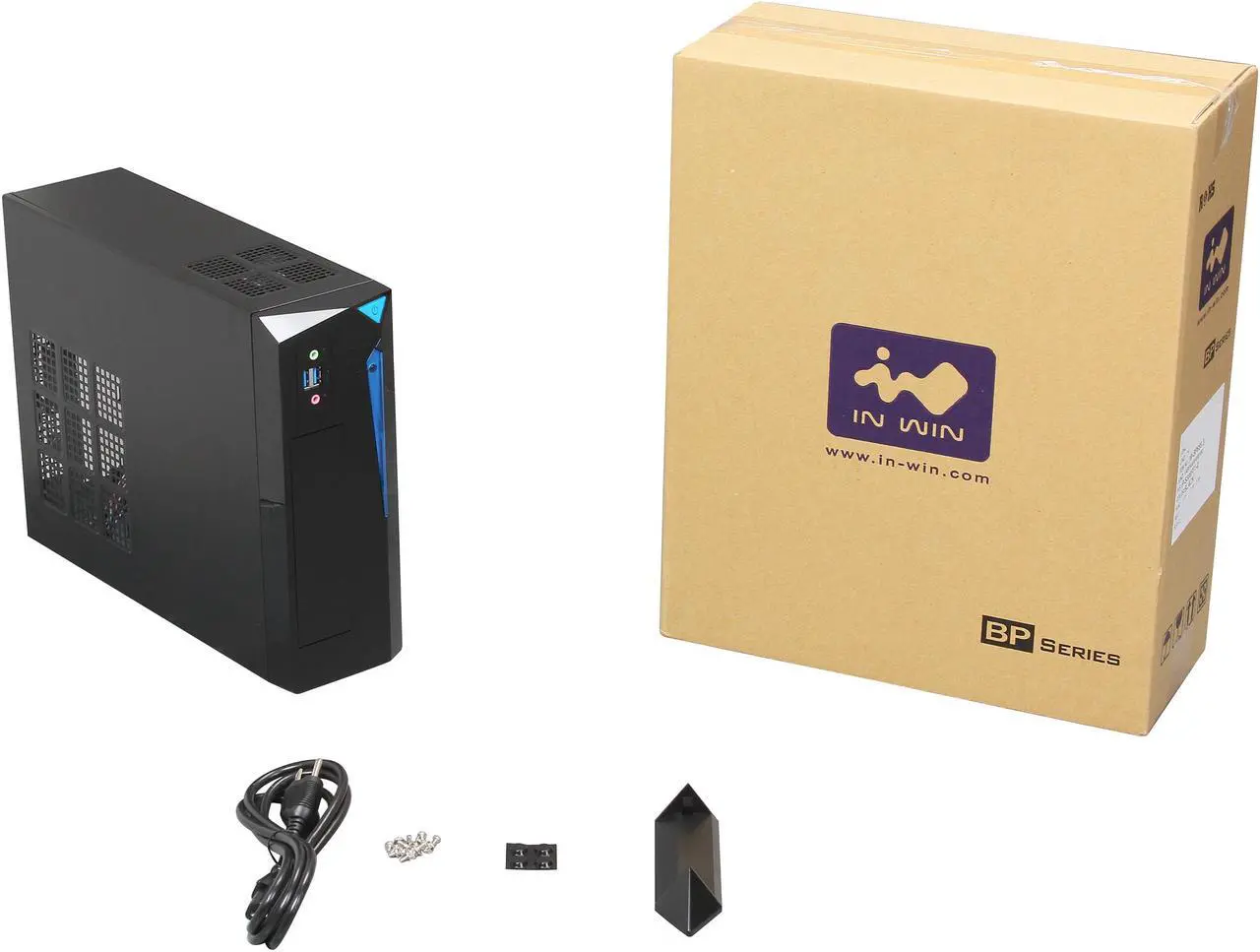

What's in the Box
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 2 years
- Limited Warranty period (labor): 2 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-909-348-0588
- Support Website
