Antec combines size, quality, features and low price to deliver a spectacular gaming case. The smallest of Antec’s “Hundred” series is designed for the Do-It-Yourself gamer. It's equipped to deal with the increased heat of high-performance systems as well as providing a flexible design. Its overall matte-black finish shows that you – and your system – mean business.

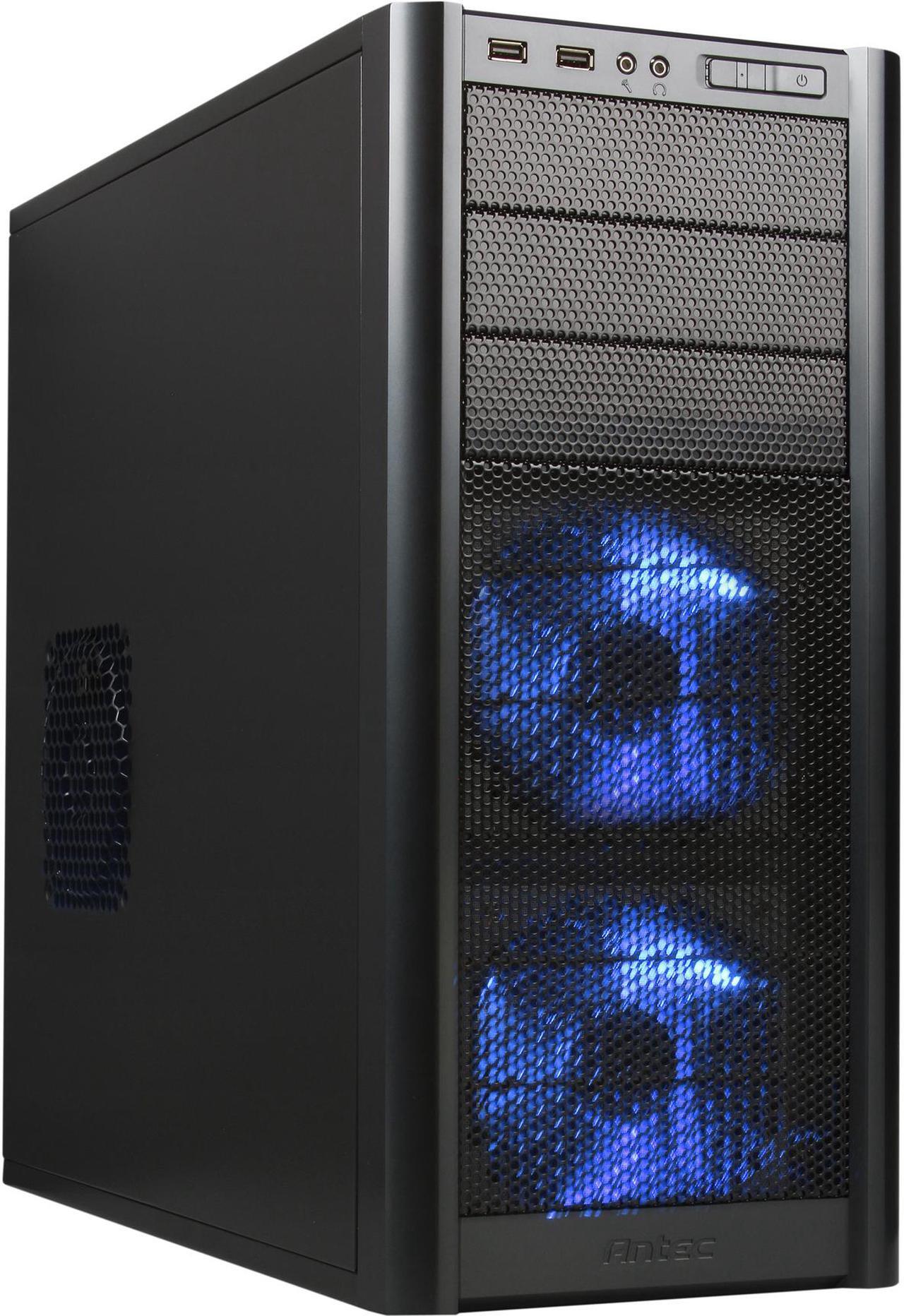

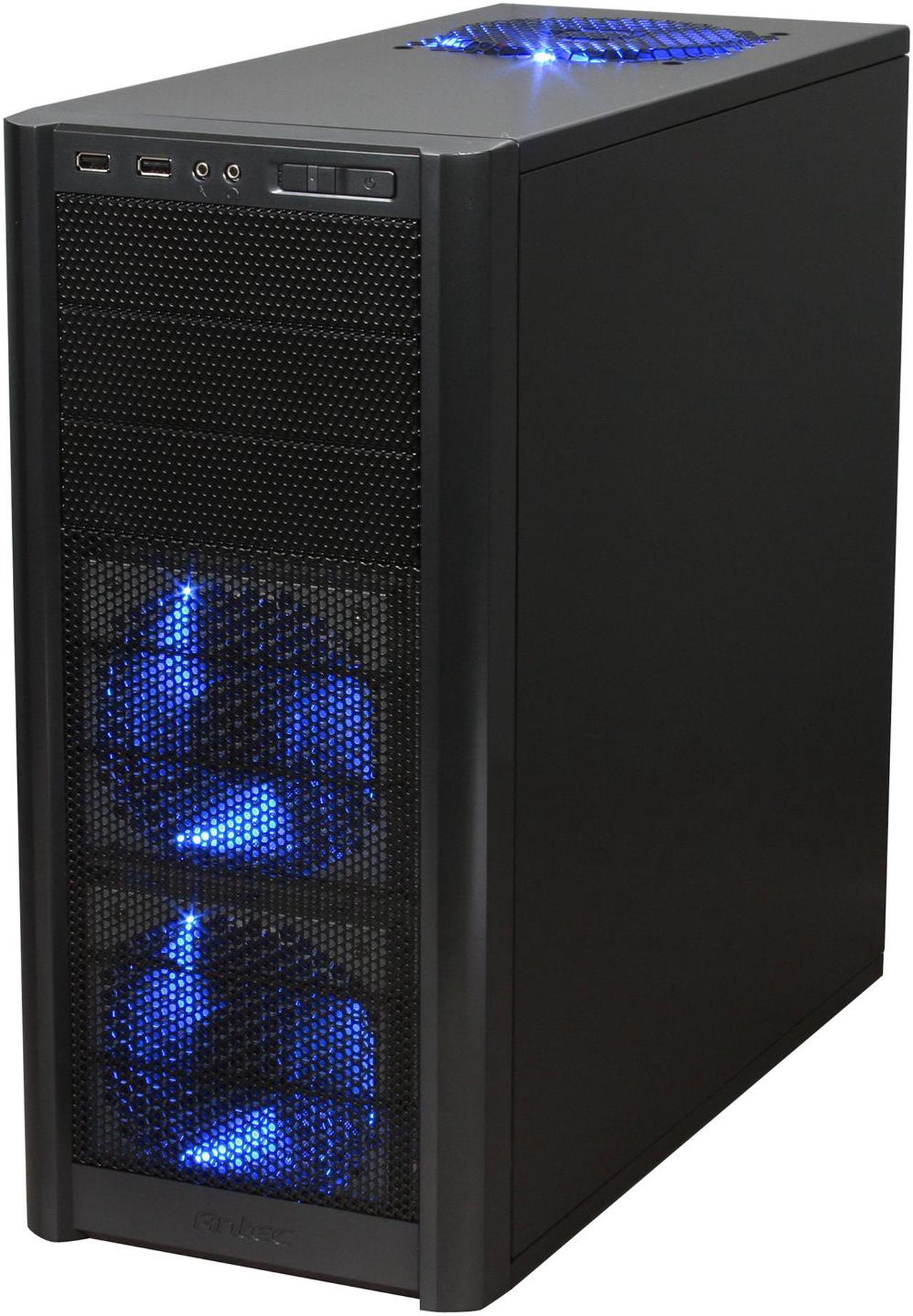

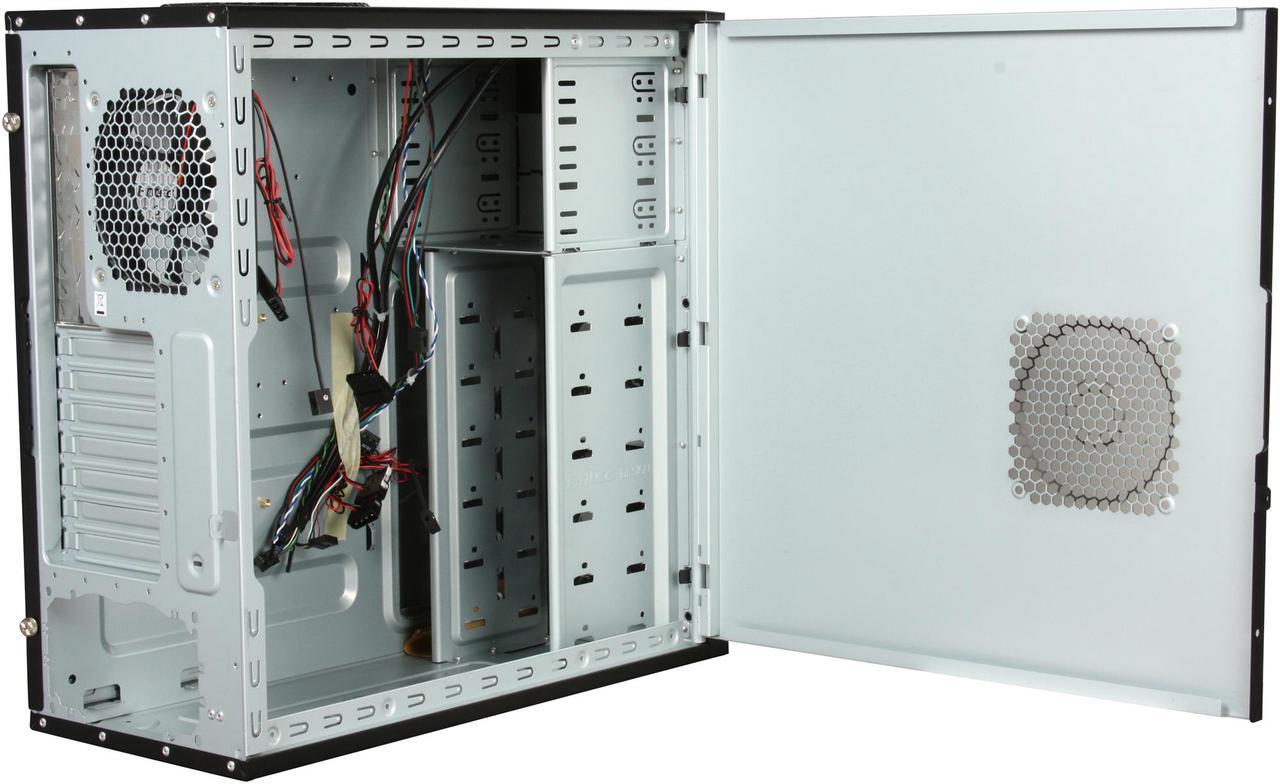

The front panel includes a pair of USB 2.0 inputs, as well as jacks for a headphone and microphone. The front bezel is perforated for maximum air intake and it has a washable filter to reduce dust within the system. Inside, are a total of nine drive bays – six 3.5” internal HDD’s and a trio of 5.25” external drives. Seven expansion card slots let you load up on graphic and other options up to – and including – a full height ATX motherboard.
A rear-mounted 120mm TriCool fan as well as a top-mounted 140mm fan – both with 3-speed switch control – draw air through the case. The case even has mounted an additional pair of 120mm fans behind the front bezel to cool the HDD’s. If you’d rather put your money into what goes inside the case rather than the case itself, the Antec Three Hundred is for you.
Three Hundred Illusion the Versatile Case
The Essentially Cool and Quiet Case

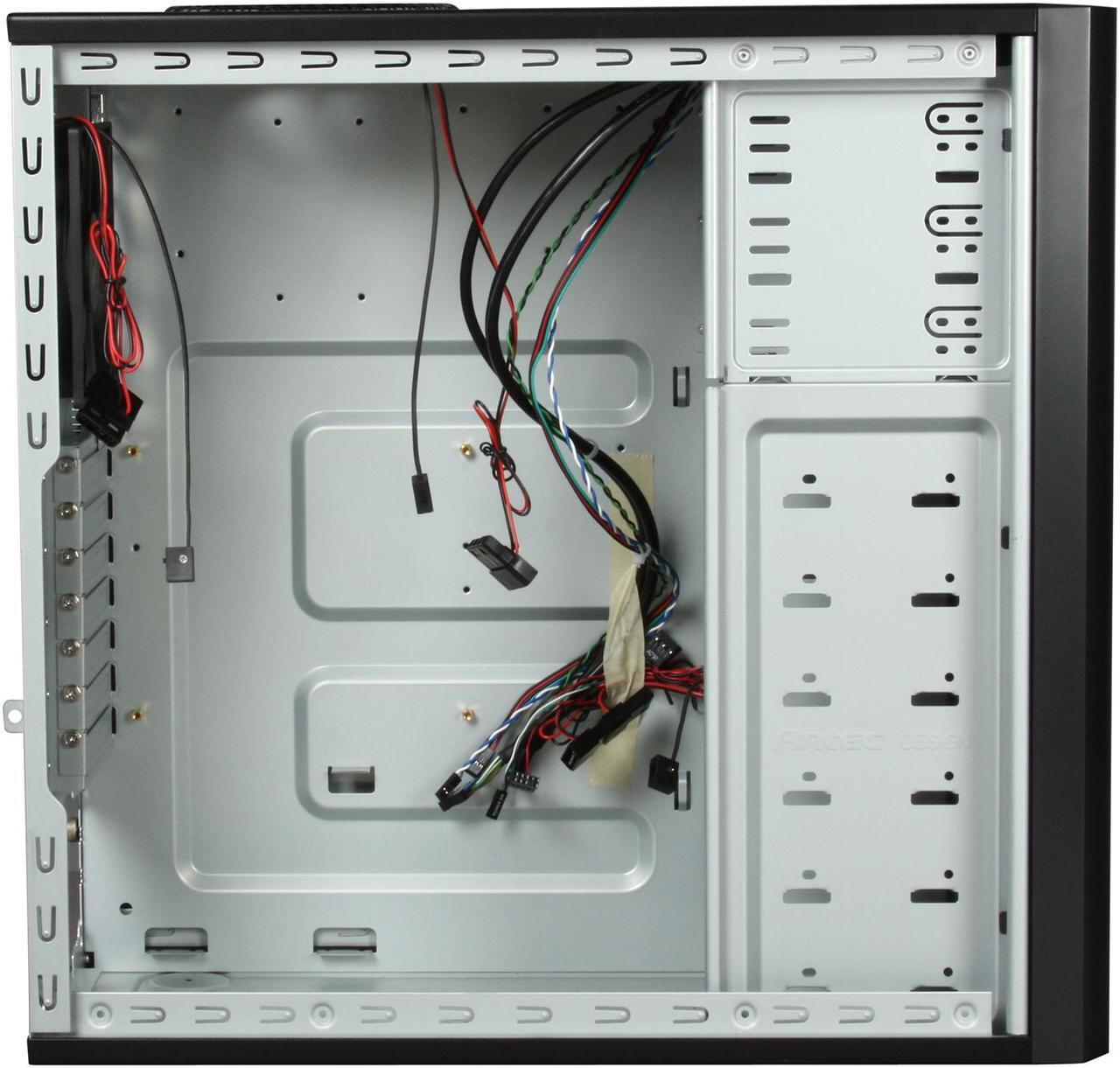

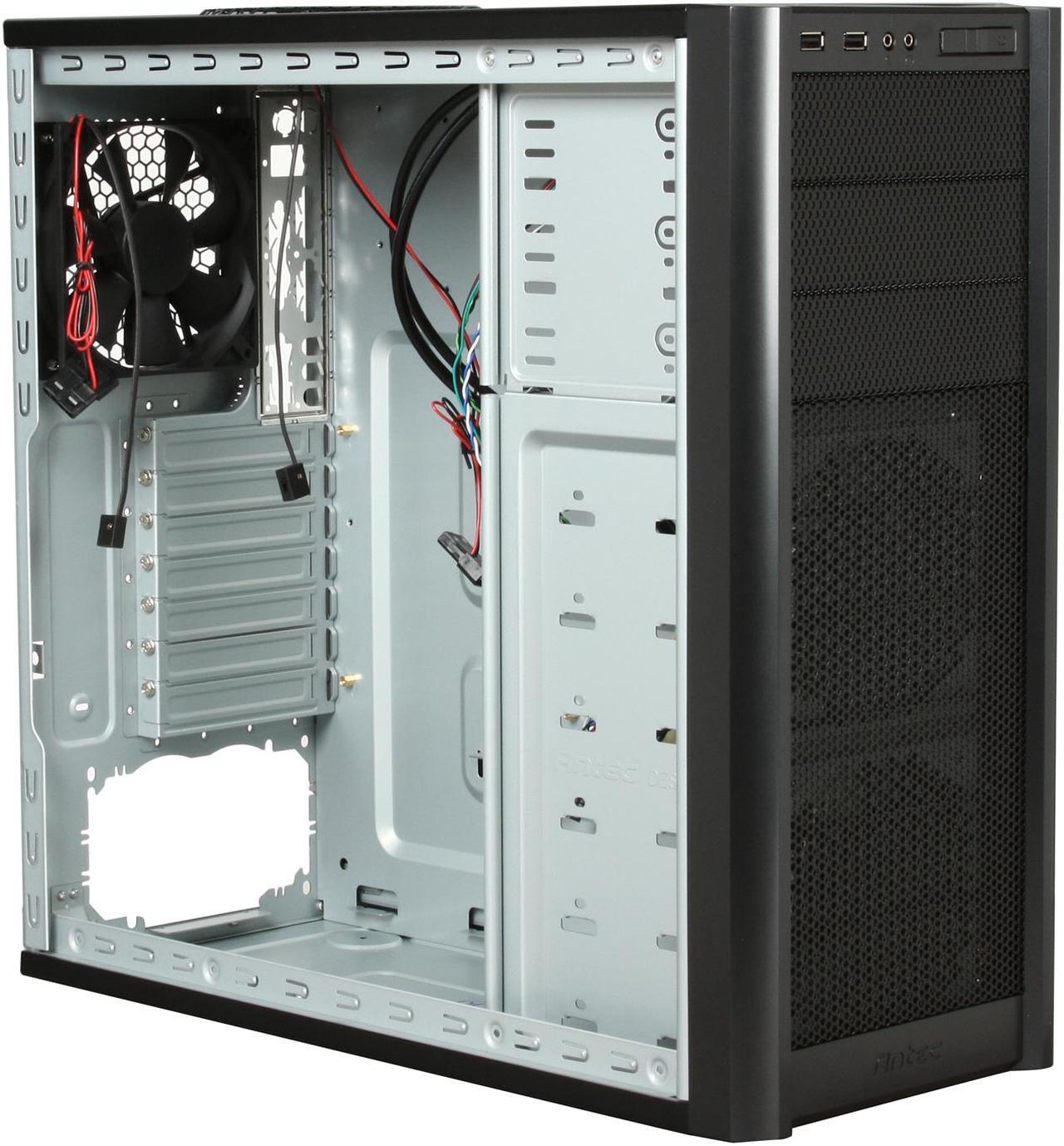

Impressively spacious and unbeatably reliable, the Antec Three Hundred is an unbeatable enclosure. Despite its eminently portable frame, the Three Hundred has enough room for an NVIDIA 8800 series graphics card, as well as six hard drives and a standardATX motherboard. A cable management compartment keeps your system organized and the airflow unobstructed. A 120mm rear fan and 140mm top fan ensure that the case runs cool even when playing the most demanding games, while the sleek black finish gives it an extra stylish edge.
Certifications:
Features:
No Power Supply included:
To optimize performance of your Three Hundred, your choice of power supply is crucial. Antec strongly recommends choosing from our NeoPower or TruePower series.
Nine (9) Drive Bays:
External 3 x 5.25"
Internal 6 x 3.5" for HDD
Cooling System:
2 Front 120 x 25mm TriCool™ Blue LED Fan with 3-speed switch control.

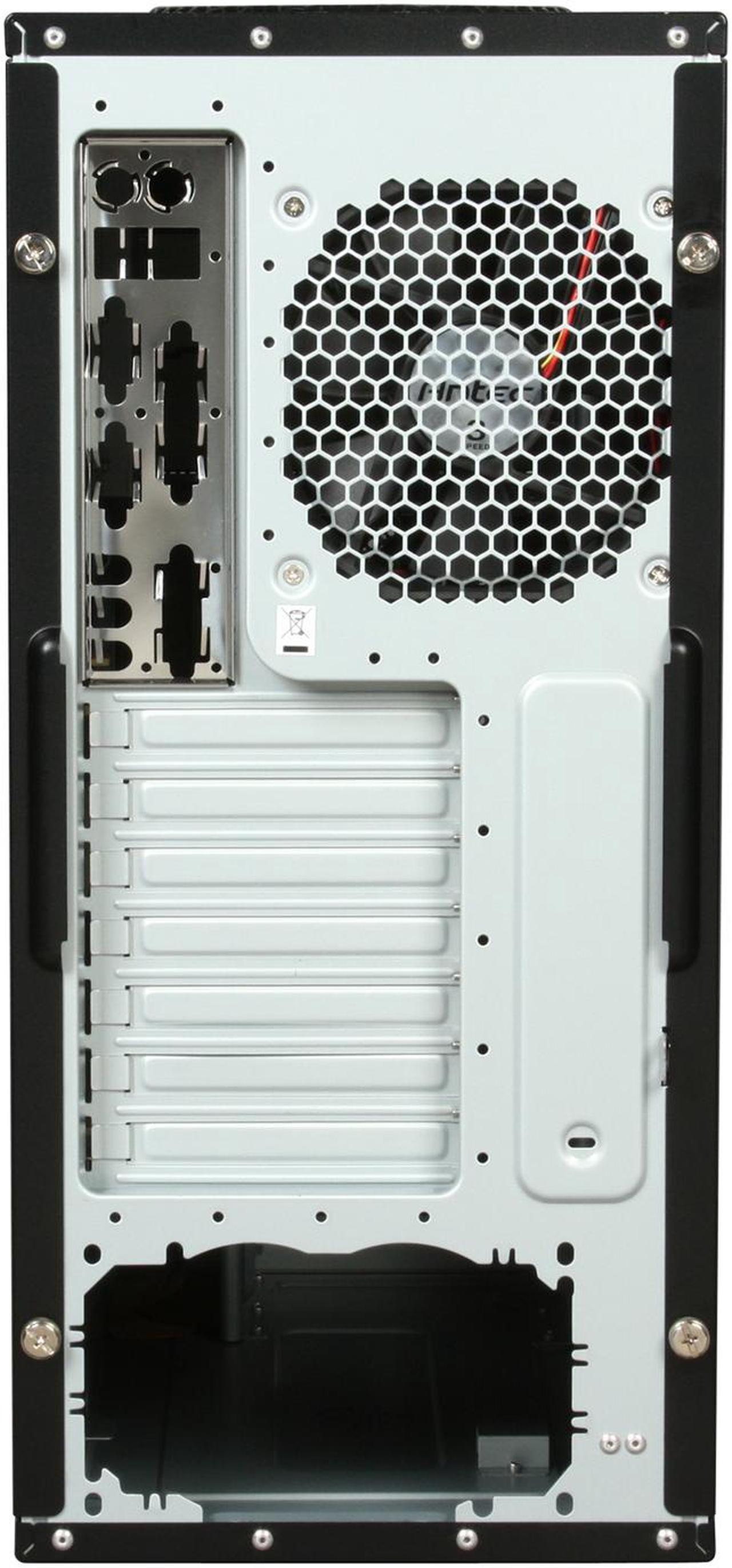

1 Rear 120 x 25mm TriCool™ Fan with 3-speed switch control.

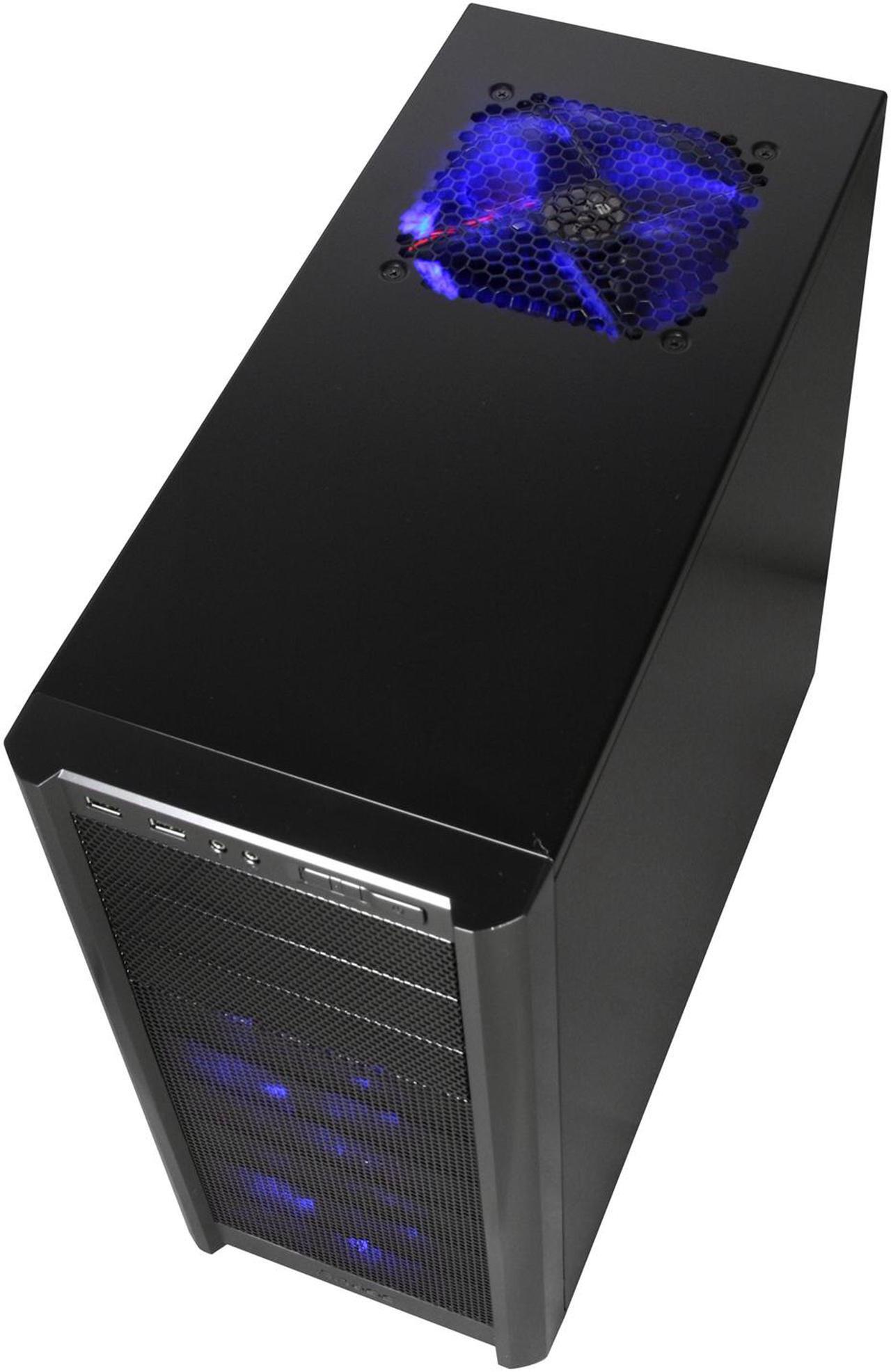

1 Top 140 x 25mm TriCooltrade; Blue LED Fan with 3-speed switch
2 Front (optional) 120mm fans to cool the hard drives

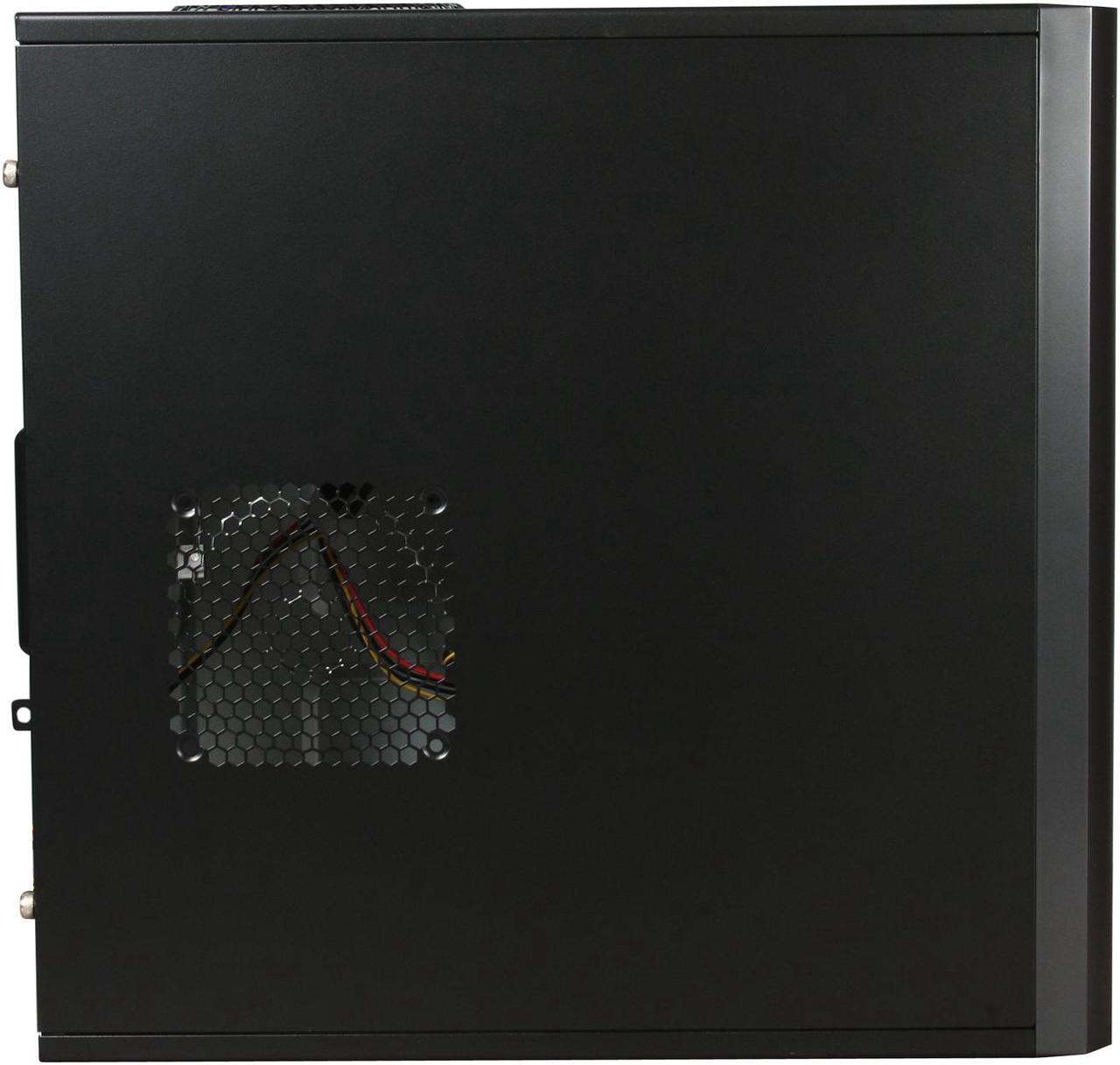

1 Side (Optional) 120 x 25mm Fan to cool graphic cards
Washable air filters reduce dust build up in your system, keeping your system cooler.

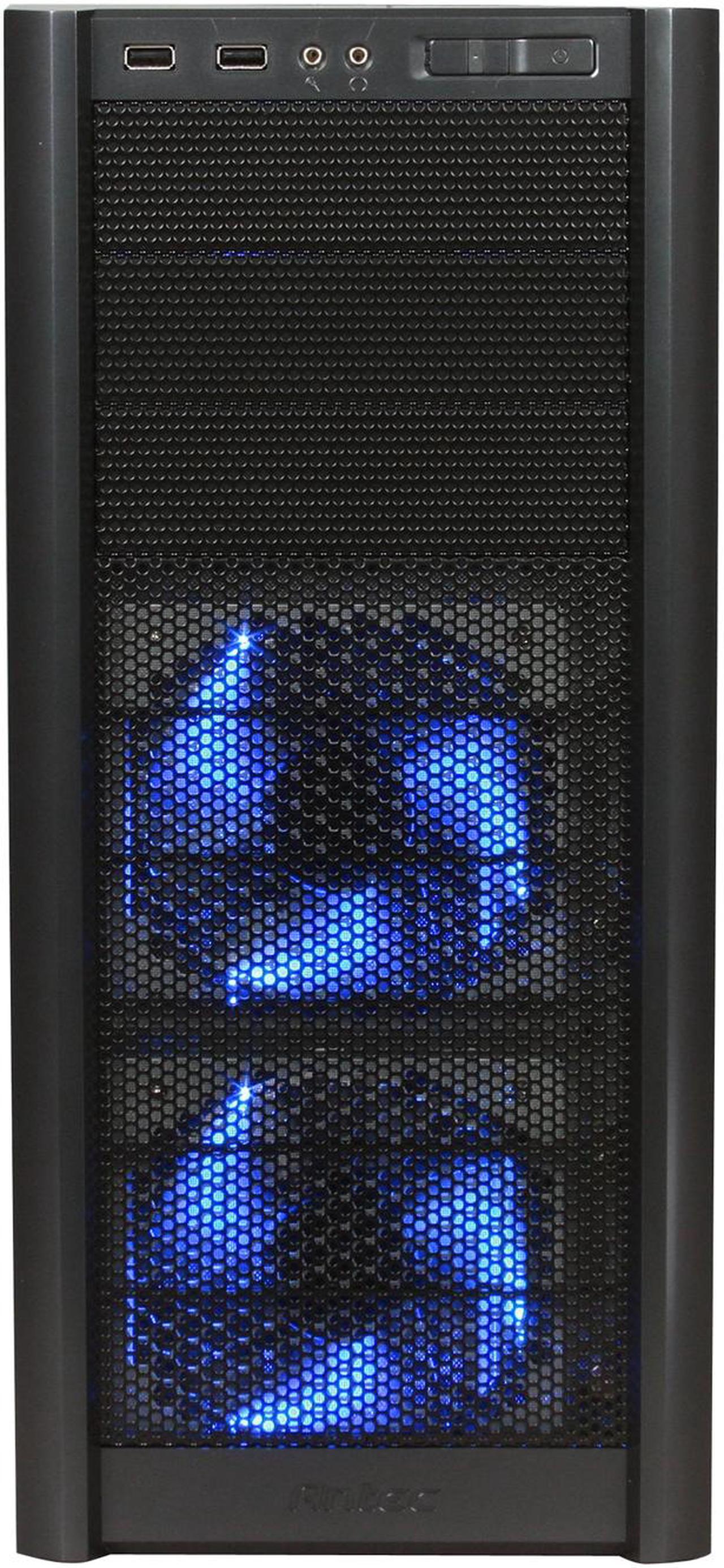

Perforated front bezel for maximum air intake
Maximum video card size: 12.5" (318mm) (Note: some video cards may block access to the adjacent hard drive bay) Compatible Motherboards: Mini-ITX, microATX, Standard ATX
Seven (7) Expansion Slots
Top mounted I/O ports for easy access
2 x USB 2.0
HDA & AC'97 Audio In and Out

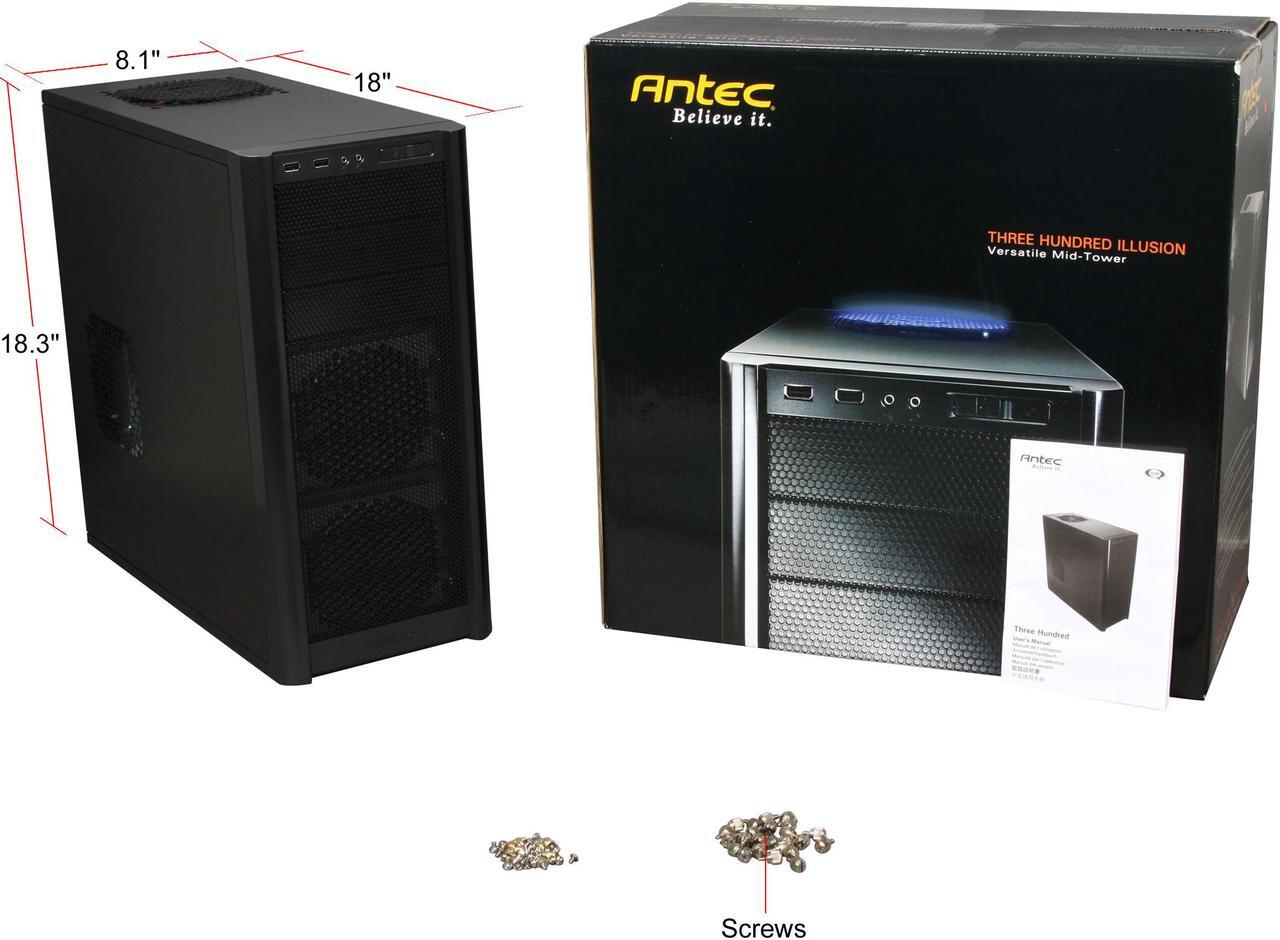

Unit Dimensions (H x D x W):
18 x 18.3 x 8.1"
(45.8 x 46.5 x 20.5cm)
Weight:
Net: 15.9lbs (7.2kg)
Gross: 18.7lbs (8.5kg)
Learn more about the Antec Three Hundred Illusion
Model
Brand
Antec
Model
Three Hundred Illusion
Details
Type
ATX Mid Tower
Color
Black
Case Material
Steel
With Power Supply
No
Power Supply Mounted
Bottom
Motherboard Compatibility
ATX
Side Panel Window
No
Dust Filters
Yes
Expansion
External 5.25" Drive Bays
3
Internal 3.5" Drive Bays
6
Expansion Slots
7
Front Panel Ports
Front Ports
USB 2.0 / Audio
Cooling System
80mm Fans
No
120mm Fans
2 front 120 x 25 mm TriCool Blue LED Fan with 3-speed switch control
1 rear 120 x 25 mm TriCool Fan with 3-speed switch control
140mm Fans
1 top 140 x 25 mm Twocool Blue LED Fan with 2-speed switch control
Dimensions & Weight
Dimensions (H x W x D)
18.30" x 8.10" x 18.00"
Weight
15.9 lbs.
Additional Info
Features
Washable air filters Perforated front bezel for maximum air intake Top mounted I/O ports for easy access
Additional Information
Date First Available
July 16, 2009
