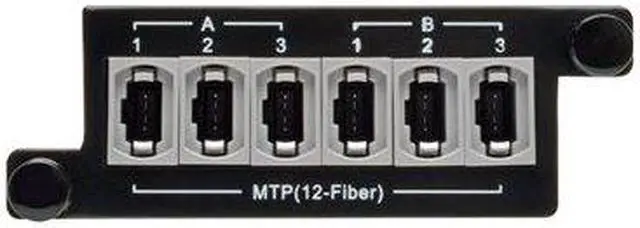

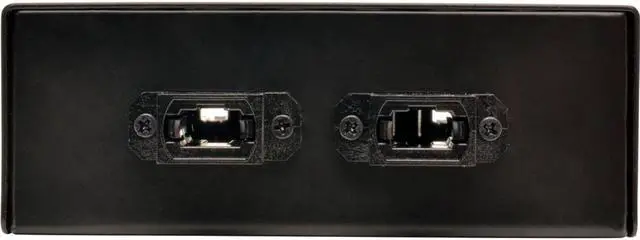

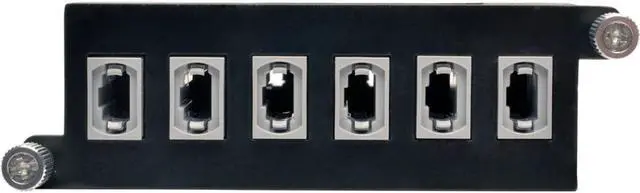

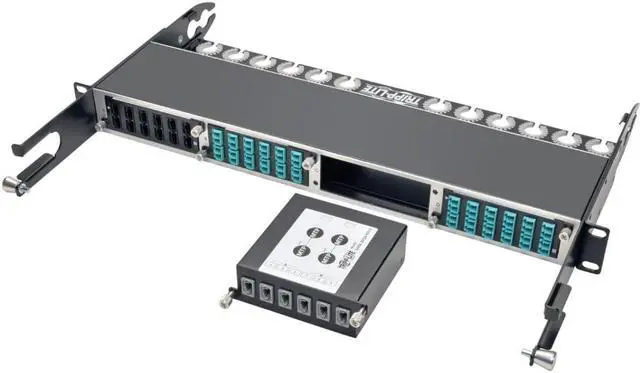

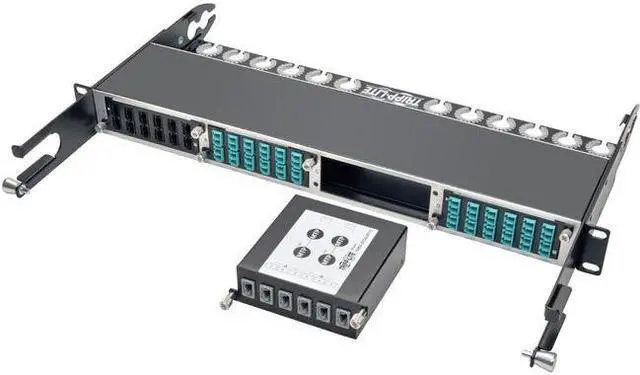

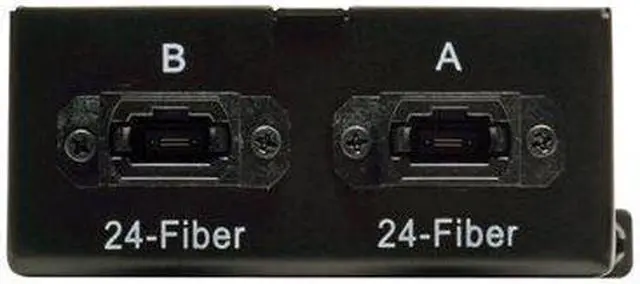

| Features | High Density Fiber Cassette for use with Tripp Lite's N484-00U and N484-01U chassis' 100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber MTP/MPO connections Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB Type B adapters ( Key up to Key up ) on 12-Fiber side Type A adapters ( Key up to Key down ) on 24-Fiber side Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required Each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations Housing made of heavy duty, 1.0mm Cold Rolled Steel Includes dust caps for unused ports

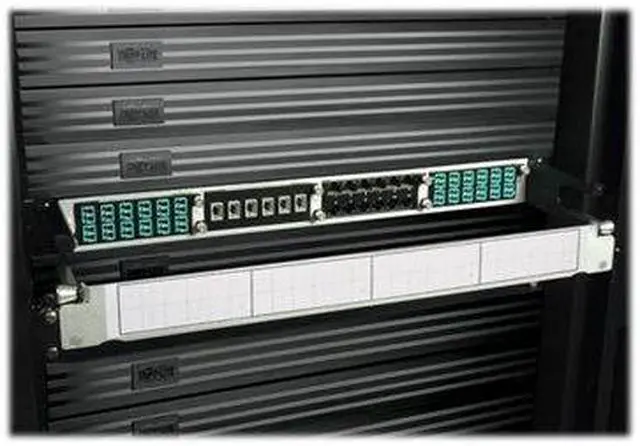

Typical Applications High density network applications as specified in the Data Center Cabling Standard TIA 942 for cross connects in main distribution, horizontal distribution, and equipment distribution areas

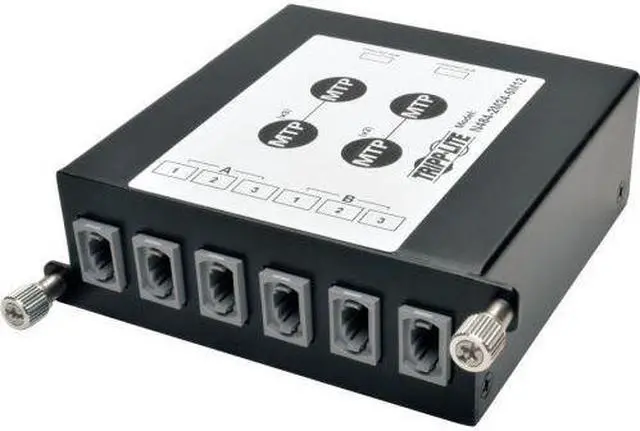

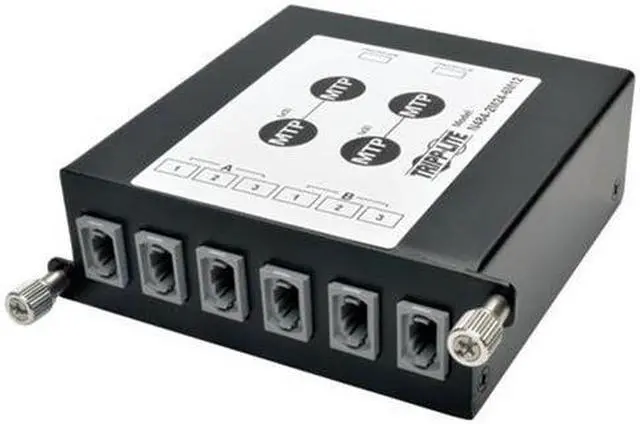

Package Includes N484-2M24-6M12 100/120Gb to 40Gb Breakout Cassette, (x2) 24-Fiber MTP/MPO to (x6) 12-Fiber MTP/MPO Quick Start Guide |
|---|
