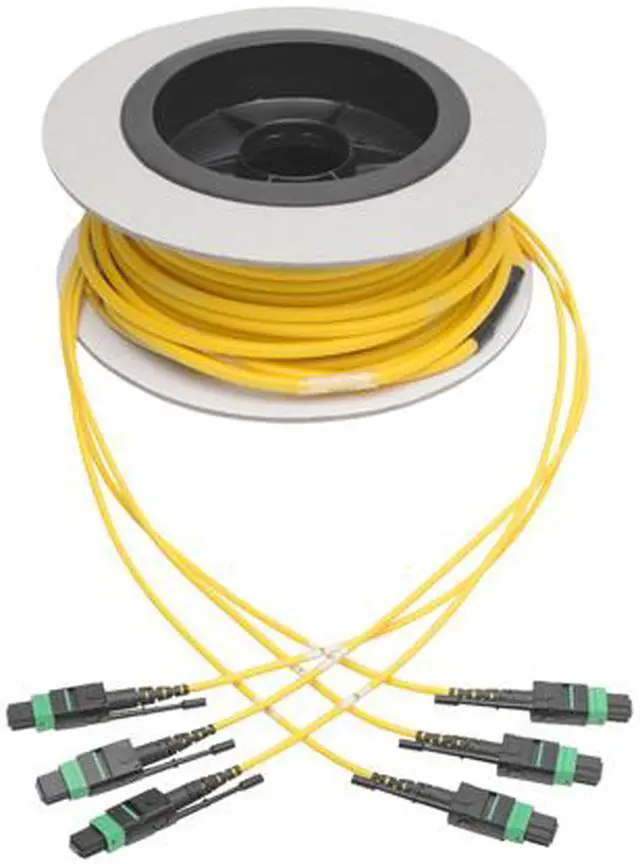

Main image of Tripp Lite MTP/MPO APC Singlemode Slim Trunk Cable 40/100 Gbe 24-Strand 11M (N392-11M-3X8-AP)

Alt view image 2 of 6 - Tripp Lite MTP/MPO APC Singlemode Slim Trunk Cable 40/100 Gbe 24-Strand 11M (N392-11M-3X8-AP)

Alt view image 3 of 6 - Tripp Lite MTP/MPO APC Singlemode Slim Trunk Cable 40/100 Gbe 24-Strand 11M (N392-11M-3X8-AP)

Alt view image 4 of 6 - Tripp Lite MTP/MPO APC Singlemode Slim Trunk Cable 40/100 Gbe 24-Strand 11M (N392-11M-3X8-AP)

Alt view image 5 of 6 - Tripp Lite MTP/MPO APC Singlemode Slim Trunk Cable 40/100 Gbe 24-Strand 11M (N392-11M-3X8-AP)

Alt view image 6 of 6 - Tripp Lite MTP/MPO APC Singlemode Slim Trunk Cable 40/100 Gbe 24-Strand 11M (N392-11M-3X8-AP)

Shop All Tripp Lite Products

Tripp Lite MTP/MPO APC Singlemode Slim Trunk Cable 40/100 Gbe 24-Strand 11M (N392-11M-3X8-AP)

Be the first to review this product...

Premium 8.3/125 singlemode fiber optic cabling for transmitting 40/100 Gb data and voice signals
Push/pull tab connectors easily install/remove with one hand

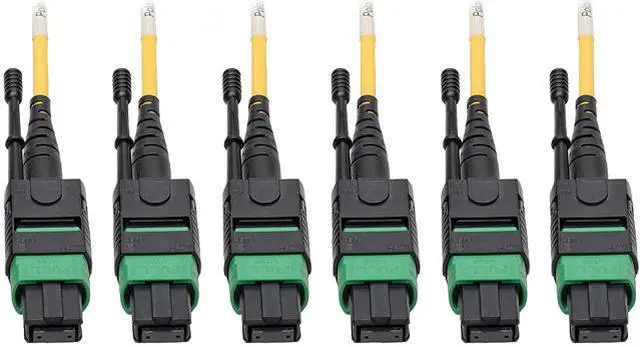

Factory-terminated 8-fiber MTP/MPO connectors
Angled APC connectors protect laser against destabilization

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES: Cable Type: Fiber OpticCable Characteristic: Patch CableFiber Optic Mode: Single-modeCore/Cladding Diameter: 8.3/125 µmCable Length: 36.09 ftConnector on First End: 3 x MTP/MPO Female NetworkConnector on Second End: 3 x MTP/MPO Female NetworkFeatures: Angled ConnectorDevice Supported: Network DeviceData Transfer Rate: 12.50 GB/sColor: YellowEnvironmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: Lifetime

Model
Brand	Tripp Lite
Model	N392-11M-3X8-AP
Type	Fiber
Color	Yellow

Details
Length	36 ft.
Connector Number	2
Connector Detail	Side A - Connector 1: 3x 8-STRAND MTP (FEMALE) Side B - Connector 1: 3x 8-STRAND MTP (FEMALE)
Terminal Gender	Female to Female
Speed	10Gbps / 40Gbps / 100Gbps

Features
Features	8.3/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications Designed to extend high-density connections between network equipment in telecom rooms and data centers Recommended for patching between data center MDFs and IDFs Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks 6 mm dual plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts Yellow-colored for identification as a singlemode cable Factory-Terminated MTP/MPO APC Connectors with Push/Pull Tabs 8-fiber female connectors 12 times denser than SC connectors Push/pull tab connectors easy to install and remove with one hand Angled connectors prevent light from reflecting back into laser 100% tested for low insertion loss and back reflection

Additional Information
First Listed on Newegg	December 04, 2017
