Premium 8.3/125 singlemode fiber optic cabling for transmitting 40/100 Gb data and voice signals
Push/pull tab connectors easily install/remove with one hand

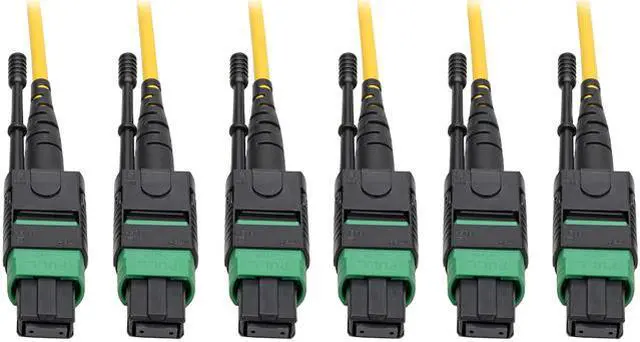

Factory-terminated 8-fiber MTP/MPO connectors
Angled APC connectors protect laser against destabilization
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Tripp Lite N392-45M-3X8-AP
Model
Brand
Tripp Lite
Model
N392-45M-3X8-AP
Type
Fiber
Color
Yellow
Details
Length
147 ft.
Connector Number
2
Connector Detail
Side A - Connector 1: 3x 8-STRAND MTP (FEMALE)
Side B - Connector 1: 3x 8-STRAND MTP (FEMALE)
Terminal Gender
Female to Female
Speed
10Gbps / 40Gbps / 100Gbps
Features
Features
8.3/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications Designed to extend high-density connections between network equipment in telecom rooms and data centers Recommended for patching between data center MDFs and IDFs Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks 6 mm dual plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts Yellow-colored for identification as a singlemode cable
Factory-Terminated MTP/MPO APC Connectors with Push/Pull Tabs 8-fiber female connectors 12 times denser than SC connectors Push/pull tab connectors easy to install and remove with one hand Angled connectors prevent light from reflecting back into laser 100% tested for low insertion loss and back reflection
Additional Information
First Listed on Newegg
December 04, 2017
