I know that it has wifi in the name but does it have wireless connection and bluetooth capabilities?

yes but, be advised the antenae holder has to be glued together to not fall apart. Also be sure to distance all WIFI devices as far apart as you can. A USB keyboard will interefere if you put the antenae too close to the USB transmitter.

will this work with the intel i1 11700f

The Intel Core i7-11700F is based on the 11th generation of the Intel Core i series from Intel, which is the last series to use CPU cores of the same size without a hybrid structure. The Rocket Lake processors support the AVX-512 instruction set, which is no longer supported or only partially supported on the newer 12th generation Intel Alder Lake processors. If you work a lot with applications that benefit from AVX-512, the purchase of the Intel Core i7-11700F can still be worthwhile in 2022. so to answer your question yes it is compatible with this mother board, happy gaming

Is it compatible with Intel i7 processors?

Yes installed an i7 1100 series and it is perfect. Be advised the memory slots are very tight and require firm pressure to fully seat the sticks. Don't mess this part up.

Would this work with my i7 10700k

Yes, it supports 10th Gen Intel Core processors, including the i7 10700k.

Will this motherboard work with my Intel i7 10700k CPU?

Yes, the ASUS TUF Gaming Z590-Plus WiFi motherboard supports 10th Gen Intel Core processors, including the Intel i7 10700k.

What ram does it take

The motherboard has 4 memory slots and supports DDR4 RAM with speeds up to 5133(OC). It can support a maximum memory of 128GB.

What are the main features of the ASUS TUF GAMING Z590-PLUS WIFI motherboard?

The main features of the ASUS TUF GAMING Z590-PLUS WIFI motherboard include an Intel LGA 1200 socket designed for 11th Gen Intel Core processors, an enhanced power solution with 14+2 DrMOS power stages, comprehensive cooling solutions including VRM heatsink and M.2 heatsink, ultra-fast gaming networking with Intel WiFi 6 and 2.5Gb LAN, fast connectivity with triple M.2/NVMe SSD support, and synchronizable LED effects with Aura Sync.

How do you get this to install windows 10? Nothing I do will get it into windows setup.

Have an install file for Windows on a USB driver and have it boot to the USB through BIOS?

$318^.39

$349.00

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by roboshine

Hot Seller

4.5 (245 seller ratings)

Shipped by roboshine

Meet Your Seller

roboshine

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

Main image of ASUS TUF Gaming Z590-Plus WiFi 6, LGA 1200 (Intel 11th/10th Gen) ATX Gaming Motherboard (PCIe 4.0, 3 x M.2/NVMe SSD, 14+2 Power Stages, USB 3.2 Gen 1 Front Panel Type-C, 2.5Gb LAN, Thunderbolt 4 Support, Aura RGB Lighting)

Alt view image 2 of 6 - ASUS TUF Gaming Z590-Plus WiFi 6, LGA 1200 (Intel 11th/10th Gen) ATX Gaming Motherboard (PCIe 4.0, 3 x M.2/NVMe SSD, 14+2 Power Stages, USB 3.2 Gen 1 Front Panel Type-C, 2.5Gb LAN, Thunderbolt 4 Support, Aura RGB Lighting)

Alt view image 3 of 6 - ASUS TUF Gaming Z590-Plus WiFi 6, LGA 1200 (Intel 11th/10th Gen) ATX Gaming Motherboard (PCIe 4.0, 3 x M.2/NVMe SSD, 14+2 Power Stages, USB 3.2 Gen 1 Front Panel Type-C, 2.5Gb LAN, Thunderbolt 4 Support, Aura RGB Lighting)

Alt view image 4 of 6 - ASUS TUF Gaming Z590-Plus WiFi 6, LGA 1200 (Intel 11th/10th Gen) ATX Gaming Motherboard (PCIe 4.0, 3 x M.2/NVMe SSD, 14+2 Power Stages, USB 3.2 Gen 1 Front Panel Type-C, 2.5Gb LAN, Thunderbolt 4 Support, Aura RGB Lighting)

Alt view image 5 of 6 - ASUS TUF Gaming Z590-Plus WiFi 6, LGA 1200 (Intel 11th/10th Gen) ATX Gaming Motherboard (PCIe 4.0, 3 x M.2/NVMe SSD, 14+2 Power Stages, USB 3.2 Gen 1 Front Panel Type-C, 2.5Gb LAN, Thunderbolt 4 Support, Aura RGB Lighting)

Alt view image 6 of 6 - ASUS TUF Gaming Z590-Plus WiFi 6, LGA 1200 (Intel 11th/10th Gen) ATX Gaming Motherboard (PCIe 4.0, 3 x M.2/NVMe SSD, 14+2 Power Stages, USB 3.2 Gen 1 Front Panel Type-C, 2.5Gb LAN, Thunderbolt 4 Support, Aura RGB Lighting)

Customer images

Shop All ASUS Products | Visit Roboshine Store

ASUS TUF Gaming Z590-Plus WiFi 6, LGA 1200 (Intel 11th/10th Gen) ATX Gaming Motherboard (PCIe 4.0, 3 x M.2/NVMe SSD, 14+2 Power Stages, USB 3.2 Gen 1 Front Panel Type-C, 2.5Gb LAN, Thunderbolt 4 Support, Aura RGB Lighting)

(646)(82) Write a Review

Option: TUF GAMING Z590-PLUS WIFI

PRIME Z590-A
PRIME Z590-P
PRIME Z590M-PLUS
ROG MAXIMUS XIII HERO
ROG STRIX Z590-A GAMING WIFI
ROG STRIX Z590-A GAMING WIFI II
ROG STRIX Z590-E GAMING WIFI
ROG STRIX Z590-F GAMING WIFI
ROG STRIX Z590-I GAMING WIFI
TUF GAMING Z590-PLUS
TUF GAMING Z590-PLUS WIFI
Z590 WIFI GUNDAM EDITION

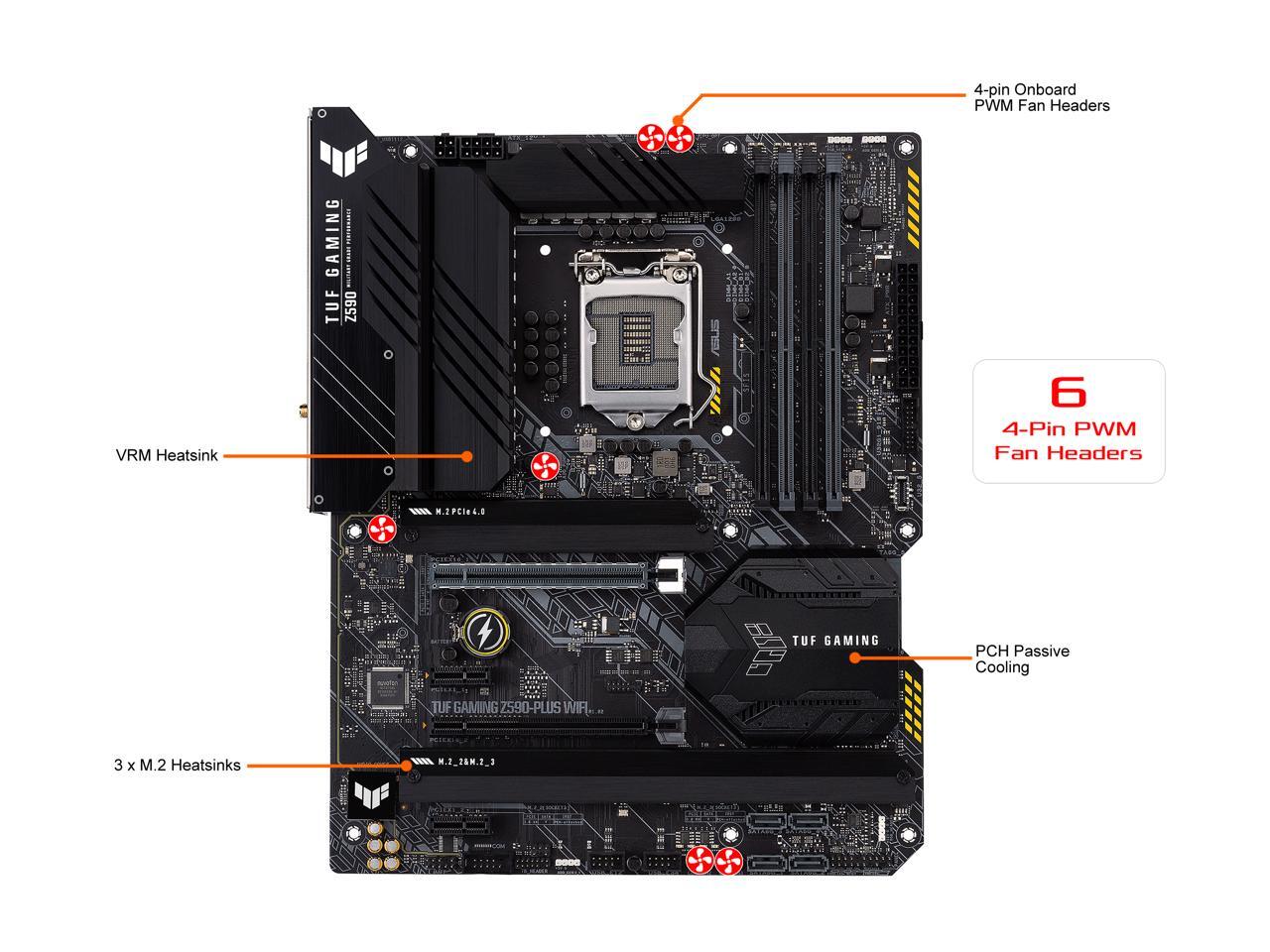

Intel LGA 1200 Socket: Designed to unleash the maximum performance of 11th Gen Intel Core processors
Enhanced Power Solution: 14+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability and performance
Comprehensive Cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
Ultra Fast Gaming Networking: Intel WiFi 6 AX201 (802.11ax), Intel I225-V 2.5Gb LAN, TUF LANGuard and TurboLAN technology
Fastest Connectivity: Triple M.2/NVMe SSD, Front panel USB 3.2 Gen 1 Type-C header and Thunderbolt 4 header
Gaming Look and Feel: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips with Aura Sync

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (646)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Best Seller Ranking	#58 in Intel Motherboards

Model
Brand	ASUS
Model	TUF GAMING Z590-PLUS WIFI

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 11th / 10th Gen Intel Core Processors Supports Intel Pentium Gold / Celeron Processors * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel Z590

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133* * 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively. * 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express 4.0 x16* * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16* * Supports x4 mode.
PCI Express x1	2 x PCIe 3.0 x1

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	Intel 11th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)** * M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled. ** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled.
Intel Optane Ready	To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.

Onboard Audio
Audio Chipset	Realtek ALC S1200A
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel I225-V
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.0

Rear Panel Ports
Back I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3-pin System Panel header with Chassis intrude function 1 x Thunderbolt header

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

Features
Features	Special Features: ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - TUF LANGuard - Overvoltage Protection ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers Software Features: ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS: 192 (128+64) MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 64-bit

Packaging
Package Contents	Accessories: Cables: 2 x SATA 6Gb/s cables Miscellaneous: 1 x ASUS Wi-Fi moving antennas 2 x M.2 Rubber Packages 1 x M.2 SSD screw package 1 x TUF Gaming sticker Installation Media: 1 x Support DVD Documentation: 1 x TUF Certification card 1 x User manual
