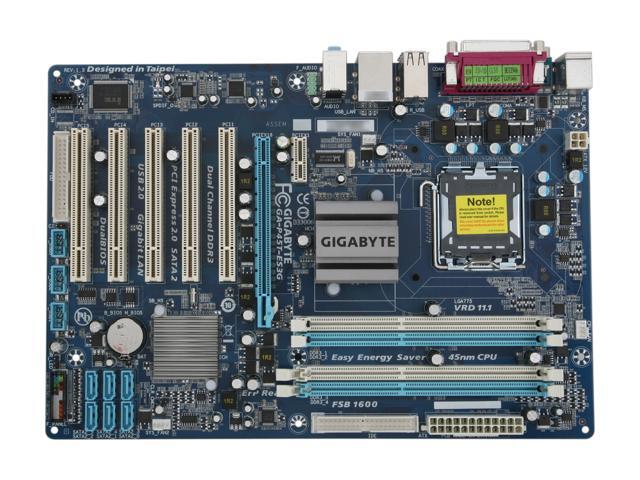

GIGABYTE GA-P45T-ES3G LGA 775 Intel P45 ATX Intel Motherboard

OUT OF STOCK.
  • Intel P45
  • Celeron / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium
  • DDR3 1600/1333/1066
Specs
Reviews

Learn more about the GIGABYTE GA-P45T-ES3G

Model
Brand GIGABYTE
Model GA-P45T-ES3G
Supported CPU
CPU Socket Type LGA 775
CPU Type Celeron / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium
FSB 1600/1333/1066/800MHz
Chipsets
Chipset Intel P45
South Bridge Intel ICH10
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1600/1333/1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 5 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111D
Max LAN Speed 10/100/1000Mbps

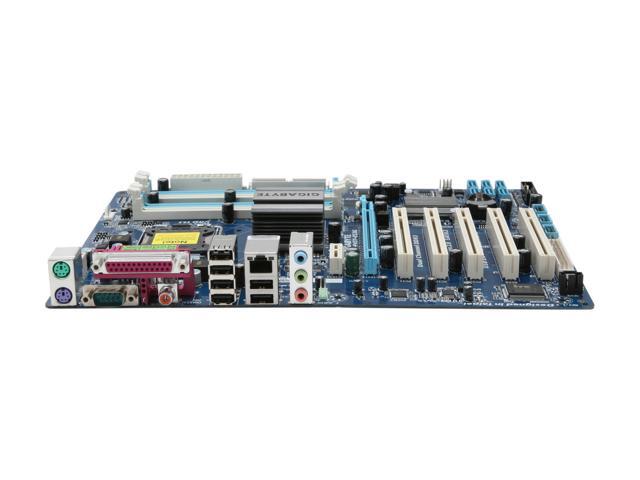

Rear Panel Ports
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 6 x USB 2.0
S/PDIF Out 1 x Coaxial
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12" x 8.27"
Power Pin 24 Pin
Additional Information
Date First Available April 29, 2011
