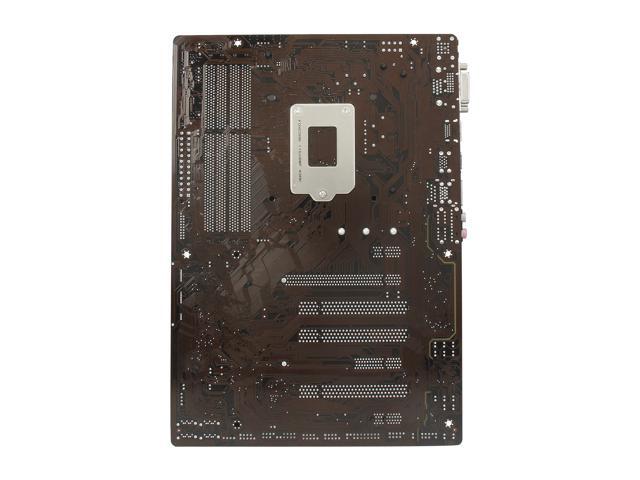

GIGABYTE GA-H97-D3H LGA 1150 Intel H97 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard

Used - Very Good Product Type
In stock.
Ships from China.
Most customers receive within 6-31 days.
  • Intel H97
  • Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
  • DDR3 1600/1333
Specs

Learn more about the GIGABYTE GA-H97-D3H

Model
Brand GIGABYTE
Model GA-H97-D3H
Supported CPU
CPU Socket Type LGA 1150
CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
Chipsets
Chipset Intel H97
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1600/1333
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express x16 1 (x4)
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
SATA Express 1 x SATA Express
M.2 1 x M.2
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1150
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel i217V
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
Video Ports 1 x DVI-D
1 x VGA
HDMI 1 x HDMI
RJ45 1 x RJ45
USB 3.0 4 x USB 3.0
USB 1.1/2.0 2 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 6 x USB 2.0
Other Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling fan header (CPU_OPT)
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x serial port header
1 x Trusted Platform Module (TPM) header
1 x S/PDIF Out header
1 x Clear CMOS jumper
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 8.4"
Power Pin 24 Pin
Features
Features Supports 4th and 5th Generation Intel Core processors

Extreme multi graphics support

SATA Express support for 10 Gb/s data transfer

M.2 for SSDs drives with up to 10 Gb/s data transfer

Intel GbE LAN with CFOS internet accelerator software

Realtek ALC1150 115dB SNR HD Audio with built-in rear audio amplifier

Long lifespan Durable Solid caps

APP Center including EasyTune and Cloud Station utilities

GIGABYTE UEFI DualBIOS

Intel Small Business Advantage
Additional Information
Date First Available October 18, 2021
