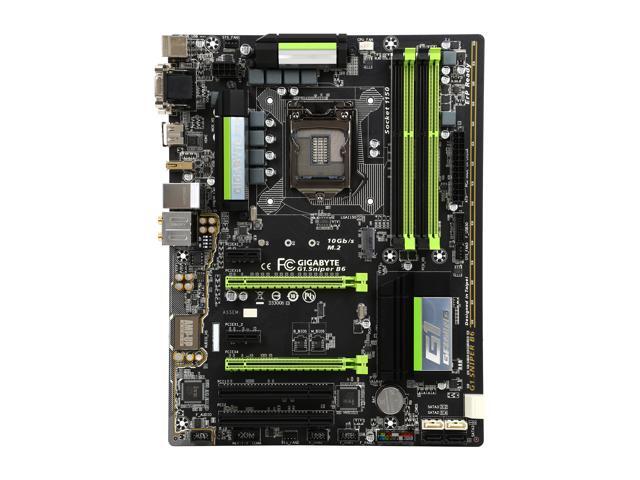

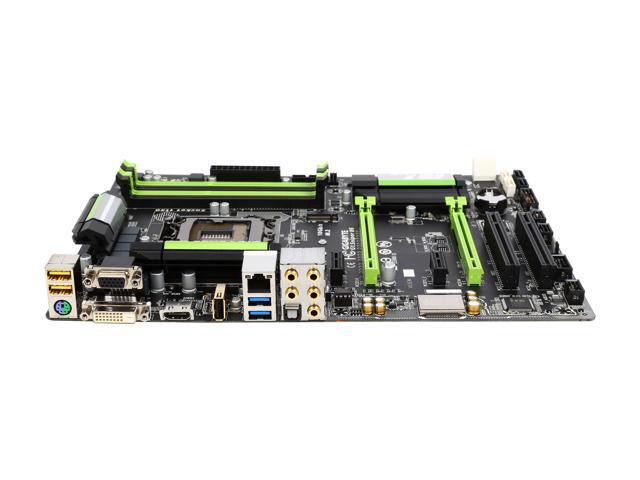

GIGABYTE GA-G1.SNIPER B6 LGA 1150 Intel B85 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard

Used - Like New Product Type
In stock.
Ships from China.
Most customers receive within 5-32 days.
  • Intel B85
  • Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
  • DDR3 1600/1333
Specs

Learn more about the GIGABYTE GA-G1.SNIPER B6

Model
Brand GIGABYTE
Model GA-G1.SNIPER B6
Supported CPU
CPU Socket Type LGA 1150
CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
Chipsets
Chipset Intel B85
Onboard Video
Onboard Video Chipset Intel HD Graphics
Memory
Number of Memory Slots 4×240pin
Memory Standard DDR3 1600/1333
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express x16 1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The M.2 socket shares bandwidth with the PCIEX4 slot. When the M.2 socket is populated, the PCIEX4 slot will operate at up to x2 mode.
PCI Express x1 2 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
PCI Slots 2 x PCI Slots
Storage Devices
SATA 3Gb/s 2 x SATA 3Gb/s connectors
SATA 6Gb/s 4 x SATA 6Gb/s connectors
(M.2, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed.)
M.2 1 x M.2 Socket 3 connector
* Support for M.2 PCIe SSDs only.
* The M.2 socket shares bandwidth with the PCIEX4 slot. When the M.2 socket is populated, the PCIEX4 slot will operate at up to x2 mode.
Onboard Audio
Audio Chipset Realtek ALC1150
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek GbE
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
Video Ports 1 x D-Sub port
1 x DVI-D port
HDMI 1 x HDMI
RJ45 1 x RJ45
USB 3.0 2 x USB 3.0/2.0 ports
USB 1.1/2.0 3 x USB 2.0/1.1 ports
S/PDIF Out 1 x Optical
Audio Ports 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 4 x USB 2.0
Other Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x serial port header
1 x Clear CMOS jumper
1 x audio gain control switch
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.01" x 9.21"
Power Pin 24 Pin
Features
Features Supports 4th Generation Intel Core processors

GIGABYTE Ultra Durable 4 Plus Technology

GIGABYTE Hybrid digital power engine

GIGABYTE UEFI DualBIOS

GIGABYTE AMP-UP Audio technology

Nichicon High End Audio Capacitors

M.2 for SSDs drives with up to 10 Gb/s data transfer

Intel GbE LAN with CFOS internet accelerator software

DAC-UP USB port

Realtek ALC1150 115dB SNR HD Audio with built-in rear audio amplifier

Audio Noise Guard with LED path lighting

Multi-GPU Support

Intel LAN with high ESD Protection
Additional Information
Date First Available July 28, 2021
