For the GA-Z270N-WiFi, if I'm using the M.2 on the back of the board with a 4X SSD, does it reduce the bandwidth to the PCI-E 16X slot for graphics?

Don't know but look up in manual or go to their website. Call them for assistance if necessary. U may have already done this however so sorry.

Why have you not learned from the complaints of the Z170 version of this board that you need to put a heatsink on the MOSFETs?! Unacceptable.

Please use the review section of the website for this sort of rhetoric.

$110^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Price alert

Add to wish list

Sold by DoDo DIY

Hot Seller

4 (746 seller ratings)

Shipped by DoDo DIY

Meet Your Seller

DoDo DIY

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

Main image of GIGABYTE GA-Z270N-WIFI (rev. 1.0) LGA 1151 Intel Z270 HDMI USB 3.1 Mini ITX Motherboards - Intel

100%

Alt view image 2 of 5 - GIGABYTE GA-Z270N-WIFI (rev. 1.0) LGA 1151 Intel Z270 HDMI USB 3.1 Mini ITX Motherboards - Intel

Alt view image 3 of 5 - GIGABYTE GA-Z270N-WIFI (rev. 1.0) LGA 1151 Intel Z270 HDMI USB 3.1 Mini ITX Motherboards - Intel

Alt view image 4 of 5 - GIGABYTE GA-Z270N-WIFI (rev. 1.0) LGA 1151 Intel Z270 HDMI USB 3.1 Mini ITX Motherboards - Intel

Alt view image 5 of 5 - GIGABYTE GA-Z270N-WIFI (rev. 1.0) LGA 1151 Intel Z270 HDMI USB 3.1 Mini ITX Motherboards - Intel

360^°

Shop All GIGABYTE Products | Visit DoDo DIY Store

GIGABYTE GA-Z270N-WIFI (rev. 1.0) LGA 1151 Intel Z270 HDMI USB 3.1 Mini ITX Motherboards - Intel

Used - Very Good

Option: GA-Z270N-WIFI

GA-Z270-HD3
GA-Z270-HD3P
GA-Z270M-D3H
GA-Z270N-WIFI
GA-Z270P-D3
GA-Z270X-UD3
GA-Z270X-UD5

Intel Z270
Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
DDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE GA-Z270N-WIFI (rev. 1.0)

Model
Brand	GIGABYTE
Model	GA-Z270N-WIFI (rev. 1.0)

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
Supported CPU Technologies	* Not Compatible with Intel 8th Gen CPUs

Chipsets
Chipset	Intel Z270

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel HD Graphics support: - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. - 2 x HDMI ports, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 1GB

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
Other Slots	1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s

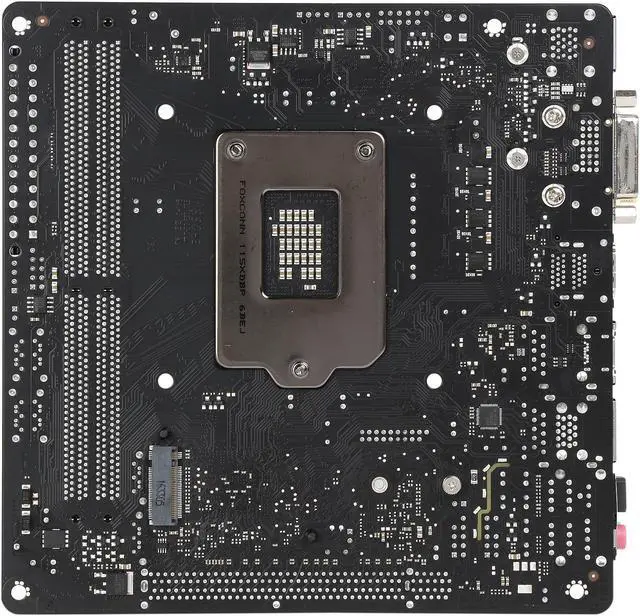

M.2	1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support)
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	2/4/5.1/7.1-channel

Onboard LAN
LAN Chipset	Intel GbE LAN chip
Second LAN Chipset	Intel GbE LAN chip
Max LAN Speed	2 x 1Gbps
Wireless LAN	Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Bluetooth	BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D port
HDMI	2 x HDMI
RJ45	2 x RJ45
USB 3.1	4 x USB 3.1 Gen 1 ports 1 x USB Type-C port, with USB 3.1 Gen 1 support
S/PDIF Out	1 x Optical
Audio Ports	5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Antenna Connectors	2 x SMA antenna connectors (2T2R)

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header
Other Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header

Physical Spec
Form Factor	Mini ITX

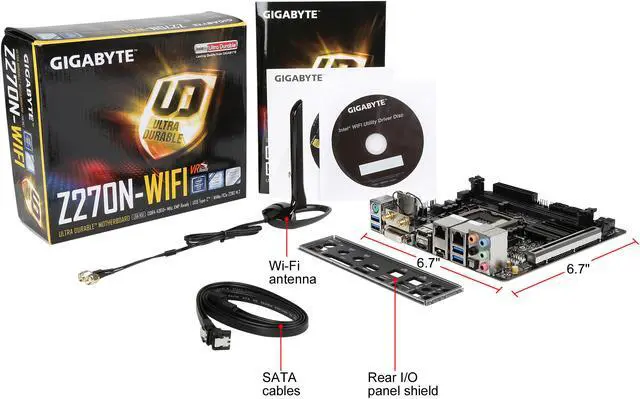

Dimensions (W x L)	6.7" x 6.7"
Power Pin	24 Pin

Features
Features	I/O Controller - iTE I/O Controller Chip Hardware Monitor - Voltage detection - Temperature detection - Fan speed detection - Overheating warning - Fan fail warning - Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS - 2 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - Support for DualBIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features - Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Easy RAID Fast Boot Game Boost GIGABYTE HW OC APP ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock System Information Viewer USB Blocker USB DAC-UP 2 V-Tuner - Support for 3TB+ Unlock - Support for Q-Flash - Support for Xpress Install Bundled Software - Norton Internet Security (OEM version) - Intel Wireless Display - Intel Optane Memory Ready - cFosSpeed Operating System - Support for Windows 10/8.1 64-bit - Support for Windows 7 32-bit/64-bit * Operating systems supported may vary depending on your processor model. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
