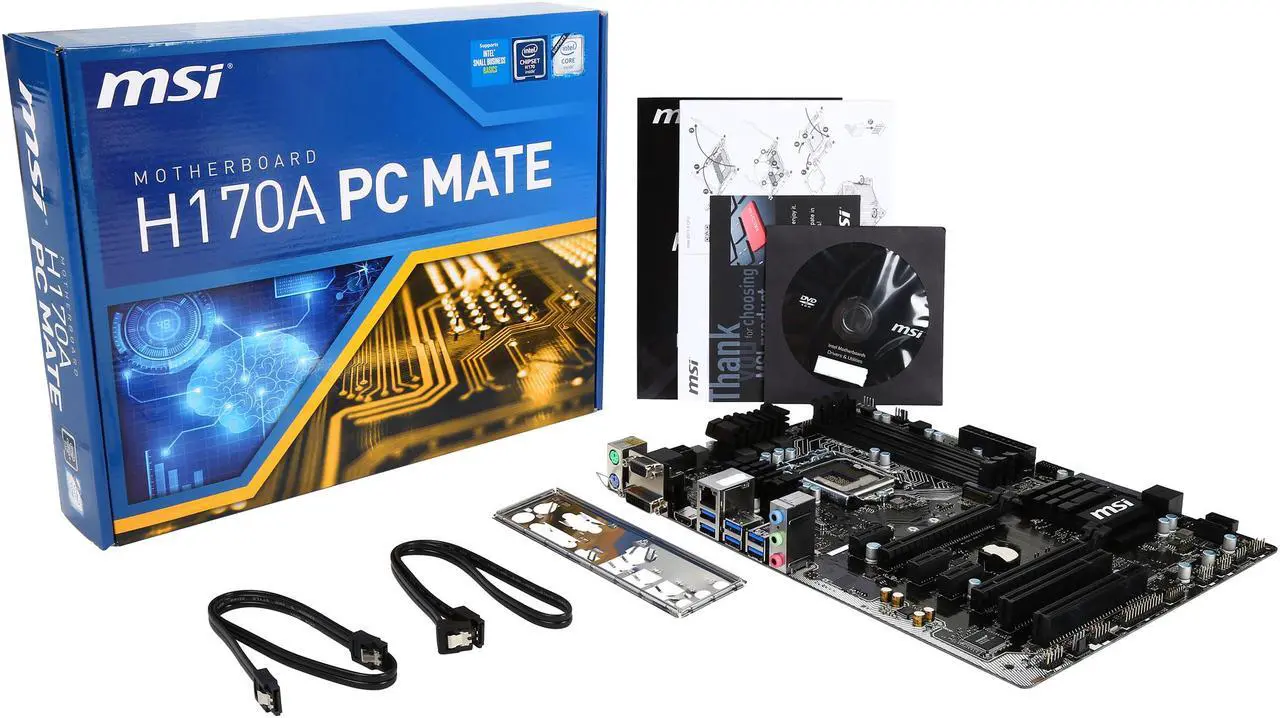

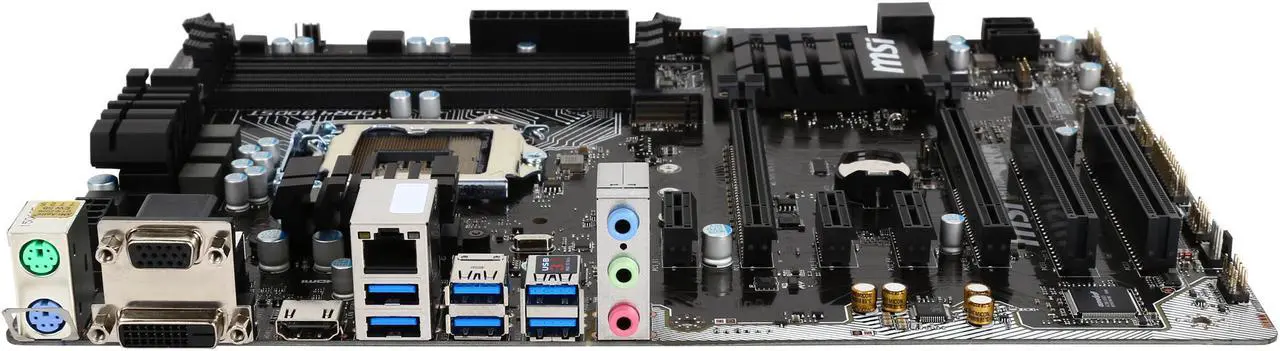

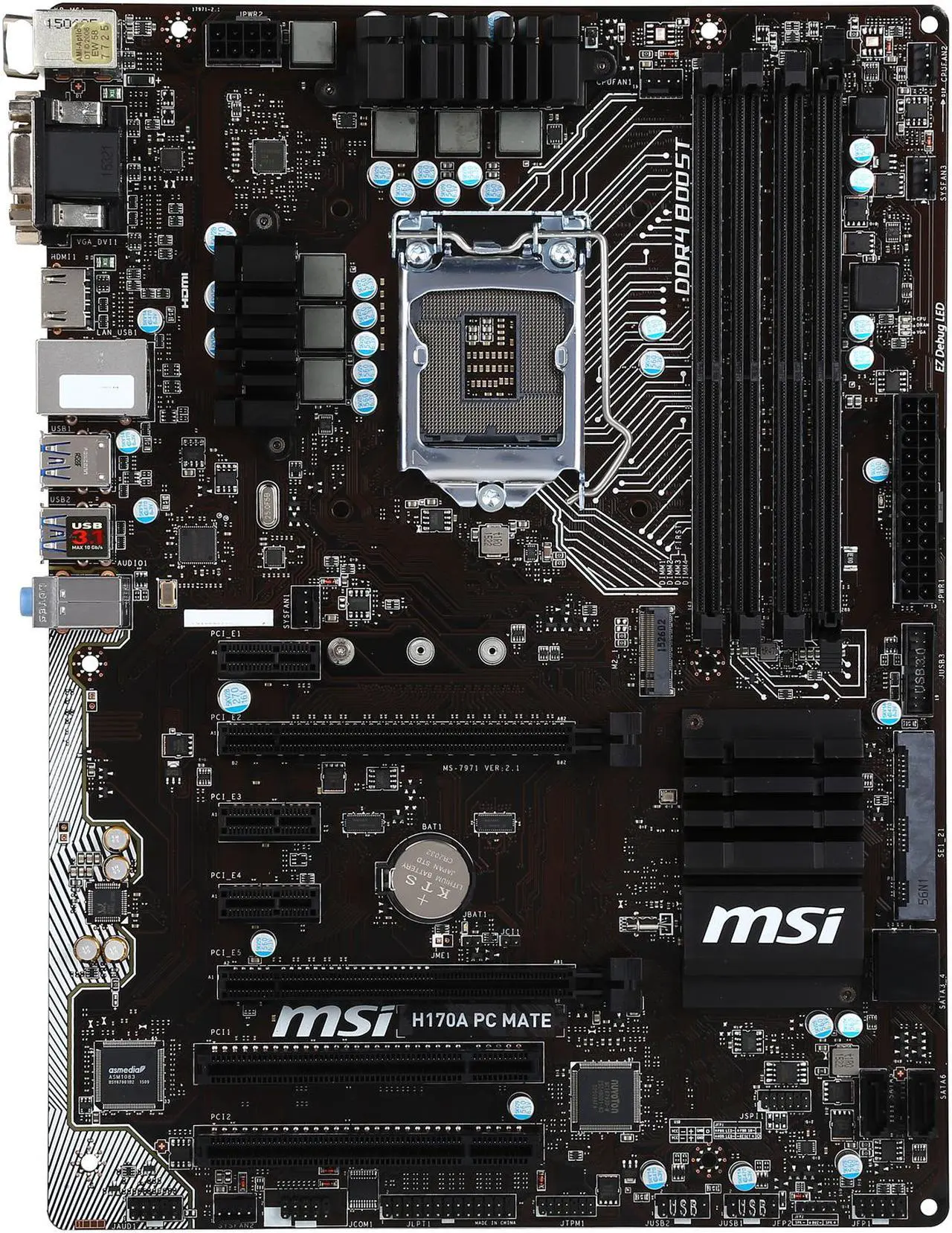

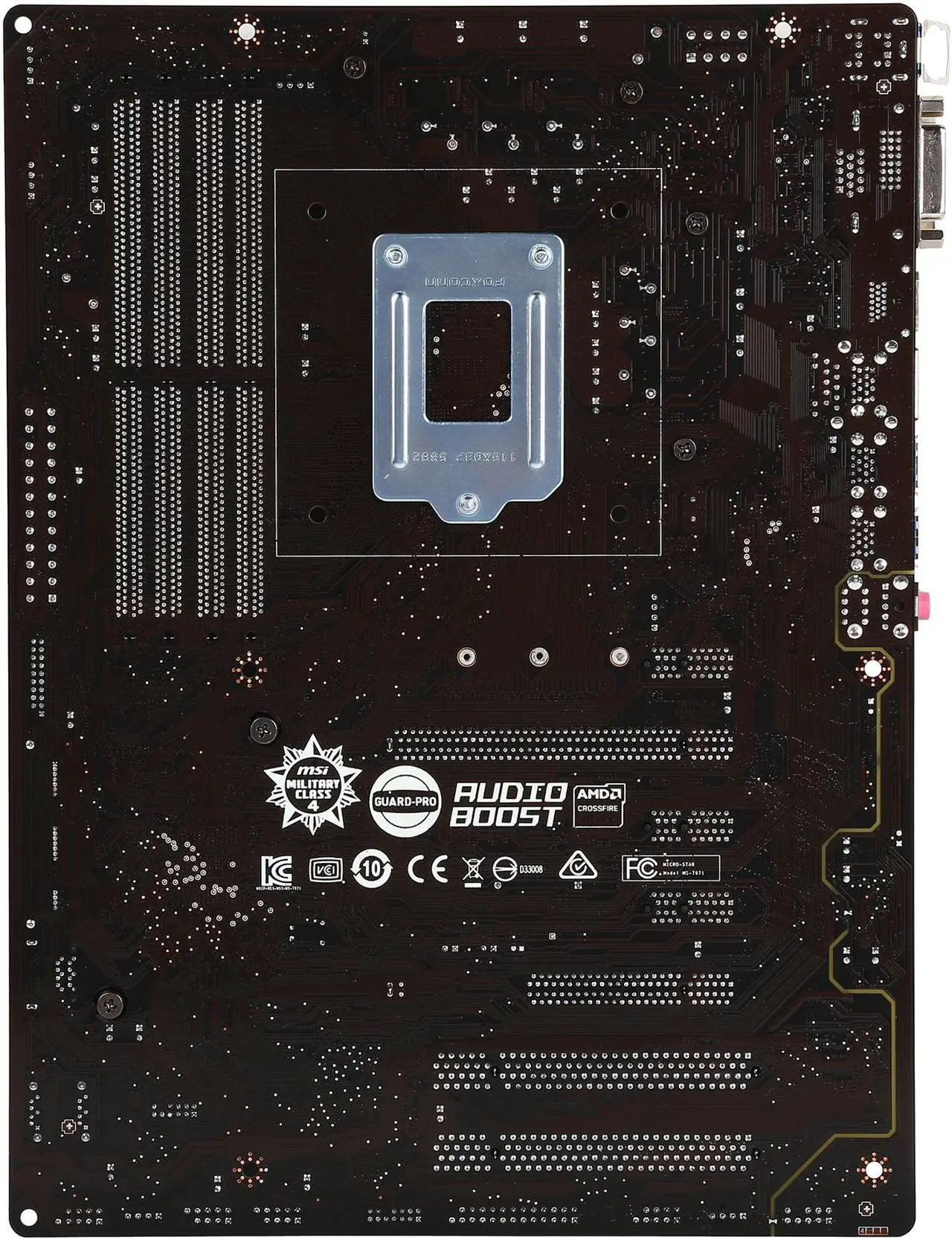

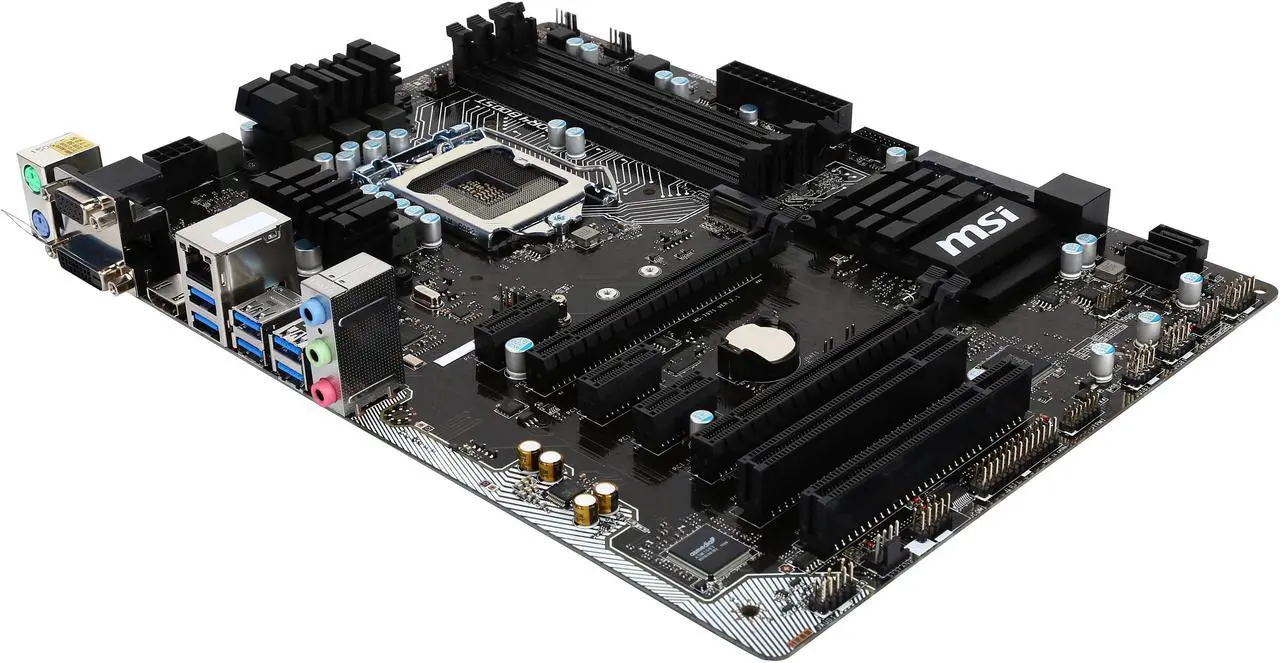

MSI H170A PC Mate LGA 1151 Intel H170 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

UNMATCHED MEMORY PERFORMANCE AND STABILITY

With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.

FAST STORAGE WITH SATA EXPRESS

SATA Express offers a solution in high speed storage through PCI-Express, providing more bandwidth for the latest generation SSDs up to 16 Gb/s.

THE ALL NEW, AWARD-WINNING CLICK BIOS 5

Explore the greatly improved, award-winning CLICK BIOS 5 and use it to tune your system to maximum performance. MSI CLICK BIOS 5 is the next generation UEFI BIOS with optimizations for Windows 10.

Control your system in two modes: EZ mode, for the most used settings and functions. Advanced mode for more detailed settings and fine-tuning options to boost your system's performance.

• -Variety of options to boost your game performance
• -Next gen UEFI BIOS with award winning design
• -High-resolution multi language scalable font
• -Easy to use
• -Advanced overclocking

M-CLOUD

MSI M-Cloud is a convenient and secure way of saving personal files in the cloud. M-Cloud simplifies complicated settings with a user friendly interface and is easy to learn. Build and maintain your personal cloud with ease. M-Cloud can also turn your PC into an Access Point. You can easily share a wireless network or internet signal to other devices through just a few simple steps.

MILITARY CLASS 4 COMPONENTS

One of the deciding factors in performance is the quality of the components used. That is why MSI only uses MIL-STD-810G certified components for its Gaming cards because only these components have proven to be able to withstand the torturous circumstances of extreme gaming and overclocking.

DARK CHOKE

Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.

SOLID CAP

With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.

EASY DIAGNOSTIC

MSI EZ Debug LED is an easy troubleshooting tool using 3 LEDs to indicate CPU / Memory / VGA operation every time you boot up your system. Run into trouble? Use the LEDs to easily identify the source of your problem and get back into operation quickly.

ENHANCED CPU OVERVOLTAGE PROTECTION

Onboard overvoltage protection prevents overvoltage and short-circuit damage of the CPU and other components. A red LED near the 24 pin CPU power connector let's you know that overvoltage protection is activated for easier troubleshooting.

TOTAL FAN CONTROL

Total Fan Control gives you complete control of all your fans connected to the motherboard, through a revolutionary and easy to use interface.

• -Full control of fans through 4-pin fan headers
• -Real-time monitor fan speeds & temperatures
• -Intuitive, easy to use application design
• -Set profiles
• -Log fan speed, voltage and temperature status

BENEFIT FROM THE NEW
INTEL® SMALL BUSINESS ADVANTAGE

SOLUTION WITH MSI® MOTHERBOARDS
Intel® SBA is a unique, customizable solution that helps improve small businesses data security, maximizes employee productivity and boosts overall office computers' performance.

A simple and intuitive interface offering hardware-based security and improves productivity – With software monitoring, health center, data backup and restore, USB blocker, screen sharing, file sharing, and chatting.

WHQL CERTIFIED. WINDOWS 10 READY.

Benefit from great compatibility and a worry-free user experience when using Microsoft Windows 8 / 8.1 or Windows 10 with MSI PRO Series motherboards.

MSI is world's first motherboard manufacturer to receive official Microsoft Windows 10 WHQL certification. With a true testament to compatibility and performance, the MSI R&D team ensures a worry-free experience when using the latest version of Microsoft Windows on any MSI PRO Series motherboard.

STUDIO GRADE SOUND WITH AUDIO BOOST

With Audio Boost we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 6-channel Audio or high impendence headphones and truly dominate the game.

2X USB FRONT USB 3.1 GEN1

With a clever placed USB 3.1 Gen1 front pin header, available on MSI motherboards, you can connect up to 2 USB 3.1 Gen1 devices directly to the front of your PC Chassis. This way you can easily enjoy fast USB speeds without having to use the hard-to-reach USB ports on the rear.

LEGACY DVI VIDEO SUPPORT

To support professional monitors, TV's, beamers and other displays, this MSI motherboard features DVI video output. No matter what screen type you want to connect, using a dedicated graphics card or an onboard connector, MSI motherboards have you covered.

4K UHD

Enjoy awesome 4K UHD (2160p ultra-high definition) video playback with MSI motherboards.

HDMI

This motherboard is equipped with a HDMI port supporting the latest 4K Ultra-HD 4096 X 2160p resolution @ 30Hz to provide a breathtaking visual experience.
