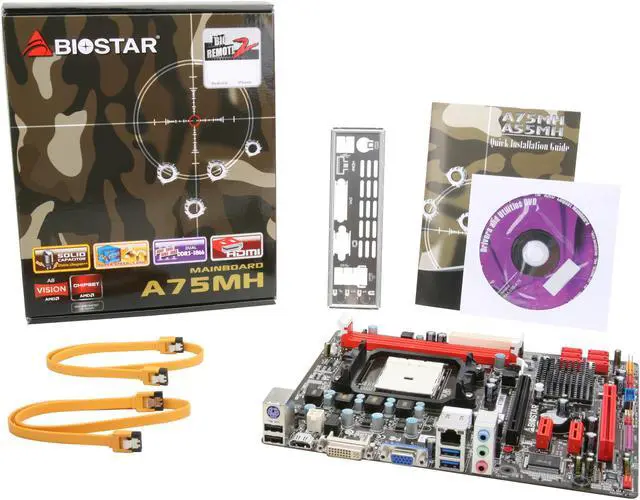

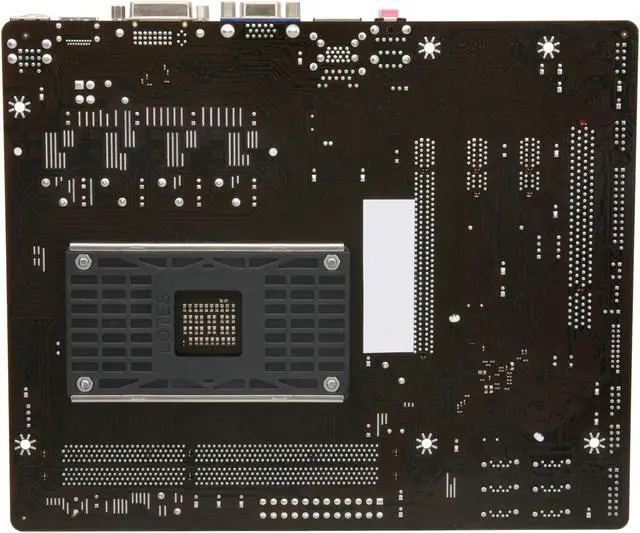

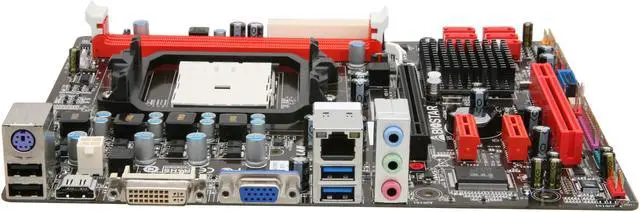

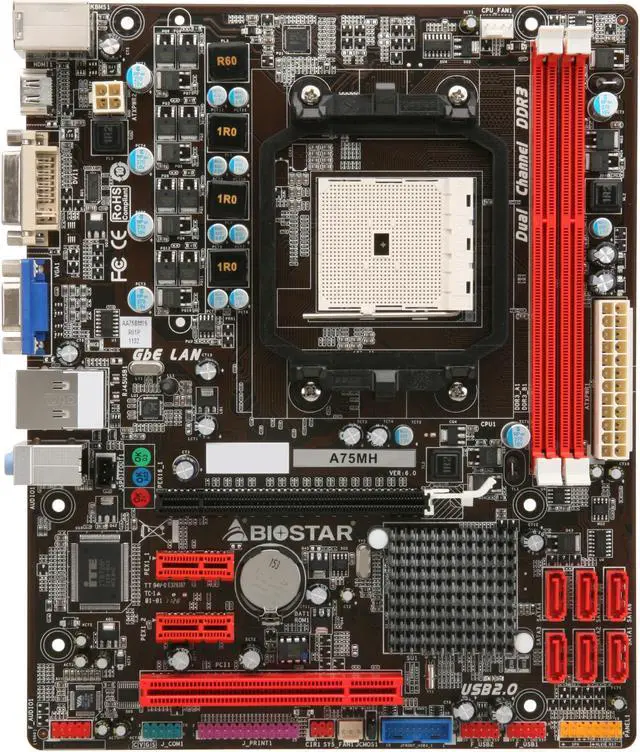

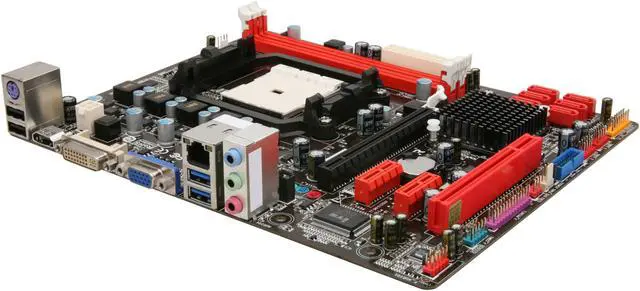

BIOSTAR A75MH FM1 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard
- AMD A75 (Hudson D3)
- A4 / A6 / A8 / E2 APU
- DDR3 1866 / 1600 / 1333 / 1066 / 800
Specs
Reviews (29)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Biostar A75MH
| Brand | BIOSTAR |
|---|---|
| Model | A75MH |
| CPU Socket Type | FM1 |
|---|---|
| CPU Type | A4 / A6 / A8 / E2 APU |
| Chipset | AMD A75 (Hudson D3) |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1866 / 1600 / 1333 / 1066 / 800 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | VIA VT1708B |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x Printer Header 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-OUT Header 1 x CPU FAN Header 1 x System FAN Header 1 x Serial Header 1 x CIR Header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.87" |
| Power Pin | 24 Pin |
| Features | Socket FM1 Supports AMD A-series/ E2-series processor AMD A75 Chipset Supported SATA3 6Gb/s AMD Dual Graphics Technology Supported USB 3.0 Maximum CPU TDP (Thermal Design Power) : 100Watt Maximum resolution: VGA:1920x1600, DVI-D:1920x1200, HDMI:1920x1200 |
|---|
| First Listed on Newegg | September 29, 2011 |
|---|
