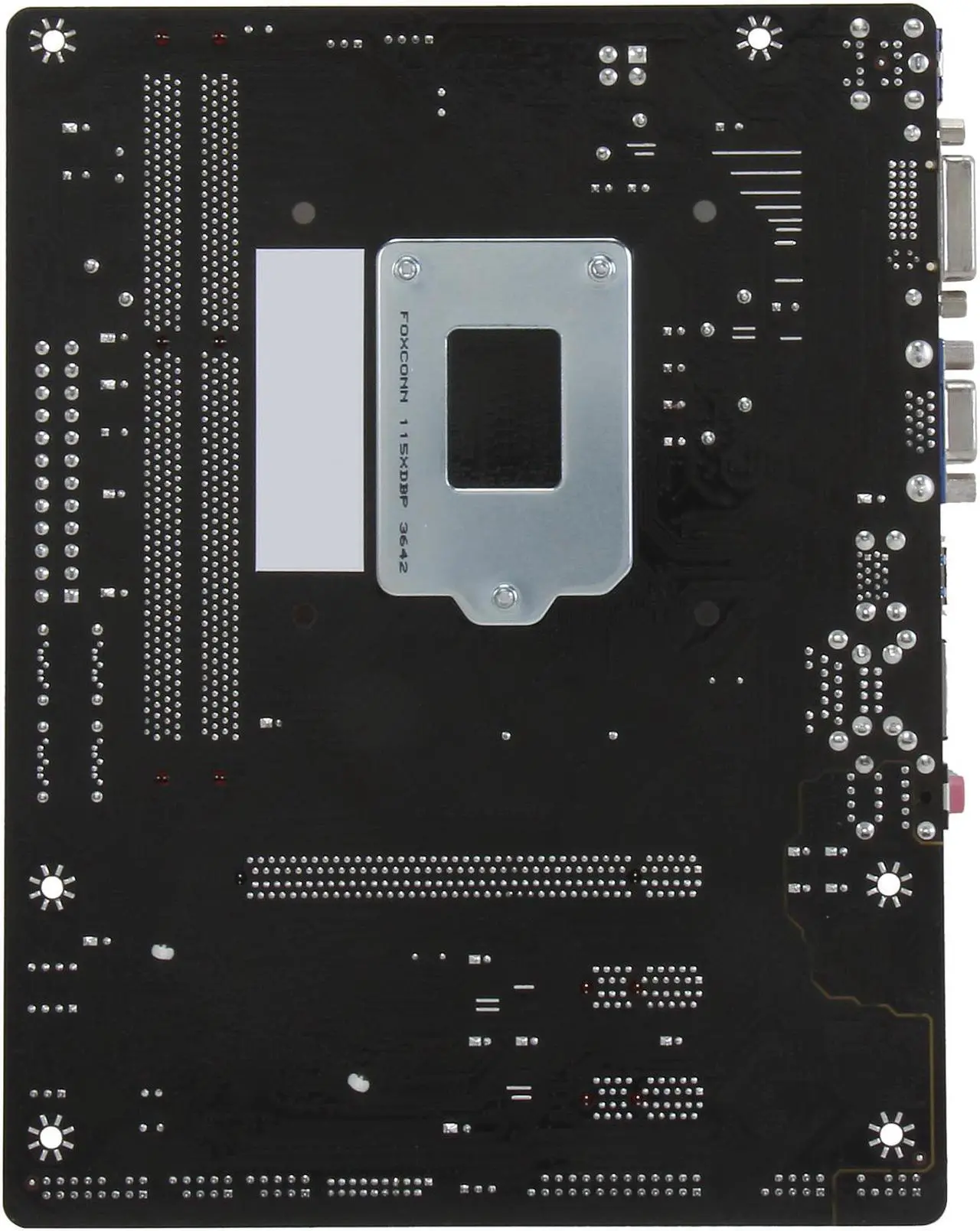

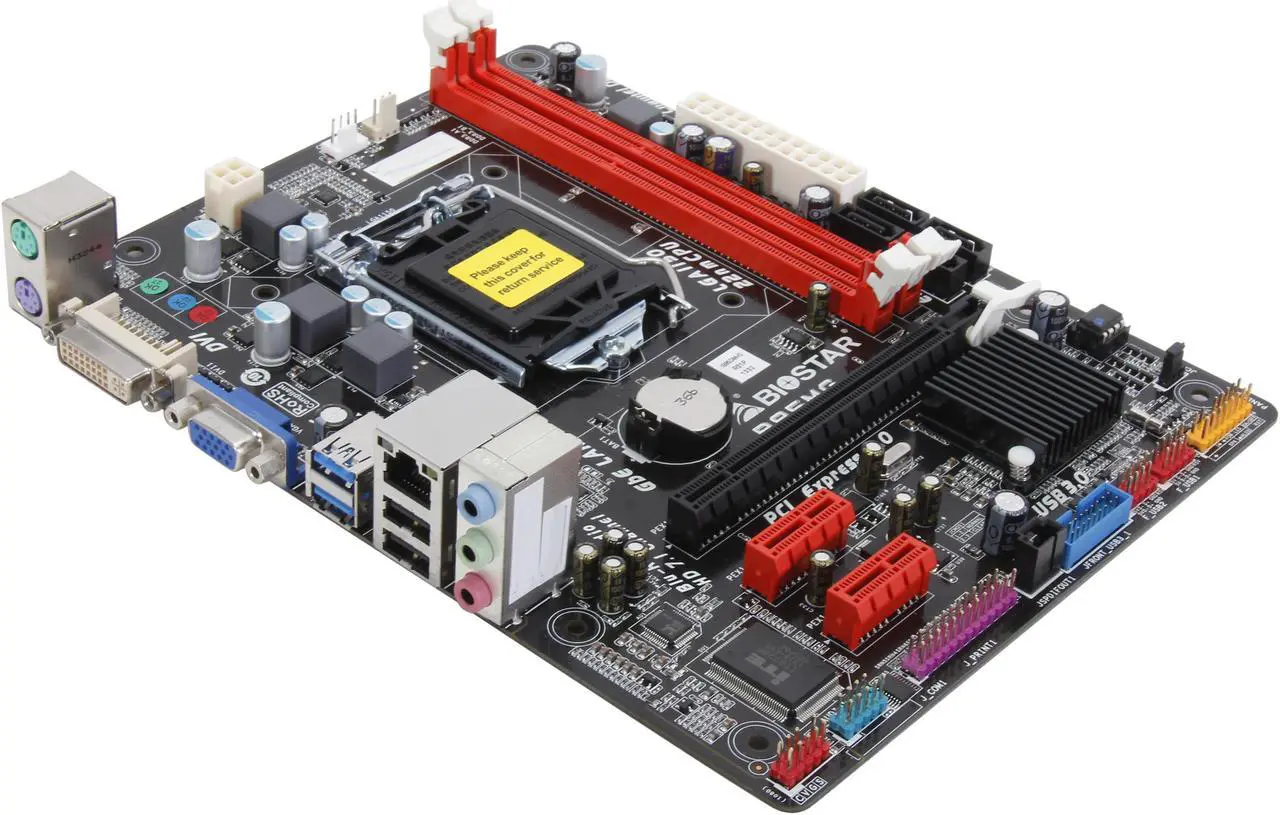

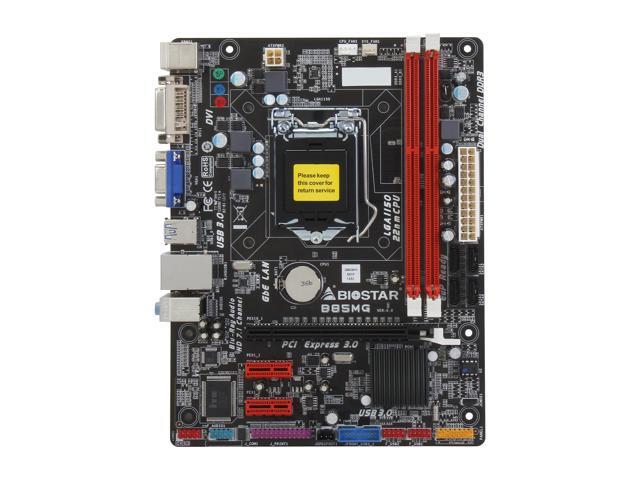

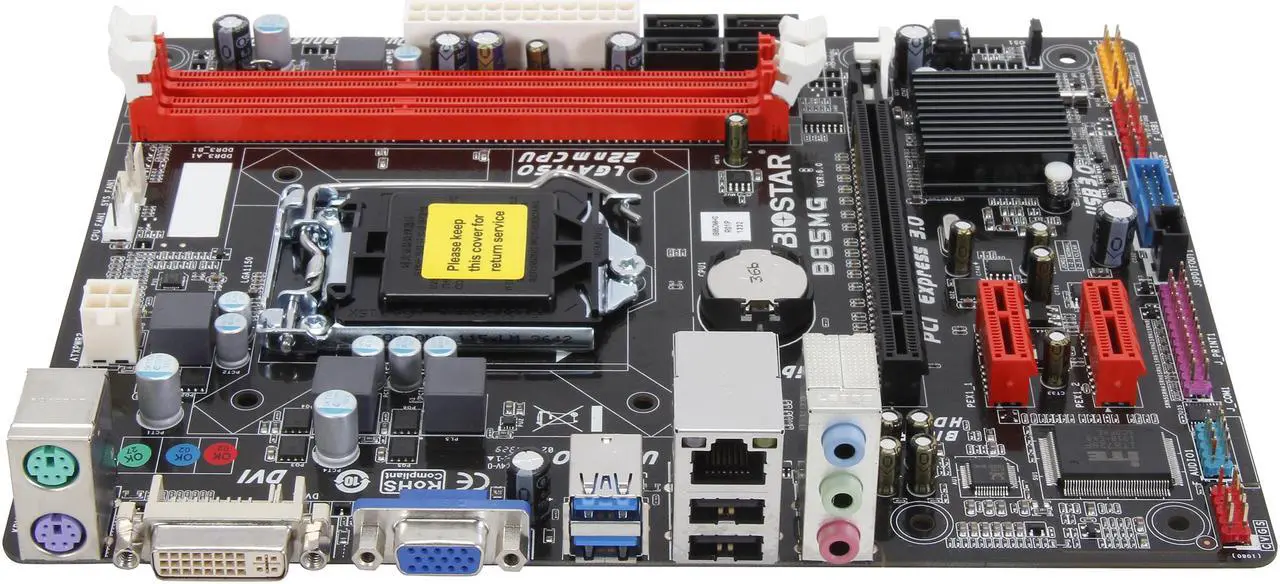

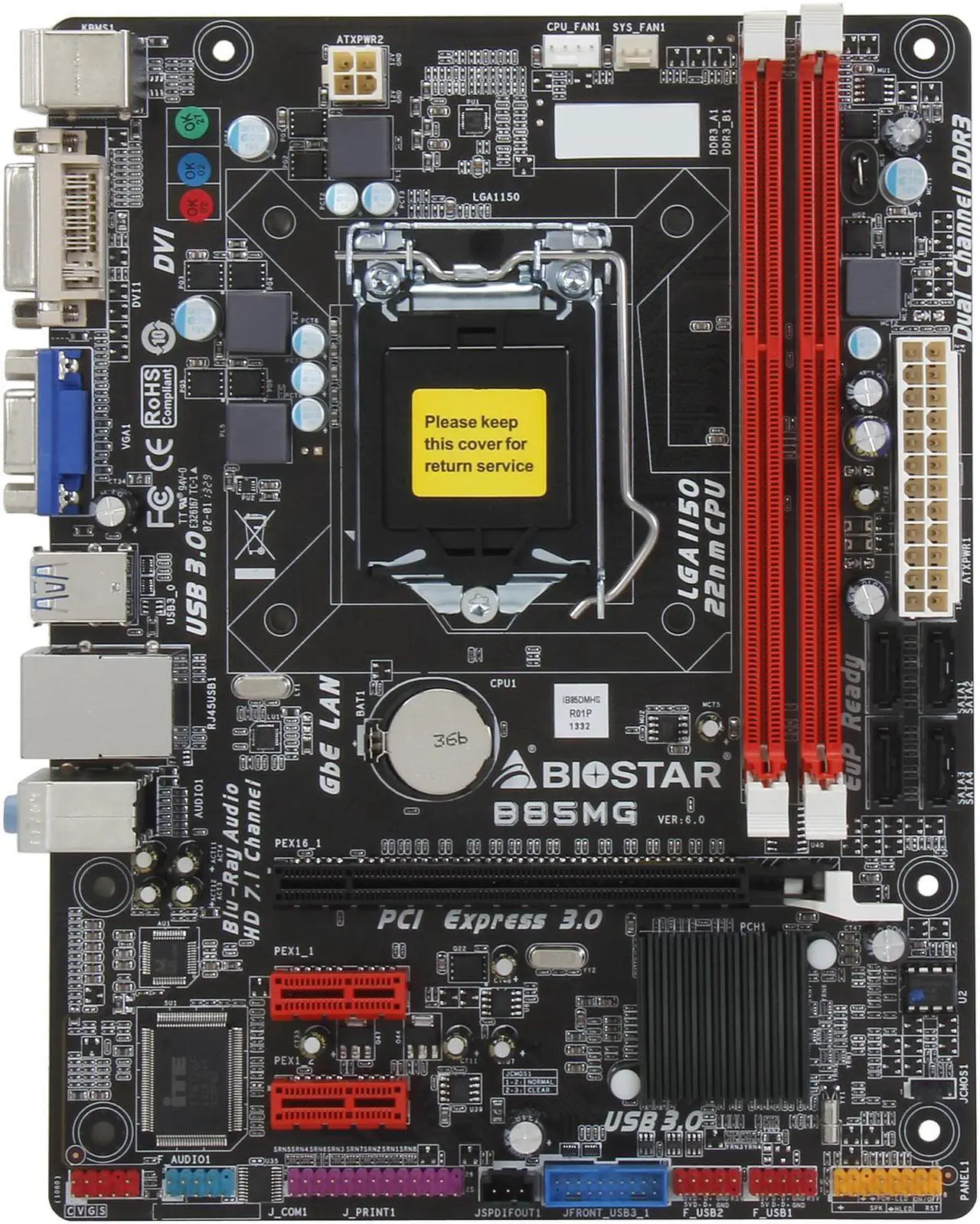

BIOSTAR B85MG Ver. 6.x LGA 1150 Intel B85 USB 3.0 Micro ATX Intel Motherboard
- Intel B85
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Pentium / Xeon (LGA1150)
- DDR3 1600/ 1333/ 1066
Learn more about the Biostar B85MG Ver. 6.x
| Brand | BIOSTAR |
|---|---|
| Model | B85MG Ver. 6.x |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Pentium / Xeon (LGA1150) |
| Chipset | Intel B85 |
|---|
| Onboard Video Chipset | By CPU model Supports DX11.1 Supports HDCP |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1600/ 1333/ 1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI-E 2.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111G |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 2 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 Mouse 1 x PS/2 Keyboard |
| Video Ports | 1 x DVI Connector 1 x VGA Port |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB 3.0 Header 2 x USB 2.0 Headers |
|---|---|
| Other Connectors | 1 x Printer Header 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-Out Header 1 x CPU Fan Header 1 x System Fan Header 1 x Serial Header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 8.90" x 6.85" |
| Features | Support the Intel 4th generation Core i7 and Core i5 processors in the 1150 package Intel B85 single chip architecture Support 2-DIMM DDR3-1600/1333 up to 16G maximum capacity Intel SBA (Small Business Advantage) Technology Intel Rapid Start Technology Intel Smart Connect Technology H/W MONITORING: CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring OS SUPPORT: Support Windows 7 / 8 / 10 (x64) BUNDLE SOFTWARE: BIO-Remote2 Smart Speed LAN Intel Rapid Start Technology Intel Smart Connect Technology FEATURES: Windows 8 Compatible Supports Solid capacitor Supports Charger Booster Supports BIOS Online Update |
|---|

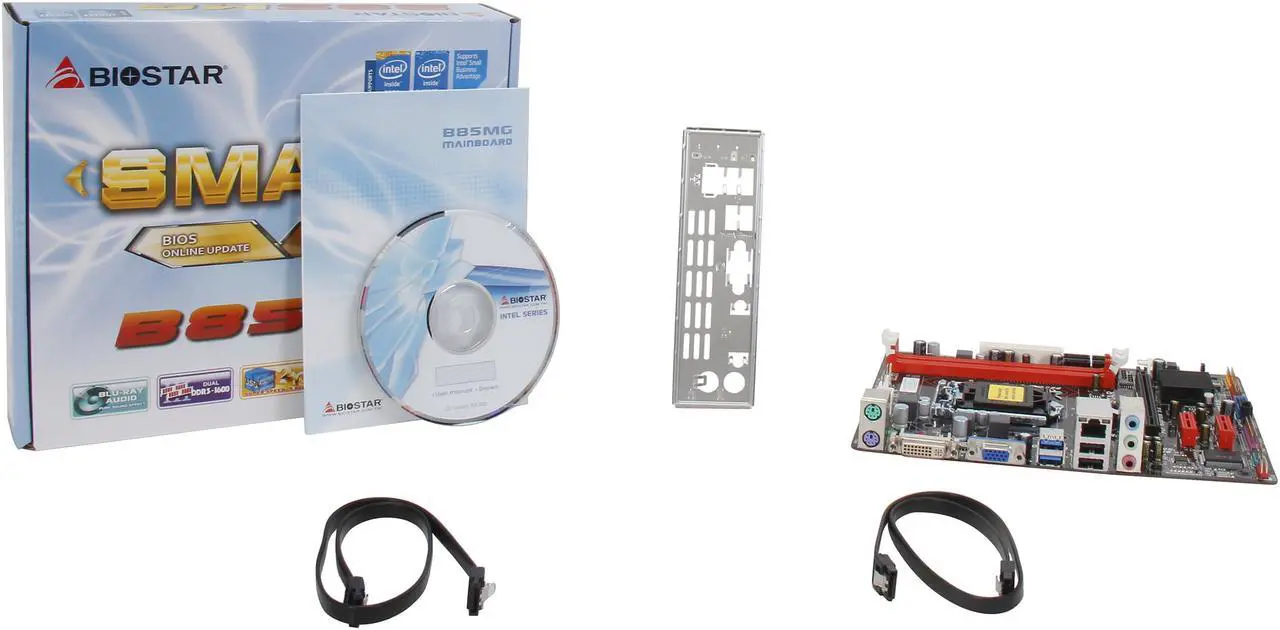

| Package Contents | ACCESSORIES: 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
|---|
| First Listed on Newegg | January 14, 2014 |
|---|
