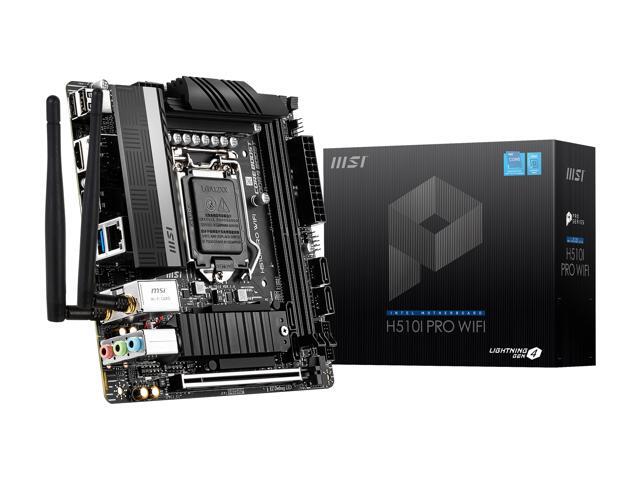

MSI H510I PRO WIFI LGA 1200 Intel H510 SATA 6Gb/s Mini ITX Intel Motherboard

In stock.
Ships from China.
Most customers receive within 4-22 days.
  • H510I PRO WIFI
  • H510M-A PRO
  • H510M PRO
  • Intel H510
  • Supports 11th / 10th Gen Intel Core / Pentium Gold / Celeron Processors
  • 1R DDR4 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU (by JEDEC & POR))
  • 1R DDR4 2933 / 2666 / 2133 (10th Gen Intel CPU (by JEDEC & POR))
  • Max frequency:
  • 1DPC 1R Max speed up to 3200+
  • 1DPC 2R Max speed up to 3200+
Specs
Reviews

Learn more about the MSI H510I PRO WIFI

Model
Brand MSI
Model H510I PRO WIFI
Supported CPU
CPU Socket Type LGA 1200
CPU Type Supports 11th / 10th Gen Intel Core / Pentium Gold / Celeron Processors

* Please go to intel.com for compatibility information.
Chipsets
Chipset Intel H510
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard 1R DDR4 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU (by JEDEC & POR)) *
1R DDR4 2933 / 2666 / 2133 (10th Gen Intel CPU (by JEDEC & POR)) *

Max frequency:
1DPC 1R Max speed up to 3200+
1DPC 2R Max speed up to 3200+

* Please refer www.msi.com (more information on compatible memory.
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16

* Actual support may vary by CPU.
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 1 x M.2 slot (from H510 chipset):
- Support up to PCIe 3.0
- Supports SATA 6Gb/s
- Supports 2280 storage devices
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek 8125B
Max LAN Speed 10/100/1000/2500Mbps
Wireless LAN Intel Wi-Fi 6 AX201
802.11 a/b/g/n/ac/ax
Bluetooth Bluetooth 5.1
Rear Panel Ports
Back I/O Ports 1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
2 x Antenna Bracket
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0/1.1
3 x Audio Jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports)
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
1 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x TPM module connector
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows Compatibility
Windows 11 Supported
Features
Features Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket.

Supports DDR4 Memory, up to 3200(Max) MHz.

Core Boost: With premium layout and digital power design to support more cores and provide better performance.

DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works.

Lightning Fast Experience: PCIe 4.0.

Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.

Audio Boost: Reward your ears with studio grade sound quality.

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Additional Information
Date First Available November 03, 2021

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by jane eyre Return Policy
