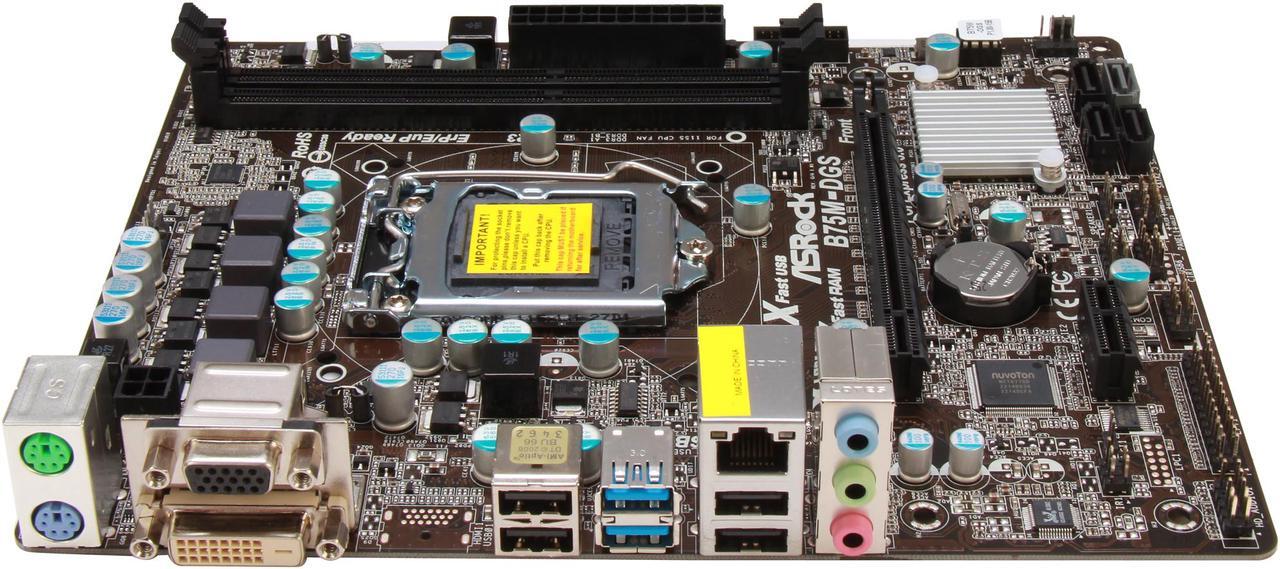

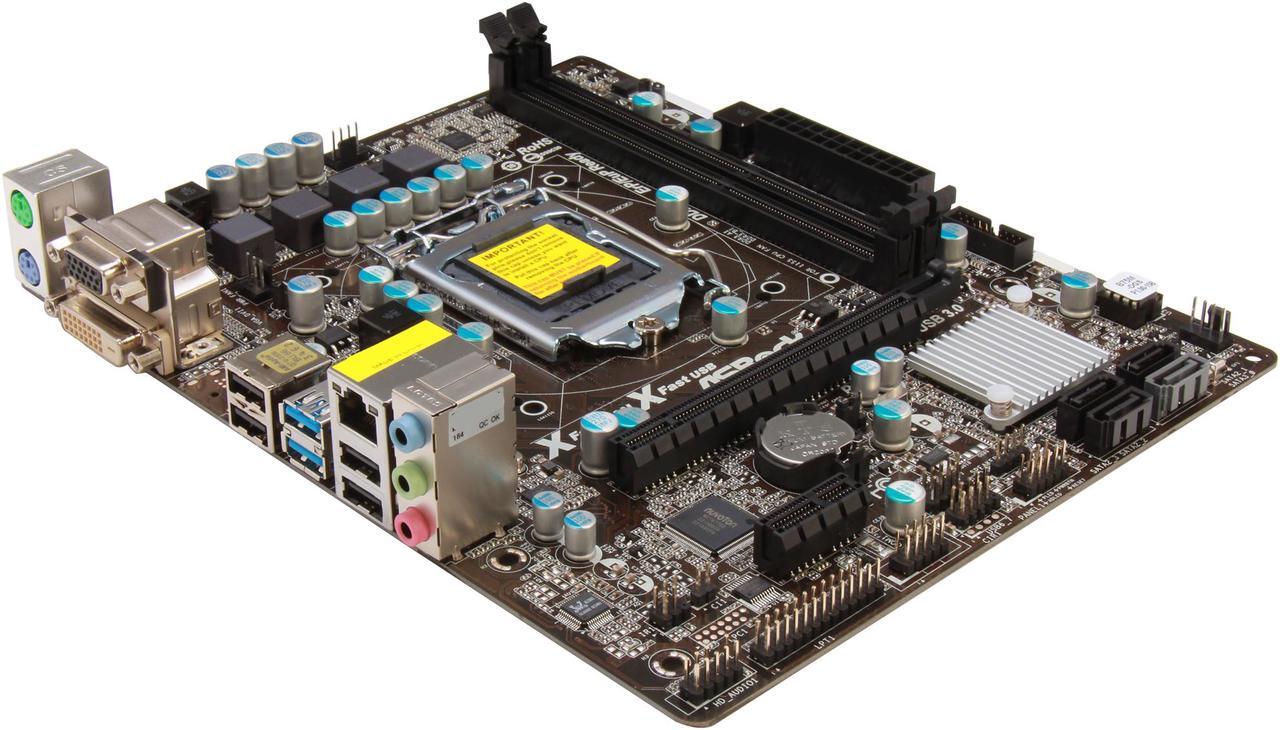

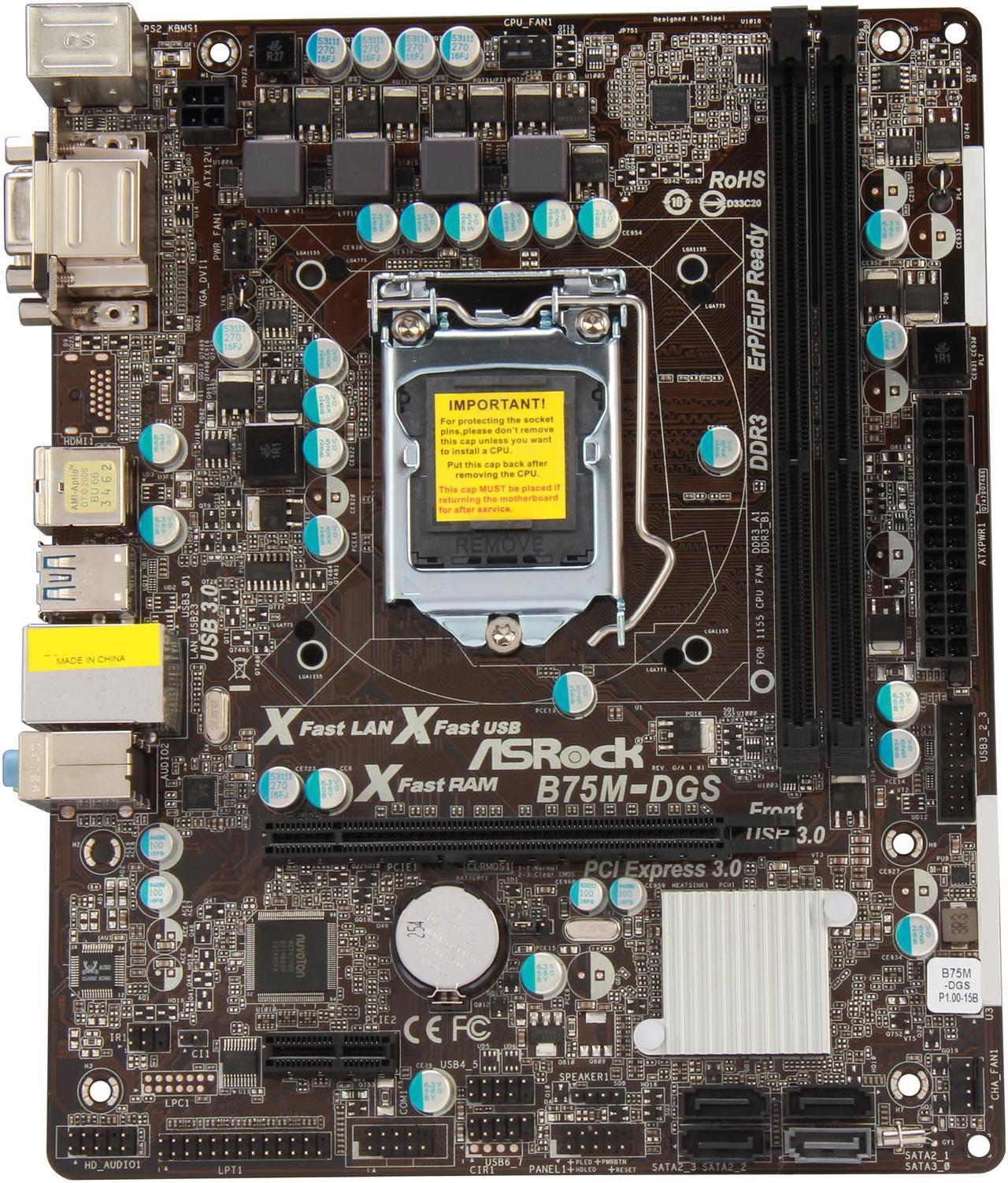

    ASRock B75M-DGS LGA 1155 Intel B75 USB 3.0 Micro ATX Intel Motherboard

    Used - Good Product Type
    • Intel B75
    • Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155)
    • DDR3 2200(OC)/1600/1333/1066
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs

    Learn more about the ASRock B75M-DGS

    Model
    Brand ASRock
    Model B75M-DGS
    Supported CPU
    CPU Socket Type LGA 1155
    CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155)
    Supported CPU Technologies Turbo Boost Technology 2.0
    Chipsets
    Chipset Intel B75
    Onboard Video
    Onboard Video Chipset Supported only by CPU with integrated graphic
    Memory
    Number of Memory Slots 2x240pin
    Memory Standard DDR3 2200(OC)/1600/1333/1066
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI Express 3.0 x16
    PCI Express x1 1 x PCI Express x1
    Storage Devices
    Serial ATA (SATA) 1 x SATA 6Gb/s
    Onboard Audio
    Audio Chipset Realtek ALC662
    Audio Channels 6 Channels
    Onboard LAN
    LAN Chipset Realtek 8111E
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 2 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1
    PS/2 2
    Video Ports D-Sub + DVI
    USB 3.0 2 x USB 3.0
    USB 1.1/2.0 4 x USB 2.0
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 2 x USB 3.0 + 4 x USB 2.0
    Other Connectors 1 x IR header
    1 x Print port header
    1 x COM port header
    1 x Chassis Intrusion header
    1 x CPU Fan connector (4-pin)
    1 x Chassis Fan connector (4-pin)
    1 x Power Fan connector (3-pin)
    24 pin ATX power connector
    4 pin 12V power connector
    Front panel audio connector
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 8.9" x 7.2"
    Power Pin 24 Pin
    Features
    Features All Solid Capacitor design

    Supports Dual Channel DDR3 1600

    1 x PCIe 3.0 x16 Slot

    PCIE Gigabit LAN

    Supports Intel HD Graphics with Built-in Visuals

    Dual VGA Output: DVI and D-Sub

    Combo Cooler Option (C.C.O.)

    5.1 CH HD Audio (Realtek ALC662 Audio Codec)

    Supports ASRock XFast 555, Dehumidifier, OMG, Internet Flash, UEFI System Browser

    Supports Intel Smart Connect, Intel Rapid Start, Intel Small Business Advantage

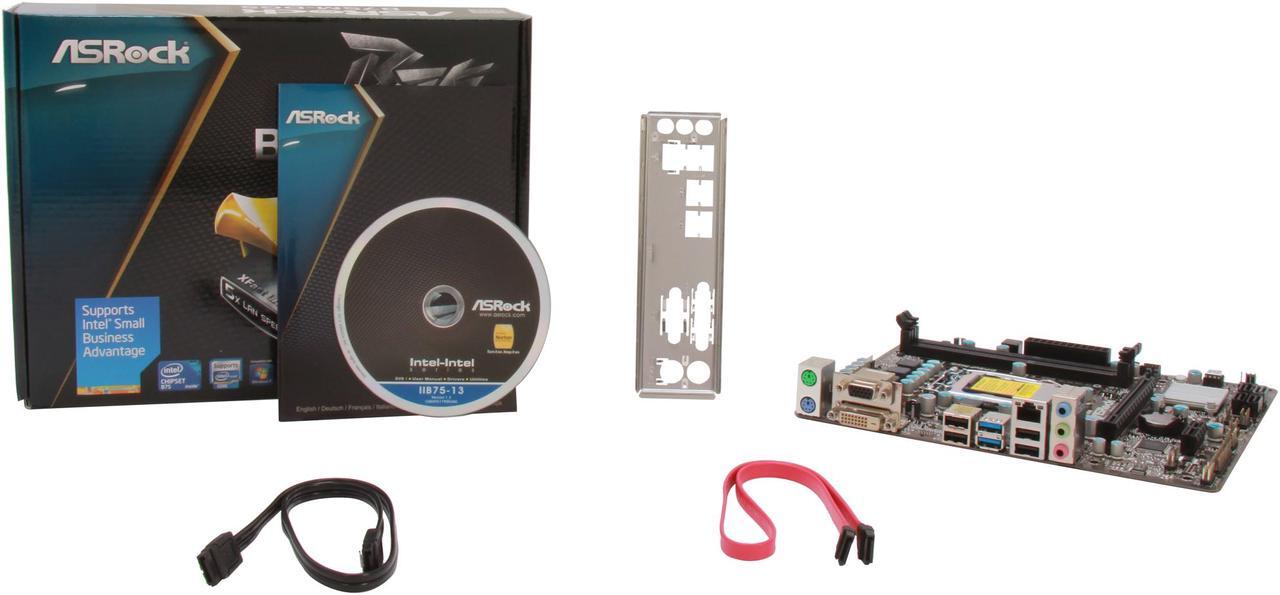

    Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite
    Additional Information
    Date First Available February 12, 2025
