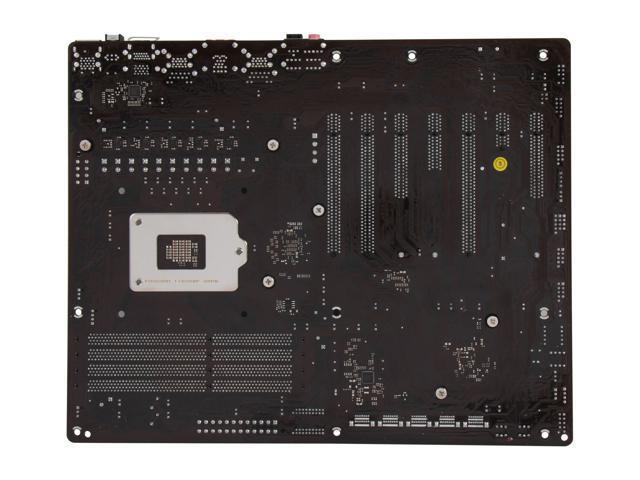

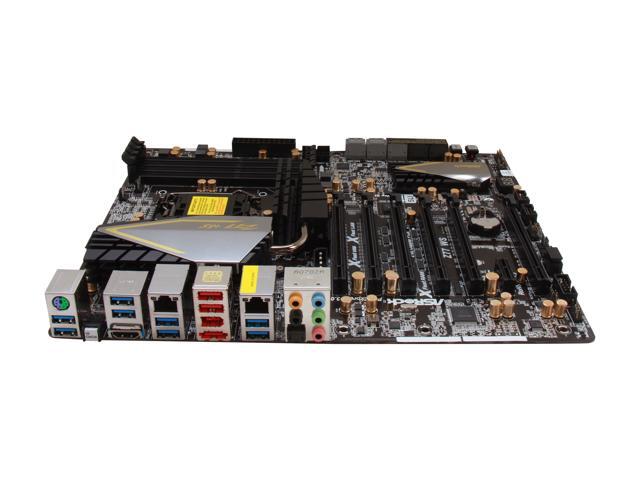

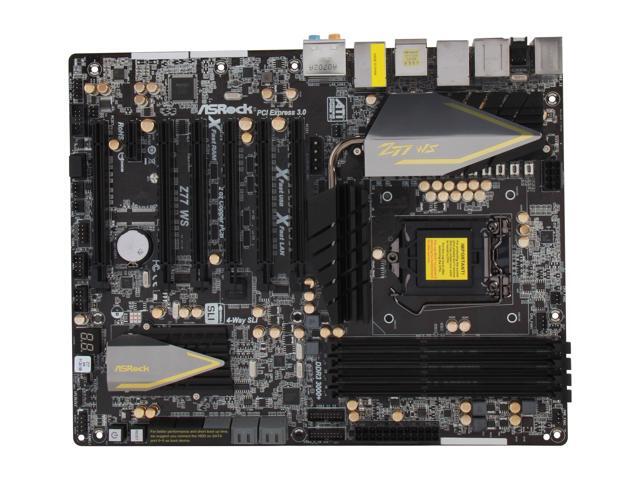

ASRock Z77 WS LGA 1155 Intel Z77 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard

OUT OF STOCK.
  • Intel Z77
  • Core i7 / i5 / i3 (LGA1155)
  • DDR3 3000+(OC)/2400(OC)
Specs
Reviews

Learn more about the ASRock Z77 WS

Model
Brand ASRock
Model Z77 WS
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 (LGA1155)
Supported CPU Technologies Intel Turbo Boost 2.0 Technology
Intel K-Series unlocked CPU
Hyper-Threading Technology
Chipsets
Chipset Intel Z77
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 3000+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 5 (PCIE2: x16 mode OR PCIE1/PCIE3/PCIE5/PCIE7: x16/0/16/0 or x8/8/8/8 mode)
PCI Express 2.0 x16 1 @x4
PCI Express x1 1 x PCI Express x1
Storage Devices
SATA 3Gb/s 4 x SATA 3Gb/s
SATA 6Gb/s 6 x SATA 6Gb/s
SATA RAID 2 x SATA3 6.0 Gb/s connectors by Intel Z77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10)
4 x SATA2 3.0 Gb/s connectors by Intel Z77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10)
4 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061(SATA3_A4 connector is shared with eSATA3 port)
Onboard Audio
Audio Chipset Realtek ALC898
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Broadcom BCM57781
Second LAN Chipset Broadcom BCM57781
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
HDMI 1 x HDMI
USB 3.0 8 x USB 3.0
USB 1.1/2.0 2 x USB 2.0
IEEE 1394 1 x IEEE 1394
eSATA 1 x eSATA 6Gb/s
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 4 x USB 3.0 + 6 x USB 2.0
Onboard 1394 1 x 1394
Other Connectors 1 x IR header
1 x CIR header
1 x COM port header
1 x HDMI_SPDIF header
1 x Power LED header
2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
1 x Power Fan connector (3-pin)
24 pin ATX power connector
8 pin 12V power connector
SLI/XFire power connector
Front panel audio connector
1 x Dr. Debug with LED
1 x Power Switch with LED
1 x Reset Switch with LED
1 x Clear CMOS Switch with LED
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Premium Gold Caps

Digi Power Design, 8 + 4 Power Phase Design

Supports Dual Channel DDR3 3000+(OC)

5 x PCIe 3.0 x16 Slots, 1 x PCIe 2.0 x16 Slot, Supports AMD 4-Way CrossFireXTM and NVIDIA 4-Way SLITM

Supports Intel HD Graphics with Built-in Visuals

12 USB 3.0 (4 Front, 8 Rear), 6 SATA3

7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec), Supports THX TruStudio

Supports ASRock XFast 555, Interactive UEFI, Intel Smart Connect, Intel Rapid Start

Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite
