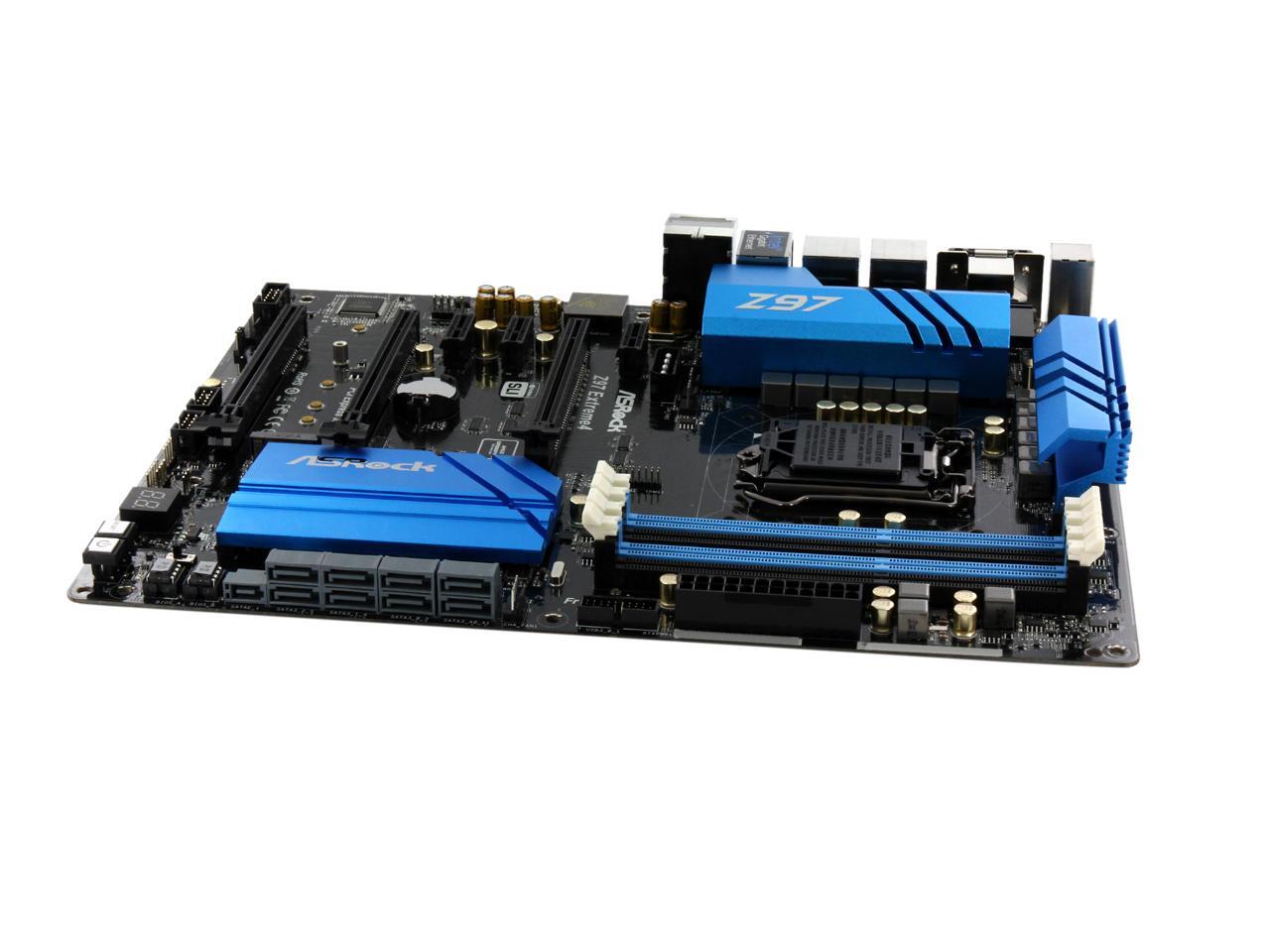

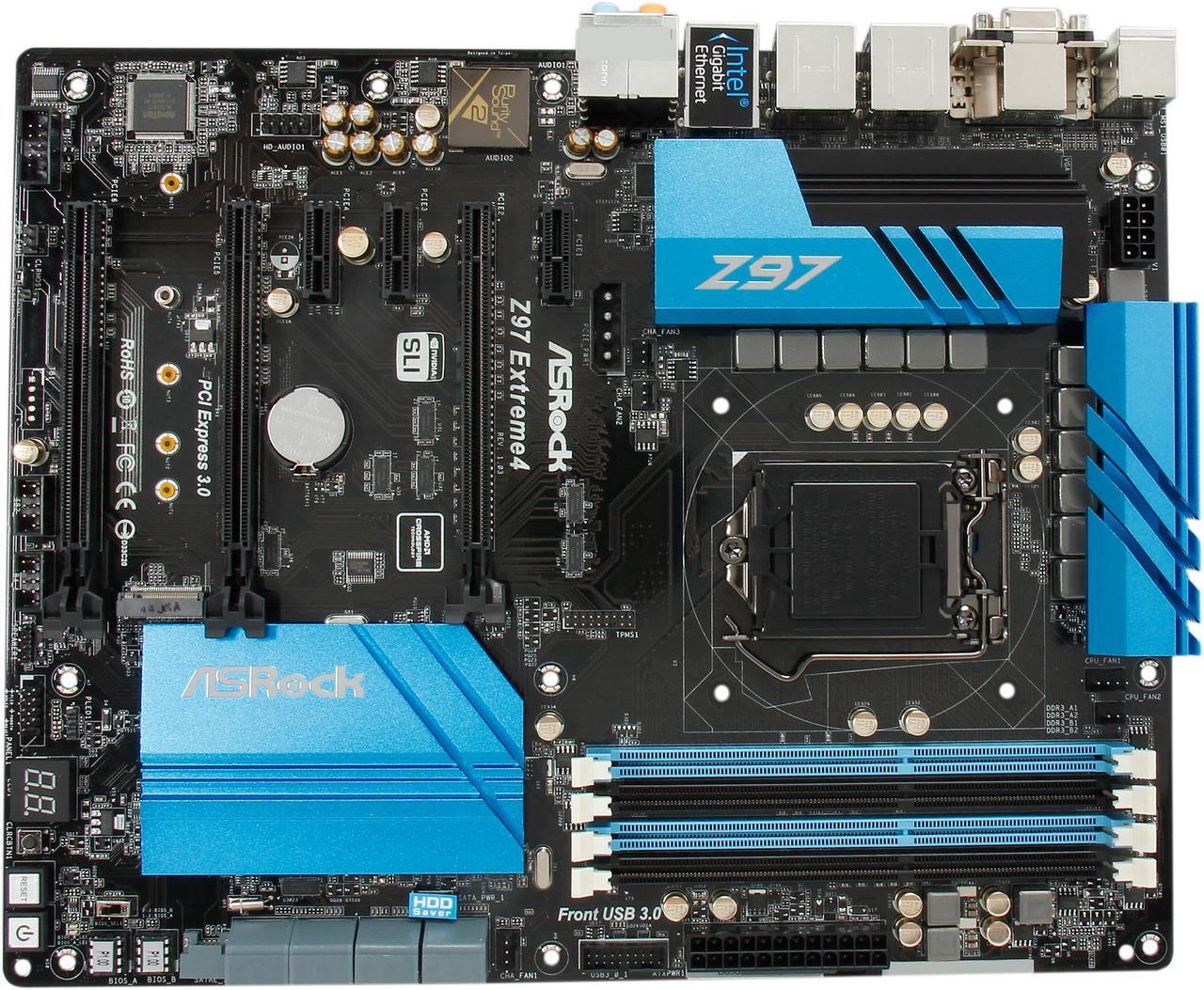

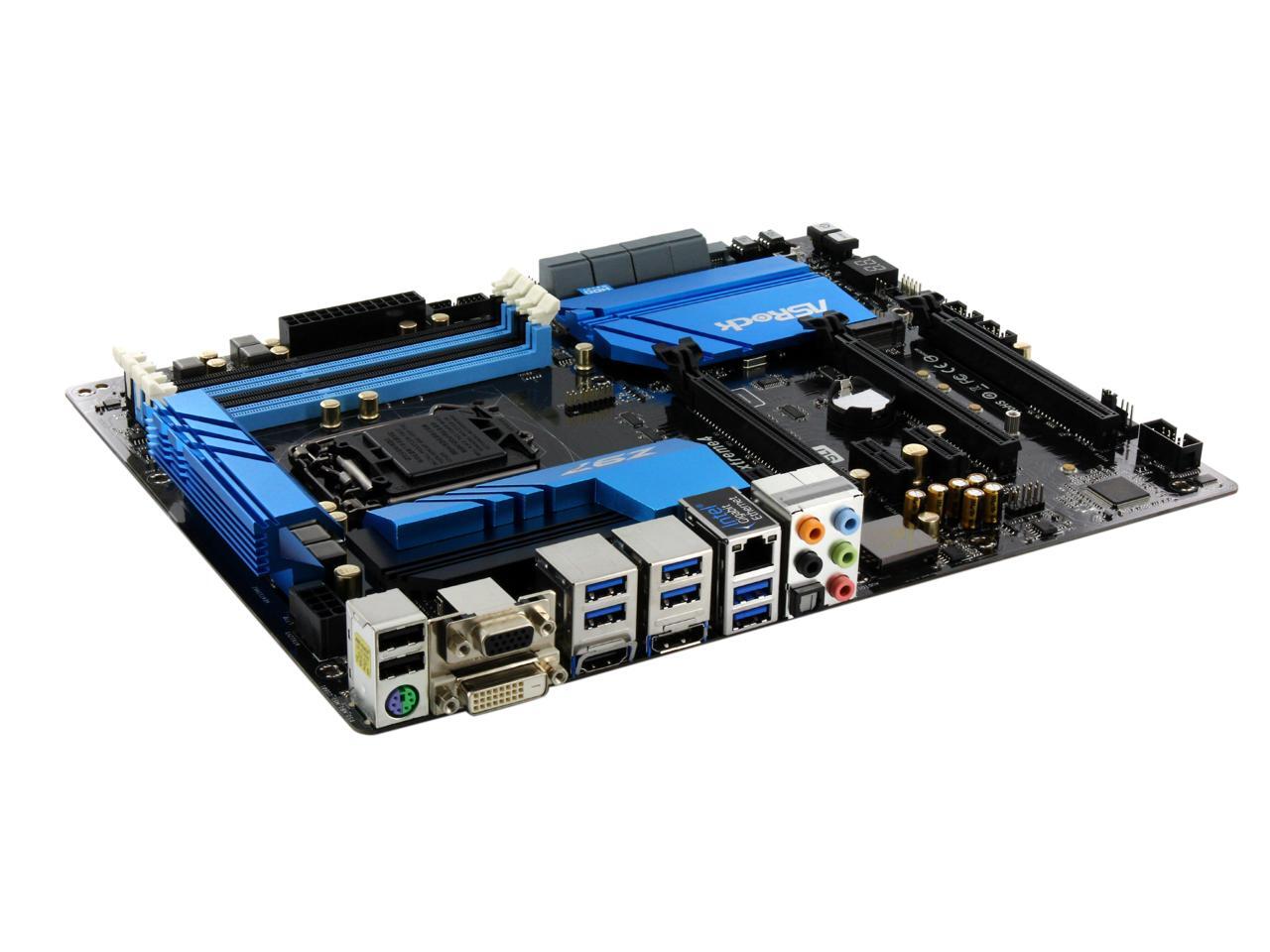

ASRock Z97 Extreme4 LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard

With performance, quality and features at an affordable price point, the ASRock Z97 Extreme4 motherboard is a great foundation for you to build your dream PC. Based on Intel Z97 chipset, this micro ATX motherboard flawlessly supports the 4th, new 4th and 5th generation Intel processors in LGA 1150 packaging, and incorporates three PCIe x16 slots that are ready for 3-Way CrossFireX and NVIDIA Quad SLI. The Digi Power design ensures precise, efficient power delivery to CPU, and ASRock Super Alloy components guarantee unbeatable durability and stability you can count on in the long haul. One SATA Express connector and one M.2 connector, the next generation interface for high speed storage, are built onboard to speed up your fun. ASRock exclusive HDD saver technology allows you to enable/disable HDDs right within the OS, no power off or restart required. Plus, this model also packs Intel Gigabit LAN, Nichicon 12K Platinum capacitor design, High Density Glass Fabric PCB, 7.1-ch HD audio and Purity Sound 2 that elevate your experience.

XXL Aluminum Alloy Heatsink Design

The extra large aluminum alloy heatsinks take away heat dramatically. As the MOSFETs and chipsets areas are well covered by these heatsinks to protect them from overheating, MOSFET and chipsets can perform with lower temperature, and your motherboard and system will be more stable and reliable.

Premium Alloy Choke

The new generation alloy chokes effectively increase up to 90% saturation current and feature a highly magnetic and heat resistant design, making the motherboard more efficient, stable and reliable.

Dual-Stack MOSFET for CPU Power

Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mO, so the power supply for the CPU Vcore is more efficient. NexFET MOSFETs in memory areas use a special design for protecting them from electrostatic discharge and offer up to 7.5 times the ESD protection levels compared to traditional MOSFETs. (Human Body Mode.)

NexFET MOSFET for Memory Power

The next generation NexFET MOSFETs control the power supply to DRAM slots more efficiently. They provide lower RDS(on) 2.9 mO, delivering higher efficiency and lower temperature.

Nichicon 12K Platinum Caps

Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability. (* Tested under industry standard 105 degree Celsius ambient temperature.)

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

M.2 Socket (PCIe Gen2 x2 & SATA3)

The onboard M.2 socket is a new interface for connecting Next Generation Form Factor (NGFF) solid state drives or other devices. ASRock supports M.2 SATA3 6Gb/s modules and M.2 PCI Express modules up to Gen2 x2 10Gb/s, which is 2X faster compared to other M.2 Gen2 x1 solutions that are limited to 5Gb/s.

SATA Express Connector

The SATA Express* interface provides PCIe Gen2 x2 (10Gb/s) data transfer speed. This motherboard offers the latest SATA Express connector to enthusiasts to enjoy the ultimate performance. (* Support to be announced.)

Purity Sound 2

Purity Sound 2 includes 7.1 CH HD audio with Realtek ALC1150 audio codec, 115dB SNR DAC with Differential Amplifier, TI® NE5532 Premium Headset Amplifier, cap less Direct Drive technology, EMI shielding cover, PCB isolate shielding and DTS Connect. As Nichicon audio capacitors are what every audiophile has been longing for on a PC, ASRock applied these high quality capacitors for Purity Sound™ 2.

15µ Gold Contact in DIMM & VGA PCIe Slot (PCIE2)

Unlike other motherboards come with only 3-4µ gold contact, this motherboard is coated with 15µ gold contact in the DRAM slots and PCIe x16 slot, thus providing better anti-oxidation protection than usual.

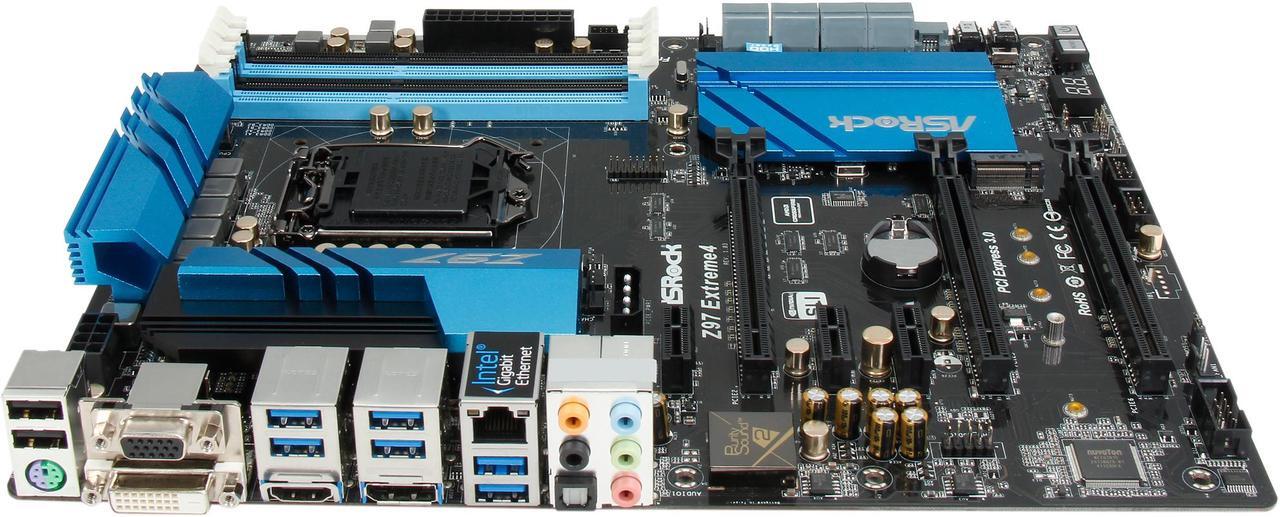

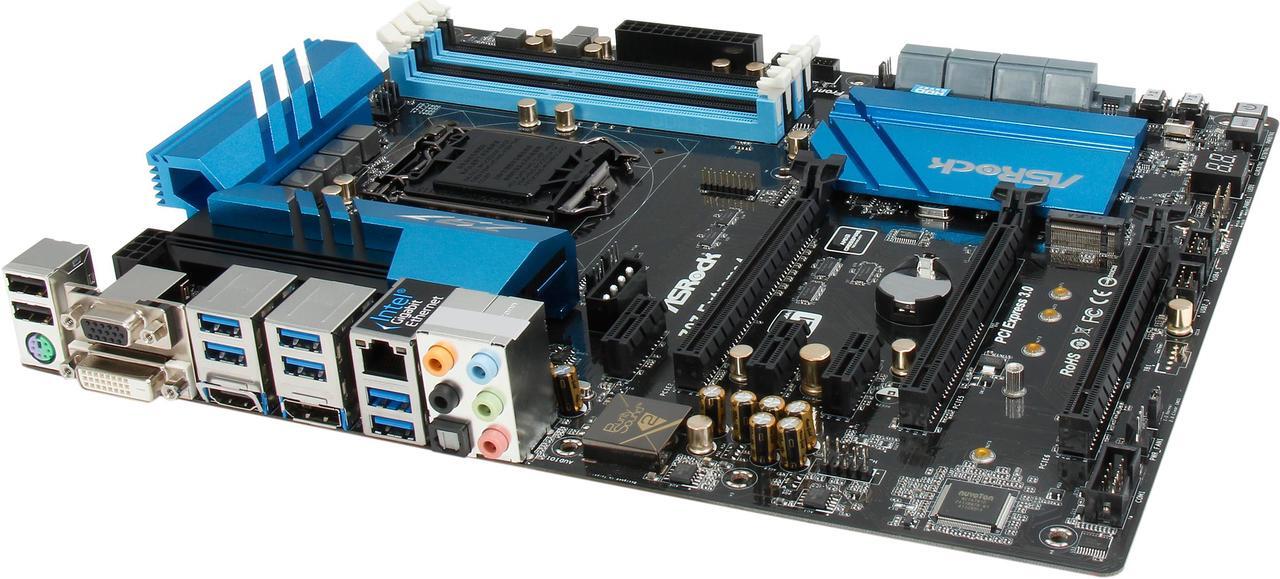

Four Graphics Outputs

Never run out of graphics outputs! In case you have to connect four different types of monitors all at once, this motherboard supports all four kinds of graphics D-Sub, DVI-D, HDMI and DispalyPort.

HDD Saver Technology

There's a dedicated 4-pin HDD Saver Connector placed near the SATA ports. By connecting it to the HDDs, you can shut down or turn on the HDDs via software when needed. HDD Saver Technology secures more privacy, saves more energy, and extends HDD life.

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

High Density Glass Fabric PCB

What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

ASRock APP Shop

ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop. ASRock APP Shop is the only all-in-one software package that delivers you the most practical PC apps and tools, in one integrated interface – from ASRock exclusive tools to the most update-to-date options of the latest technology.

USB Key

In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!

ASRock App Charger

Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.

Dehumidifier

Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
