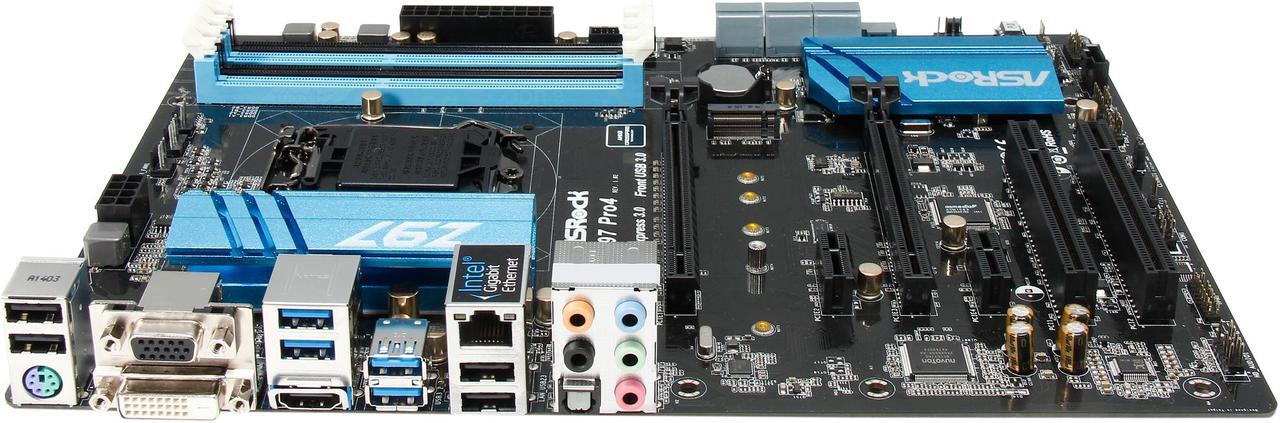

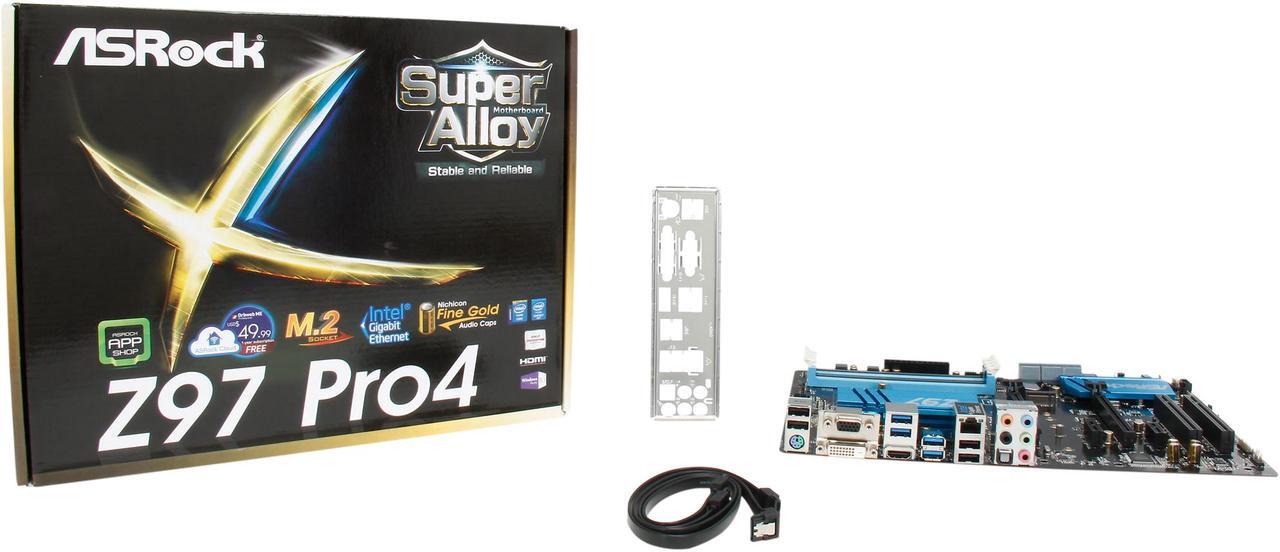

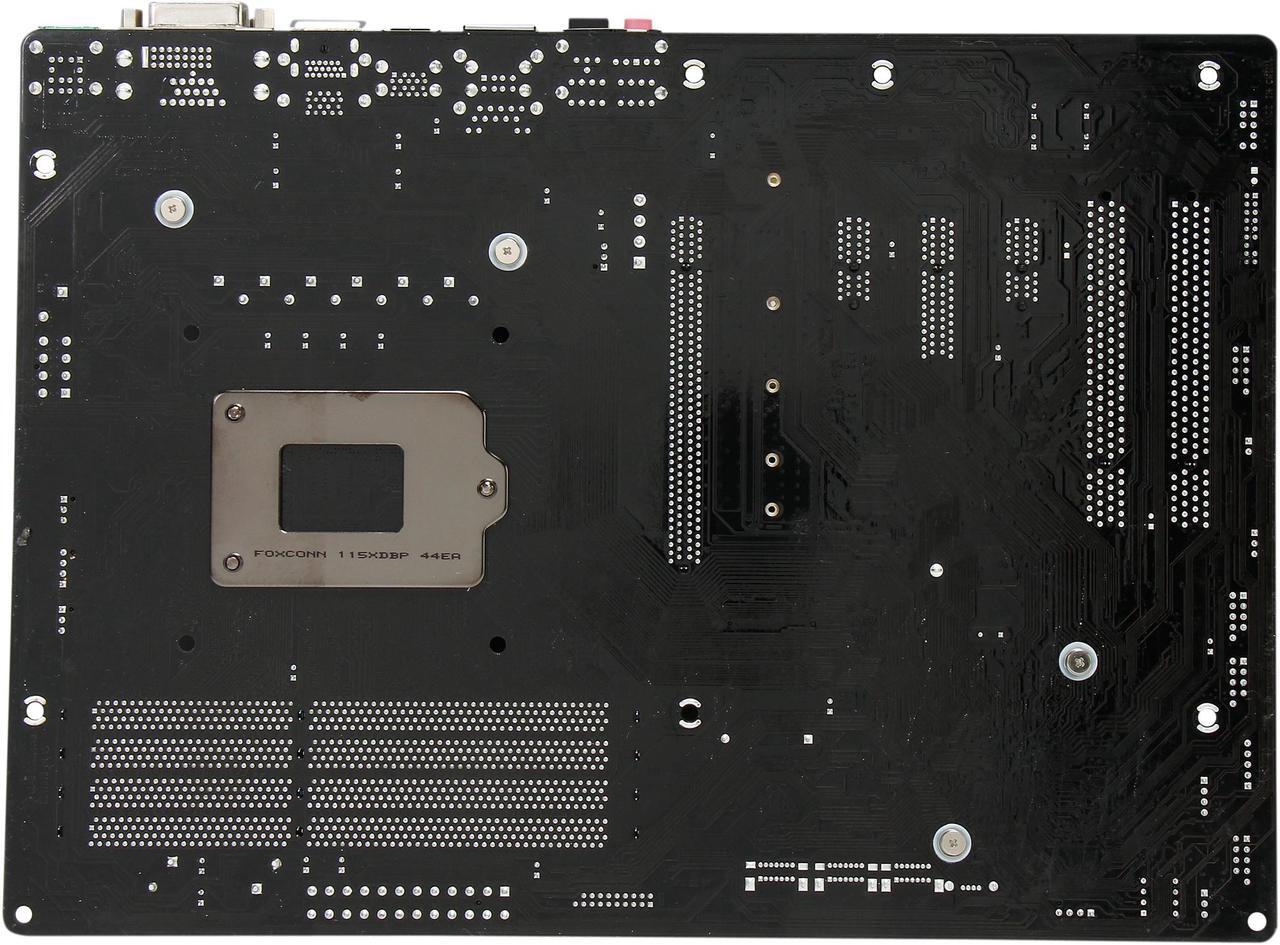

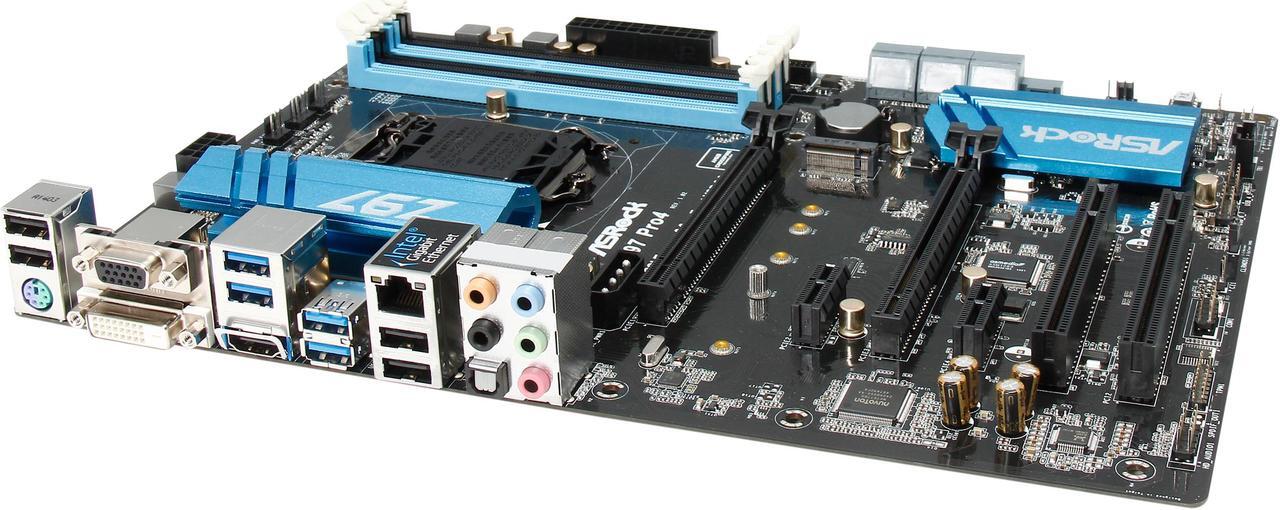

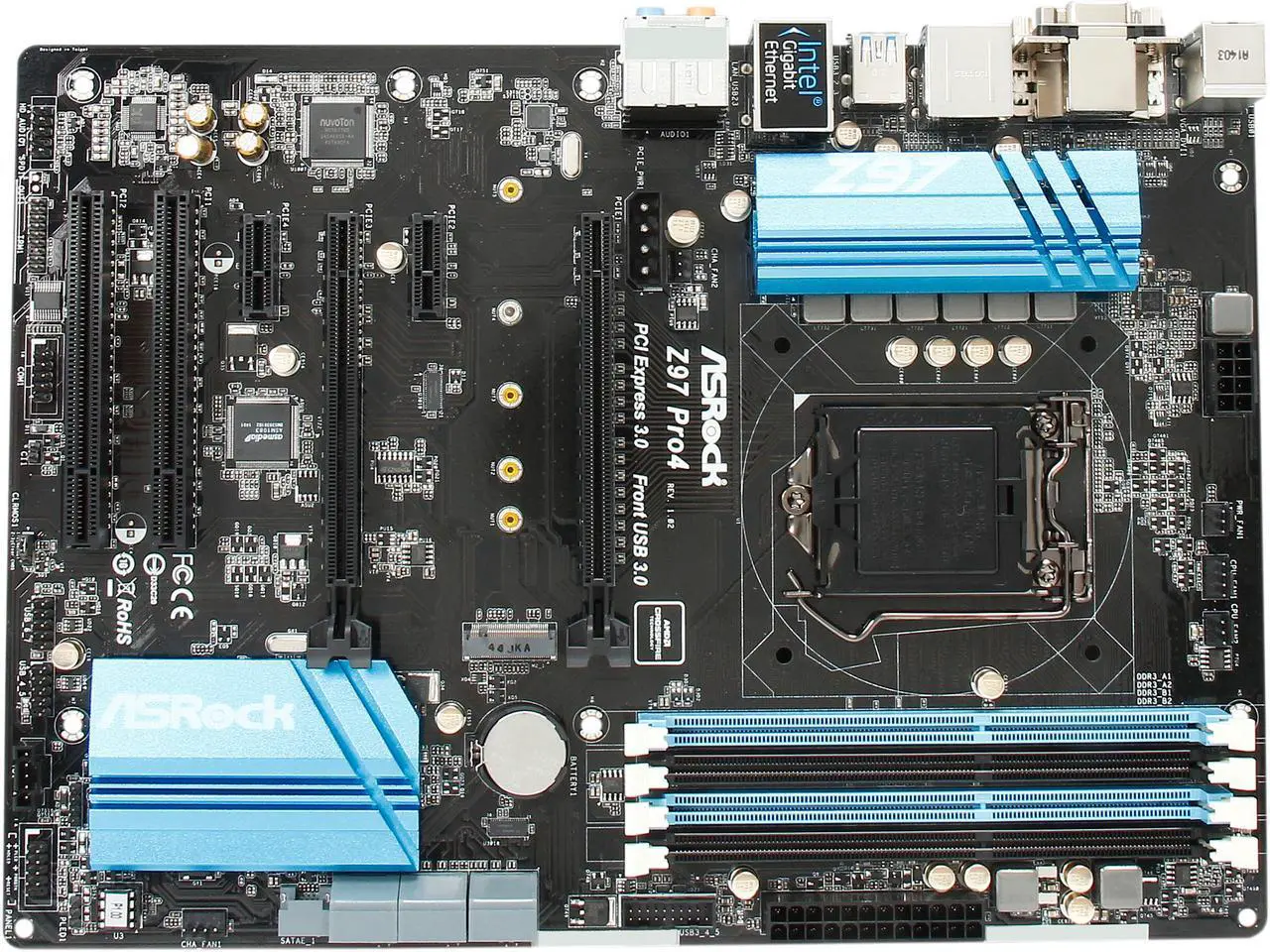

ASRock Z97 Pro4 LGA 1150 Intel Z97 HDMI USB 3.0 ATX Intel Motherboard

Overview

Z97 Pro4

M.2 Socket, SATA Express Interface, and Nichicon Fine Gold Caps

• ASRock Super Alloy


  • - Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
  • - NexFET™ MOSFET
  • - 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
  • - Sapphire Black PCB
• Supports 5th Generation, New 4th and 4th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Digi Power
• Supports Dual Channel DDR3 3100+(OC)
• 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1, 2 x PCI
• Supports AMD Quad CrossFireX™ and CrossFireX™
• Graphics Output Options: D-Sub, DVI-D, HDMI
• Supports Triple Monitor
• 7.1-Ch. HD Audio with Content Protection (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps
• Intel® Gigabit LAN
• 1 x SATA Express, 6 x SATA3, 1 x M.2 (Gen2 x2/SATA), 6 x USB 3.0 (2 x Front, 4 x Rear), 8 x 2.0 (4 x Front, 4 x Rear)
• 1 COM Port Header, 1 Thunderbolt™ AIC Connector
• Supports ASRock Full Spike Protection, ASRock Cloud, APP Shop, A-Tuning, Full HD UEFI

Features

Premium Alloy Choke

The new generation alloy chokes effectively increase up to 90% saturation current and feature a highly magnetic and heat resistant design, making the motherboard more efficient, stable and reliable.

NexFET MOSFET for Memory Power

The next generation NexFET MOSFETs control the power supply to DRAM slots more efficiently. They provide lower RDS(on) 2.9mΩ, delivering higher efficiency and lower temperature.

NexFET MOSFETs in memory areas use a special design for protecting them from electrostatic discharge and offer up to 7.5 times the ESD protection levels compared to traditional MOSFETs.

*Human Body Mode.

12K Platinum Caps

Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, these platinum capacitors have 20% longer lifespans and provide more stability and reliability.

*Tested under industry standard 105 degree Celsius ambient temperature.

Sapphire Black PCB

ASRock does not overlook any details, even those tiny ones. With pure black PCB appearance, the new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

M.2 Socket (PCIe Gen2 x2/SATA)

The onboard M.2 socket is a new interface for connecting Next Generation Form Factor (NGFF) solid state drives or other devices. ASRock supports M.2 SATA3 6Gbps modules and M.2 PCI Express modules up to Gen2 x2 10Gbps, which is 2X faster compared to other M.2 Gen2 x1 solutions that are limited to 5Gbps.

Nichicon Fine Gold Audio Caps

ASRock applied Nichicon Fine Gold Series audio capacitors that every audiophile has been longing for on a PC! Compared with traditional solid caps, the leakage current of Nichicon audio caps is merely 10uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Orbweb ME

Your Personal Cloud, Easy and Always Connects

ASRock Cloud* technology makes your mobile devices connect to your PC seamlessly! We offer a one-year subscription to Orbweb.ME Professional version, a personal cloud service which is $49.99 per year. It allows you to get connected with your PC's files, music, photos, and video clips emotely with tablets anytime, anywhere. Plus an additional one-month upgrade to Orbweb.ME Ultimate package with Remote Desktop function.

Personal Cloud for Everyone

Cloud service should be simple and personal. Don't take time to upload the files to the public cloud again. Stop spending money on setting up another NAS device you don't know. Orbweb ME's file browser is your solution to zero adaption, managing your folders and files in the cloud. Accessing and exchanging files instantly among all of your PC and storages. All your folders and files are sitting just where you know they are.

Media Library and Streaming

Orbweb Personal's media library takes care of your media content. Organize all your photos, videos and music across your PCs and online storages. Diverse, intuitive and smart sorting help finding desired movies in few clicks. Progressive streaming lets you enjoy your music collection almost no download time. Web browser based and mobile app portal keep you connected in any device any time.

Remote Desktop Anywhere

Laying in the bedroom or sitting in the office, tablet in your hands just becomes smarter. Pick up any work sheet left in office or start any application from you home PC. Orbweb ME's remote desktop not only mobilized your PC but also empower your tablet. No matter the device, No matter the location, Orbweb ME always keeps your PC by you.

Wake On WAN

The latest technology that WOWs you with the ability to wake up your PC remotely over the Internet. Turn your PC on/off only when you need to. Keep your PC healthy and save energy at the same time.
