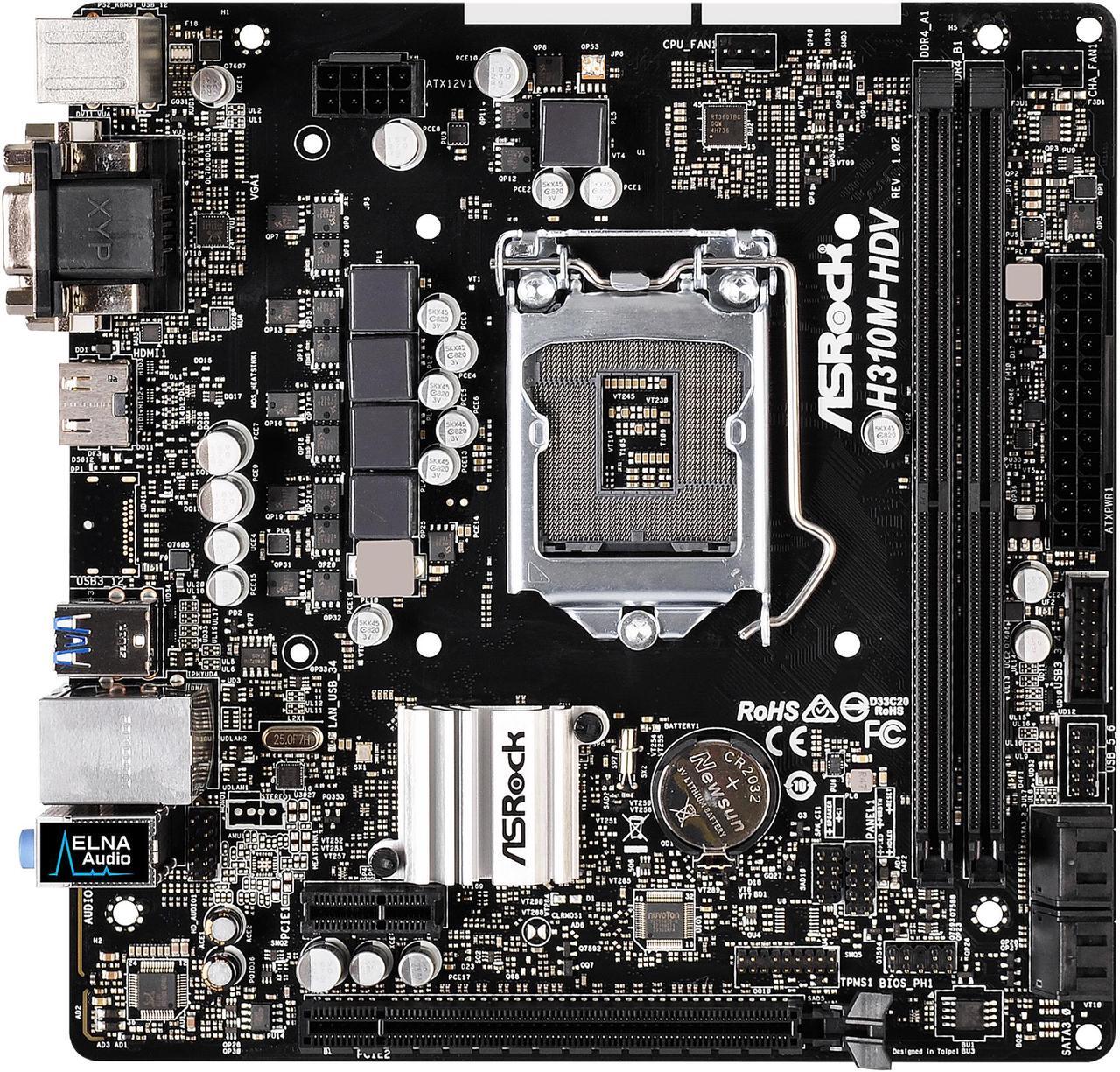

Main image of ASRock H310M-HDV LGA 1151 (300 Series) Intel H310 HDMI SATA 6Gb/s USB 3.1 Micro ATX Intel Motherboard

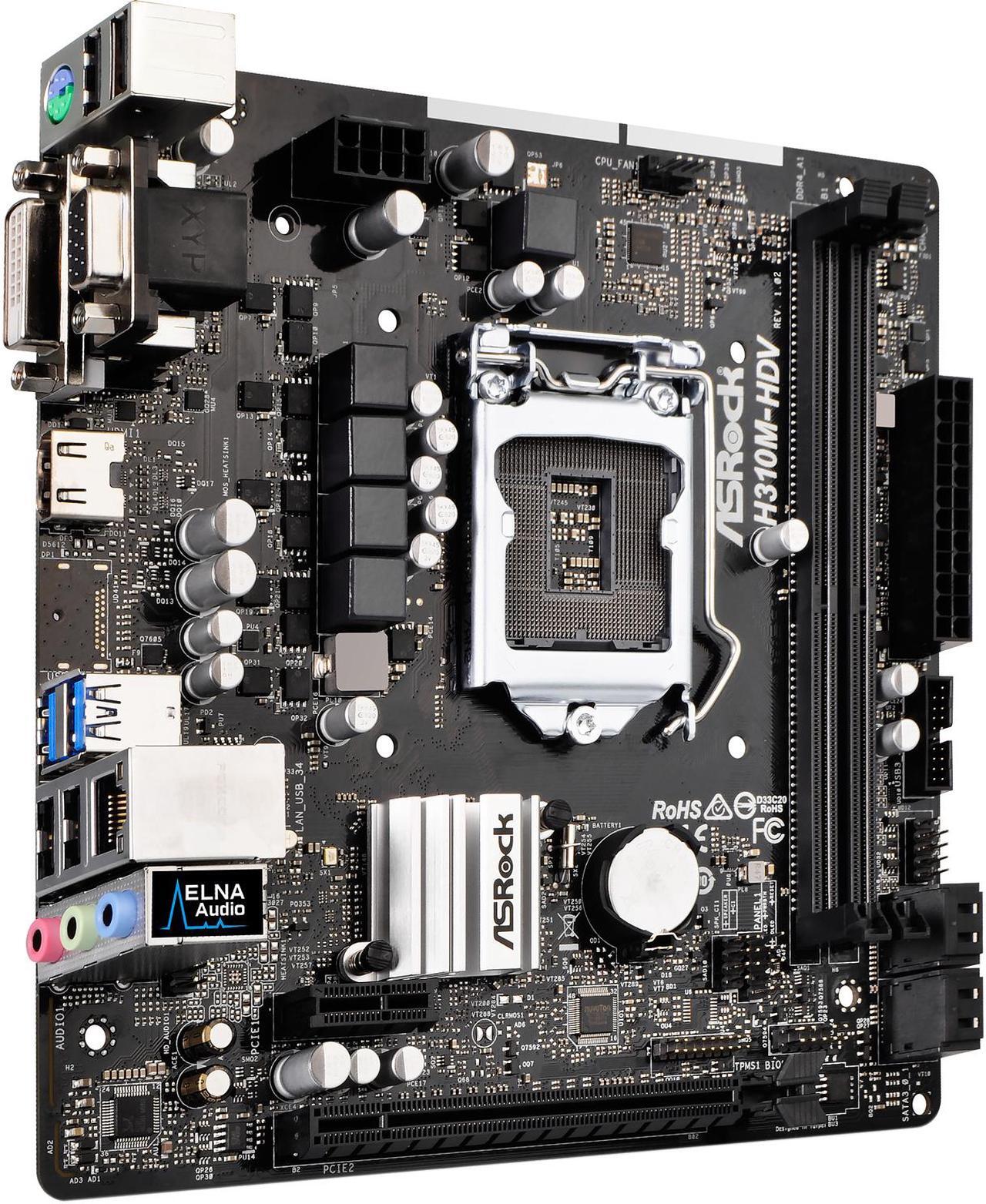

Alt view image 2 of 7 - ASRock H310M-HDV LGA 1151 (300 Series) Intel H310 HDMI SATA 6Gb/s USB 3.1 Micro ATX Intel Motherboard

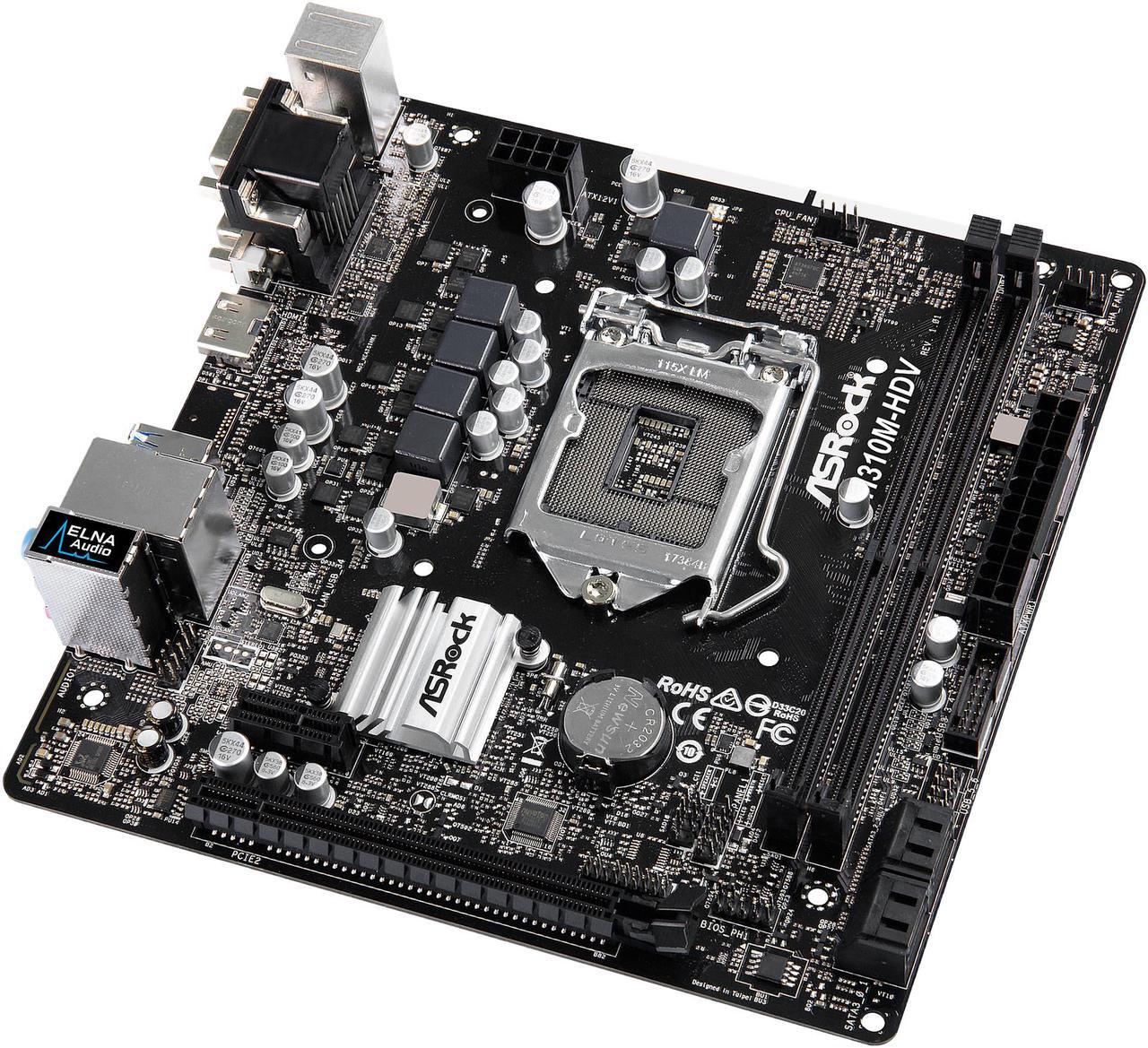

Alt view image 3 of 7 - ASRock H310M-HDV LGA 1151 (300 Series) Intel H310 HDMI SATA 6Gb/s USB 3.1 Micro ATX Intel Motherboard

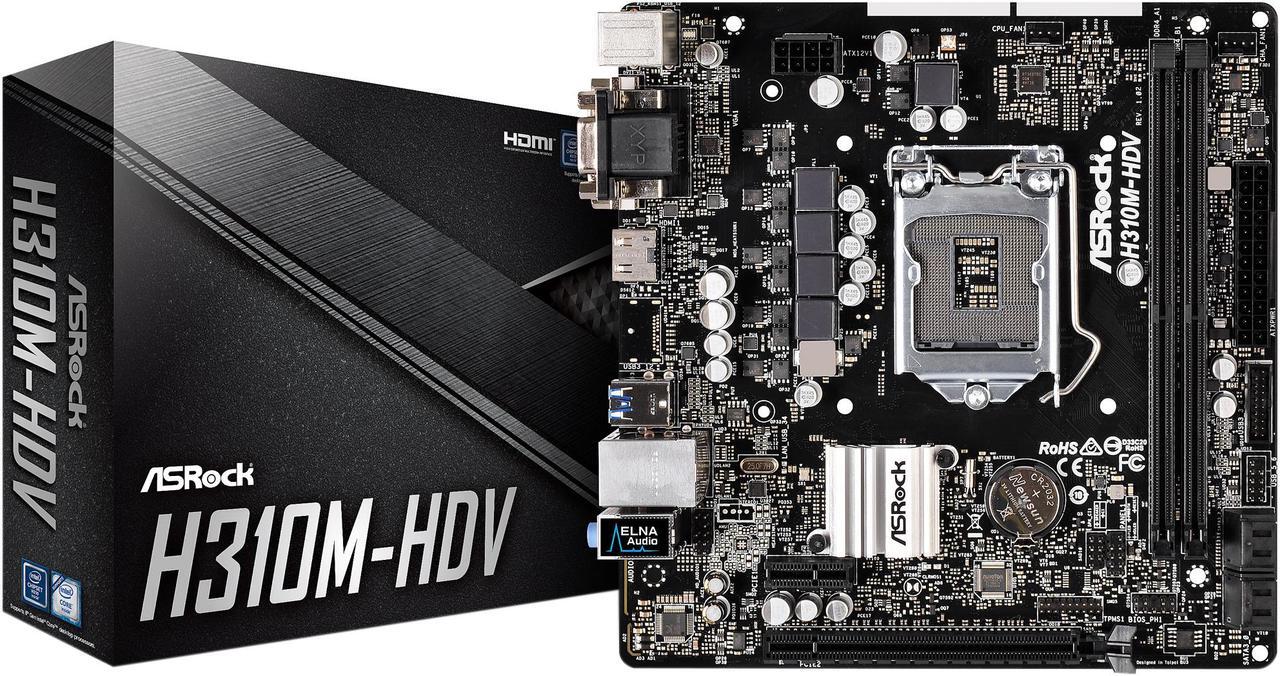

Alt view image 4 of 7 - ASRock H310M-HDV LGA 1151 (300 Series) Intel H310 HDMI SATA 6Gb/s USB 3.1 Micro ATX Intel Motherboard

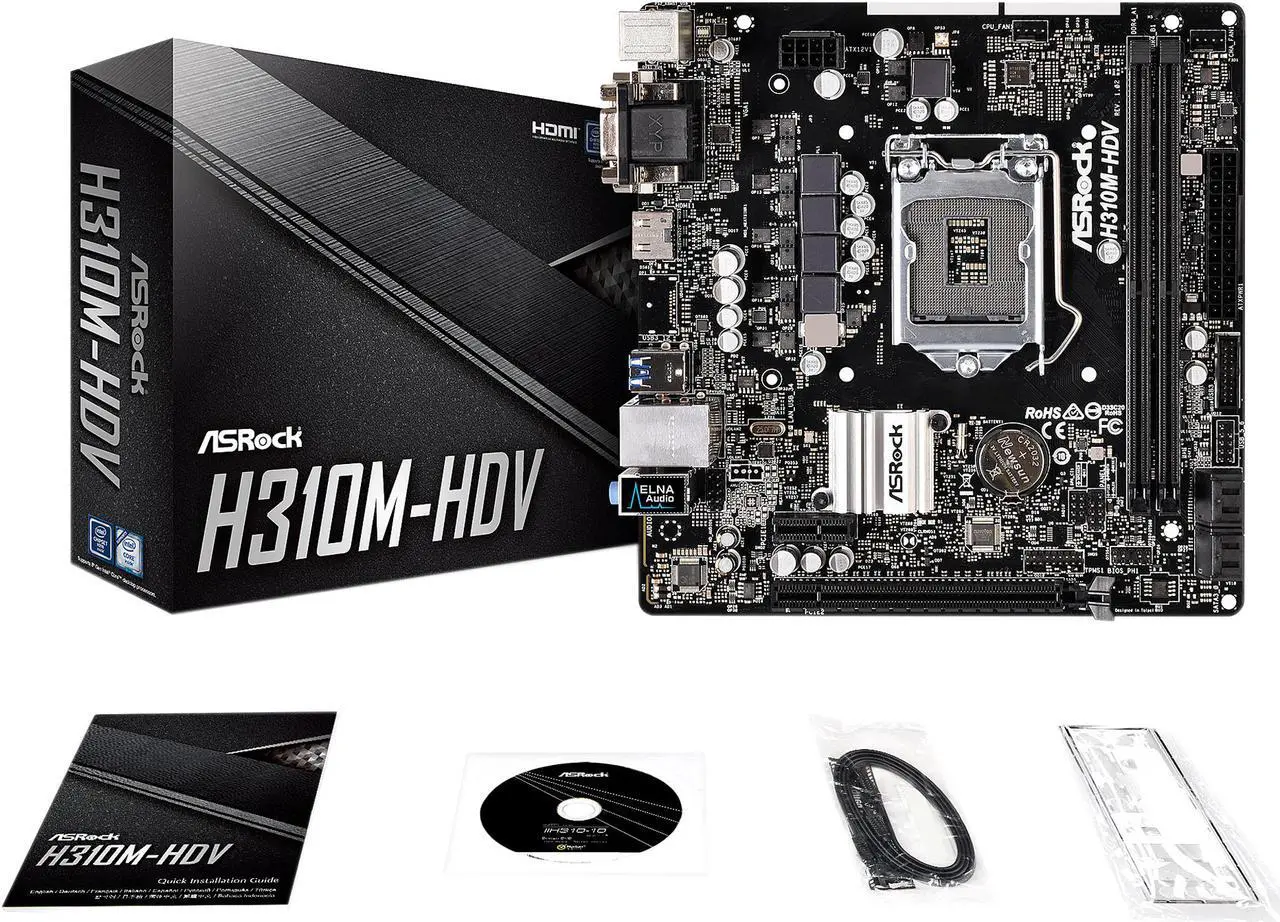

Alt view image 5 of 7 - ASRock H310M-HDV LGA 1151 (300 Series) Intel H310 HDMI SATA 6Gb/s USB 3.1 Micro ATX Intel Motherboard

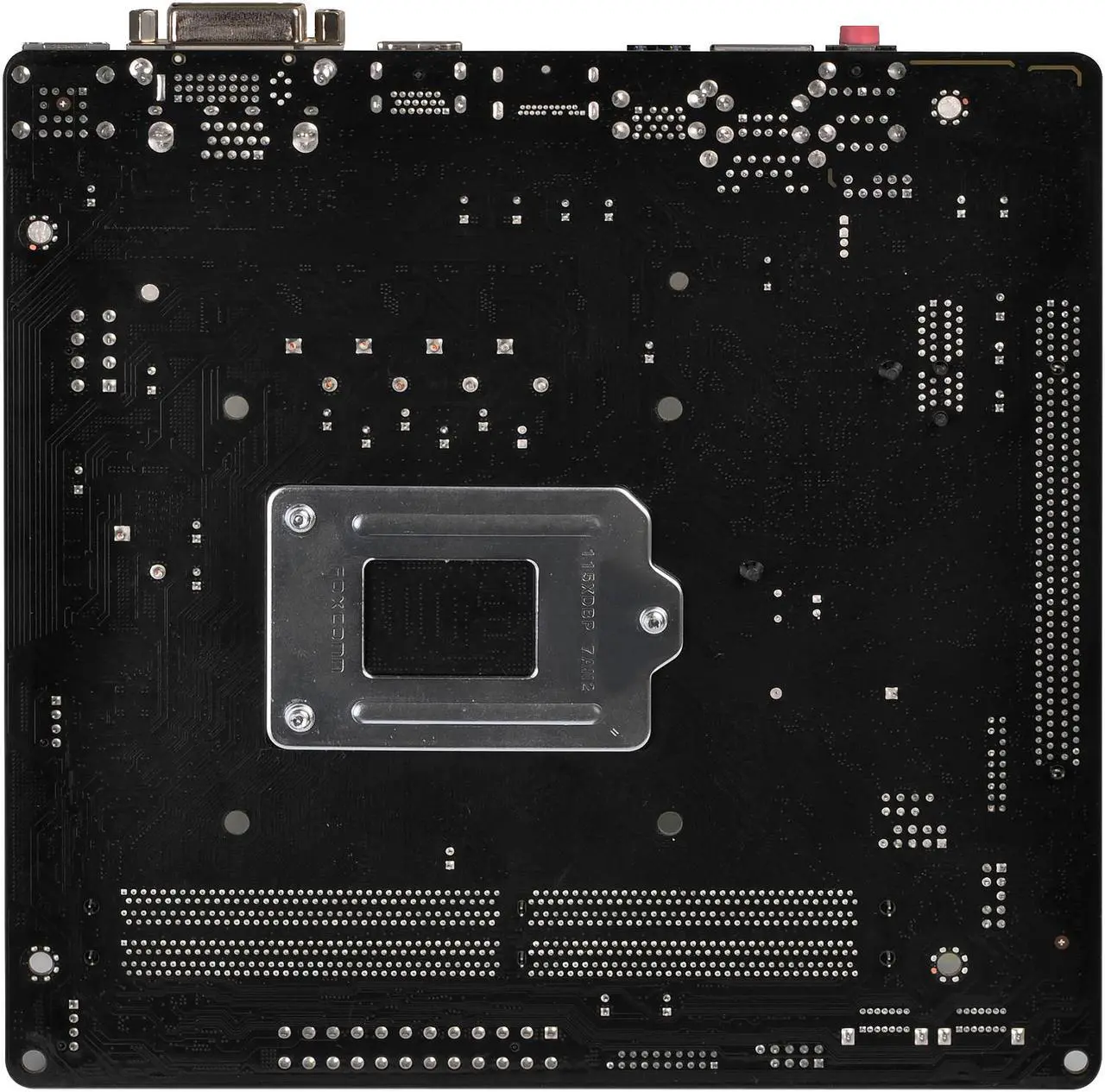

Alt view image 6 of 7 - ASRock H310M-HDV LGA 1151 (300 Series) Intel H310 HDMI SATA 6Gb/s USB 3.1 Micro ATX Intel Motherboard

Alt view image 7 of 7 - ASRock H310M-HDV LGA 1151 (300 Series) Intel H310 HDMI SATA 6Gb/s USB 3.1 Micro ATX Intel Motherboard

Shop All ASRock Products | Visit DoDo DIY Store

ASRock H310M-HDV LGA 1151 (300 Series) Intel H310 HDMI SATA 6Gb/s USB 3.1 Micro ATX Intel Motherboard

Used - Very Good

Option: H310M-HDV

H310M-HDV
H310M-HDV/M.2
H310M-ITX/ac

Intel H310
Supports 8th Generation Intel Core Processors (Socket 1151)
DDR4 2666/ 2400/ 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

ASRock H310M-HDV LGA1151/Intel H310/DDR4/SATA3&USB3.1/A&GbE/MicroATX Motherboard. Chipset: Intel H310. Memory: 2x DDR4-2666/2400/2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB. Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot. SATA: 4x SATA3 Ports, Support NCQ, AHCI and Hot Plug Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC LAN: Realtek RTL8111H PCI-Express x1 Gigabit Ethernet Controller Ports: 4x USB 3.1 Gen1 Ports (2 rear, 2 via header), 6x USB 2.0 Ports (4 rear, 2 via headers), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port w/LED, Audio I/O Jacks Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by DoDo DIY Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Supports 8th Generation Intel Core Processors (Socket 1151) * Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies	Turbo Boost Technology 2.0

Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 2666/ 2400/ 2133
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* * Supports NVMe SSD as boot disks
PCI Express x1	1 x PCI Express 2.0 x1 Slot

Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Supports Surge Protection

LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

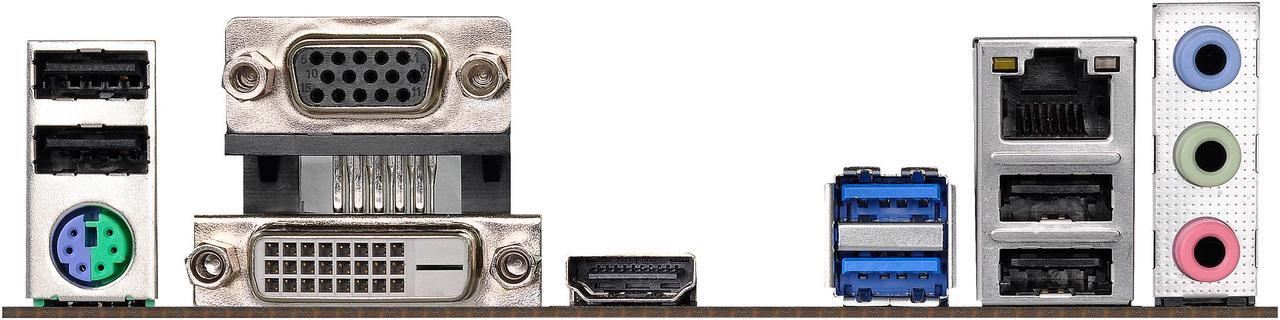

Back I/O Ports	1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.1 Gen 2 Type-A / 4 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x D-Sub Port 1 x DVI-D Port
HDMI	1 x HDMI
RJ45	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1	2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
USB 1.1/2.0	4 x USB 2.0 Ports (Supports ESD Protection)
Audio Ports	HD Audio Jacks: Line in / Front Speaker / Microphone

Onboard USB	1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors	1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. 1 x Front Panel Audio Connector

Form Factor	Micro ATX
Dimensions (W x L)	7.5" x 7.4"
Power Pin	1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector

Model
Brand	ASRock
Model	H310M-HDV

Item#: 9SIA639KE09404
