ASRock B365M Pro4 LGA 1151 (300 Series) Intel B365 SATA 6Gb/s Micro ATX Intel Motherboard

Used - Like New Product Type
In stock.
Ships from Hong Kong.
Most customers receive within 5-23 days.
  • Intel B365
  • Supports 9th and 8th Gen Intel Core Processors (Socket 1151)
  • DDR4 2666/ 2400/ 2133
B365M Motherboard with Its Product Box

ASRock B365M Pro4

Based on Intel B365 chipset and built with superb thermal design, the B365M Pro4 motherboard allows you to unleash the full performance of 9th/8th Intel Core processors of up to eight cores. Beyond its micro ATX form factor, this board offers an abundance of capability and features to build your powerhouse, including quad DIMM slots, two PCIe x16 slots with AMD Quad CrossFireX ready, two Ultra M.2 connectors (one with heatsink), and reversible USB Type-C port. It also goes with today's RGB trend, by including RGB LED headers and an addressable RGB LED header onboard. The Super Alloy components and Digi Power design guarantee unbeatable quality, stability and reliability, making the ASRock B365M Pro4 a solid foundation for your next dream system.

  • Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
  • Supports DDR4 2666
  • 2x PCIe 3.0 x16, 1x PCIe 3.0 x1 and 1x M.2 Key E for WiFi
  • AMD Quad CrossFireX™
  • Graphics Output Options: HDMI, DVI-D and D-Sub
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec) and ELNA Audio Caps
  • 6x SATA3, 2x Ultra M.2 (2x PCIe Gen3 x4 and 1x SATA3)
  • 7x USB 3.1 Gen1 (2 Front, 4 Rear, 1 Type-C)
  • Intel® Gigabit LAN
B365M Motherboard with fragmented image of itself in the background
Your PC Transformed

This motherboard exudes a stylish design and provides immense functional reliability.

B365M Motherboard banner showing close-up spots of the two RGB LED headers and addressable RGB LED header

This motherboard features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.


The addressable RGB LED header supports a WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and an overall length within 2 meters.
The RGB LED header supports standard 5050 RGB LED strips (12V/G/R/B), with a maximum power rating of 3A (12V) and lengths within 2 meters.

All the compatible RGB LED products from memory sticks to power supplies and cases
M.2 Slot on the Motherboard
Dual M.2 for SSD

Equipped with an M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4, the Ultra M.2 interface pushes data transfer speeds up to 32Gbps and is compatible with ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSDs.

Please refer to the product's specification page for more details.

M.2 Slot under the CPU Slot
Full Coverage M.2 Heatsink

The massive full-coverage M.2 heatsink is able to dissipate heat efficiently to ensure your high-speed M.2 SSD is always working at its best.

Alluminum alloy heatsink on the motherboard
XXL Aluminum-Alloy Heatsink

Extra-large aluminum-alloy heat sinks effectively take away heat from the MOSFET and chipset so that your whole system may perform more stably.

Closeup of the pci-e slot

The advanced PCI-E steel slot packed with a solid cover prevents any signal interference with graphics cards. It also ensures that heavy graphics cards can be properly and safely installed in the PCI-E slot.

Intel Gigabit Ethernet logo glowing on the motherboard ports section
Intel® LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Intel Optane Memory Section Glowing on the Motherboard with its logo to the side
Intel® Optane™ Memory-Ready

These ASRock motherboards support Intel® Optane™ memory technology and Intel® Optane™ storage technology to redefine a new standard of high performance and responsiveness.

A close-up graphic showing the 4 layers that make the motherboard
ASRock Intel® 4-Layer Memory POOL Technology

POOL (Planes on Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, giving the motherboard better electrical properties and performance.

Super Alloy Motherboard Graphic Text
Premium 50A Power Choke

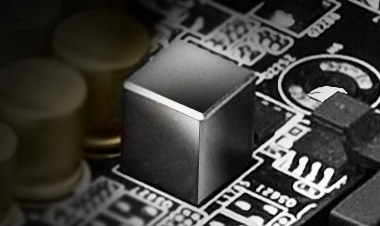

Closeup of the power choke

Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB

Closeup of the bottom edge of the motherboard

Being a pure-black PCB design, the new Sapphire Black PCB represents rock-solid quality and gives each motherboard a more mysterious touch.

High-Density Glass Fabric PCB
Graphic showing the difference between traditional and high density fabric

The High-Density Glass Fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

DigiPower VRM Design Logo
Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next-generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

802.11ac WiFi logo with M.2 WiFi text below it
M.2 (KEY E) for WiFi

Besides the onboard LAN port, users have the option of using 802.11ac wireless connections by utilizing the M.2 (Key E) slot.
*Wi-Fi module is not included.

Graphic of the female ends of D-Sub, DVI-D and HDMI connectors
3 Graphics Outputs

These motherboard come complete with all three types of the world's most popular connectors! Users can enjoy their choice of D-Sub, DVI-D or HDMI.

Three Monitors chained together showing a panoramic image of a planet's horizon and an Eclipsed sun in space
Triple Monitor

Graphics, graphics and even more graphics! You've demanded more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear I/O to connect monitors and use them simultaneously without installing another graphics card.

Closeup of the 4 ELNA audio caps on the motherboard
ELNA Audio Caps

Who says high-quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

3 screenshot of the A-Tuning software UI

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

ASROck App Shop Logo with all the supported apps logos from XSplit to individual gaming technologies
Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Full Spike Protection Logo
Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges that can cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
