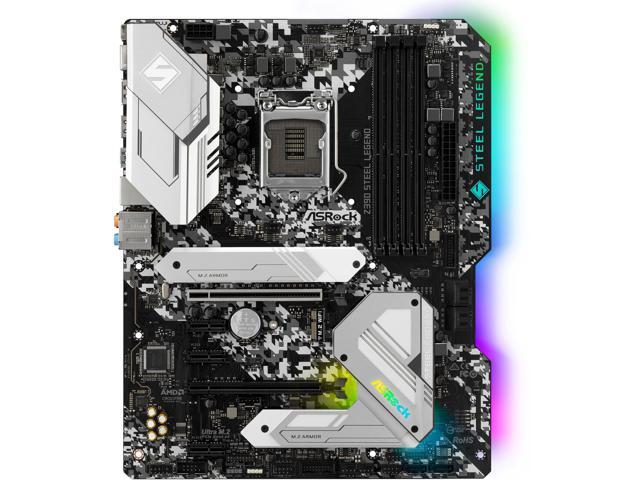

ASRock Z390 STEEL LEGEND LGA 1151 (300 Series) Intel Z390 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard

(8)

Write a Review

Ships from United States.

Sold and Shipped by Newegg

Intel Z390
Supports 9th and 8th Gen Intel Core Processors (Socket 1151)
* Not backward compatible with older generation of LGA 1151 CPUs
Supports DDR4 4266+(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 non-ECC, un-buffered memory

ASRock Z390 STEEL LEGEND LGA 1151 (300 Series) Intel Z390 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard

Ships from United States.

Overview
Specifications
Warranty & Returns
Reviews
Q&A

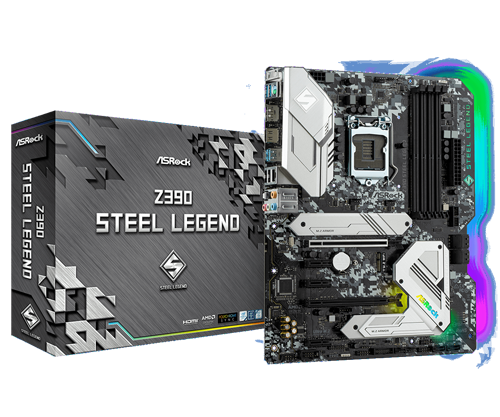

Z390 Steel Legend

Tough as steel. True legend.

ASRock Z390 Steel Legend is a tech-savvy Z390 motherboard with rock-solid durability and irresistible RGB lighting aesthetics. Two full coverage M.2 armors, chipset armor, and I/O armor look bold and unique in the backdrop of the pure black PCB, and offer amazing heat dissipation capacity. All the high-end components you will install will perform at peak performance on this super alloy motherboard.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

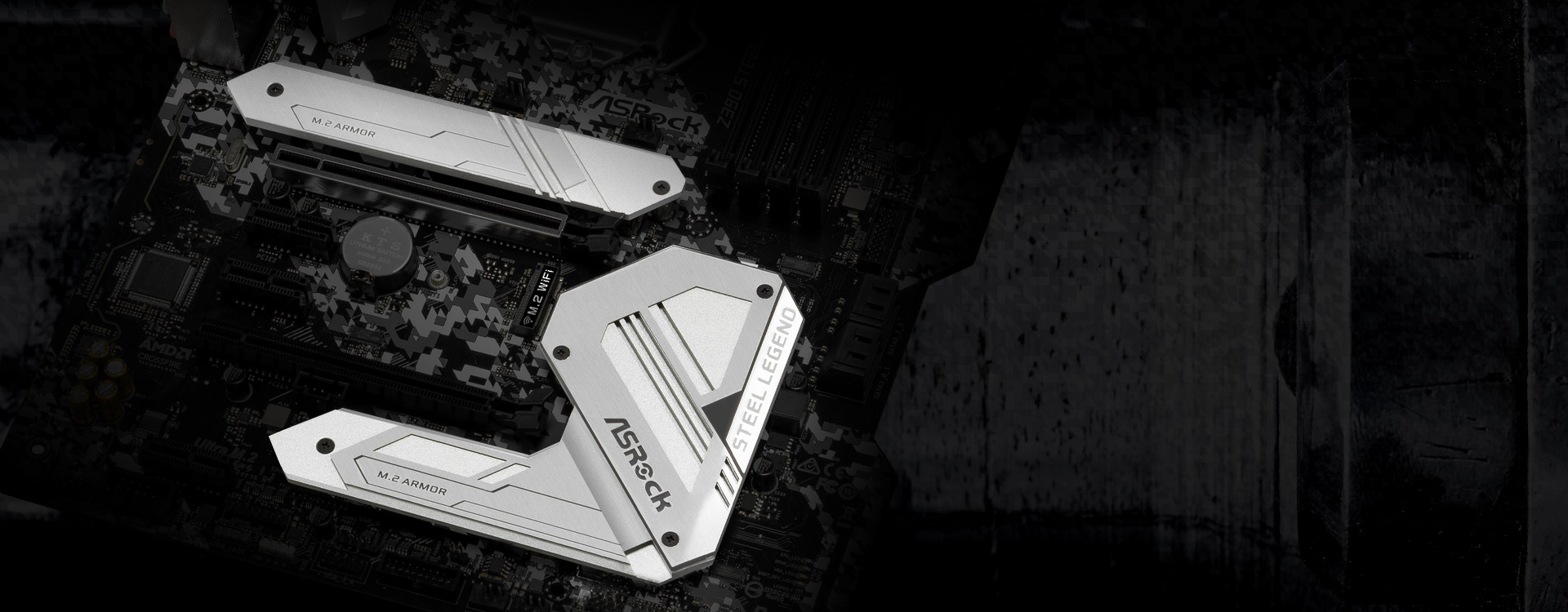

Two Full Coverage M.2 Armor

Dual massive full coverage M.2 heatsink is able to dissipate heat efficiently to ensure your high speed M.2 SSD always works at its best.

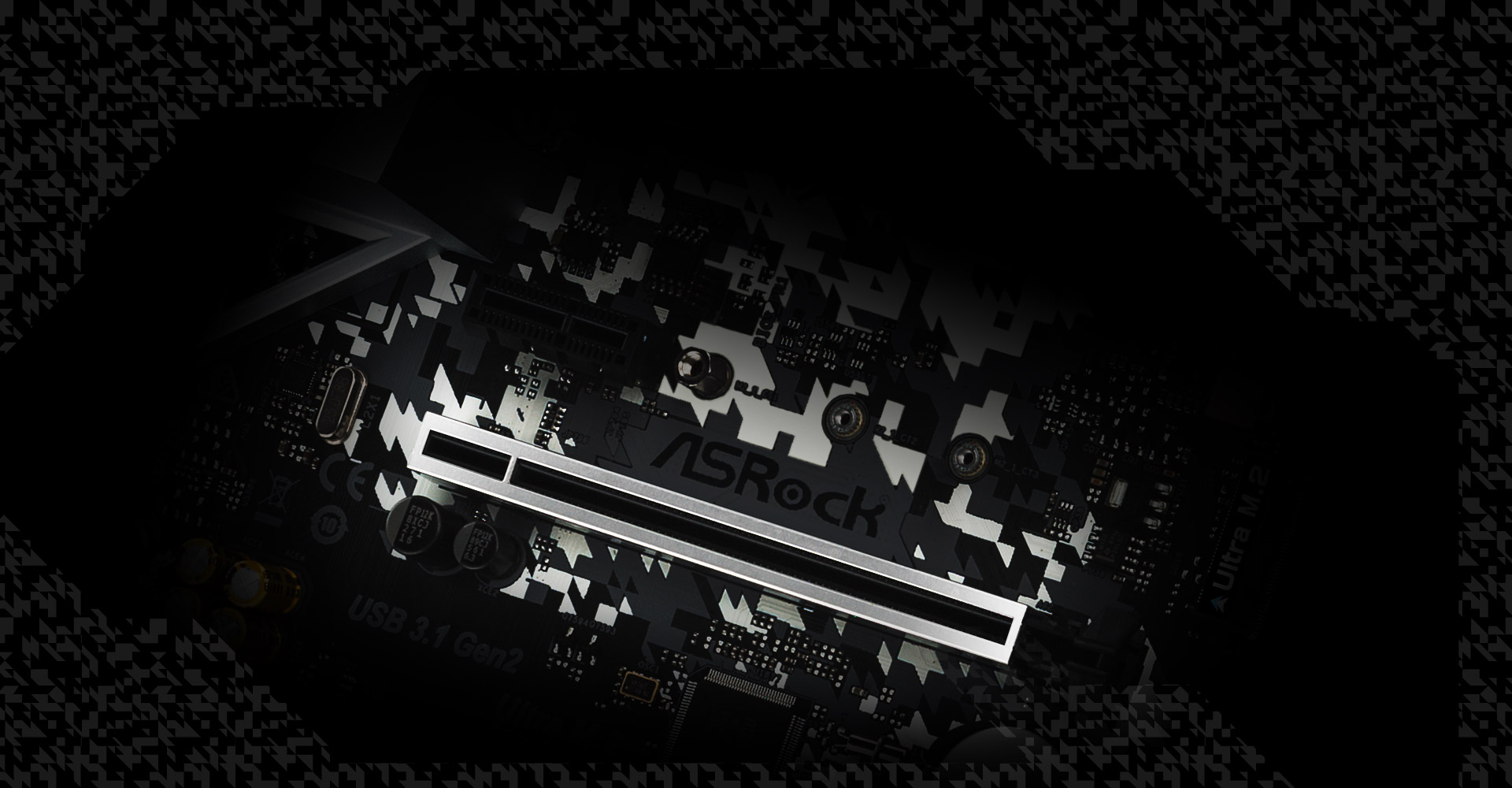

PCI-E Steel Slot

The advanced PCI-E Steel Slot packed with solid cover that prevents any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.

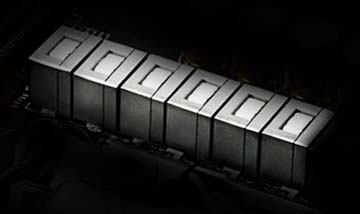

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

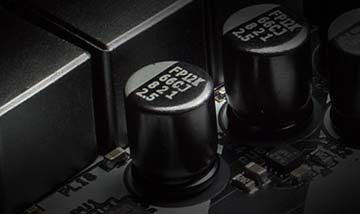

Nichicon 12K Black Caps

Supreme 12K black capacitors have lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

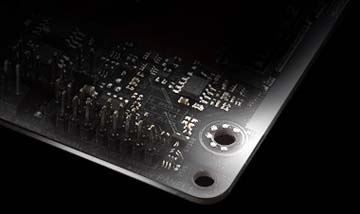

Sapphire Black PCB

You will love the pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

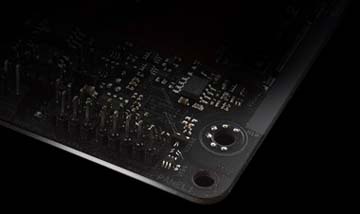

Matte Black PCB

A new mysterious matte black and copper color scheme matches the prestigious components on ASRock's high-end motherboards.

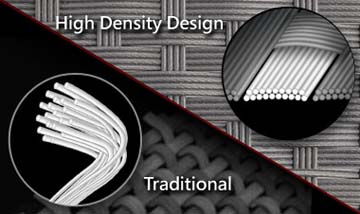

High Density Glass Fabric PCB

High Density Glass Fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Rule Your Own Lightning Way—Polychrome RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

* The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

* The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

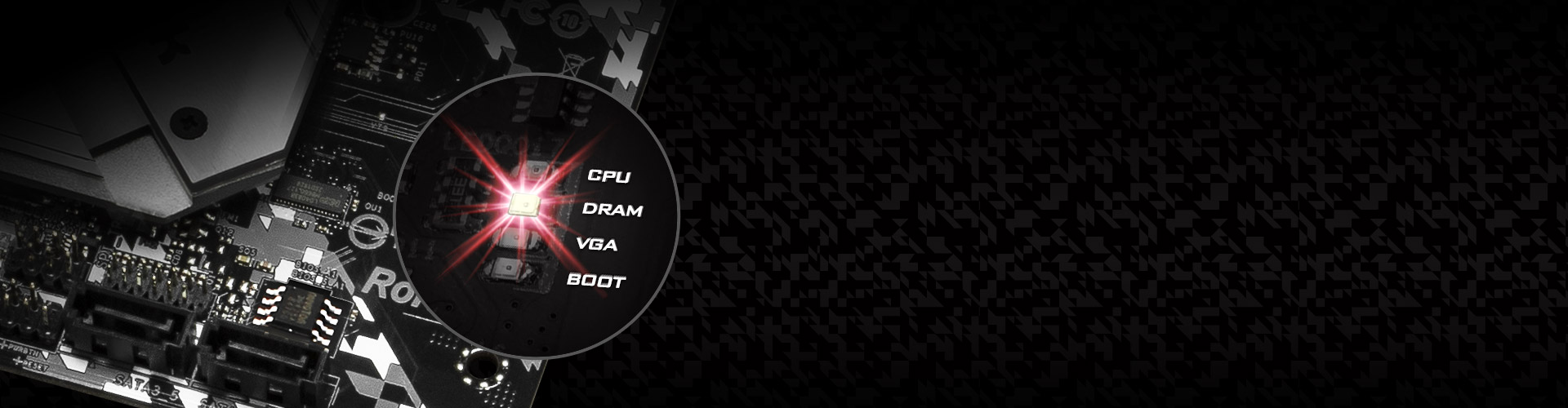

Post Status Checker

An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system, Post Status Checker is a fast and easy way to identify the source of the problem.

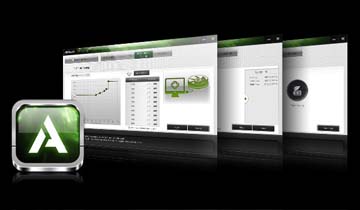

A-Tuning

A-Tuning is ASRock's multi-purpose software suite with a new interface, more new features and improved utilities.

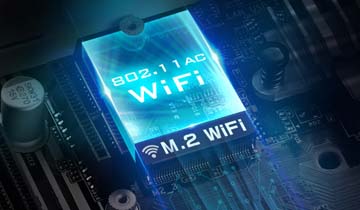

M.2 (KEY E) for Wi-Fi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

* Wi-Fi module is not included.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Learn more about the ASRock Z390 STEEL LEGEND

Model

Brand: ASRock

Model: Z390 STEEL LEGEND

Supported CPU

CPU Socket Type: LGA 1151 (300 Series)

CPU Type: Supports 9th and 8th Gen Intel Core Processors (Socket 1151)
* Not backward compatible with older generation of LGA 1151 CPUs

Supported CPU Technologies: Turbo Boost Technology 2.0

Chipsets

Chipset: Intel Z390

Onboard Video

Onboard Video Chipset: Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
DirectX 12
HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Memory

Number of Memory Slots: 4×288pin

Memory Standard: Supports DDR4 4266+(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 non-ECC, un-buffered memory

Maximum Memory Supported: 128GB*
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

Channel Supported: Dual Channel

Expansion Slots

PCI Express 3.0 x16: 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*
* Supports NVMe SSD as boot disks

PCI Express x1: 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)

Other Slots: 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT)

Storage Devices

SATA 6Gb/s: 6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
* If M2_1 is occupied by a PCIE-type M.2 device, SATA3_0 will be disabled.

M.2: 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**

** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit

Intel Optane Ready: Yes

SATA RAID: 0/1/5/10

Onboard Audio

Audio Chipset: Realtek ALC1200

Audio Channels: 7.1 Channels

Onboard LAN

LAN Chipset: Intel I219-V

Max LAN Speed: 10/100/1000Mbps

Rear Panel Ports

PS/2: 1 x PS/2 keyboard/mouse port

HDMI: 1 x HDMI

RJ45: 1 x RJ45

DisplayPort: 1 x DisplayPort 1.2

USB 3.1: 1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (ReDriver) (Supports ESD Protection)

USB 3.0: 2 x USB 3.2 Gen1 Ports (Intel Z390) (Supports ESD Protection)

USB 1.1/2.0: 2 x USB 2.0 Ports (Supports ESD Protection)

USB Type-C: 1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (ReDriver) (Supports ESD Protection)

S/PDIF Out: 1 x Optical

Audio Ports: HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Antenna Connectors: 1 x Antenna Bracket

Internal I/O Connectors

Onboard USB: 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

Other Connectors: 1 x COM Port Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin)

* Support in total up to 12V/3A, 36W LED Strip.
** Supports in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

Physical Spec

Form Factor: ATX

LED Lighting: RGB

Dimensions (W x L): 12.0" x 9.6"

Power Pin: 1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector

Warranty, Returns, And Additional Information

Warranty
Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Manufacturer Contact Info
Manufacturer Product Page|
Website: https://www.asrock.com/|
Support Phone: 1-909-590-8308
Support Email: support@asrockamerica.com|
Support Website|
View other products from ASRock

Return Policies
- Return for refund within: Non-refundable
- Return for replacement within: 30 days
This item is covered by Newegg.com's Replacement Only Return Policy.

Douglas S.

Ownership: 1 day to 1 week

Verified Owner

Works (Just built, 9/25/19) 9/25/2019 10:01:06 PM

Pros: My system:
- Intel Core i5-9400F Coffee Lake 6-Core 2.9 GHz (4.1 GHz Turbo) LGA 1151 (300 Series) 65W
- Thermaltake TOUGHPOWER 750W 80 PLUS GOLD Semi Modular Power Supply PS-TPD-0750MPCGUS-1
- G.SKILL Ripjaws 4 Series 32GB (4 x 8GB) 288-Pin DDR4 SDRAM DDR4 2133 (PC4 17000) Desktop Memory Model F4-2133C15Q-32GRR
- WD Desktop Mainstream WDBH2D5000ENC-NRSN 500GB 7200 RPM 32MB Cache SATA 6.0Gb/s 3.5" Internal Hard Drive ( two drives)
- MSI Computer Video Graphic Cards GeForce GTX 1050 TI Gaming X 4G
- Asus Optical Drive
- Windows 10 Pro (required)
-Thermaltake Core V51 (CA-1C6-00M1WN-00) Black ATX Gaming Mid Tower Computer Case

Cons: None so far. It works right out of the box, no issues; looks good. I turned off the RGB lights in the bios because I don't like lights on the motherboard, though they do look nice! Very nice.

Overall Review: Board has a great look to it and a nice layout as well. No issues during build and the bios is a breeze. Very happy here!

Did you find this review helpful?

Anonymous

Ownership: 1 month to 1 year

Verified Owner

Random restarts and died after a month 9/20/2019 6:05:43 PM

Pros: Worked great at first

Cons: Computer wouldn’t shut down entirely, the BIOS ended up corrupting when I had used their flashing tool with the LAN update inside of the BIOS it worked for a month after and then boot cycled

Overall Review: Ordered a new motherboard from MSI with no issues

Did you find this review helpful?

Manufacturer Response:

Dear Valued ASRock Customer,

We sincerely apologize for any inconvenience this may have caused you.
Please trouble shoot the mainboard whether the issue is resolved.
• Unplug the ATX power, remove all components from mainboard.
• Clear the CMOS.
• Reseat the CPU and heatsink fan.
• Test with 1 x memory module, switching another memory if its same issue.
• Test with onboard video (CPU with iGPU or test with VGA card).
• Connect the monitor.
• Plug the 24 + 8 or 4 pins ATX power.
• Connect the chassis power switch to mainboard.
• Turn on the power to check if its post.

If you have any technical support inquiry, please contact us at http://event.asrock.com/tsd.asp
We will assist you shortly.

Thank you

ASRock Support
Tech Support Email: http://event.asrock.com/tsd.asp

James P.

Ownership: 1 week to 1 month

Verified Owner

Worth the price 9/17/2019 10:14:41 AM

Overall Review: 10/10

Did you find this review helpful?

Ruben R.

Ownership: 1 week to 1 month

Verified Owner

Great motherboard for the price. 9/13/2019 4:57:56 PM

Pros: Outstanding layout on this motherboard, plenty of fan connections and the SATA ports are very accessible and well placed for cable management. The RGB lights are really nice and fully customizable in the bios or from the desktop after you install the program. With a little research was able to set up the UEFI and install Windows 10 from the USB drive. Really well thought out board.

Overall Review: Would definitely recommend this board to anyone looking to get an inexpensive but very functional board.

1 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!

Anonymous

Has one problem. 8/11/2019 12:02:23 AM

Pros: Fast Boot.

Cons: Computer has a solid red LED light when it wakes up from sleep. Specifically this is the POST status checker DRAM_LED light. Maybe this can be fixed with a bios update.

Other thoughts:
Maybe compared to other motherboards having one problem isn't so bad.

Overall Review: Decent motherboard. However it has a problem, see the con below.

Did you find this review helpful?

Faris A.

Ownership: 1 month to 1 year

d=(´▽｀)=b 7/22/2019 5:59:33 PM

Pros: 7.1 optical,a really good looking motherboard

Cons: none

Did you find this review helpful?

Hillary D.

Ownership: 1 week to 1 month

Verified Owner

So far I'm very pleased 7/20/2019 12:33:27 PM

Overall Review: Installed last night. So far so good. This is my second ASRock mobo. I hate spending crazy money on a mobo so this fits the bill.

0 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!

Michael H.

Ownership: 1 month to 1 year

Verified Owner

Fabulous Board for the price 7/17/2019 8:52:25 PM

Pros: Shipped Bios supports 9th Gen processors
2 pcie x4 m.2 slots
Plenty of SATA and 4 pin fan headers
Just the right amount of RGB lighting

Overall Review: Purchased this, 16gb of 3200 ddr4, and a 9400f CPU. I upgraded from an older socket 1150 board and 4th gen CPU. Am seeing much better speed and much better frames playing games.

As mentioned, this is a newer board that ships with a bios that will have no issues with 9th Gen cpu's. There is a newer bios from ASRock that you can update to which I did. For my tastes there is just the right amount of configurable RGB on board and have had no issues whatsoever.

If you are not looking to spend a lot but want to upgrade to a Z390 series board then this is a great way to go.

6 out of 6 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
