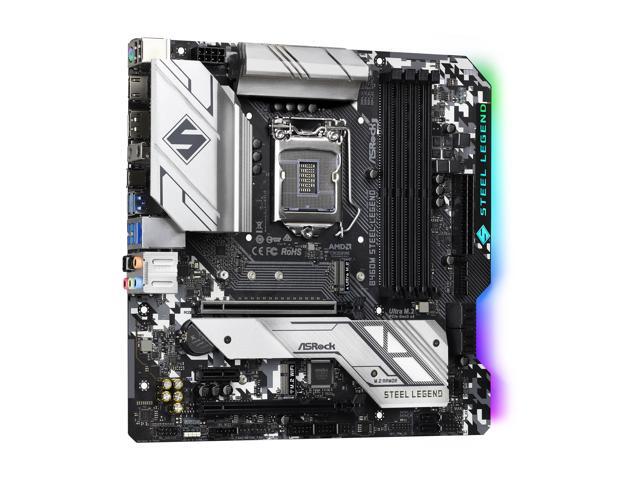

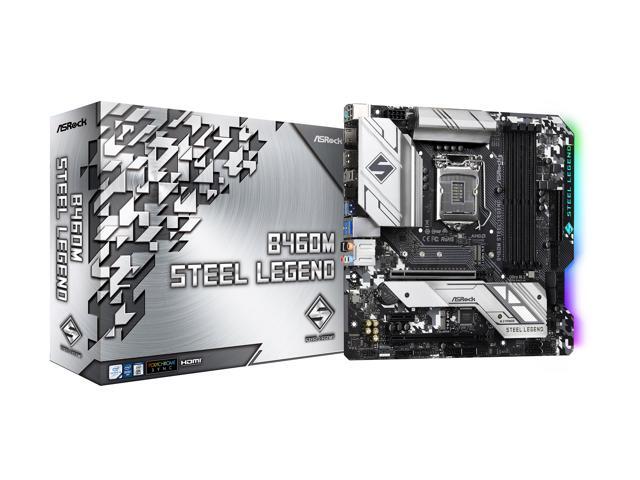

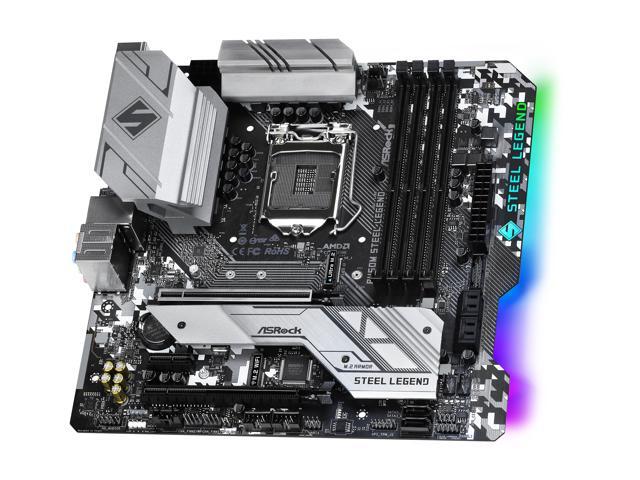

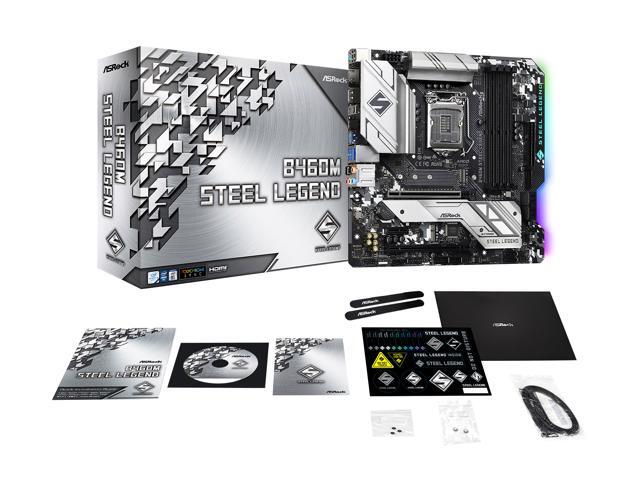

ASRock B460M STEEL LEGEND LGA 1200 Intel B460 SATA 6Gb/s Micro ATX Intel Motherboard

In stock.
Ships from United States.
Most customers receive within 5-9 days.
  • Intel B460
  • Supports 10th Gen Intel Core Processors (Socket 1200)
  • Supports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory
Specs
Reviews

Learn more about the ASRock B460M STEEL LEGEND

Model
Brand ASRock
Model B460M STEEL LEGEND
Supported CPU
CPU Socket Type LGA 1200
CPU Type Supports 10th Gen Intel Core Processors (Socket 1200)
Supported CPU Technologies Turbo Boost Technology 3.0
Chipsets
Chipset Intel B460
Onboard Video
Onboard Video Chipset Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports

* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
** VP9 10bit and VC-1 are for decode only.
** VP8 and VP9 encode are not supported by Windows OS.
Memory
Number of Memory Slots 4×288pin
Memory Standard Supports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory*
* Please refer to Memory Support List on ASRock's website for more information.
* Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported 128GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
* Supports NVMe SSD as boot disks
PCI Express x1 1 x PCI Express 3.0 x1 Slot
Other Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Storage Devices
SATA 6Gb/s 6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
M.2 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**

** Supports Intel Optane Technology (M2_1)
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Intel Optane Ready Yes
SATA RAID RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17
Onboard Audio
Audio Chipset Realtek ALC1200
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Dragon RTL8125BG
Max LAN Speed 10/100/1000/2500Mbps

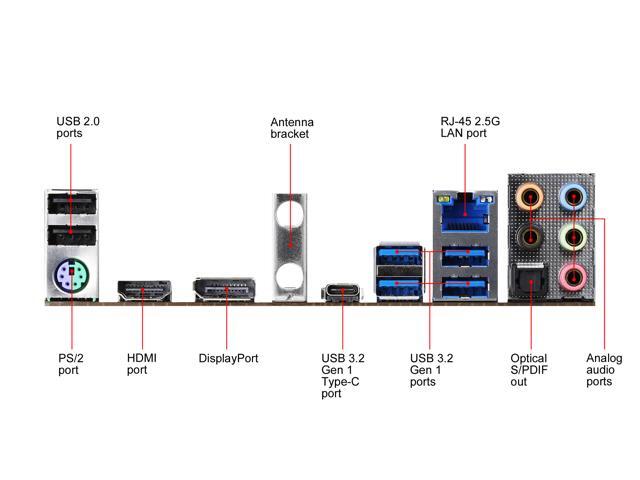

Rear Panel Ports
Back I/O Ports 1 x Antenna Bracket
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors 1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x RGB LED Header*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only)

* Supports in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor Micro ATX
LED Lighting RGB
Dimensions (W x L) 9.6" x 9.6"
Power Pin 1 x 24-pin ATX Power Connector (Hi-Density Power Connector)
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
Windows Compatibility
Windows 11 Supported
Features
Features Unique Feature:
ASRock Super Alloy
- Premium 60A Power Choke
- 50A Dr.MOS
- Combo Caps (Nichicon 12K Black Caps)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Shaped PCB Design
- Matte Black PCB
- High Density Glass Fabric PCB 2.5G LAN
ASRock Steel Slot ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

BIOS:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment

Software and UEFI:
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
* These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor:
- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST

OS:
- Microsoft Windows 10 64-bit

Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Additional Information
Date First Available May 06, 2021

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
