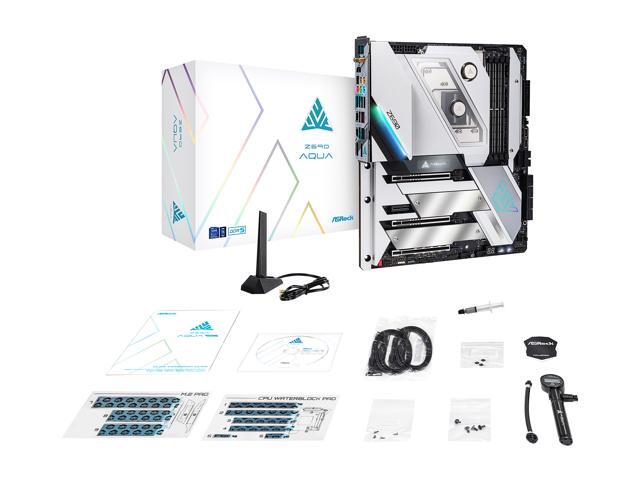

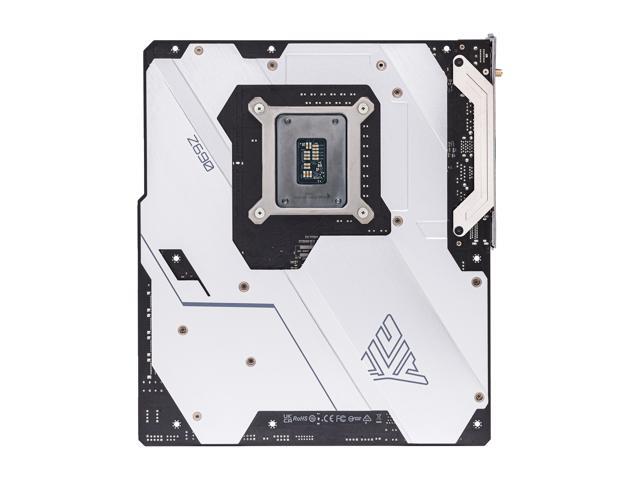

ASRock Z690 AQUA LGA 1700 DDR5 Intel Z690 Intel Motherboard

In stock. Limit 10 per customer.
Ships from United States.
  • Z690 PHANTOM GAMING 4
  • Z690 AQUA
  • Z690 AQUA OC
  • Z690 EXTREME
  • Z690 EXTREME WIFI 6E
  • Z690 PG RIPTIDE
  • Z690 PG VELOCITA
  • Z690 PHANTOM GAMING4/D5
  • Z690 PHANTOM GAMING-ITX/TB4
  • Z690 PRO RS
  • Z690 STEEL LEGEND
  • Z690 STEEL LEGEND WIFI 6E
  • Z690 STEEL LEGEND/D5
  • Z690 TAICHI
  • Z690 TAICHI RAZER EDITION
  • Z690M-ITX/AX
  • Z690M PG RIPTIDE/D5
  • Z690M PHANTOM GAMING 4
  • Supports 12th Gen Intel Core Processors (LGA1700)
  • 20 Phase SPS Dr.MOS Power Design
  • Supports DDR5 6400MHz (OC)
  • 2 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, 2 Thunderbolt Type-C
  • Realtek ALC1220 7.1 CH HD Audio Codec, ESS SABRE 9218 DAC, WIMA Audio Caps, Nahimic Audio
  • 8 SATA3
  • 1 Hyper M.2 (PCIe Gen4 x4)
  • 2 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 2 Thunderbolt 4/USB4 Type-C
  • 2 USB 3.2 Gen2x2 Front Type-C
  • 2 Rear USB 3.2 Gen2 Type A
  • 8 USB 3.2 Gen1 (4 Rear, 4 Front)
  • AQUANTIA / Marvell 10G LAN, Killer E3100 2.5G LAN
  • Killer AX1675 802.11ax (WiFi 6E) + Bluetooth
  • Status OLED + Polychrome SYNC
  • Dedicated LGA1700 mounting bracket is required
Specs
Reviews

Learn more about the ASRock Z690 AQUA

Model
Brand ASRock
Model Z690 AQUA
Supported CPU
CPU Socket Type LGA 1700

* Dedicated LGA1700 mounting bracket is required.
CPU Type Supports 12th Gen Intel Core Processors
Supports Intel Pentium / Celeron Processors
Supported CPU Technologies Turbo Boost Technology 3.0
Chipsets
Chipset Intel Z690
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 6400+(OC)*

* Supports DDR5 4400 (1DPC) / 3600 (2DPC) natively.
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 5.0 x16 2 x PCI Express 5.0 x16

* Supports NVMe SSD as boot disks.
PCI Express 4.0 x16 1 x PCI Express 4.0 x16

* Supports NVMe SSD as boot disks.
PCI Express x1 1 x PCIe Gen3 x1
Other Slots 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage Devices
SATA 6Gb/s 8 x SATA 6Gb/s

* If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
M.2 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) mode*

1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) mode*

* Supports Intel Optane Technology (M2_2 and M2_3 only).
* Supports Intel Volume Management Device (VMD).
* Supports NVMe SSD as boot disks.
* Supports ASRock U.2 Kit.
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1220
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Marvell (Aquantia) AQC113CS
Second LAN Chipset Killer E3100G
Max LAN Speed 10Gbps + 10/100/1000/2500Mbps
Wireless LAN 802.11ax Wi-Fi 6E Module
IEEE 802.11a/b/g/n/ax
Bluetooth Yes
Rear Panel Ports
Back I/O Ports 2 x Antenna Ports
1 x HDMI Port
2 x DisplayPort 1.4 Input
1 x Optical SPDIF Out Port
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
2 x USB4 Thunderbolt 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection)*
4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)**
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
1 x BIOS Flashback Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)

* Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging.
** USB3_2, USB3_3 and USB3_4 are from ASMedia ASM1074; USB3_1 is from ASMedia ASM3042.
** USB3_1 and USB3_2 are the Lightning Gaming Ports.
** Ultra USB Power is supported on USB3_3 and USB3_4 ports.
** ACPI wake-up function is not supported on USB3_3 and USB3_4 ports.
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
2 x Front Panel Type C USB 3.2 Gen2x2 Headers (20 Gb/s) (Support ESD Protection)
Other Connectors 1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
1 x Retry Button
1 x Safe Boot Button

* Supports in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CPU_FAN2/WP_3A, CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor Extended ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 10.5"
Power Pin 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
Windows Compatibility
Windows 11 Supported
Features
Features Unique Feature:
ASRock USB4
- ASRock USB4 Thunderbolt 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) ASRock USB 3.2 Gen2
- ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium Power Choke
- 105A SPS (Smart Power Stage)
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron power choke)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
- 12 Layer PCB
- 2oz Copper PCB
AQUA Cooling Armor
Server-Grade Low-Loss PCB
Marvell (Aquantia) 10G LAN
AQUANTIA 10G LAN
Killer 2.5G LAN
802.11ax Wi-Fi 6E
Killer DoubleShot Pro
ASRock Auto Driver Installer
ASRock Steel Slots
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Ultra USB Power
ASRock Status OLED
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

BIOS:
- 256Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, VCCIN_AUX, VDD2, DRAM(VDD, VDDQ, VPP), +1.8V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH, CPU Core PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL, Atom Core PLL Voltage Multi-adjustment

Software and UEFI:
Software
- ASRock Motherboard Utility (A-Tuning)
- Killer Control Center
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
* These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

OS:
- Microsoft Windows 10 64-bit / 11 64-bit
Additional Information
Date First Available January 19, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
