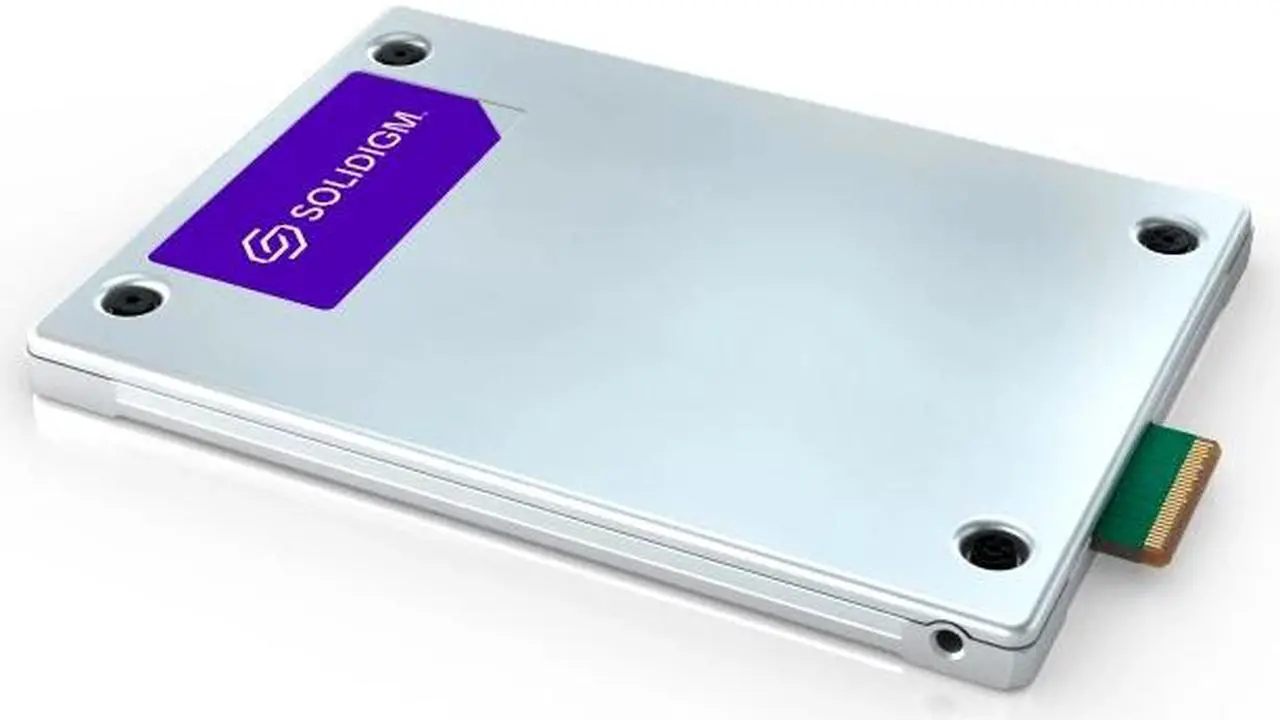

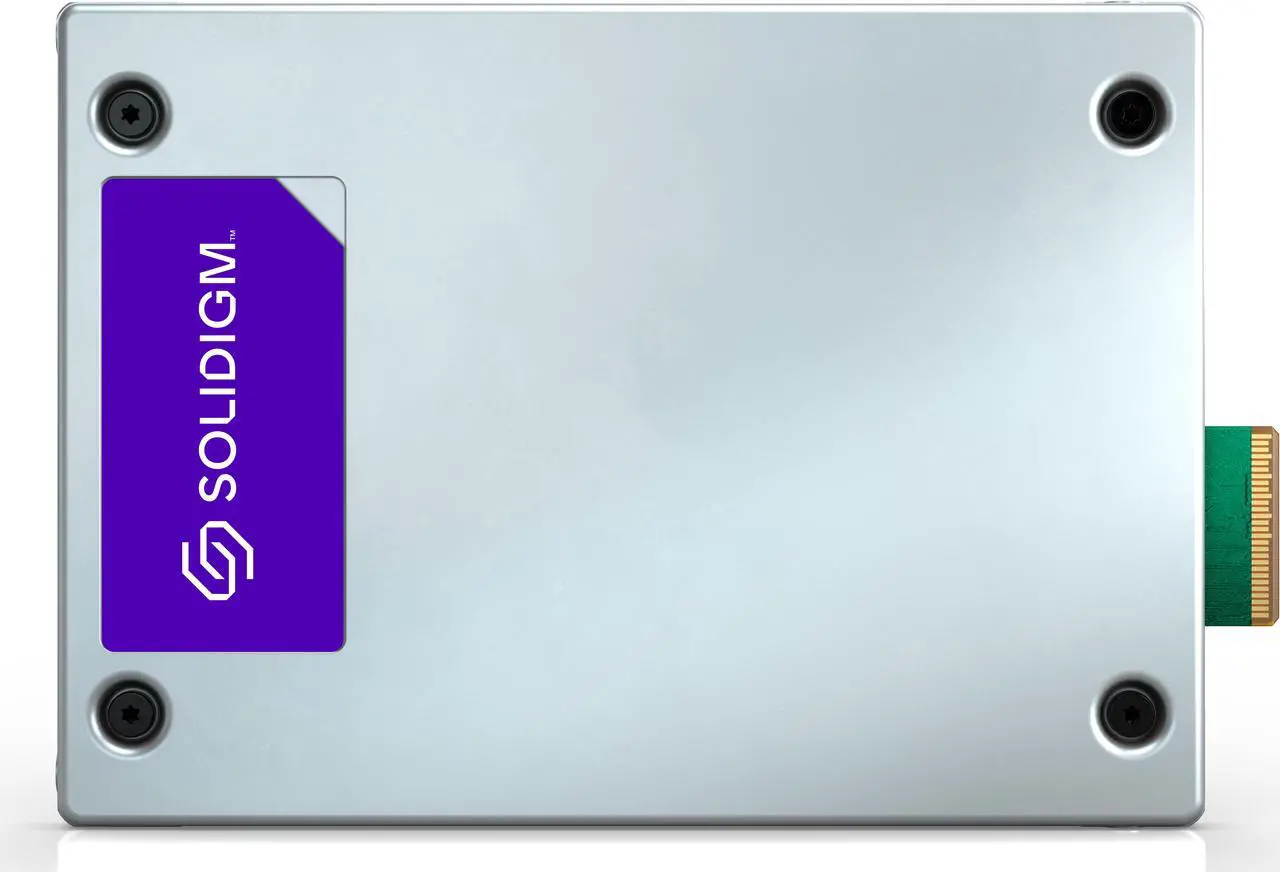

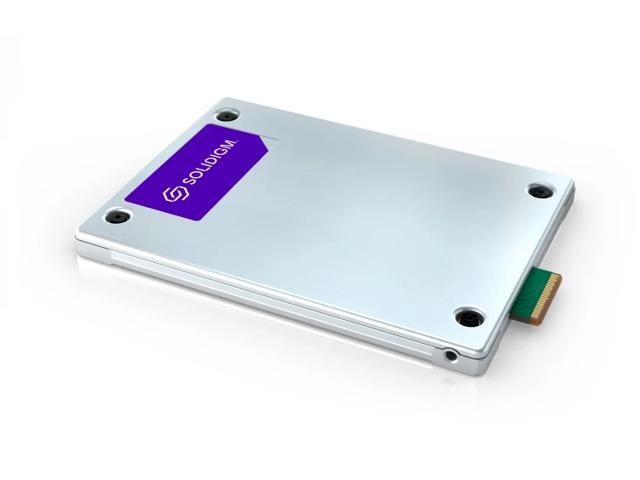

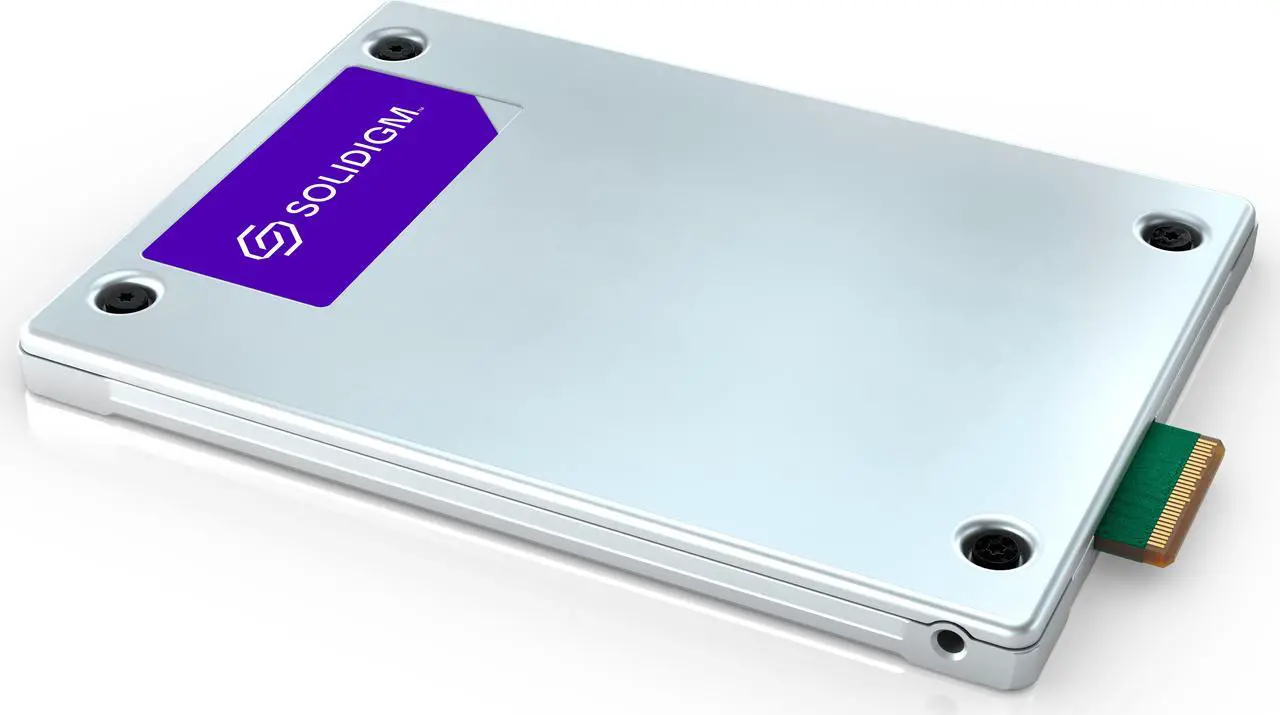

Solidigm Solid State Drive D5-P5430 Series (30.72 TB, E3.S 7.5mm PCIe 4.0 x4, 3D5, QLC) Generic Opal Single Pack Data Center / Server / Internal SSD (SBFPFABU307TOP1)
- E3.S 7.5mm
- 192L QLC 3D NAND
- PCI-Express 4.0
- 30.72TB
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Solidigm D5-P5430
| Brand | Solidigm |
|---|---|
| Model | D5-P5430 |
| Part Number | SBFPFABU307TOP1 |
| Form Factor | E3.S 7.5mm |
|---|---|
| Capacity | 30.72TB |
| Memory Components | 192L QLC 3D NAND |
| Interface | PCI-Express 4.0 |
| Max Sequential Read | Up to 7000 MBps |
|---|---|
| Max Sequential Write | Up to 3000 MBps |
| 4KB Random Read | 971000 IOPS (4K, QD256) |
| 4KB Random Write | 85000 IOPS (8K, QD256) |
| Endurance | Up to 0.56 DWPD (8K RW) / Up to 31.22 PBW |
| MTBF | 2,000,000 hours |
| Security | Opal |
| Power Consumption (Idle) | 5W |
|---|---|
| Power Consumption (Active) | 25W |
| Operating Temperature | 0°C ~ +70°C |
| Max Shock Resistance | 1,000 G (Max) at 0.5 msec |
| Max Vibration Resistance | Operating: 2.17 GRMS (5 - 700 Hz) Max Non-Operating: 3.13 GRMS (5 - 800 Hz) Max |
| Weight | 93.5g |
|---|
| Date First Available | January 13, 2025 |
|---|
