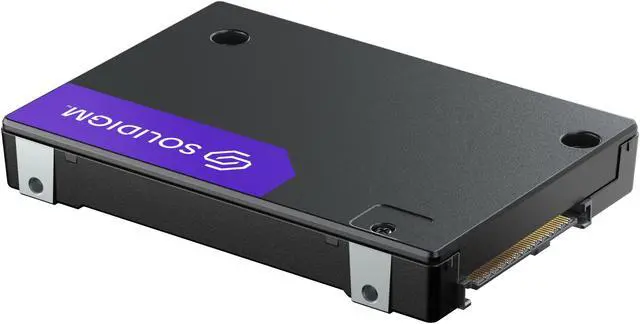

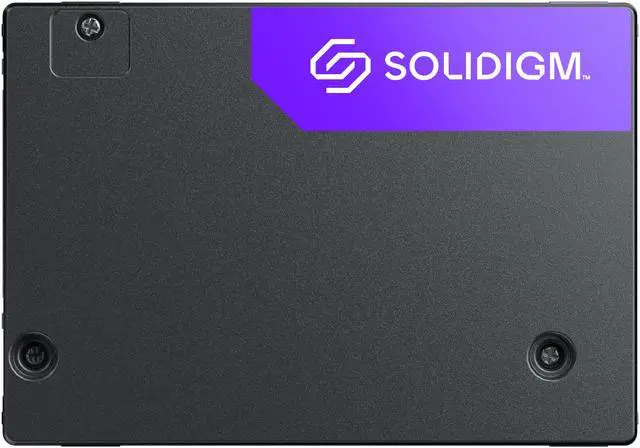

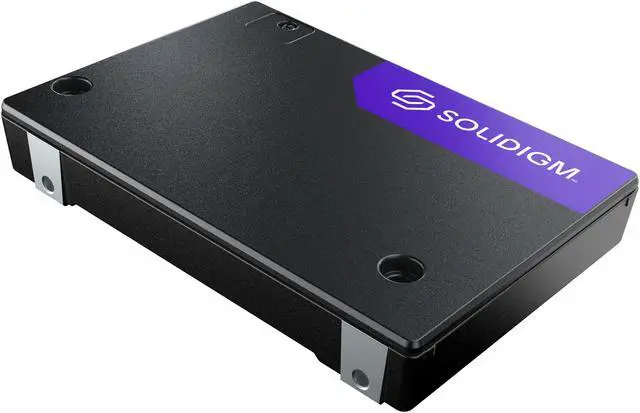

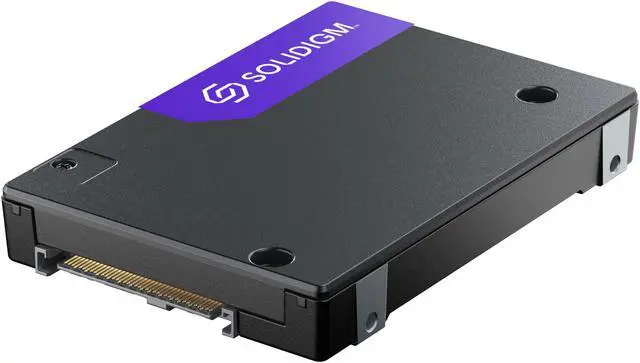

Solidigm Solid State Drive D7-PS1030 Series (3.2TB, U.2 15mm, PCIe 5.0 x4, V7, TLC) Generic FIPS Single Pack Data Center / Server / Internal SSD (SB5PH27E032TOF1)
- U.2 15mm
- 176L TLC 3D NAND
- PCI-Express 5.0
- 3.2TB
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Solidigm D7-PS1030
| Brand | Solidigm |
|---|---|
| Model | D7-PS1030 |
| Part Number | SB5PH27E032TOF1 |
| Form Factor | U.2 15mm |
|---|---|
| Capacity | 3.2TB |
| Memory Components | 176L TLC 3D NAND |
| Interface | PCI-Express 5.0 |
| Max Sequential Read | Up to 14500 MBps |
|---|---|
| Max Sequential Write | Up to 8200 MBps |
| 4KB Random Read | 3100000 IOPS (4K Blocks) |
| 4KB Random Write | 716000 IOPS (4K Blocks) |
| Endurance | 3 DWPD / 17.5 PBW |
| MTBF | 2,500,000 hours |
| Security | FIPS |
| Power Consumption (Idle) | 5W |
|---|---|
| Power Consumption (Active) | 19W |
| Operating Temperature | 0°C to 77°C |
| Max Shock Resistance | 1,000 G (Max) at 0.5 msec |
| Max Vibration Resistance | Operating: 2.17 GRMS (5 - 700 Hz) Max Non-Operating: 3.13 GRMS (5 - 800 Hz) Max |
| Weight | 140g +/- 10g |
|---|
| First Listed on Newegg | January 13, 2025 |
|---|
