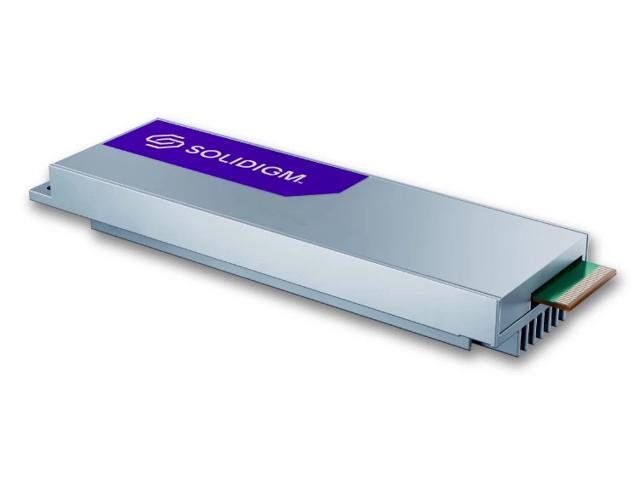

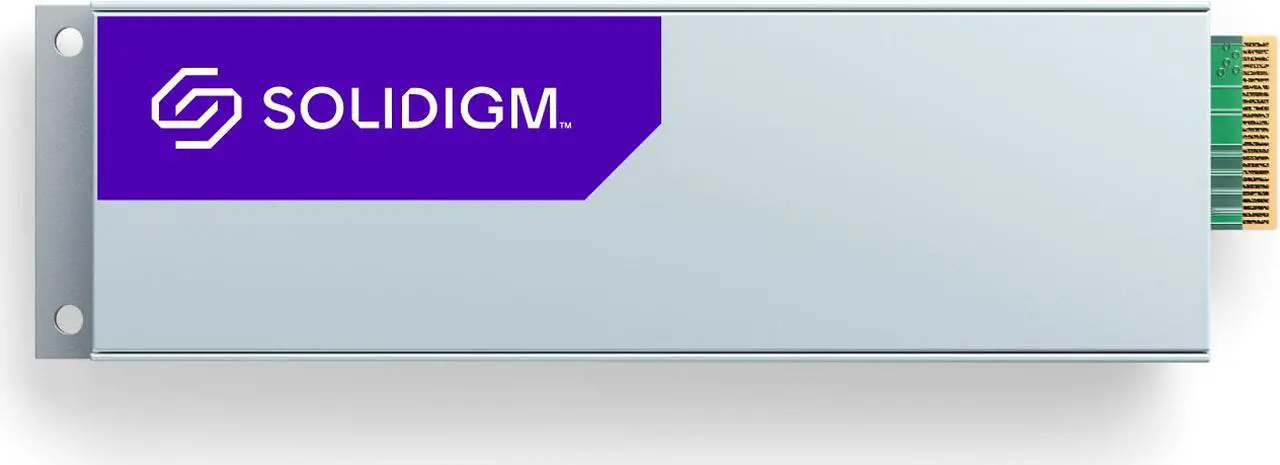

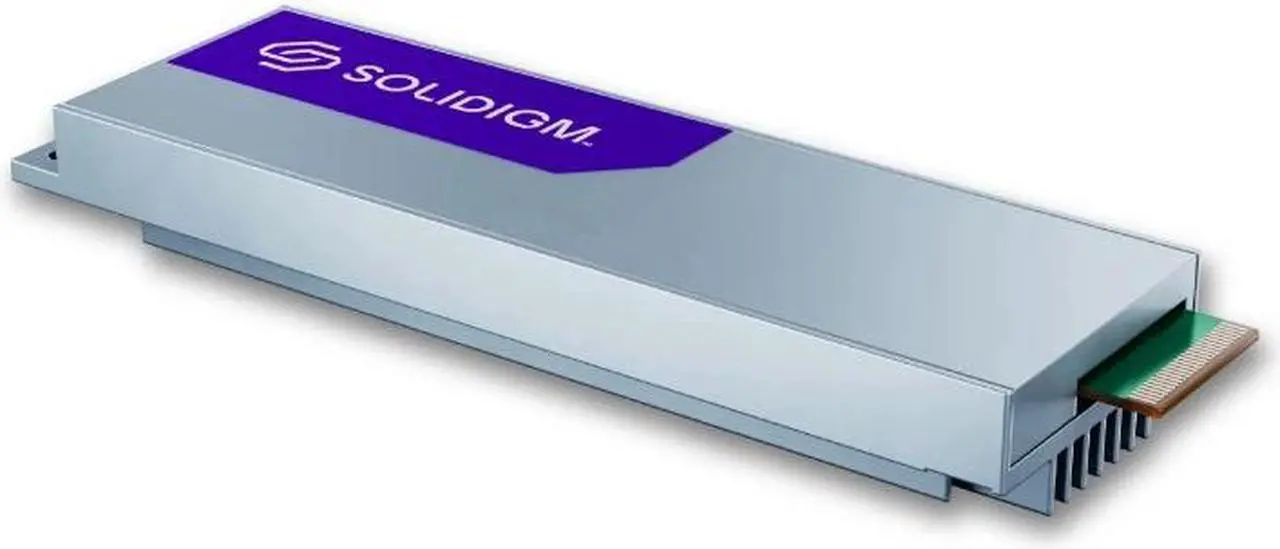

Solidigm Solid State Drive D7-P5520 Series (7.68TB, EDSFF S 15mm PCIe 4.0 x4, 3D4, TLC) Generic OPAL Single Pack Data Center / Server / Internal SSD (SSDPFVKX076T1OS)
- E1.S 15mm
- 144L TLC 3D NAND
- PCI-Express 4.0 x4
- 7.68TB
+
+
Specs
Reviews
Learn more about the Solidigm D7-P5520
| Brand | Solidigm |
|---|---|
| Model | D7-P5520 |
| Part Number | SSDPFVKX076T1OS |
| Form Factor | E1.S 15mm |
|---|---|
| Capacity | 7.68TB |
| Memory Components | 144L TLC 3D NAND |
| Interface | PCI-Express 4.0 x4 |
| Max Sequential Read | Up to 6600 MBps |
|---|---|
| Max Sequential Write | Up to 4200 MBps |
| 4KB Random Read | 1100000 IOPS (4K Blocks) |
| 4KB Random Write | 220000 IOPS (4K Blocks) |
| Endurance | 14.0 PBW |
| MTBF | 2,000,000 hours |
| Security | Opal |
| Power Consumption (Idle) | 5W |
|---|---|
| Power Consumption (Active) | 18W |
| Operating Temperature | 0°C ~ +70°C |
| Max Shock Resistance | 1,000 G (Max) at 0.5 msec |
| Max Vibration Resistance | Operating 2.17 GRMS (5 - 700 Hz) Max Non-Operating 3.13 GRMS (5 - 800 Hz) Max |
| Weight | 84g +/- 5g |
|---|
| Date First Available | January 16, 2025 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 5 years
- Limited Warranty period (labor): 5 years
- Read full details
Return Policies
- Return for refund within: non-refundable
- Return for replacement within: non-replaceable
- This item is covered by Newegg.com's Manufacturer Only Return Policy. Read full return policy for details.
