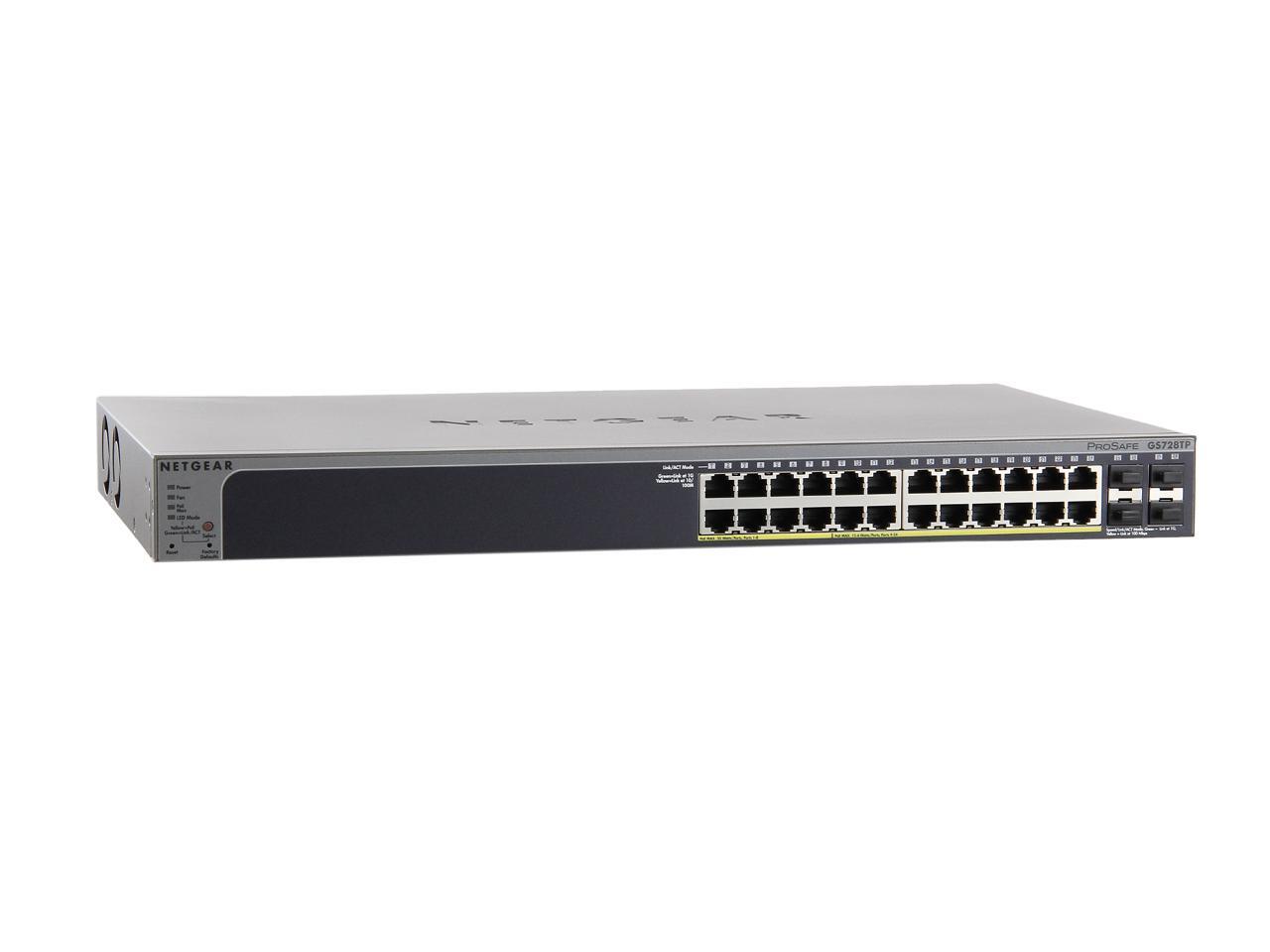

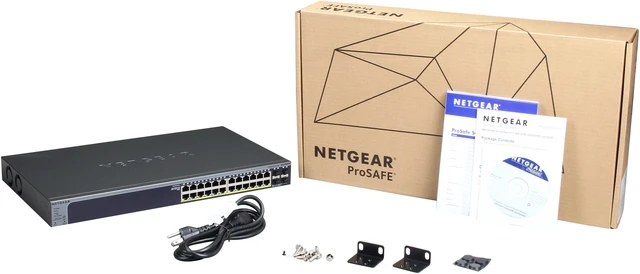

NETGEAR 24-Port Gigabit Ethernet Smart Managed Pro Switch, PoE/PoE+, 192w, 4 SFP, ProSAFE Lifetime Protection (GS728TP)

Network Protocols: IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3ae 10-Gigabit Ethernet IEEE 802.3ad Trunking (LACP) IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) IEEE 802.1p Class of Service IEEE 802.3 af (PoE) Interface: 24x 10/100/1000Mbps Auto-sensing Gigabit-Ethernet Switching Ports 4x Dedicated 1000M SFP Fiber Ports PoE Ports: Port 1-8: IEEE 802.3at PoE+, Providing up to 30W of DC Power through Each Port Port 9-24: IEEE 802.3af PoE, Providing up to 15.4W of DC Power through Each Port Performance: Forwarding Modes: Store-and-Forward Bandwidth: 56 Gbps Addressing: 48-bit MAC address MAC Address Database Size: 8, 000 media access control (MAC) addresses 4 Priority Queues Priority Queuing: Weighted Round Robin (WRR) 1K Multicast Groups 32 Static Routes 15 Routed VLANs 1024 ARP Cache Entries 8K DHCP Snooping Bindings 1024 DHCP Static Entries 480 Rules Shared for MAC, IP and IPv6 ACLs Packet Size of 9k for Jumbo Frame Support Acoustic Noise: 31.8 dBA Heat Dissipation: 901.2 Btu/H @ AC 97VAC/47Hz and full PoE load Mean Time Between Failures (MTBF): 345, 901 hours Network Security: IEEE 802.1x Guest VLAN RADIUS based VLAN assignment via .1x MAC-based .1x Network Storm Protection Broadcast, Unicast, Multicast Protection L2 Services: VLANs: IEEE 802.1Q VLAN Tagging Video VLAN Voice VLAN - Based on phones OUI bytes (internal database, or usermaintained) or protocols (SIP, H323 and SCCP) Availability: IEEE 802.3ad - LAGs LACP (8 LAGS w/ max. of 8 members in each LAG) Broadcast Storm Control IEEE 802.3x (Full Duplex and flow control) IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree IEEE 802.1s Multiple Spanning Tree Multicast Filtering: IGMP Snooping (v1, v2 and v3) MLD Snooping Support (v1 and v2) IGMP Snooping queriers Block unknown Multicast L3 Services: DHCP: DHCP Client, DHCP Snooping IPv4 Routing: Static Routing, VLAN Routing Quality of Service (QoS) Access Lists L2 MAC, L3 IP and L4 Port ACLs Ingress rate limiting Egress rate limiting Support for IPv6 fields DiffServ QoS IEEE 802.1p COS Dst MAC and IP IPv4 and v6 DSCP IPv4 and v6 TOS WRR (Weighted Round Robin) Strict Priority queue technology Auto-VoIP - Yes, based on protocols (SIP, H323 and SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address Auto Video Port Mirroring Management: Password management Configurable Management VLAN Admin access control via Radius and TACACS+ Web-based graphical user interface (GUI) Smart Control Center (SCC) for multiswitch management IPv6 management Dual Software (firmware) image Dual Configuration file SNTP client over UDP port 123 SNMP v1/v2 SNMP v3 with multiple IP addresses RMON 1, 2, 3, 9 Port Mirroring Many to One Port Mirroring Cable Test utility 0 for web-based access TFTP/ File transfers (uploads, downloads) Download (firmware) Syslog (RFC 3164) LEDs: Per Port: Speed, Link, Activity Per Device: Power, Fan, PoE Power Status Power Consumption: 264W (w/ all ports used, line-rate traffic and max PoE) Electromagnetic Emissions and Immunity: CE Mark, Commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 50082-1; EN 55024; CCC Safety: CE Mark, Commercial; CSA Certified (CSA 22.2 #950); UL Listed (UL 1950)/ cUL IEC 950/ EN 60950 Dimensions: 440.0 x 257.0 x 44.0 mm Weight: 3.73 kg Product Type: Ethernet Switch Layer Supported: 2 Product Type: Ethernet Switch Manufacturer Part Number: GS728TP-100NAS Layer Supported: 2 Manufacturer: Netgear, Inc Product Model: GS728TP Product Name: ProSafe GS728TP Ethernet Switch Product Line: ProSafe Brand Name: Netgear Brand Name: Netgear Expansion Slot Type: SFP Expansion Slot Type: SFP Ethernet Technology: Gigabit Ethernet Number of Total Expansion Slots: 4 Product Family: ProSafe Total Number of Network Ports: 24 Ethernet Technology: Gigabit Ethernet Number of Total Expansion Slots: 4 Number of SFP
