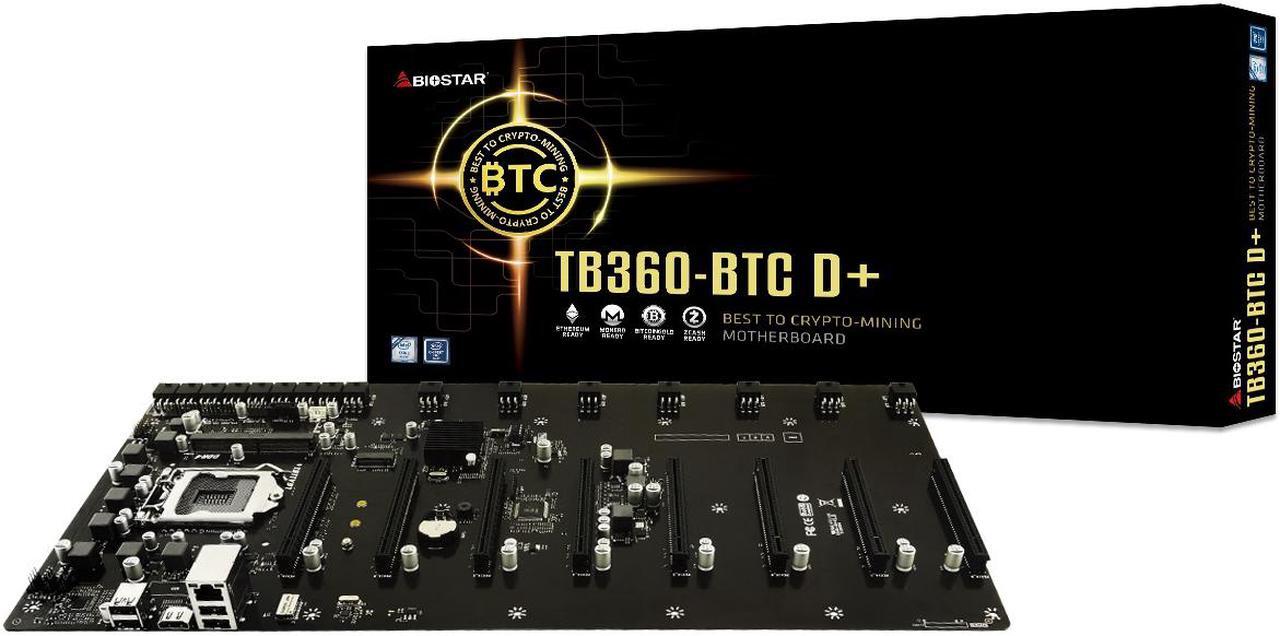

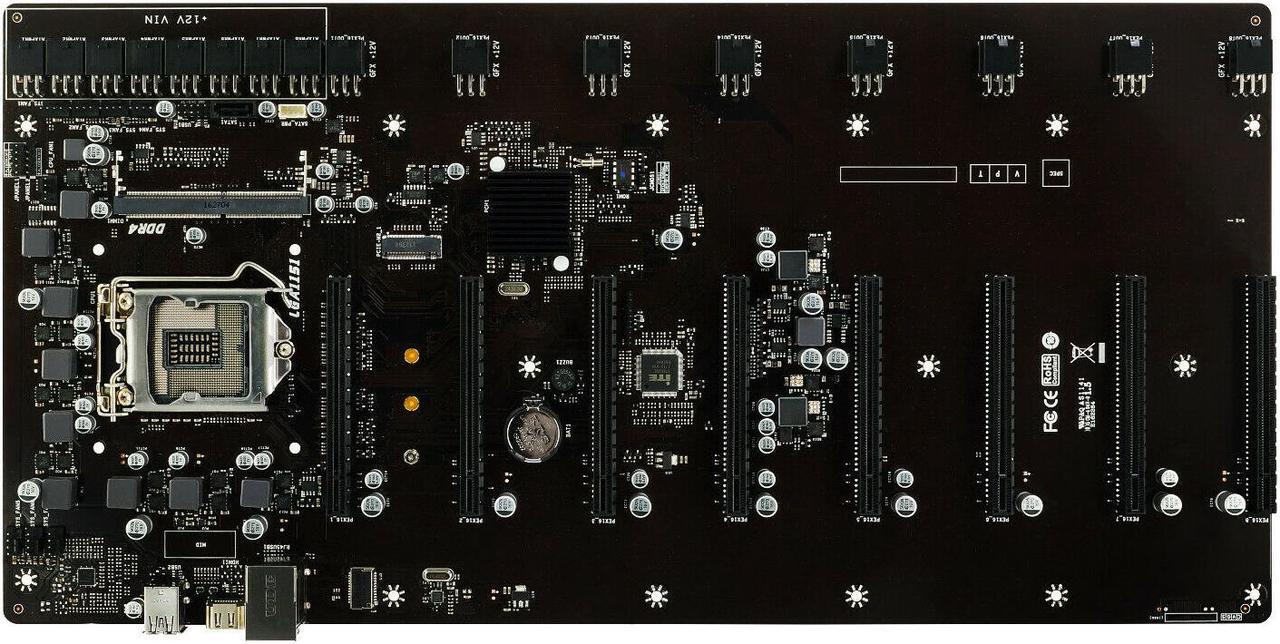

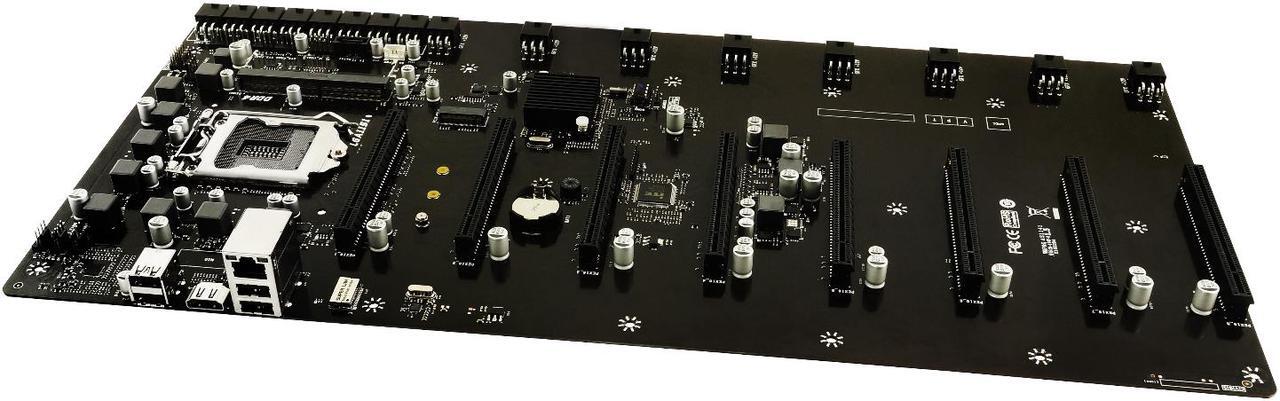

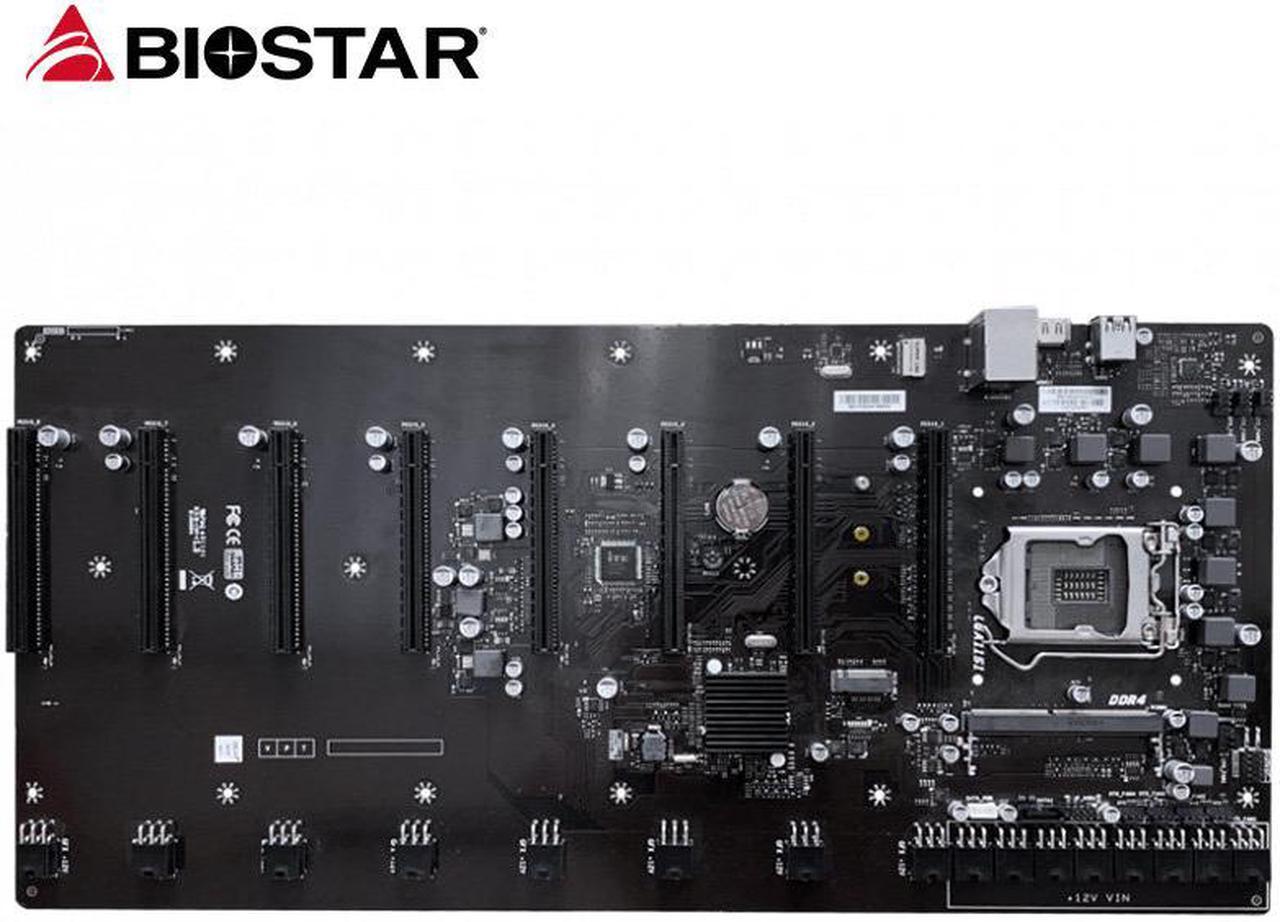

Biostar TB360-BTC D+ LGA1151 SODIMM DDR4 8 GPU Support GPU ATX Motherboard for Cryptocurrency Mining (BTC)
- LGA 1151 Supports 8th and 9th Generation Intel Core Processor
- Intel B360 single chip architecture
- Supports SO-DIMM DDR4-2133/2400/2666 up to 16GB Memory

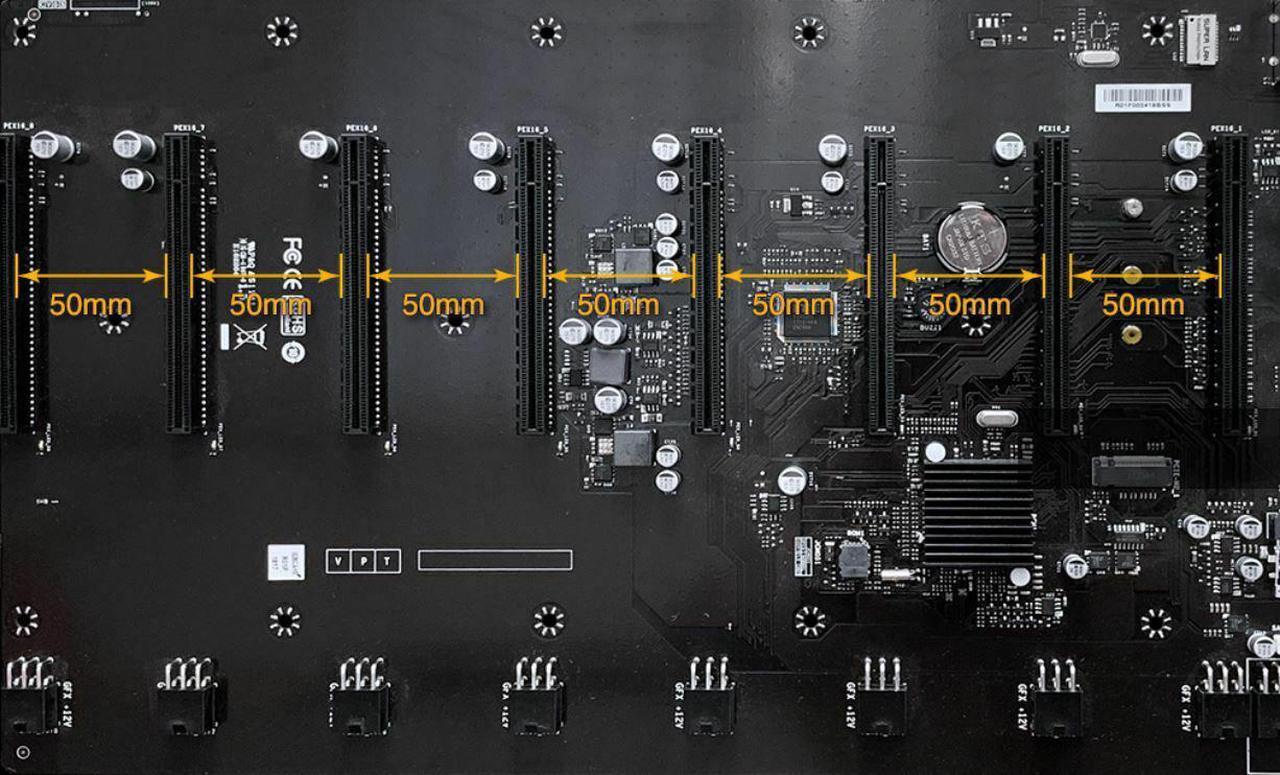

- Supports 8 x PCIe x16 slots (50mm between X16 slots)
- Supports M.2 (16Gb/s) Connector
- Motherboard Dimensions 19.1 Inch x 9.25 Inch ( W x L )
- This motherboard has NO 24 pin ATX power supply connector it uses eight 6 pin PCIe connectors for power and has 8 PCIe connectors as outputs to power GPU's. If using a ATX power supply you will need a 24 pin jumper to start the power supply.
- Your CPU MUST have intergrated graphics. HDMI cable must be plugged into on board HDMI. This can be changed later in the BIOS if desired.
+
+
Overview
Specs
Reviews (1)
Features:
Chipset :Intel B360
CPU SUPPORT
8thand 9th Gen Intel Core i7 LGA 1151 Processor
8thand 9thGen Intel Core i5 LGA 1151 Processor
8thand 9th Gen Intel Core i3 LGA 1151 Processor
8thand 9thGen Intel Pentium LGA 1151 Processor
8th and 9thGen Intel Celeron LGA 1151 Processor
MEMORY
1 x DDR4 SO-DIMM-2133/2400/2666 Memory Slot (Max Supports up to 16GB Memory)
INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP
STORAGE
1 x SATA III Connector (6Gb/s)
1 x M.2 (M Key) 16Gb/s Connector:SupportsPCIe and SATA SSD
LAN
Realtek RTL8111H -10/100/1000Mb/s Controller
USB
6 x USB 2.0 Ports(4 on rear I/Os and 2 via internal headers)
EXPANSION SLOT
8x PCIex16 Slots

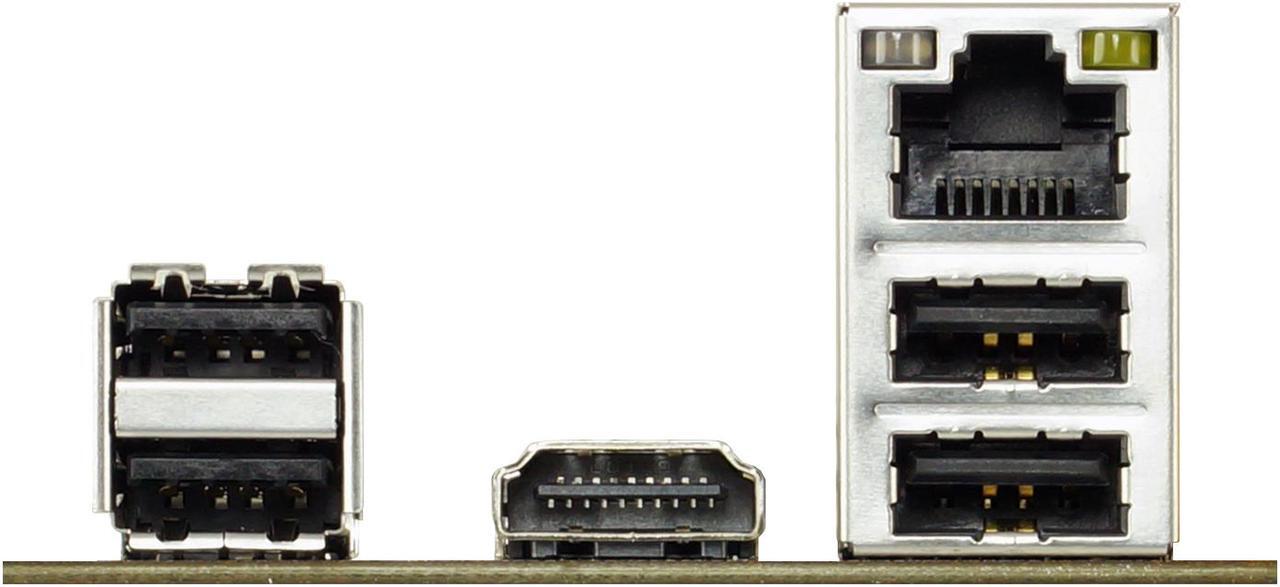

REAR I/O
4 x USB 2.0 Ports
1 x HDMI Connector
1 x LAN PortI
NTERNAL I/O
1 x USB 2.0 Header(each header supports 2 USB 2.0 ports)
1 x SATA III Connector (6Gb/s)
1 x SATA Power Connector(for rear USB power enhancement)
1 x Front Panel Header
1 x CPU Fan Connector
7 x System Fan Connectors
1 x Clear CMOS Header
H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION
Special Form Factor Dimension: 48.5cm x 23.5cm (W x L)
OS SUPPORT
Supports Windows 10(x64)
*BIOSTAR reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE
BullGuard
Package:
2 x SATA Cables
1 x I/O Shield
1 x DVD Driver
1 x User Manual
