GIGABYTE GA-B150N PHOENIX-WIFI Mini ITX Intel Motherboard

REFURBISHED

Be the first to review this product...

Intel B150
Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
DDR4 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Memory Standard: DDR4 2133
Number of Memory Slots: 2 x DIMM
PCI Express x16: 1 x PCI Express x16 slot, running at x16
Audio Chipset: Realtek ALC892
Onboard Video Chipset: Integrated Graphics
Max LAN Speed: 10/100/1000Mbps
CPU Type: Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Maximum Memory Supported: 32GB

Model
Brand	GIGABYTE
Model	GA-B150N PHOENIX-WIFI

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Chipsets
Chipset	Intel B150

Memory
Number of Memory Slots	2 x DIMM
Memory Standard	DDR4 2133
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express x16	1 x PCI Express x16 slot, running at x16

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel
Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Bluetooth	Bluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR

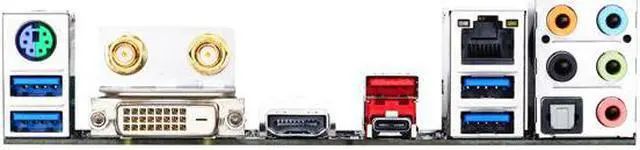

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	1 x USB Type-C with USB 3.1 support/1 x USB 3.1 Type-A port (red)
USB 3.0	4 x USB 3.0 / 2.0
S/PDIF Out	1 x Optical
Audio Ports	5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Antenna Connectors	2 x SMA antenna connectors (2T2R)

Internal I/O Connectors
Onboard USB	1 x USB 3.0/2.0 header + 1 x USB 2.0/1.1 header
Other Connectors	1 x 24-pin ATX main power connector/1 x 8-pin ATX 12V power connector/4 x SATA 6Gb/s connectors/1 x CPU fan header/2 x system fan headers/1 x front panel header/1 x front panel audio header/1 x S/PDIF Out header/1 x speaker header/1 x Clear CMOS jumper/1 x chassis intrusion header

Physical Spec
Form Factor	Mini ITX
Dimensions (W x L)	6.69" x 6.69"
Power Pin	24-pin ATX main power connector/8-pin ATX 12V power connector

Features
Features	Supports 6th Generation Intel Core Processor//Dual Channel DDR4, 2 DIMMs//Fast USB 3.1 with USB Type-C -The World’s Next Universal Connector//11ac 867 Mbps dual band wireless connection + BLUETOOTH 4.2//PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)//8-channel HD Audio with High Quality Audio Capacitors//Intel GbE LAN with cFosSpeed Internet Accelerator Software//Audio Noise Guard with Ambient LED Trace Path Lighting//APP Center Including EasyTune and Cloud Station Utilities//GIGABYTE UEFI DualBIOS Technology

Additional Information
First Listed on Newegg	June 20, 2026
