Main image of GIGABYTE GA-Z270P-D3 (rev. 1.0) ATX Motherboards - Intel

Alt view image 2 of 5 - GIGABYTE GA-Z270P-D3 (rev. 1.0) ATX Motherboards - Intel

Alt view image 3 of 5 - GIGABYTE GA-Z270P-D3 (rev. 1.0) ATX Motherboards - Intel

Alt view image 4 of 5 - GIGABYTE GA-Z270P-D3 (rev. 1.0) ATX Motherboards - Intel

Alt view image 5 of 5 - GIGABYTE GA-Z270P-D3 (rev. 1.0) ATX Motherboards - Intel

Shop All GIGABYTE Products | Visit DoDo DIY Store

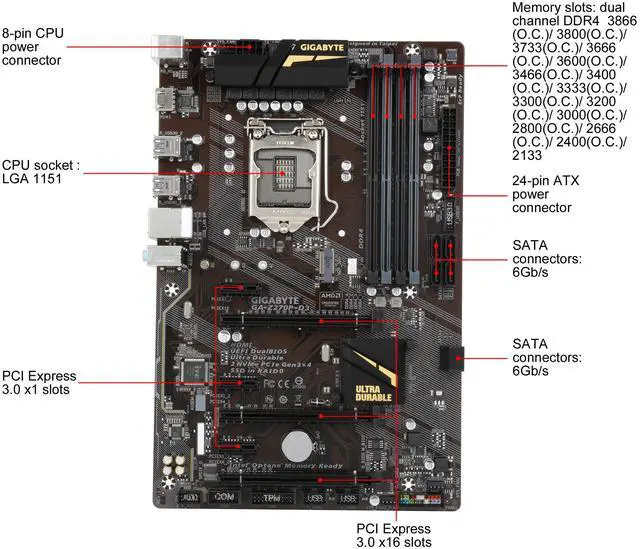

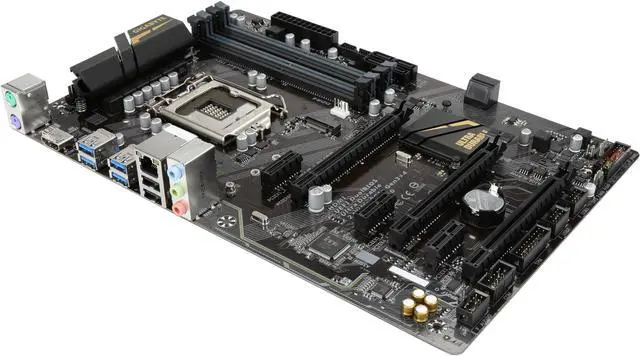

GIGABYTE GA-Z270P-D3 (rev. 1.0) ATX Motherboards - Intel

REFURBISHED

Be the first to review this product...

Intel Z270
Support for 7th and 6th generation Intel Core i7/i5/i3 processors / Intel Pentium/Celeron processors in the LGA1151 package
* Not Compatible with Intel 8th Gen CPUs
DDR4 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400/ 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Memory Standard: DDR4 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400/ 2133
Number of Memory Slots: 4x288pin (DDR4)
Audio Chipset: Realtek ALC887
PCI Express 3.0 x16: 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
Onboard Video Chipset: Integrated Graphics Processor - Intel HD Graphics support
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Maximum shared memory of 1GB
Max LAN Speed: 10/100/1000Mbps
CPU Type: Support for 7th and 6th generation Intel Core i7/i...

Model
Brand	GIGABYTE
Model	GA-Z270P-D3 (rev. 1.0)

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Chipsets
Chipset	Intel Z270

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400/ 2133
Maximum Memory Supported	64GB / * Due to a Windows 32-bit operating system limitation, when more than 4GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16) / * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. / 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
PCI Express x1	3 x PCI Express x1 slots / (All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	2/4/5.1/7.1-channel / Support for S/PDIF Out

Onboard LAN
LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	1Gbps

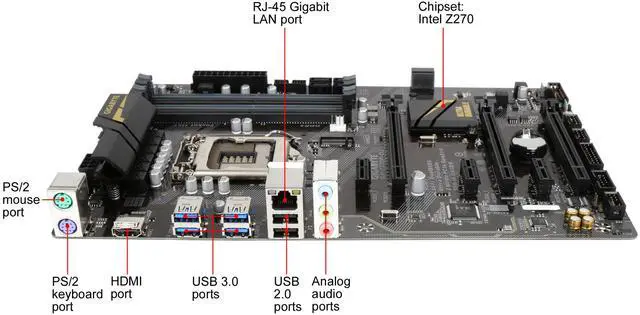

Rear Panel Ports
Back I/O Ports	1 x HDMI / 2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 Type-A
PS/2	1 x PS/2 mouse port / 1 x PS/2 Keyboard port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	4 x USB 3.1 Gen 1 ports
USB 1.1/2.0	2 x USB 2.0
Audio Ports	3 x audio jacks (Line In, Line Out, Mic In)

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 1 header / 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header / 2 x system fan headers / 1 x system fan/water cooling pump header / 1 x front panel header / 1 x front panel audio header / 1 x S/PDIF Out header / 1 x Trusted Platform Module (TPM) header / 1 x serial port header / 1 x Clear CMOS jumper

Physical Spec
Form Factor	ATX

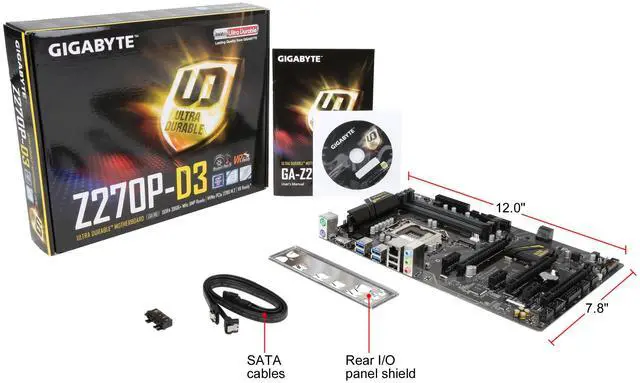

Dimensions (W x L)	12.0" x 7.8"
Power Pin	1 x 24-pin ATX main power connector / 1 x 8-pin ATX 12V power connector

Features
Features	Multi-Graphics Technology: / Support for AMD Quad-GPU CrossFireX and 2-Way AMD CrossFire technologies (PCIEX16 and PCIEX4) / / I/O Controller: / iTE I/O Controller Chip / / H/W Monitoring: / Voltage detection / Temperature detection / Fan speed detection / Overheating warning / Fan fail warning / Fan speed control / * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. / / BIOS: / 2 x 64 Mbit flash / Use of licensed AMI UEFI BIOS / Support for DualBIOS / PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 / / Unique Features: / Support for APP Center / * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. / 3D OSD / @BIOS / Ambient LED / AutoGreen / BIOS Setup / Color Temperature / Cloud Station / EasyTune / Easy RAID / Fast Boot / Game Boost / ON/OFF Charge / Platform Power Management / Smart Backup / Smart Keyboard / Smart TimeLock / System Information Viewer / USB Blocker / V-Tuner / Support for 3TB+ Unlock / Support for Q-Flash / Support for Xpress Install / / Bundled Software: / Norton Internet Security (OEM version) / Intel Optane Memory Ready / cFosSpeed / / Operating System: / Windows 10 64-bit (for 7th Generation Intel Processors) / Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bit (for 6th Generation Intel Processors) / * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
