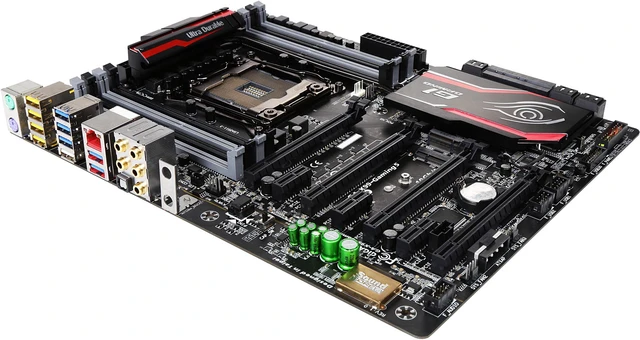

Main image of GIGABYTE G1 Gaming GA-X99-GAMING 5 LGA 2011-v3 Intel X99 SATA 6Gb/s USB 3.0 ATX Intel Motherboard (Certified Refurbished)

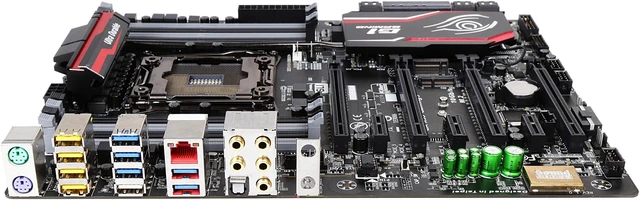

Alt view image 2 of 5 - GIGABYTE G1 Gaming GA-X99-GAMING 5 LGA 2011-v3 Intel X99 SATA 6Gb/s USB 3.0 ATX Intel Motherboard (Certified Refurbished)

Alt view image 3 of 5 - GIGABYTE G1 Gaming GA-X99-GAMING 5 LGA 2011-v3 Intel X99 SATA 6Gb/s USB 3.0 ATX Intel Motherboard (Certified Refurbished)

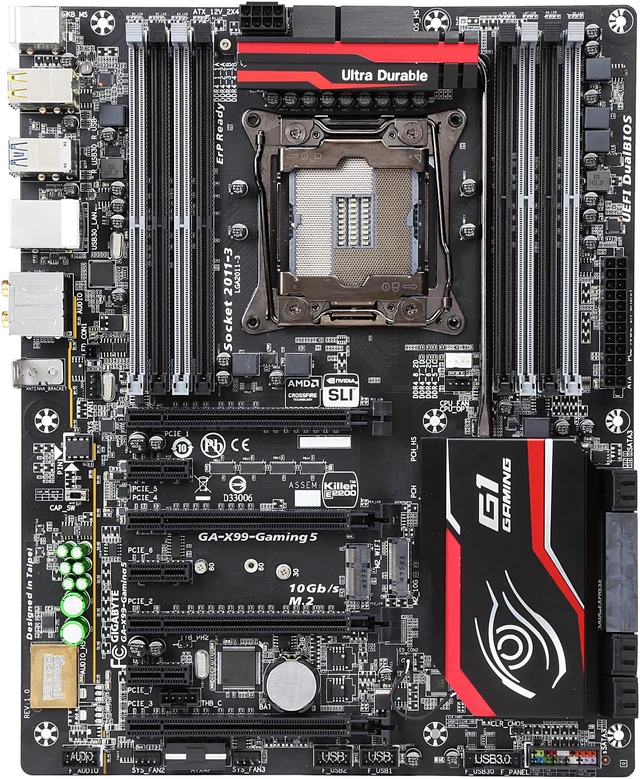

Alt view image 4 of 5 - GIGABYTE G1 Gaming GA-X99-GAMING 5 LGA 2011-v3 Intel X99 SATA 6Gb/s USB 3.0 ATX Intel Motherboard (Certified Refurbished)

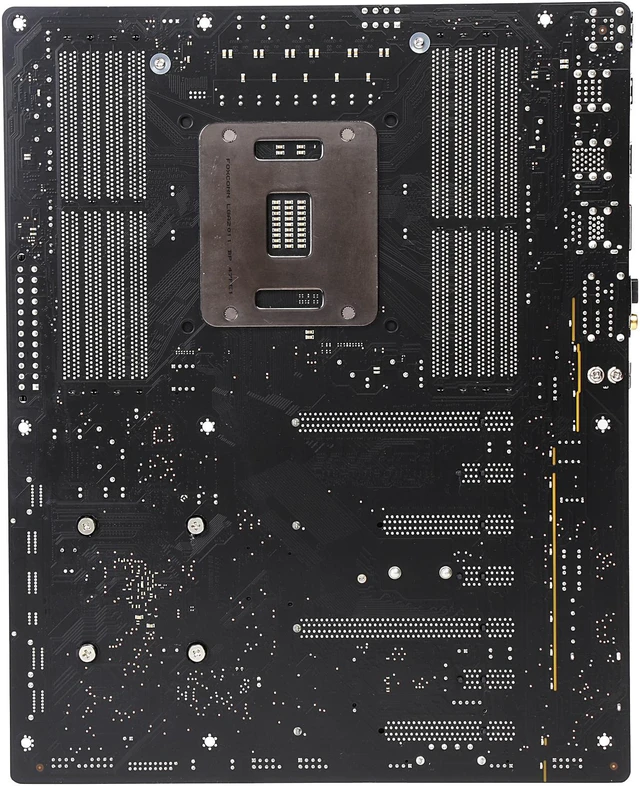

Alt view image 5 of 5 - GIGABYTE G1 Gaming GA-X99-GAMING 5 LGA 2011-v3 Intel X99 SATA 6Gb/s USB 3.0 ATX Intel Motherboard (Certified Refurbished)

Shop All GIGABYTE Products | Visit DoDo DIY Store

GIGABYTE G1 Gaming GA-X99-GAMING 5 LGA 2011-v3 Intel X99 SATA 6Gb/s USB 3.0 ATX Intel Motherboard (Certified Refurbished)

REFURBISHED

Be the first to review this product...

Support Intel Core i7 6950X Processor Extreme Edition
Support Intel Turbo Boost Max Technology 3.0
Supports New Intel Core i7 Processor Extreme Edition
4 Channel DDR4,8 DIMMs
Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage ICs
4-Way Graphics with Premium PCIe Lane
Dual M.2 Technology for SSD Drive and WIFI card
6x(30µ) Gold Plating for CPU socket, Memory DIMMs and PCIe slots
Onboard Creative Sound Core3D quad-core audio processor
AMP-UP Audio technology with exclusive Upgradable OP-AMP
Independent Right and Left Audio Channel PCB Layers
LED lighting for the audio guard light path and the back panel LED
Quad DAC-UP USB ports
Gold plated audio ports
High end Nichicon audio capacitors
Killer E2200 gaming networking
SATA Express support for 10 Gb/s data transfer
Long lifespan Durable Black Solid caps
APP Center including EasyTune and Cloud Station utilities
Thunderbolt Ready
GIGABYTE UEFI DualBIOS with Q-Flash Plus USB port

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Series	G1 Gaming
Model	GA-X99-GAMING 5

Supported CPU
CPU Socket Type	LGA 2011-v3
CPU Type	Core i7 (LGA2011-v3) / Xeon (LGA2011-v3)

Chipsets
Chipset	Intel X99

Onboard Video
Onboard Video Chipset	None

Memory
Number of Memory Slots	8x288pin (DDR4)
Memory Standard	DDR4 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133
Maximum Memory Supported	64GB
Channel Supported	Quad Channel

Expansion Slots
PCI Express x16	2 x PCI Express x16 slots, running at x16 (PCIE_1/PCIE_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots. 2 x PCI Express x16 slots, running at x8 (PCIE_3/PCIE_4) * The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode. * When an i7-5820K CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 operates at up to x4 mode. (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
PCI Express x1	3 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s connectors (SATA3 0~5) 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only (An operating system installed on the SATA3 0~5 connectors cannot be used on the sSATA3 0~3 connectors.)
SATA Express	1 x SATA Express connector
M.2	1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Creative Sound Core3D
Audio Channels	5.1 Channels

Onboard LAN
LAN Chipset	Qualcomm Ateros Killer E2201
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x USB 3.0
PS/2	1 x PS/2 keyboard port 1 x PS/2 mouse port
RJ45	1 x RJ45
USB 3.0	6 x USB 3.0/2.0 ports
USB 1.1/2.0	4 x USB 2.0/1.1 ports
S/PDIF Out	1 x Optical
Audio Ports	5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
Antenna Connectors	2 x Wi-Fi antenna connector holes

Internal I/O Connectors
Onboard USB	2 x USB 3.0 + 4 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x PCIe power connector 1 x I/O shield audio LED power connector 1 x heatsink LED power connector 1 x CPU fan header 1 x water cooling fan header (CPU_OPT) 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Thunderbolt add-in card connector 1 x Clear CMOS jumper 1 x audio gain control switch

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.01" x 9.61"
Power Pin	24 Pin

Features
Features	Supports New Intel Core i7 Processor Extreme Edition 4 Channel DDR4,8 DIMMs Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage ICs 4-Way Graphics with Premium PCIe Lane Dual M.2 Technology for SSD Drive and WIFI card 6x(30µ) Gold Plating for CPU socket, Memory DIMMs and PCIe slots Onboard Creative Sound Core3D quad-core audio processor AMP-UP Audio technology with exclusive Upgradable OP-AMP Independent Right and Left Audio Channel PCB Layers LED lighting for the audio guard light path and the back panel LED Quad DAC-UP USB ports Gold plated audio ports High end Nichicon audio capacitors Killer E2200 gaming networking SATA Express support for 10 Gb/s data transfer Long lifespan Durable Black Solid caps APP Center including EasyTune and Cloud Station utilities Thunderbolt Ready GIGABYTE UEFI DualBIOS with Q-Flash Plus USB port Safer design around screw mounting holes

Packaging

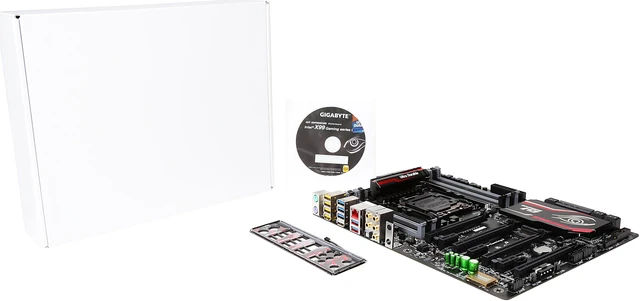

Package Contents	GA-X99-Gaming 5 Motherboard Motherboard Driver Disk User's Manual Quick Installation Guide 6 x SATA Cables 1 x I/O Shield 1 x 2-Way SLI bridge connector 2 x 3-Way SLI bridge connectors (GC-3SLI-X99 and GC-3SLI) 1 x 4-Way SLI bridge connector 1 x 2-Way CrossFire bridge connector 1 x 1 to 3 power cable (2x4 ATX 12V)
