Specifications: Supports up to four HDDs in a single unit with a capacity of up to 8TB per drive, providing an amazing solution for transporting data or backing up your system. Port-Multiplier(normal) mode- showing 4 HDDs respectively
The Forced Convection Process helps speed up the air circulation and heat ventilation to effectively cool the drive and whole system for stable operation and an extended lifespan
No A/C Adapter Required. Direct DC Power Connection to the Unit
Adjustable cooling fan with 3 speeding setting (low, high, and auto)
Specifications: PC Interface:
USB 3.0 / USB 2.0 (USB 1.1 not recommended)
HDD Interface:
2.5”/3.5” SATA I/II/III Hard Disk Drive (HDD) or Solid-State Drive (SSD)
Drive Installation:
Top-Loading Bay (hot-swap and screw-less)
Max. Transfer Rate:
USB 3.0 (up to 5Gbps)
SATA III (6Gbps)
Specifications: Connector(s):
1 - Drive Connectors: M.2 (PCIe, SATA, M-Key, NGFF)
1 - Host Connectors: USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps)
Interface: USB 3.1 Gen 2
Bus Type: USB 3.2 Gen 2 10Gbps
Number of Drives: 1
Drive Size: 22 mm - M.2 NVMe
Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)
Drive Installation: Fixed
Compatible Drive Types: M.2 SATA (NGFF, B+M-Key)
Supported Drive Height(s):
2230
2242
2260
2280
Chipset ID: Realtek - RTL9210B
1 - LED Indicators: Power & Activity
Maximum Data Transfer Rate: 10 Gbps
Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s
UASP Support: Yes
TRIM Support: Yes
4Kn Support: Yes
Type and Rate: NVMe (PCIe Gen 3)
Insertion Rating:
USB-C: 10,000 cycles
M.2: 60 Cycles
General Specifications: Fully compatible with M.2 SATA, AHCI and PCIe NVMe based drive...

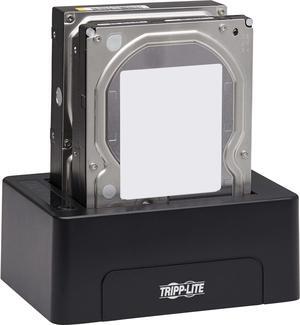

Specifications: Interface: USB 3.0 & eSATA
Number of Drives: 2
Drive Size: 2.5in & 3.5in
Drive Type: SATA
Drive Installation: Removable
Chipset ID: JMicron - JMS562
Drive Connectors: 2 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors:
1 - eSATA (7 pin; Data) Female
1 - USB 3.0 B (9 pin; SuperSpeed) Female
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Type and Rate: SATA III (6 Gbps)
Max Drive Capacity: Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total)
Insertion Rating: 15,000 Cycles
