Specifications: Drive Connectors: 2 - SATA Data & Power Combo (7+15 pin)
Host Connectors: 1 - USB 3.0 B (9 pin; SuperSpeed)
Type and Rate: SATA II (3 Gbps)
Type and Rate: USB 3.0 - 5 Gbit/s
Type: Drive Dock
Maximum Capacity (per Bay): Currently tested with up to 4TB 7200 RPM 3.5" hard drives and 1TB 7200 RPM 2.5" hard drive

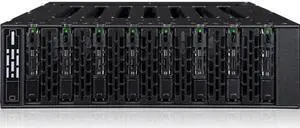

Specifications: Support Drive Size: 8 x M.2 SSD (2230-22110)
Compatible Drive Type: NVMe
Number of Drives: 8
Support Drive Length: M.2 SSD (2230-22110)
Drive Bay: 1 x 5.25" half height bay
Host Interface: 8 x OCuLink(SFF-8612), pin-out defined by SFF - 9402 Rev 1.1
Power Input: 2 x 15pin SATA power connector
Transfer Rate: Up to 64Gbps (Depending on SSD Speed)
Support SSD Capacity: No Limitation
Structure / Material: Full Metal
Drive Activity LED Indication: Drive power: solid green; Drive access: flashing green
M.2 Connector Insertion Rate: 5,000
Humidity: 5%~65% RH
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -35°C to 70°C (-31°F to 158°F)
Compliance: CE, RoHS, REACH
